StarTech.com WIFI2HD2 Manuale utente

Manual Revision: 05/15/2013

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

WIFI2HD2

WiFi to HDMI® Wireless Video Extender with Audio

*actual product may vary from photos

Instruction Manual 2

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual i

Table of Contents

Introduction.................................................................................................. 1

Packaging Contents.......................................................................................................................................1

System Requirements ...................................................................................................................................1

Front View..........................................................................................................................................................2

Rear View............................................................................................................................................................2

Installation .................................................................................................... 3

Software and Driver Installation................................................................................................................3

Hardware Installation ....................................................................................................................................4

Wireless Network Conguration ...............................................................................................................5

How to Use .................................................................................................... 6

Advanced Settings .........................................................................................................................................8

Web Interface Conguration......................................................................................................................9

UPnP Media Streaming.................................................................................................................................11

Troubleshooting........................................................................................... 12

UPnP Supported Formats ........................................................................... 18

Specications................................................................................................ 21

Technical Support ........................................................................................ 22

Warranty Information.................................................................................. 22

Instruction Manual 1

Introduction

Packaging Contents

• 1 x WiFi to HDMI Converter

• 1 x Universal Power Adapter

• 3 x Power Adapter Plugs (NA/ UK/ EU)

• 1 x Installation CD

• 1 x Instruction Manual

System Requirements

• CPU: 2nd Gen Intel® Core™ or better

• RAM: 2GB DDR2-800 or better

• IEEE 802.11N or G wireless network

• HDMI enabled display device (i.e. monitor, projector, HDTV, etc.) with HDMI cable

• Available AC electrical outlet

• Microsoft® Windows® 8, 7, Vista, XP (32/64-bit)

Instruction Manual 2

Front View

Rear View

USB connector Power Button

Power LED

3.5mm Audio connector

(Output) RJ45 Ethernet

connector

DC Power

connector HDMI connector

(Output)

HDMI

Instruction Manual 3

Installation

Software and Driver Installation

1. Insert the included installation CD into the computer’s CD/DVD drive.

2. If AutoPlay runs, choose the option to browse/open the folder. Otherwise you

can access the les on the CD by going into My Computer and double-clicking

the CD/DVD drive.

*photos/screenshots for reference only

3. Run the PC2TV application to begin the driver/software installation wizard.

4. Proceed through the installation wizard until the benchmark application runs.

5. The Benchmark application will test the capabilities/performance of the

computer system to run the video extender software. It will provide a rating

out of 5 stars (see below for description). Click the “Analysis” button to begin.

Instruction Manual 4

Rating Description

1 Star CPU and graphics performance are below minimum recommended levels.

2 Star Music and Photo viewing and web surng are acceptable. Video playback at a very low

screen resolution may be possible.

3 Star Good Music playback and Photo viewing quality. Video playback may still lag.

4 Star Video playback should be smooth.

5 Star Best performance for video playback and all features.

6. After the benchmark is complete, reboot the computer.

7. After the computer has rebooted, there will be an icon for PC2TV that will launch

the software for the video extender.

Hardware Installation

1. Connect a male/male HDMI cable from the rear panel of the video extender

to the remote display.

2. Connect the included power adapter from an electrical outlet to the

video extender.

OPTIONAL: Connect a USB peripheral, such as keyboard/mouse, to the USB

hub port on the wireless video extender.

3. Turn on the remote display.

4. Turn on the video extender by pressing the power button on the front panel.

5. Wait at least 60 seconds for the remote display to show the ready screen from

the video extender.

6. You can now connect to the video extender over WiFi.

(SSID: WIFI2HD2)

Instruction Manual 5

Wireless Network Conguration

The video extender can operate in two wireless modes: Wireless Access Point

mode (AP) or Client Mode (STA).

• AP Mode (default): The video extender will act as a wireless access point (i.e.

wireless router) for other wireless enabled computers. This mode is useful if

there is no existing wireless network where the video extender will be used, or

you do not wish to have the video extender on your main network.

• Client Mode: The video extender will act as a regular wireless client and connect

to an existing wireless network. This mode is useful if there is an existing wireless

access point (i.e. wireless router) already setup or if the computers need Internet

access at the same time.

NOTE: The wireless AP must have DHCP enabled.

To set the video extender into Client mode:

1. By default, the wireless video extender will be set to AP Mode. Check your

computer’s wireless network settings for the network called“WIFI2HD2”.

2. Connect to the WIFI2HD2 network. No encryption/security should be

enabled yet.

3. Once connected, run the PC2TV application from the desktop icon.

4. Open the “Setting”menu and then click on the Conguration button.

Instruction Manual 6

5. From the Conguration window, click on the “STA Mode” tab then click the

“Enable” option. Enter the required information for connecting to your existing

wireless network (i.e. SSID, encryption type and network key). Click the SAVE

button once complete.

NOTE: Client/STA mode does not support static IP addresses. The wireless AP

must have DHCP enabled.

OPTIONAL: If connecting multiple wireless video adapters to this network, be

sure to set a unique Device Name for each one for easy identication under the

“Device” tab.

6. Restart the wireless video adapter by unplugging and reconnecting the power.

How to Use

NOTE: It is recommended to turn o the screensaver on your computer when

using this product

1. Double-click the PC2TV icon from the desktop.

Instruction Manual 7

2. At this point, a security alert may pop up on your system, please check to allow

the device to communicate on both Private and Public networks.

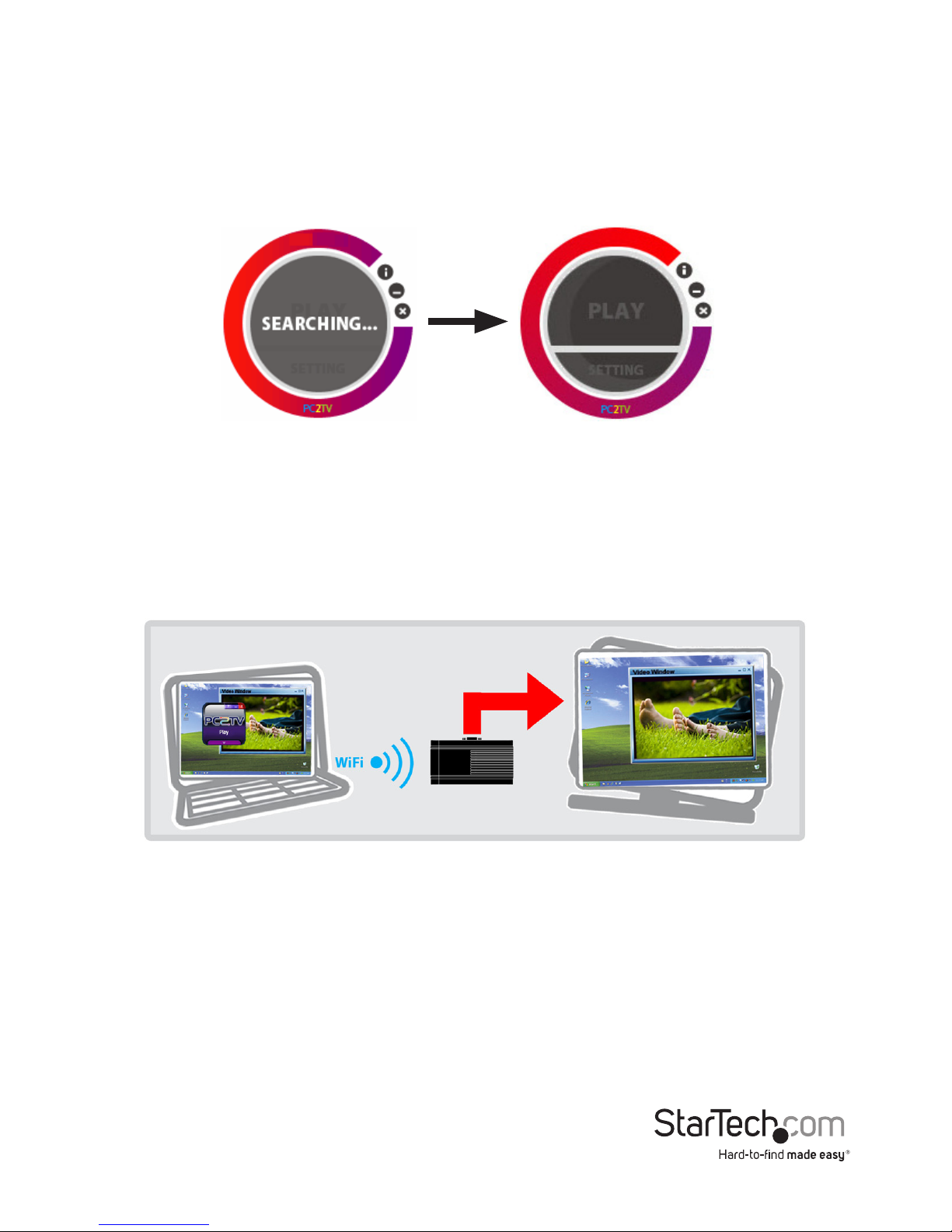

3. Once the PC2TV application is ready to connect to the wireless video extender,

the “Play” button will appear.

4. Clicking the “Play” button will automatically begin streaming the computer

desktop to the remote display.

NOTE: Additional users may connect to the wireless video extender at any time.

This will cause the currently connected user to be automatically disconnected.

5. To stop the video streaming, click “Play” once more on the PC2TV application.
