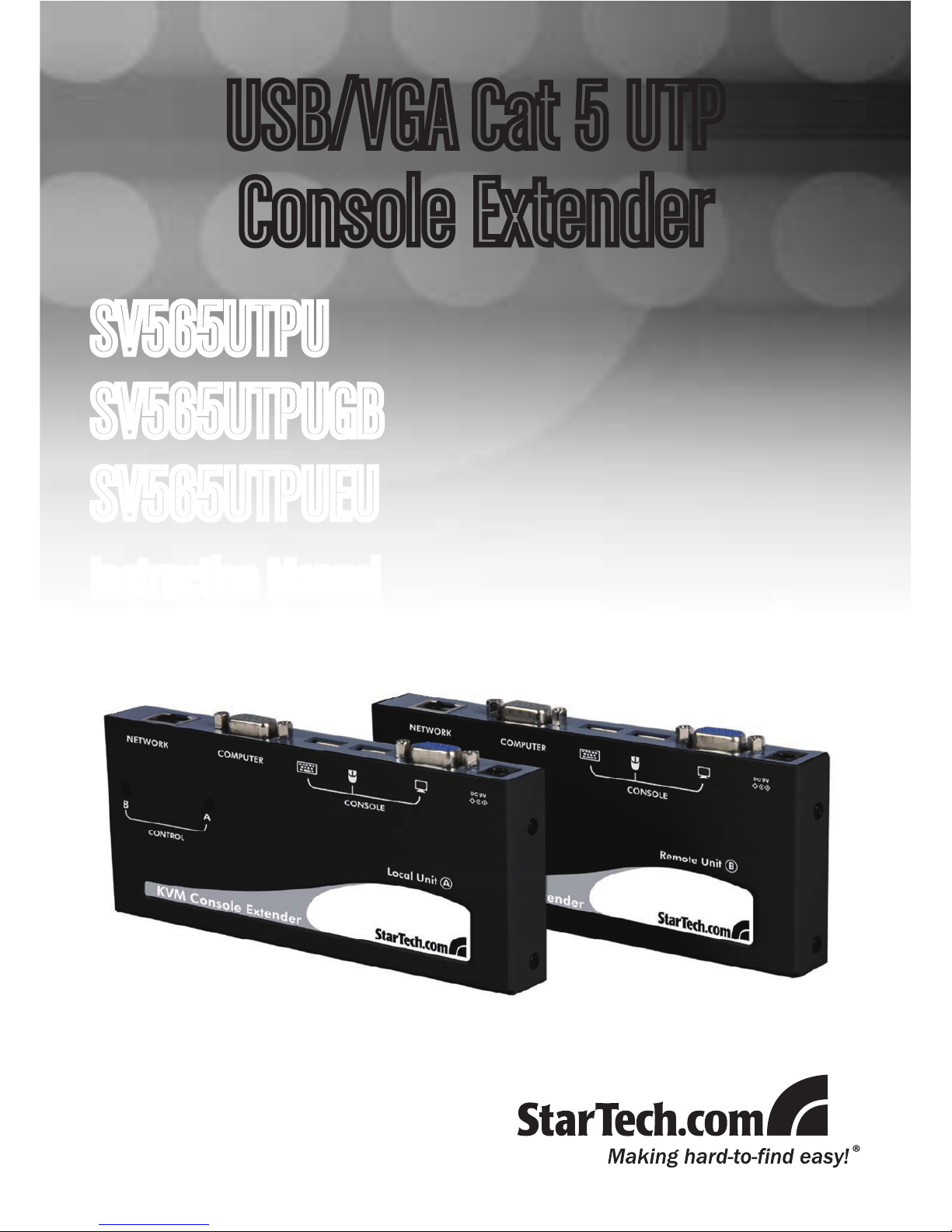

StarTech.com SV565UTPU Manuale utente

USB/VGA Cat 5 UTP

Console Extender

SV565UTPU

SV565UTPUGB

SV565UTPUEU

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.s

Increase the separation between the equipment and receiver.s

Connect the equipment into an outlet on a circuit different from that to which the receivers

is connected.

Consult the dealer or an experienced radio/TV technician for help.s

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction..................................................................... 1

Features ..................................................................................1

System Requirements .............................................................1

Package Contents ...................................................................2

Connecting Your KVM Extender..................................... 3

Preparing Your Site....................................................................3

Installing the Host Unit .............................................................4

Installing the Remote Unit ........................................................5

Video Compensation ..................................................... 6

Using the KVM Extender ................................................ 7

Using the Host Unit ...................................................................7

Using the Remote Unit..............................................................11

Speciﬁcations.................................................................. 14

RJ-45 Connector Pinout ..........................................................14

Accessory Products from StarTech.com ...................... 15

Technical Support........................................................... 16

Warranty Information...................................................... 16

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com KVM extender. This product al-

lows a computer to control a host system from a remote location at a dis-

tance of up to 500 feet (150 meters). For ease of installation, this product

uses standard Category 5, 5E, or 6 network cabling that ﬁts easily into

almost any existing network infrastructure. For added versatility, the KVM

extender supports either PS/2 or USB computer interfaces. Console sup-

port is provided using standard USB and VGA connectors.

Features

Can be used with a single computer or connected to an existing KVMs

switch

Easy installation using industry-standard UTP network cables

Intuitive hotkey commandss

Supports auto-switching between host and remote users or dedicateds

control

USB computers are supported at the host and remote locations (USBs

keyboard and mouse required for remote console)

System Requirements

1 x integrated KVM cable each for the host and remote computers.

Longer cables are available from StarTech.com, part numbers: SVECONx

(PS/2), SVECONUSx (USB)

Unshielded Category 5/5e/6 twisted pair (UTP) straight-throughs

network cable terminated at each end with RJ-45 connectors (if using

surface cabling)

Unshielded Category 5/5e/6 twisted pair (UTP) straight-throughs

network cable terminated at each end in a wall-mounted outlet, with a

standard Category 5/5e/6 patch cable, at both locations (if using

premises cabling)

NOTE: The total length of cable between the Host and Remote Units

Instruction Manual

cannot exceed 500 feet (150 meters), including patch cables (if used).

Category 5e and 6 cabling is compatible with this product and may im-

prove performance.

NOTE: Long cable lengths between the Host and Remote Units may

adversely affect image quality at high resolutions and refresh rates. If you

need to run your remote displays at high resolutions and frequencies, use

as little cabling between locations as possible and avoid practices such as

“coiling” unused cable in a ceiling.

This product will also control a KVM switch, allowing you to manage more

than one computer remotely. In this conﬁguration, you can connect the

KVM extender’s Host Unit to the “console” ports on the KVM. You must

use the provided power adapters if using this conﬁguration. You should

set the Host Unit to Compatibility Mode before connecting it to a KVM that

uses the [Ctrl] key as its hotkey sequence; see page 8for details.

Package Contents

1 x Host Unit

1 x Remote Unit

1 x Instruction Manual

1x Power adapter

2 x 6 ft. 2-in-1 USB VGA KVM cables

1 x Set of rubber mounting feet

Instruction Manual

Connecting Your KVM Extender

Preparing Your Site

Before you can install the the product, you need to prepare your site.

Determine where the1. host computer will be located and set up the

computer.

Determine where the console devices (mouse, keyboard, monitor) will2.

be located and place them appropriately.

a) If you are using surface cabling, ensure you have enough3.

Category 5 unshielded twisted pair (UTP) network cabling to

connect the Host Unit to the Remote Unit’s location, and that each

end is terminated with a RJ-45 connector.

3. b) If you are using premises cabling, ensure that the Category 5

unshielded twisted pair (UTP) network cabling between the Host

Unit and the Remote Unit has been properly terminated in a wall

outlet in each location and there is a patch cable long enough to

connect the Remote Unit and the Host Unit to their respective

outlets.

Instruction Manual

Installing the Host Unit

Place the1. Host Unit near the computer.

Switch off the computer and disconnect any connected devices.2.

Using the provided StarTech.com integrated KVM cable (see page 153.

for alternative part numbers), connect the end of the cable that has

two (USB) or three (PS/2 + VGA) connectors to the VGA Out connector

and the USB or mouse and keyboard PS/2 connectors on the computer

as appropriate. (The PS/2 version of the cable is color-coded.)

Connect the opposite end of the cable with a single connector to the

gray-coded connector marked COMPUTER on the Host Unit of the

KVM extender.

If you wish to have console access to the4. host computer, connect a

USB mouse, keyboard, and VGA monitor to the indicators marked as

CONSOLE on the Host Unit.

Connect the UTP cable connection for Remote Unit to the NETWORK5.

RJ-45 connector on the Host Unit. Connect the opposite end to a

terminated wall outlet (if you are using premises cabling).

Control Direction

Cat 5 Cable

Computer

BConsole Computer

AConsole

1 to 2 2 to 1

Remote Unit Local Unit

(optional)

Instruction Manual

Installing the Remote Unit

Place the Remote Unit near the computer.1.

Switch off the computer and disconnect any existing VGA and input2.

connections.

Using a StarTech.com integrated KVM cable (see page 15for part3.

numbers), connect the end of the cable that has two (USB) or three

(PS/2) connectors to the VGA Out connector and the USB or mouse

and keyboard PS/2 connectors on the computer as appropriate. (The

PS/2 version of the cable is color-coded.) Connect the opposite end

of the cable with a single connector to the gray-coded connector

marked COMPUTER on the Remote Unit of the KVM extender.

Connect a USB mouse, keyboard, and a VGA monitor to the indicators4.

marked as CONSOLE on the Remote Unit.

Connect the UTP cable connection for Remote Unit to the NETWORK5.

RJ-45 connector on the Remote Unit. Connect the opposite end to a

terminated wall outlet (if using premises cabling).

CAUTION: The UTP network cables that connect the Host

and Remote Units carry electrical current and should not

be plugged in to other devices, as they may cause damage.

We strongly recommend marking the cables you are using

with this product at both locations for easy identiﬁcation.

Instruction Manual

Video Compensation

Video Compensation allows the user to adjust the equalization on the

Remote Unit to optimize video performance based on the length of cable

being used, as well as other factors that may affect . There are ﬁve seg-

ments of various lengths of CAT 5 cables from which to chose; to achieve

the best visibility, please refer to the section titled Keyboard Shortcut

Command Sequences, to adjust the video compensation.

First, note the length of CAT 5 cable you used. Then, use the hotkeys

to adjust the video compensation accordingly. You can use the hotkey

sequence as outlined in the section titled Keyboard Shortcut Command

Sequences.

Before Video Compensation

After Video Compensation

Instruction Manual

Using the KVM Extender

This section details how to use your KVM extender at both the host and

remote locations.

Using the Host Unit

The Host Unit allows users connected to the Host and Remote units to

share control of devices (hosts, computers, KVM Switches) connected to

it.

The Host Unit has three modes that control which user may access the

system at a given time: Auto (the KVM extender looks for keyboard or

mouse activity from both A and B and automatically accepts input from

the active console), Local (only the user seated at the Host unit can ac-

cess the system), and Remote (only the user at the Remote station can

access the system).

You can use either keyboard shortcuts (if there is a keyboard and mouse

attached) or the mode switch on the top of the Host Unit to control which

user has access to devices connected to the Host unit, by pressing the

button in sequence.

By default, the Host Unit operates in Auto mode, and switches to the next

mode in the sequence each time the switch is pressed as follows:

Having a keyboard and mouse attached to the console ports on the Host

Unit is recommended, since it offers access to a number of extended

features.

LED Indicators

Mode AIndicator BIndicator

Auto (Auto senses activity) Flashing Flashing

Local (User at Local Unit has exclusive control) On (solid) Off

Remote (User at Remote Unit has exclusive control) Off On (solid)

Auto Local Remote

Altri manuali per SV565UTPU

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali StarTech.com Estensione

StarTech.com

StarTech.com F35023-USB-EXTENDER Manuale utente

StarTech.com

StarTech.com STUTPEALR Manuale utente

StarTech.com

StarTech.com ST121HDFXA Manuale utente

StarTech.com

StarTech.com USBthere USB204EXTFIB Manuale utente

StarTech.com

StarTech.com 110VDSLEXT Manuale utente

StarTech.com

StarTech.com ST121UTP Manuale utente

StarTech.com

StarTech.com ST121HDWP Manuale utente

StarTech.com

StarTech.com IREXT Manuale utente

StarTech.com

StarTech.com ST121HDBTL Manuale utente

StarTech.com

StarTech.com 8STST12MHDLAN Manuale utente

StarTech.com

StarTech.com SV565UTPUL Manuale utente

StarTech.com

StarTech.com STDHVHDBT Manuale utente

StarTech.com

StarTech.com ST121UTP23GB Manuale utente

StarTech.com

StarTech.com ST121UTPDVI Manuale utente

StarTech.com

StarTech.com 8STSV565HDIP Manuale utente

StarTech.com

StarTech.com USBthere USB201EXT Manuale utente

StarTech.com

StarTech.com ST121HDBTPW Manuale utente

StarTech.com

StarTech.com ST121HD20FXA Manuale utente

StarTech.com

StarTech.com SV565UTPDUA Manuale utente

StarTech.com

StarTech.com ST121SHD50 Manuale utente

StarTech.com

StarTech.com SV565DUTPU Manuale utente

StarTech.com

StarTech.com ST121USBHD Manuale utente

StarTech.com

StarTech.com USBthere USB221EXT Manuale utente

StarTech.com

StarTech.com ST121HD20V Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
