Mini VGA over Cat5 UTP Extender

and Receiver

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Features......................................................................................1

Package Contents .....................................................................1

Transmitter Unit .........................................................................2

Receiver Unit..............................................................................2

Installation....................................................................... 3

Transmitter Unit .........................................................................3

Receiver Unit..............................................................................3

UTP Cat5 Cable .........................................................................4

Wiring Diagram ............................................................... 4

Speciﬁcations.................................................................. 5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Converge A/V Mini VGA over

Cat5 UTP Extender and Receiver. Providing a high resolution point to

point digital signage solution, the extender sends the video signal to a

remote monitor / display or projector over standard 4 pair CAT5e UTP

cable, using RJ45 connectors and supports transmission distances of up

to 90m (275ft).

The ST121UTPMINI is an out-of-box solution that includes both the local

transmitter and remote receiver. The receiver is compact enough to be

tucked away behind the display in tight spaces for any installation.

Features

Transmits VGA Video and Audio through one Cat5 cable•

Supports resolutions up 1920x1200 at 90m (275ft.)•

Pure hardware design, no software or drivers required•

Transmitter uses a USB port on PC or media player as a power source,•

meaning less clutter at your signal source

Receiver uses a power adapter for signal enhancement and has a built•

in equalizer for ﬁne tuning image quality

Package Contents

1 x VGA and Audio Transmitter (Local)•

1 x VGA and Audio Receiver (Remote)•

1 x Universal Power Adapter•

1 x Instruction Manual•

Instruction Manual

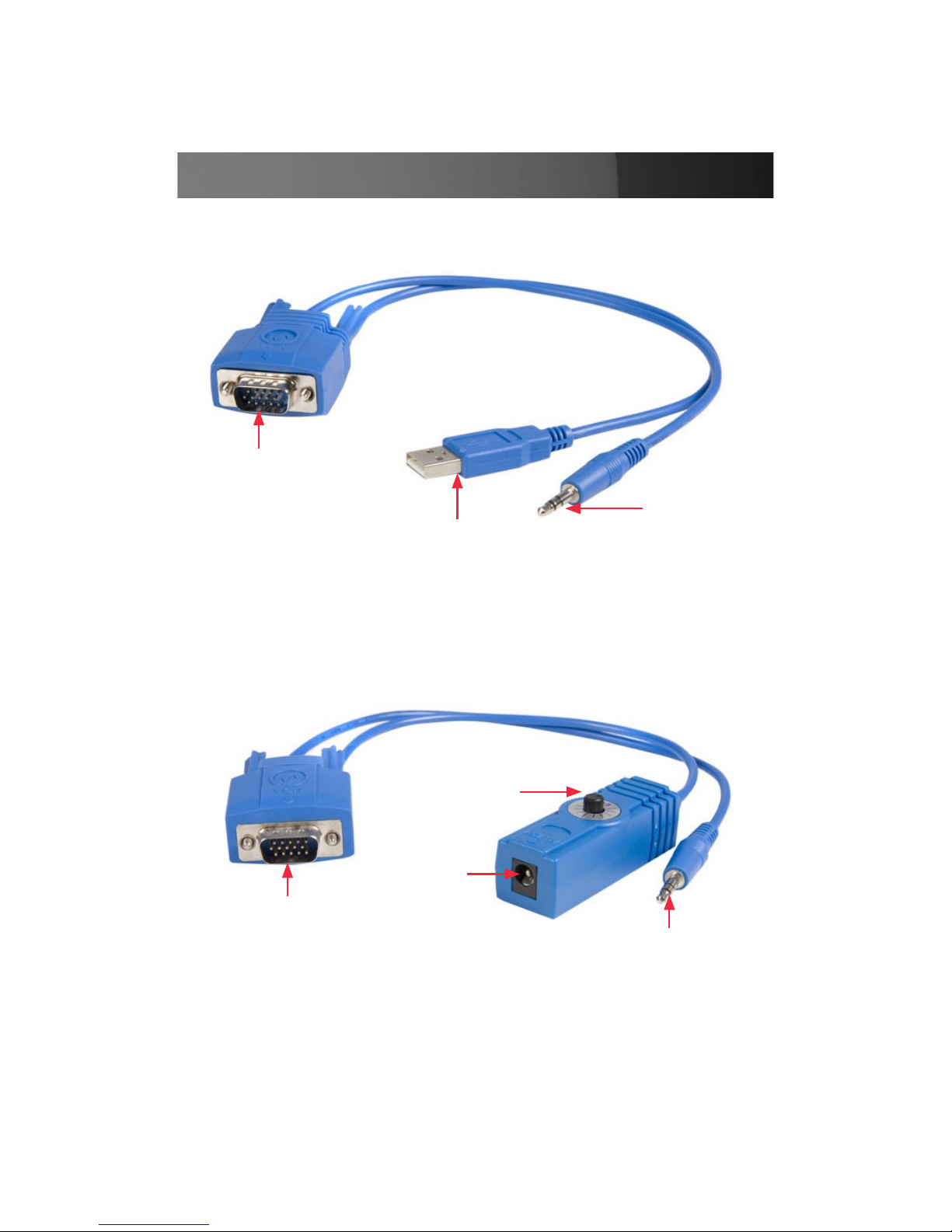

DE-15 VGA

connector

USB connector

3.5mm Audio

mini-jack

DE-15 VGA

connector 3.5mm Audio

mini-jack

DC Power

connector

EQ Adjustment

dial

Transmitter Unit

Receiver Unit

*product may vary from photos

Instruction Manual

Installation

Transmitter Unit

Attach the Transmitter unit to the VGA source’s VGA output connector.1.

If using audio, connect the 3.5mm audio cable to the audio output2.

connector.

To power the Transmitter unit, connect the integrated USB cable to an3.

available USB port on the video source device.

To test the VGA signal to the Transmitter unit, turn on the VGA source4.

and observe the LED indicators. The Video Sync LED should light up

solid, if a good video signal is detected.

Video Sync

LED

RJ45 Link

LED

RJ45

connector

Receiver Unit

Attach the Receiver unit to the display’s VGA input connector.1.

NOTE: If the display has a VGA input that makes directly attaching the

Receiver unit difﬁcult, use an appropriate length VGA extension cable

(i.e. StarTech.com ID: MXT101HQ3).

If using audio, connect the 3.5mm audio cable to the display’s audio2.

input, or separate audio receiver/speaker system.

To power the Receiver unit, connect the included DC power adapter.3.

The Video Sync LED should start blinking, as no video source is4.

connected to the Receiver unit yet.

Instruction Manual

UTP Cat5 Cable

Ensure that the Cat5 UTP cable being used has 568B terminations at1.

both ends and does not exceed the maximum recommended length of

180 metres (590 feet).

The UTP cable should not pass through any networking equipment,2.

such as routers, switches, hubs, etc.

Attach one end of the Cat5 cable to the transmitter of the3.

St121UTPMINI and the other end to the receiver. The RJ45 Link LED

on both units should light up to indicate the connection is detected.

Use the equalizer dial on the receiver to adjust the signal to the display.4.

Wiring Diagram

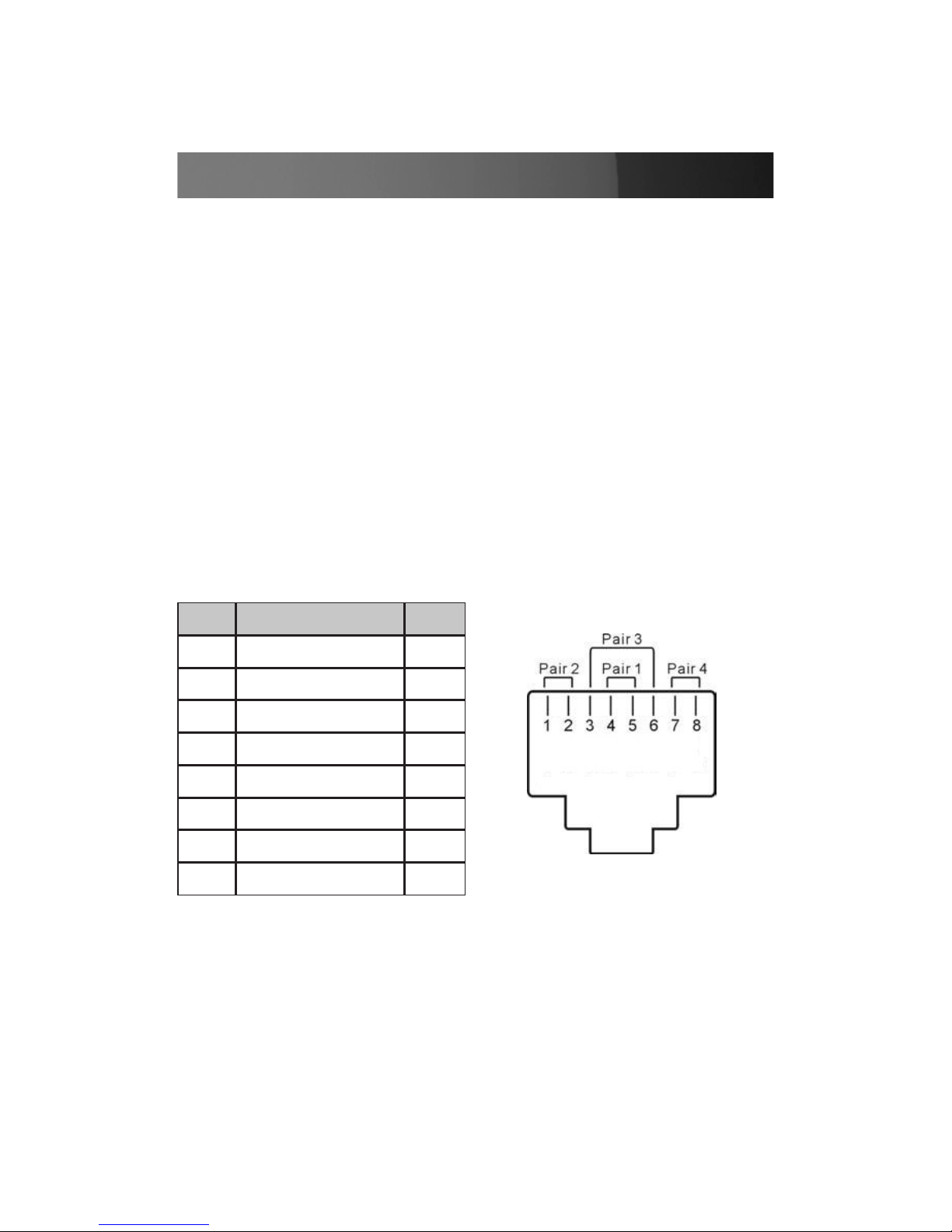

T568B Termination

Pin Wire Color Pair

1 White/Orange 2

2 Orange 2

3 White/Green 3

4 Blue 1

5 White/Blue 1

6 Green 3

7 White/Brown 4

8 Brown 4

Instruction Manual

Specications

ST121UTPMINI

Video Signal VGA (RGBHV)

Connectors (Local)

1 x DE-15 VGA male

1 x 3.5mm mini-jack

1 x USB type A

1 x RJ45

Connectors (Remote)

1 x DE-15 VGA male

1 x 3.5mm mini-jack

1 x DC Power

1 x RJ45

LED Power and Video Status

Maximum Video Resolution 1920x1200 @ 90m/275ft

Maximum Distance 90m/275ft

Compatible Cabling Cat5e, Cat6

Audio Support Yes (analog stereo)

Power Adapter 5VDC, 1.2A, center positive

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Humidity 10 ~ 90% RH

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materi-

als and workmanship for the periods noted, following the initial date of

purchase. During this period, the products may be returned for repair,

or replacement with equivalent products at our discretion. The warranty

covers parts and labor costs only. StarTech.com does not warrant its

products from defects or damages arising from misuse, abuse, alteration,

or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.
