StarTech.com VGA2HDMIPRO Manuale utente

VGA2HDMIPRO

VGA with Audio to HDMI

Scaler Converter

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

Operation Controls and Functions ................................ 2

Front Panel ..................................................................................2

Rear Panel...................................................................................3

Connection and Installation .......................................... 3

OSD Operation ................................................................ 4

Reset Function ................................................................ 5

Speciﬁcations.................................................................. 6

General Speciﬁcations.................................................................6

Supported Resolutions................................................................7

Technical Support........................................................... 8

Warranty Information...................................................... 8

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Converge A/V VGA2HDMIPRO

scaler/converter. This convenient device offers a simple way to convert

analog PC video and audio to HDMI or DVI-D, providing the option to out-

put audio through an HDMI or TosLink cable - making it the ideal choice

for use with DVI or HDMI video signals.

Featuring a convenient on-screen display menu and automatic native res-

olution detection, the VGA2HDMIPRO VGA with Audio to HDMI Scaler/

Converter is easy to setup and ensures compatibility with most displays

with support for input and output resolutions of up 1900x1200 / 1080p.

Features

Automatically detects native resolution of the connected display•

HDMI 1.2, HDCP 1.1, and DVI 1.0 compliant•

Supports input of analog audio or digital audio•

Supports input resolutions up to 1080p (HDTV) and 1900 x 1200 (PC)•

Package Contents

1 x VGA and Audio to HDMI Converter / Scaler•

1 x Auto/Universal Switching Power Adapter•

1 x Instruction Manual•

Instruction Manual

Operation Controls and Functions

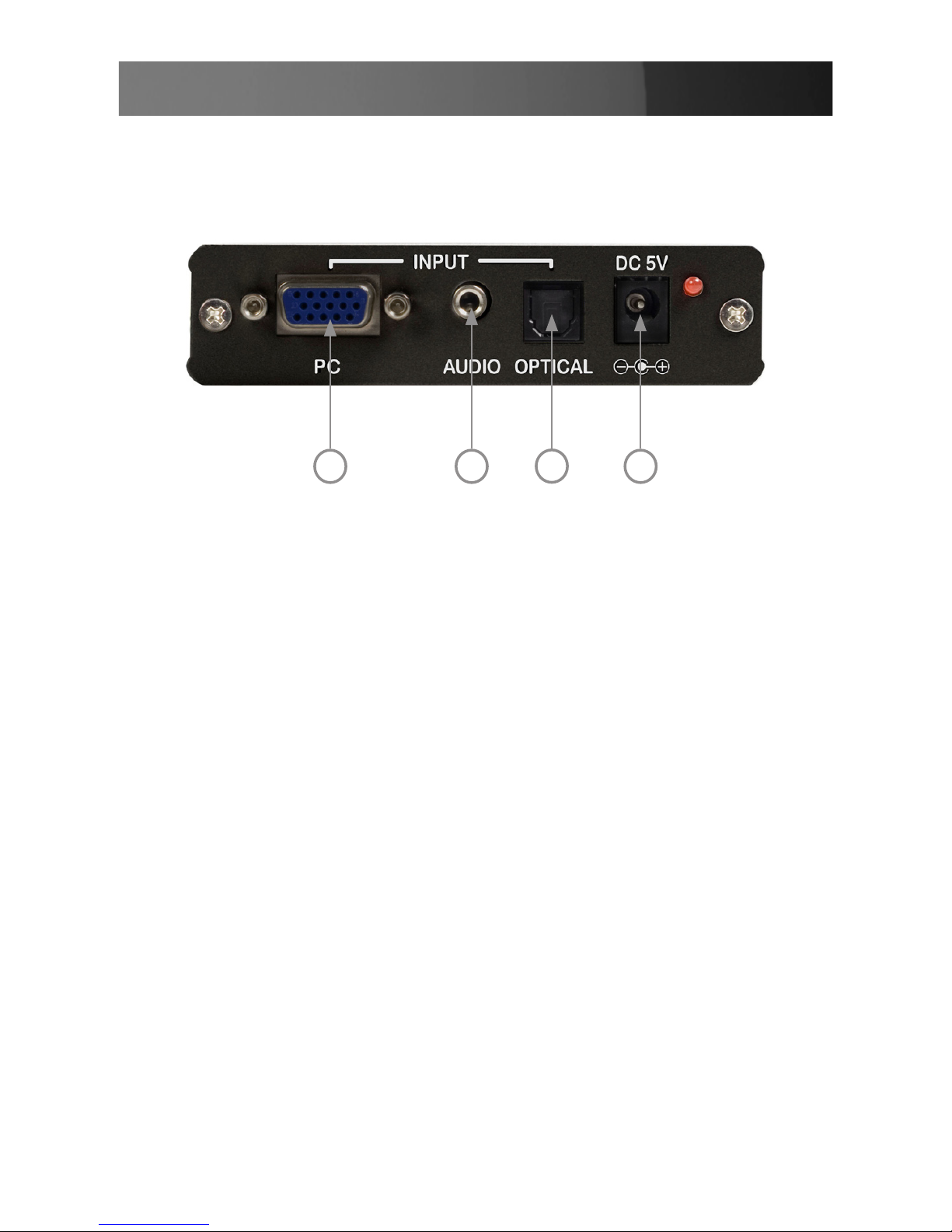

Front Panel

PC Input:1. Connect the D-Sub (15-pin) VGA PC input port to the DB15

VGA output port of your source equipment.

Audio Input:2. Connect the 3.5mm jack input port to the analog audio

port of your source equipment.

TOSLink (Optical Fiber) Input:3. Connect the optical input port to the

digital audio output port of your source equipment.

Power:4. Plug the 5VDC power supply in to the unit and connect the

adapter to an available AC wall outlet.

1 2 34

Instruction Manual

Rear Panel

HDMI Output:1. Connect the HDMI output port to the HDMI input port of

your display.

TOSLink (Optical Fiber) Output:2. Connect the optical output port to

the digital audio input port of your ampliﬁer.

Audio Output:3. Connect the PC 3.5mm jack output port to the analog

audio input port of your equipment.

Menu Button:4. Press the MENU button to bring up the OSD operation

menu.

+/- Button:5.

a. At the ﬁrst tier of the OSD menu, use the + and – buttons to

scroll through the different settings.

b. Once the desired settings are selected, use the + and – buttons to

toggle between setting values.

Connection and Installation

51 2 3 4

Audio/Optical Audio/Optical

VGA D-Sub (15-pin) HDMI

Instruction Manual

OSD Operation

1st Tier Option 2nd Tier Option Adjustment

CONTRAST - 0 ~ 100 Contrast Level

BRIGHTNESS - 0 ~ 100 Brightness Level

FINETUNE

HUE 0 ~ 100 Hue Level

SATURATION 0 ~ 100 Saturation Level

SHARPNESS 0 ~ 100 Sharpness Level

EXIT Back to 1st Tier

COLOUR

RED 0 ~ 100 Red Colour Level

GREEN 0 ~ 100 Green Colour Level

BLUE 0 ~ 100 Blue Colour Level

EXIT Back to 1st Tier

SIZE - Full/Overscan/Underscan/Letterbox/

PanScan

OUTPUT -

NATIVE / VGA / SVGA / XGA

/ SXGA /UXGA / 480i / 480p/

720p@60Hz / 1080i@60Hz /

1080p@60Hz / 576i / 576p /

720p@50Hz / 1080i@50Hz /

1080p@50Hz / WXGA /

WSXGA / WUXGA

AUDIO - 3.5mm / Toslink (Optical)

Instruction Manual

1st Tier Option 2nd Tier Option Adjustment

OSD

HPOSITION 0 ~ 100 OSD Horizontal Position

VPOSITION 0 ~ 100 OSD Vertical Position

TIMER 0 ~ 100 OSD Existing Time (sec.)

BACKGROUND 0 ~ 100 OSD Transparency Level

EXIT Back to 1st Tier

INFORMATION -

SOURCE (Input Interface)

INPUT (Input Resolution)

OUTPUT (Output Resolution)

VERSION (Firmware Version)

EXIT - Close OSD Menu

Reset Function

To reset the unit, press and hold the MENU button. Unplug the DC power

supply from the unit, then reinsert it. This will ensure that the unit is

set back to its factory default settings, with the output resolution set as

NATIVE. This features can be useful when the output resolution is not

supported by the display device that is connected.

Instruction Manual

Specications

General Specications

Speciﬁcation VGA2HDMIPRO

Input Ports

1 x D-Sub 15-pin (VGA Connector)

1 x 3.5mm Jack

1 x TOSLink (optical ﬁber)

Output Ports

1 x HDMI

1 x 3.5mm Jack

1 x TOSLink (optical ﬁber)

Power Supply 5V/2.6A DC (US/EU Standards, CE/

FCC/UL certiﬁed)

Dimensions (mm) 154(D) x 100(W) x 25(H)

Weight (g) 340

Chassis Material Aluminum

Silk Skin Colour Silver

Operating Temperature Operating from 0°C ~ 48°C

Instruction Manual

Supported Resolutions

PC Input HDMI Output

PC SD/HD PC

480I/576I (NTSC/PAL)

480P/576P

720P@(50/60)

1080I@(50/60)

1080P@(50/60)

VGA@(60/72/75/85)

SVGA@(56/60/72/75/85)

XGA@(60/70/75/85)

SXGA@(60/75/85)

UXGA@60

WXGA@60(1280x800)

WSXGA@60(1680x1050)

WUXGA@60(1920x1200)
