VGA2VID

VGA to S-Video and Composite

Video Converter

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

Features ........................................................................................................................................................ 1

Hardware Guide .....................................................................................2

Front Panel................................................................................................................................................... 2

Back Panel.................................................................................................................................................... 2

Side Panel..................................................................................................................................................... 2

Specications..........................................................................................3

Troubleshooting.....................................................................................3

Technical Support ..................................................................................4

Warranty Information............................................................................4

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com High Resolution VGA to Composite or

S-Video Converter. This simple hardware solution allows you to convert a VGA/ PC

video signal into a Composite or S-Video signal for use with a CRT or at panel display.

The ideal solution for synchronizing monitors with television displays etc., the VGA to

Composite/ S-Video Converter oers selectable NTSC or PAL format operating modes

to ensure compatibility with virtually any conguration.

Packaging Contents

• 1 x VGA to Composite/S-Video Converter

• 1 x Universal Power Adapter

• 4 x Power Adapter Plug (NA/ UK/ EU/ AUS)

• 1 x Instruction Manual

Features

• Automatically detects and down-converts the incoming PC images to NTSC or PAL

• Supports high resolution PC input up to UXGA (1600 x 1200 @ 60Hz)

• Scale down PC video to Composite/ S-Video

• Switch between NTSC and PAL

• Image Overscan/ Underscan selection

• Easy to install and simple to operate

• Easy to carry with palm size design

Instruction Manual

Hardware Guide

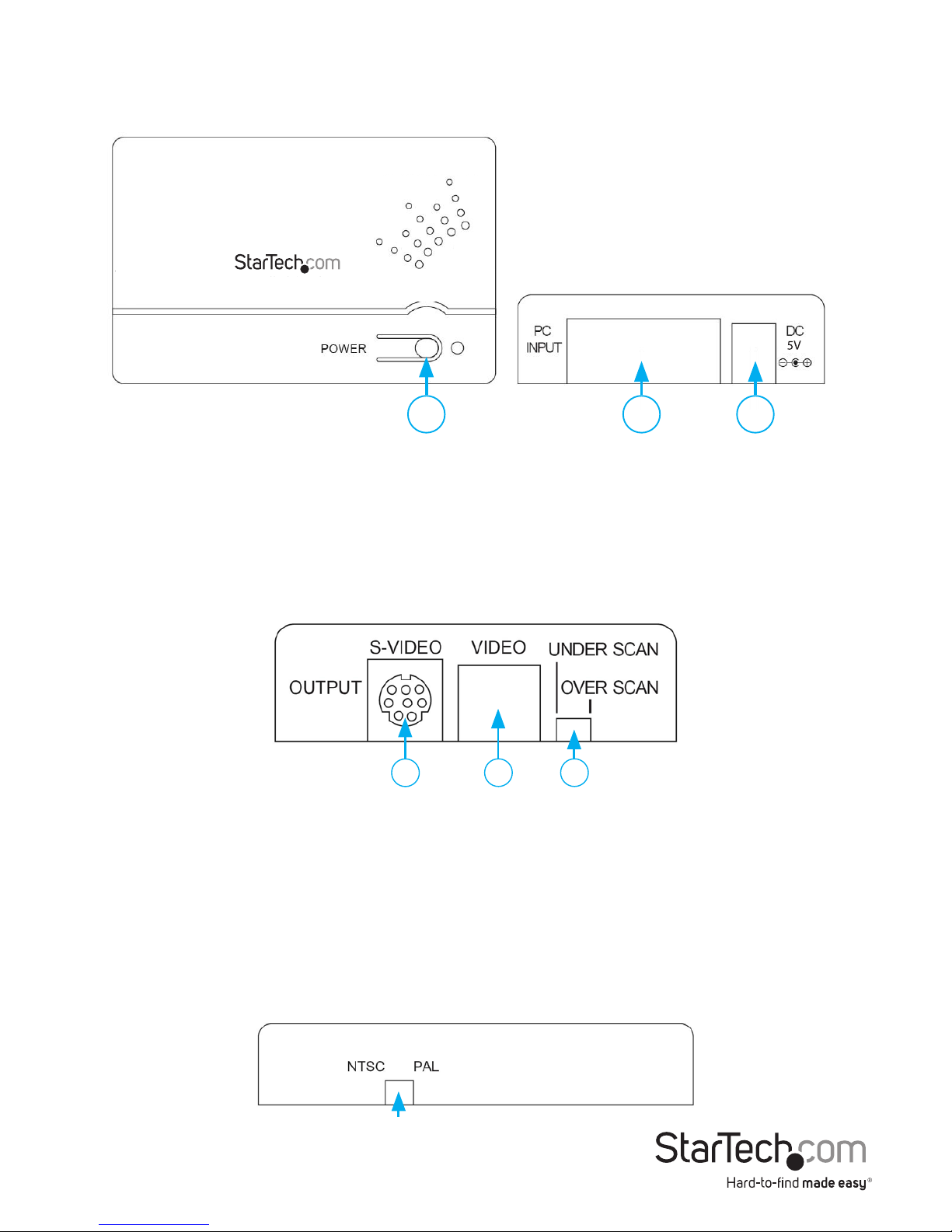

Front Panel

1. Power: Press to turn power On and O.

2. PC Input VGA connector.

3. DC power supply

Back Panel

1. S-Video output connector

2. Composite Video Output RCA connector

3. Underscan/Overscan: Switch the button to underscan/overscan the picture

Side Panel

Used to switch between NTSC or PAL system.

12 3

1 2 3

Instruction Manual

Specications

Input Connectors 1 x VGA (15 pin; High Density D-Sub) Female

Output Connectors 1 x Composite Video (1 x RCA) Female

1 x S-Video (4 pin; Mini-DIN) Female

Power Supply 5V DC, center positive

Operating Temperature 0°C ~ 70°C (32°F to 158°F)

Dimensions (LxWxH) 100.0mm x 64.0mm x 18.5mm

Weight 100g

Troubleshooting

Problem Possible Causes Solutions

Power LED is not

illuminated

Power cord is not

connected correctly.

Ensure the power cord is

connected correctly

Power not available.

There may be a power outage

in your area. Make sure that

other electronic devices are

working correctly.

On/O LED is red System may be in standby

mode.

Press the power button on the

video converter

No Picture

A/V connection may be

loose.

Check that the A/V cables are

connected securely

Incorrect TV source is

selected

Ensure that the correct input

source is selected on the

Composite/S-Video input.

Refer to the TV user manual for

more information.

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
