StarTech.com PCI2S4851050 Manuale utente

PCI Serial Adapter Card

2-Port PCI RS-485/422

Serial Adapter Card

with 161050 UART

PCI2S4851050

Instruction Manual

Manual Revision:07/18/2011

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent

an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com

hereby acknowledges that all trademarks, registered trademarks, service marks, and other

protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Table of Contents

Introduction .............................................................. 1

Packaging Contents............................................................. 1

System Requirements ......................................................... 1

Installation................................................................ 2

Jumper Settings................................................................... 2

Hardware Installation........................................................... 3

Driver Installation................................................................. 4

Verifying Installation............................................................. 5

Speciﬁcations........................................................... 6

Technical Support.................................................... 7

Warranty Information ............................................... 7

Introduction

The PCI2S4851050 2 Port PCI RS422/485 Serial Adapter Card with 161050

UART adds two DB9 RS422/RS485 serial ports using a single PCI expansion

slot.

The serial card offers a high performance 16C1050 UART and is compliant

with PCI 2.3 local bus speciﬁcations. An efﬁcient single-chip design and a

large 256-byte transit/receive FIFO buffer work together to provide high-speed

serial communication while reducing the overall load on the CPU.

With the included standard and low proﬁle brackets, this PCI serial expansion

card suits a broad range of system form factors, and is a perfect addition for

connecting RS422/485 serial devices to a host computer. For added versatility,

the RS422/485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Packaging Contents

• 1 x PCI Serial Card

• 2 x Low Proﬁle Installation Bracket

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• PCI enabled computer system with available 5V or 3.3V PCI slot

• Computer chassis/case with a single full proﬁle expansion card slot, or dual

adjacent low proﬁle expansion card slots

• Microsoft®Windows®2000/XP/Server 2003/Vista/Server 2008 R2/7

(32/64-bit), or Linux®kernel 2.4.x/2.6.x

Installation

WARNING! PCI cards, like all computer equipment, can be severely damaged

by static electricity. Be sure that you are properly grounded before opening

your computer case or touching your PCI card. StarTech.com recommends

that you wear an anti-static strap when installing any computer component. If

an anti-static strap is unavailable, discharge yourself of any static electricity

build-up by touching a large grounded metal surface (such as the computer

case) for several seconds. Also be careful to handle the PCI card by its edges

and not the gold connectors.

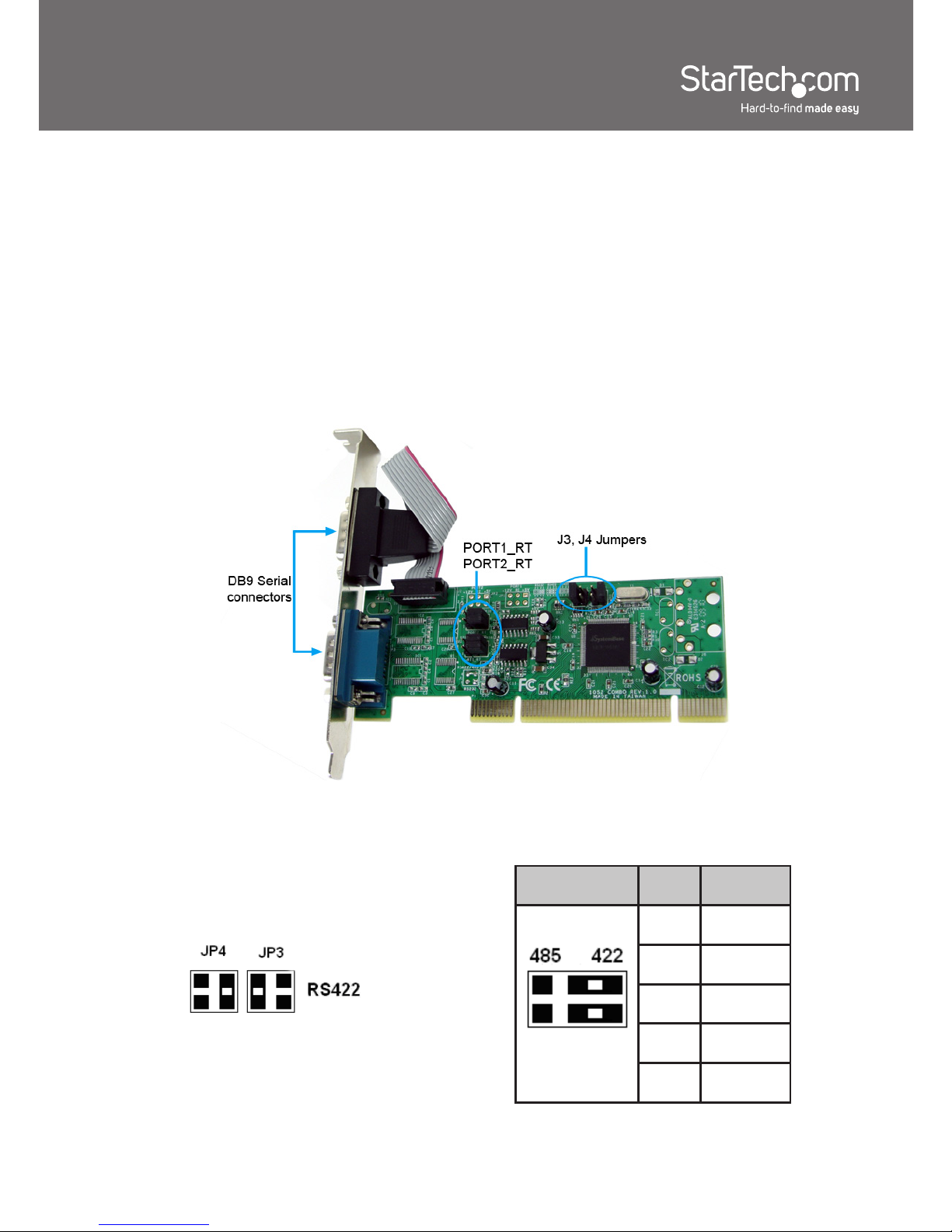

Jumper Settings

The two sets of jumpers on this card (J4, J3 and PORT1_RT, PORT2_RT) are

used to conﬁgure the operating mode/serial protocol and 2/4-wire operation

respectively.

RS422 Operation Jumper Pin Signal

(RS422)

1 TxD+

2 TxD-

3 RxD+

4 RxD-

5 GND

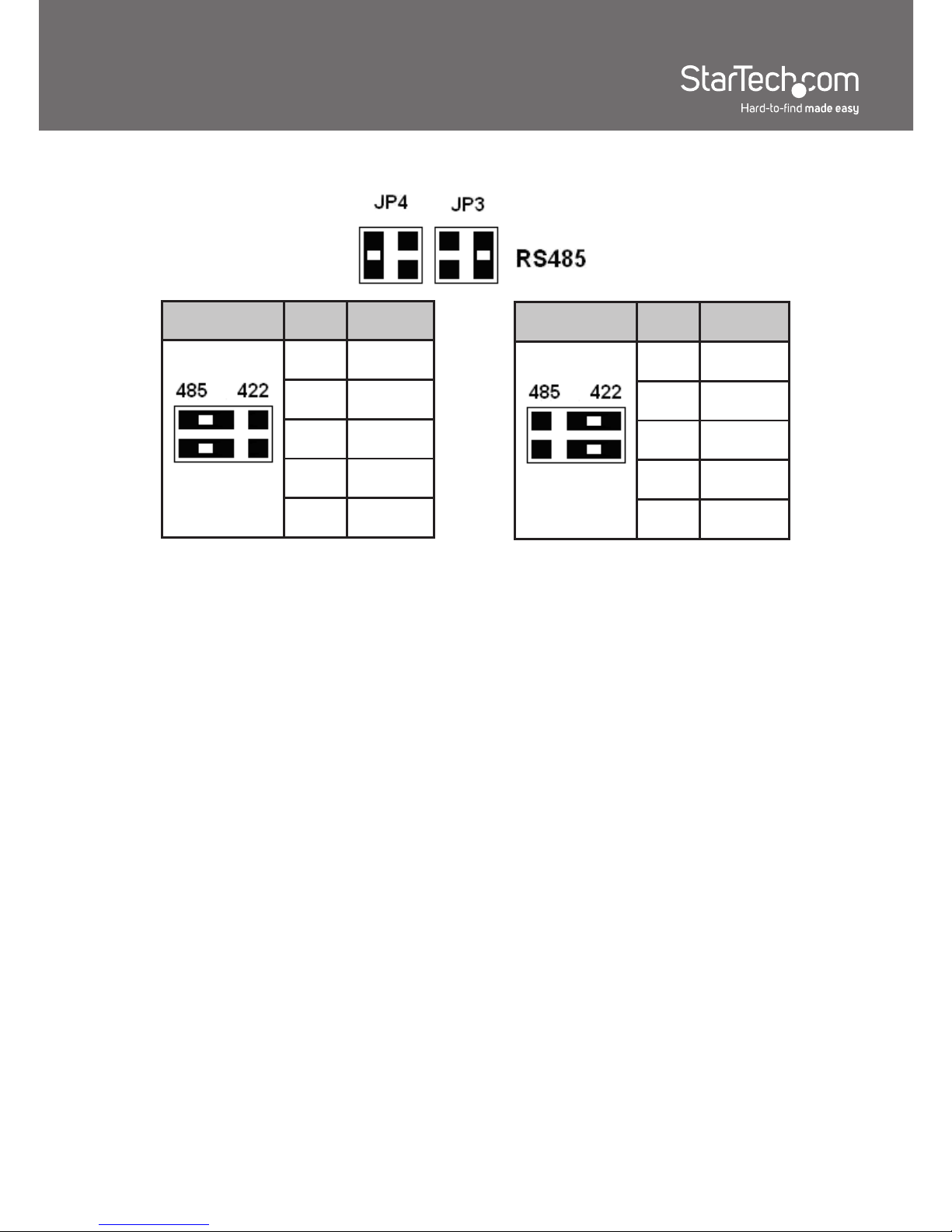

RS485 Operation

Jumper Pin Signal

2-wire

1 Data+

2 Data-

3 x

4 x

5 GND

Jumper Pin Signal

4-wire

1 TxD+

2 TxD-

3 RxD+

4 RxD-

5 GND

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer (i.e.

Printers, external hard drives, etc.). Unplug the power cable from the rear of

the power supply on the back of the computer and disconnect all peripheral

devices.

2. Remove the cover from the computer case. Refer to documentation for

your computer system for details.

3. Locate an open PCI or PCI-X slot and remove the metal cover plate on the

rear of the computer case.

4. Insert the card into the open PCI or PCI-X slot and fasten the card’s bracket

to the rear of the case.

NOTE: If installing the card into a small form factor/low proﬁle system,

replacing the pre-installed full proﬁle bracket with the included low proﬁle

installation bracket may be necessary. This conﬁguration will require two

adjacent expansion card slots in the host computer system.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and reconnect

all other connectors removed in Step 1.

Driver Installation

Windows 2000/XP/Server 2003

1. When the Found New Hardware wizard appears on the screen, insert

the Driver CD into your CD/DVD drive. If you are prompted to connect to

Windows Update, please select the “No, not this time” option and click Next.

2. Select the option to Install from a list (advanced) and then click the Next

button.

3. On the next page, select the option for “Don’t Search”, and on the next

page, click the button “Have Disk”. You may be required to choose a

hardware type before getting the Have Disk option, so just select the very

top item in the list.

4. Click on the “Browse” button in the pop up window, and from the browse

window, go to the folder for your operating system version.

5. Look for the ﬁle called SBMP.inf. Select that ﬁle and then click the Open

button and then just click the OK or Next button on each window until the

Update Wizard ﬁnishes.

6. Follow the same procedure again for any other found hardware prompts,

except use the ﬁle SBSERIAL.inf.

Windows Vista/7/Server 2008 R2

1. When the Found New Hardware window appears on the screen, select the

option to browse the computer and insert the Driver CD that came with the

card, into your CD/DVD drive.

2. On the next page, select the option on the bottom to pick from a list of

devices.

3. There should be a Have Disk button on the next page, so click on it, then

click the browse button.

4. In the browse window, go to the folder for your operating system version.

5. In the driver folder, select the ﬁle SBMP.INF and then click the Open button,

then OK, and then we can click Next to proceed with the install.

6. Follow the same procedure again for any other found hardware prompts,

except use the ﬁle SBSERIAL.inf.

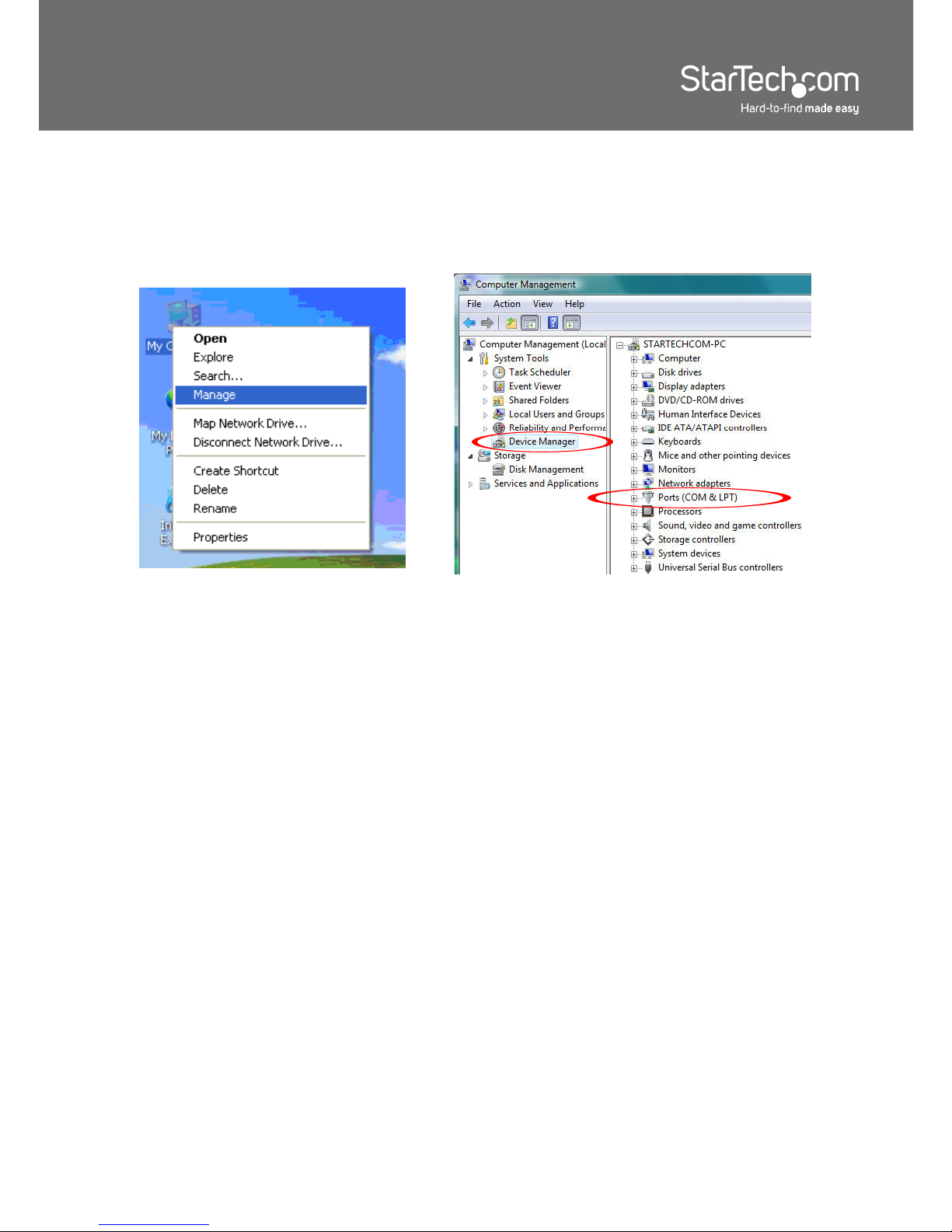

Verifying Installation

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7),

then select Manage. In the new Computer Management window, select Device

Manager from the left window panel.

Double-click on the “Ports (COM & LPT)” option. The appropriate number of

additional COM ports should be visible. The port(s) are ready to be connected

to serial devices.

Specications

Host Interface PCI revision 2.3

(3.3V/5V, 33/66MHz)

Form Factor Full/Low Proﬁle

Chipset ID SystemBase SB16C1052PCI

External Connectors 2 x 9-pin DB9 male

Supported Protocols RS485, RS422

Data Bits 5, 6, 7, 8

Stop Bits 1, 1.5, 2

Maximum Data Transfer Rate 128,000 Kbps

Buffer Size 256 Byte Tx/Rx

Operating Temperature 0°C ~ 85°C (32°F ~ 185°F)

Storage Temperature -40°C ~ 85°C (32°F ~ 185°F)

Dimensions 120.0mm x 45.0mm x 18.0mm

Weight 55.8g

Compatible Operating Systems Windows 2000/XP/Server 2003/

Vista/Server 2008 R2/7 (32/64-

bit), Linux kernel 2.4.x/2.6.x

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access our

comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial date

of purchase. During this period, the products may be returned for repair,

or replacement with equivalent products at our discretion. The warranty

covers parts and labor costs only. StarTech.com does not warrant its

products from defects or damages arising from misuse, abuse, alteration,

or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.
