StarTech.com STNDTBLT1FS Manuale utente
Manual Revision: 05/04/2016
For the latest information, technical specications, and support for
this product, please visit www.startech.com/STNDTBLT1FS.
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l’uso - it.startech.com
STNDTBLT1FS
Lockable Floor Stand for iPad
*actual product may vary from photos
Instruction manual
i
Table of Contents
Introduction............................................................................................1
Product diagram........................................................................................................................................ 1
Tablet holder dimensions....................................................................................................................... 1
Tablet stand dimensions ........................................................................................................................ 2
Tablet base dimensions .......................................................................................................................... 2
Package contents...................................................................................................................................... 3
Installation requirements....................................................................................................................... 4
Assembly .................................................................................................4
Assemble the base.................................................................................................................................... 4
Attach the tablet holder to the pole .................................................................................................. 6
Assemble the tablet holder................................................................................................................... 8
Place the tablet in the tablet holder................................................................................................... 12
Attach the tablet stand to the oor.................................................................................................... 13
Technical support...................................................................................15
Warranty information............................................................................15
Instruction manual
1
Introduction
The STNDTBLT1FS is a rugged and durable xed-height tablet stand that you can
use as a stand-alone kiosk or as an informational display. The tablet stand features a
lockable tablet holder for increased security, and a base that you can screw into the
oor to create a stationary holder. The tablet stand is designed to display tablets in
either a portrait or landscape position.
The STNDTBLT1FS can support up to two pounds of weight.
Tablet holder
Pole
Base
Base connector
Security lock
Tablet holder dimensions
Product diagram
Instruction manual
2
Tablet stand dimensions
Tablet base dimensions
Instruction manual
3
Package contents
Tablet holder
Qty: One
Keys
Qty: Two
Base
Qty: One
Base connector
Qty: One
Connecting block
Qty: One
Pole
Qty: One
Rubber feet
Qty: Four
M6 screws
Qty: Eight
M4 screws
Qty: Four
Allen key
Qty: One
Anchor screws
Qty: Four
Anchors
Qty: Four
Foam pads
Qty: Six
Foam blocks
Qty: Six
Instruction manual
Qty: One
15
1 2 3
456
789
10 11 12
13 14
x4 x4
Instruction manual
4
Installation requirements
• The STNDTBLT1FS is designed for 9.7 in. iPad, iPad Air, and iPad Pro tablets.
• A USB charging cable at least 6 feet in length.
• A Phillips screwdriver.
• A drill with a 1/4 in. drill bit (if you attach the tablet stand to the oor).
• A hammer (if you attach the tablet stand to the oor).
For the latest requirements, please visit www.startech.com/STNDTBLT1FS.
Assembly
Make sure that all of the hardware is assembled securely and checked for stability
before you load the tablet into the tablet holder.
Assemble the base
1. Remove the plastic backing from the four rubber feet (7) and attach them to the
base (3) in the areas indicated (gure 1).
gure 1
Base
Rubber foot
Instruction manual
5
2. Run the USB cable that you intend to use to supply power to the tablet through the
pole (6) (gure 2).
3. Insert the four countersunk M6 screws (8) through the holes on the bottom of the
base, into the base connector (4), and into the pole (gure 3).
4. To tighten the screws, use the Allen key (10) to turn the screws clockwise.
gure 2
gure 3
Pole
USB cable
Pole
Base connector Base
M6 countersunk screw
Allen key
Bottom end of pole
Instruction manual
6
Attach the tablet holder to the pole
1. Place the connecting block (5) on top of the pole (6) so that the four holes on the
connecting block line up with the four holes in the pole.
2. Insert the remaining four M6 screws (8) through the connecting block and into the
pole (gure 4).
3. To tighten the screws, use a Phillips screwdriver to turn the screws clockwise.
gure 4
4. Before you attach the tablet holder, make sure that you thread the USB cable
through the end of the pole and the middle hole in the tablet holder (gure 5).
Pole
M6 screws
Connecting block
Screwdriver
Instruction manual
7
gure 5
Connecting block
Pole USB cable
(sold separately)
Tablet holder
5. Place the tablet holder (1) on top of the connecting block so that the four holes on
the tablet holder line up with the four holes on the collecting block.
Note: You can attach the tablet holder in a portrait or a landscape position.
6. Insert the four M4 screws (9) through the tablet holder and into the connecting
block (gure 6).
7. To tighten the screws, use a screwdriver to turn the screws clockwise.
gure 6
Connecting block
M4 screws
Pole
Tablet holder
Instruction manual
8
Assemble the tablet holder
The tablet holder is designed for iPad, iPad Air, and iPad Pro tablets, however, you can
use the foam pads and blocks in order to t other types of tablets.
The opening in the tablet holder measures 198 mm by 149 mm.
iPad
If you intend to use an iPad in the tablet holder, place the foam pads and blocks in the
formation described below.

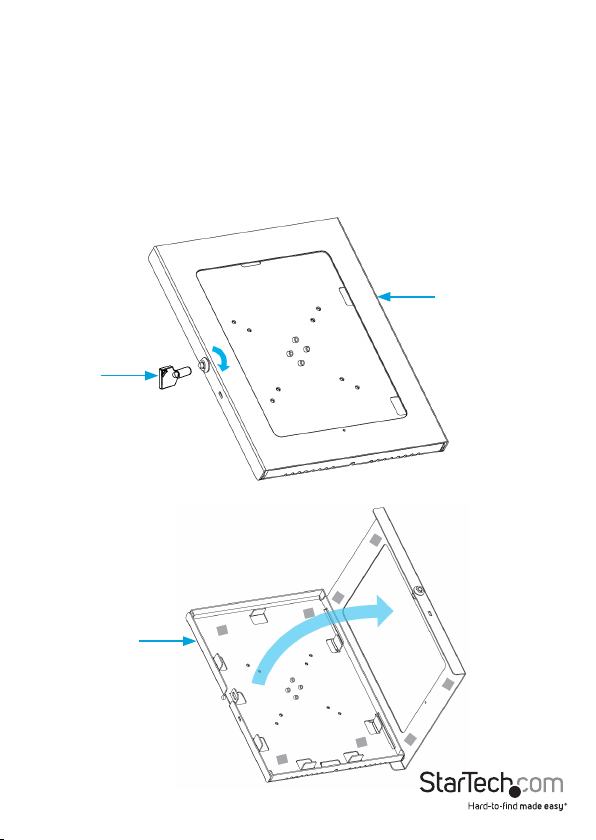

1. Use one of the keys (2) to unlock the tablet holder (1) (gure 7).
2. Open the front panel of the tablet holder (gure 8).
gure 7
gure 8
Tablet holder
Key
Tablet holder
