StarTech.com RACKCONV1701 Manuale utente

Folding Rackmount Console

1U 17/19” Folding LCD

Rackmount Console, USB

- Value Series

RACKCONV1701

RACKCONV1901

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

Installation....................................................................... 1

Hardware Installation...................................................................1

How to Use ...................................................................... 4

Connecting the Console ..............................................................4

Turning on the Console ...............................................................4

Conﬁguring Display Settings .......................................................4

Testing the Console.....................................................................5

Panel Controls and OSD Functions.............................................6

Speciﬁcations.................................................................. 10

RACKCONV1701 Dimensions ....................................................11

RACKCONV1901 Dimensions ....................................................11

Technical Support........................................................... 12

Warranty Information...................................................... 12

Introduction

Packaging Contents

1 x 1U LCD Rack Console Drawer•

1 x VGA cable•

1 x USB cable•

1 x Mounting Rails - Set•

1 x Power Adapter•

1 x Power Cord•

Installation

Hardware Installation

Hardware Kit Contents

Please check that all packaging contents are present before•

installation. Make sure that nothing was damaged and/or lost during

shipping process. If you encounter any problem, please contact your

dealer.

Before installation, make sure all peripherals and computer have•

been turned off.

The cabinet depth range must be in 508 ~ 809 mm.•

Screw kit

(Used to attach

Rail Mount to

Console body)

Side Rails with front and rear brackets (2)

Mounting the console

Adjust the sliding rail until the screw underneath is visible. Loosen1.

(do not release) the two rear screws then adjust the rear bracket to

ﬁt the depth of your rack:

Install the rail into the rack by attaching them to the front/rear posts2.

using the appropriate screws and nuts for your rack (not included):

Tighten the rear screws that were loosened in Step 1:3.

Install the remaining rail, repeating Steps 1-3.4.

Gently, but ﬁrmly insert the console into the left and right rails:5.

Install two screws on each side of the rear console:6.

Installation is now complete.7.

How to Use

Connecting the Console

To connect the LCD console to a computer, perform the following steps:

Turn off your computer.1.

Connect the VGA video cable from the VGA output on the computer2.

system to the VGA port on the rear of the rack console.

Identify and connect the USB connector on the rear of the rack3.

console to a USB port on the computer system.

Connect the AC power cord to the power inlet on the console.4.

Connect the remaining end of the AC power cord to an available

power outlet.

Turning on the Console

Make sure all cables and the power adapter are connected properly.

Be sure to tighten all connector screws. Grab the front handle and

pull the console all the way out then lift the panel up. The power LED

underneath the LCD monitor will be green light.

Conguring Display Settings

After connecting the rack console and turning on your computer, you

may need to conﬁgure one or more of the following display settings to

allow the computer to display at the console’s native resolution. See

Speciﬁcations for the correct resolution mode for your model.

Display mode (also called desktop area or video resolution)•

Refresh rate (also called vertical scan rate or vertical sync)•

Color depth (also called color palette or number of colors)•

VGA input

USB output

Power Connector

Each video card has several controls that allow you to adjust the

display settings, however, the software and driver for each video card is

unique. In most cases, you can adjust these settings using a program

or utility provided by the manufacturer of the video card. Most video

cards use the Windows Display Properties control panel to conﬁgure

the display. To open the Windows Display Properties, click the right

mouse button in a blank area of the Windows desktop and then select

Properties. The Settings tab usually lets you change the Color Palette

and the Desktop Area (X by Y pixel resolution).

Some video cards integrate additional features into the Windows

Display Properties control panel giving you an extra setup options that

are ﬂexible and easy to use. Forexample, the control panel may include

an Advanced Properties button, an Adjustment tab, or a Refresh tab for

changing other settings. Other video cards have a separate utility for

setting display properties.

Whenever you change the resolution, color, or refresh rate, the image

size, position, or shape may change. This behavior is normal.You can

readjust the image using the monitor on-screen controls. For more

information on the monitor on-screen controls, refer to Panel controls

and OSD functions. For more information on conﬁguring the display

settings, please refer to the manual that accompanied your video card.

Testing the Console

To test that the console is working properly, perform the following steps:

Power up the rack console, and then turn on your computer.1.

Make sure the video image is centered within the screen area. Use2.

the OSD controls to adjust the image (see Panel controls and OSD

functions) or press the Auto button on the right hand side of the

monitor.

Note: If the unit does not power up when the panel is pulled up, try

pushing the soft power on/off button on the right side of the monitor

panel to power up the unit.

Note:You can adjust the horizontal and vertical position, contrast, and

brightness to better suit your video card and your personal preference.

Before you begin, make sure that power to all of the devices you will

be connecting to the console have been turned off. To prevent damage

to your installation due to ground potential difference, make sure that

all of the devices being installed are properly grounded. Once all

peripherals have been connected, please power them on.

Panel Controls and OSD Functions

The following controls are located on the left side of the the console

monitor:

Controls Descriptions

Soft power on/off. Adjacent LED is lit when on.

Auto Auto-synchronize and scale down display to any valid factory preset

timings.

Up Press to scroll to the function you want to adjust.

Down Press to scroll to the function you want to adjust.

Menu To access the main menu. This button also acts as the Enter button.

Auto tune

Press the “Auto tune” button. The panel will adjust the display size

automatically and also tune the panel to its optimized state.

Brightness

Press the Menu button.1.

Use the Down and Up buttons to scroll to Brightness.2.

Press the Menu button to enter.3.

Use the Down and Up buttons to adjust the brightness of the display.4.

Press the Menu button to save your selection.5.

Contrast

Press the Menu button.1.

Use the Down and Up buttons to scroll to Contrast.2.

Press the Menu button to enter.3.

Use the Down and Up buttons to adjust the contrast of the display.4.

Press the Menu button to save your selection.5.

Color

Press the Menu button.1.

Use the Down and Up button to scroll.2.

Highlight Color, and press the Menu button to enter, which will3.

launch the following screen:

Icon Description

9300°K To set CIE coordinates at 9300°K color

7500°K To set CIE coordinates at 7500°K color

6500°K To set CIE coordinates at 6500°K color

User To set user deﬁned CIE

Auto color To automatically adjust color

Return To exit and return to the previous page

Use the Down and Up buttons to adjust the contrast of the display.4.

Press the Menu button to save your selection.5.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali StarTech.com Rack e supporto

StarTech.com

StarTech.com FLATPNLCEIL Manuale utente

StarTech.com

StarTech.com CMDUCT1UX Manuale utente

StarTech.com

StarTech.com WALLSTS1 Manuale utente

StarTech.com

StarTech.com SATDOCK2520 Manuale utente

StarTech.com

StarTech.com WALLSHELF4U Manuale utente

StarTech.com

StarTech.com STNDMTV100 Manuale utente

StarTech.com

StarTech.com SHELF-2U-14-CENTER-V Manuale utente

StarTech.com

StarTech.com HSB43SATSASB Manuale utente

StarTech.com

StarTech.com LAPTOP-ARM-TRAY Manuale utente

StarTech.com

StarTech.com HSB3SATSASBA Manuale utente

StarTech.com

StarTech.com 4POSTRACK18U Manuale utente

StarTech.com

StarTech.com RK4OD Manuale utente

StarTech.com

StarTech.com MONSTND Guida rapida

StarTech.com

StarTech.com ARMSLIMDUO Manuale utente

StarTech.com

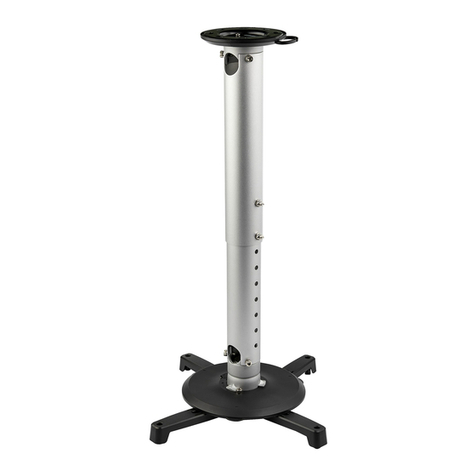

StarTech.com PROJCEILMNT2 Manuale utente

StarTech.com

StarTech.com MONSTADQI Manuale utente

StarTech.com

StarTech.com ARMPIVOT2USB3 Manuale utente

StarTech.com

StarTech.com RK3236BKF Manuale utente

StarTech.com

StarTech.com RK12WALLOA Manuale utente

StarTech.com

StarTech.com WALLMOUNT6 Manuale utente

StarTech.com

StarTech.com RK4242BK24 Manuale utente

StarTech.com

StarTech.com VIDWALLMNT Manuale utente

StarTech.com

StarTech.com RACK-2U-14-BRACKET Manuale utente

StarTech.com

StarTech.com ARMDUALWALL Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
