CPNT410IR Instruction Manual

Actual product may vary from photo

4-to-1 Component YPbPr A/V Switch with Remote Control

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Connecting Devices to the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Video Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Remote Learning Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

IInnttrroodduuccttiioonn

Thank you for purchasing a StarTech.com 4-to-1 Component YPbPr A/V switch. This

product allows you to connect up to four A/V devices that have Component Video and

either Digital Coax audio or RCA audio output to a display using a single set of inputs.

You can use either the front panel select button, the included remote control, or an

existing component remote to toggle between inputs, using the remote learning feature.

This product is perfect for use with DVD players, VCRs, game consoles and other video

devices when you have a limited number of inputs available on your TV or other display.

FFeeaattuurreess

• Connect up to four devices to your TV using a single set of inputs

• You can program the video switch to work with your existing universal remote

• Maintains clear audio and video signals for excellent performance

BBeeffoorreeYYoouuBBeeggiinn

System Requirements

• A display that has at least one set of inputs that accommodate RCA audio or Digital

Coax audio and component video

• A set of cables for each device to be connected to the switch that use RCA audio or

Digital Coax audio and component video

• A set of cables to connect the switch to the display, using RCA audio or Digital Coax

audio and component video

NOTE: If you are using Digital Coax to connect a device to the switch, Digital Coax

will be required between the switch and the display in order for the selected

component to properly output an audio signal. Similarly, if you are using RCA

audio to connect between a component and the switch, RCA audio must be used

between the switch and the display.

Contents

This package should contain:

• Component/Audio Switcher (1)

• 9V DC Power Adapter (1)

• Instruction manual (1)

• Remote Control (1)

Instruction Manual

IInnssttaallllaattiioonn

These instructions assume that the display has at least one available set of inputs that

use Component Video, as well as RCA or Digital Coax audio capability, and that all the

devices have their cables attached. You may need to disconnect an existing device from

the display to make an input available and re-connect that device once the video switch

has been suitably configured.

Connecting Devices to the Switch

NOTE: These instructions assume that all devices connected to the switch use the same

connection that the switch will use to connect to the display (i.e. the switch connects to

the Component Video input on a television, so all devices will be connected to the switch

using Component Video cables).

1. Situate the switch near the display and the devices you wish to use with the switch.

2. Using the color-coding on the jacks, connect one of the designated components to the

corresponding ports marked IN1.

3. Connect up to three additional devices following the instructions in step 2.

4. Connect RCA audio or digital coax cables and a component video cable to the ports

labeled OUTPUT on the video switch. Connect the opposite end of those cables to

the appropriate connectors on the display (normally marked as A/V IN or similar).

5. Connect the power adapter (provided) to the port marked DC 9V on the video switch.

Connect the opposite end to a wall outlet or other suitable power source.

The video switch is now ready to use.

Instruction Manual

DC 9V Output Input 4 Input 3 Input 2 Input 1

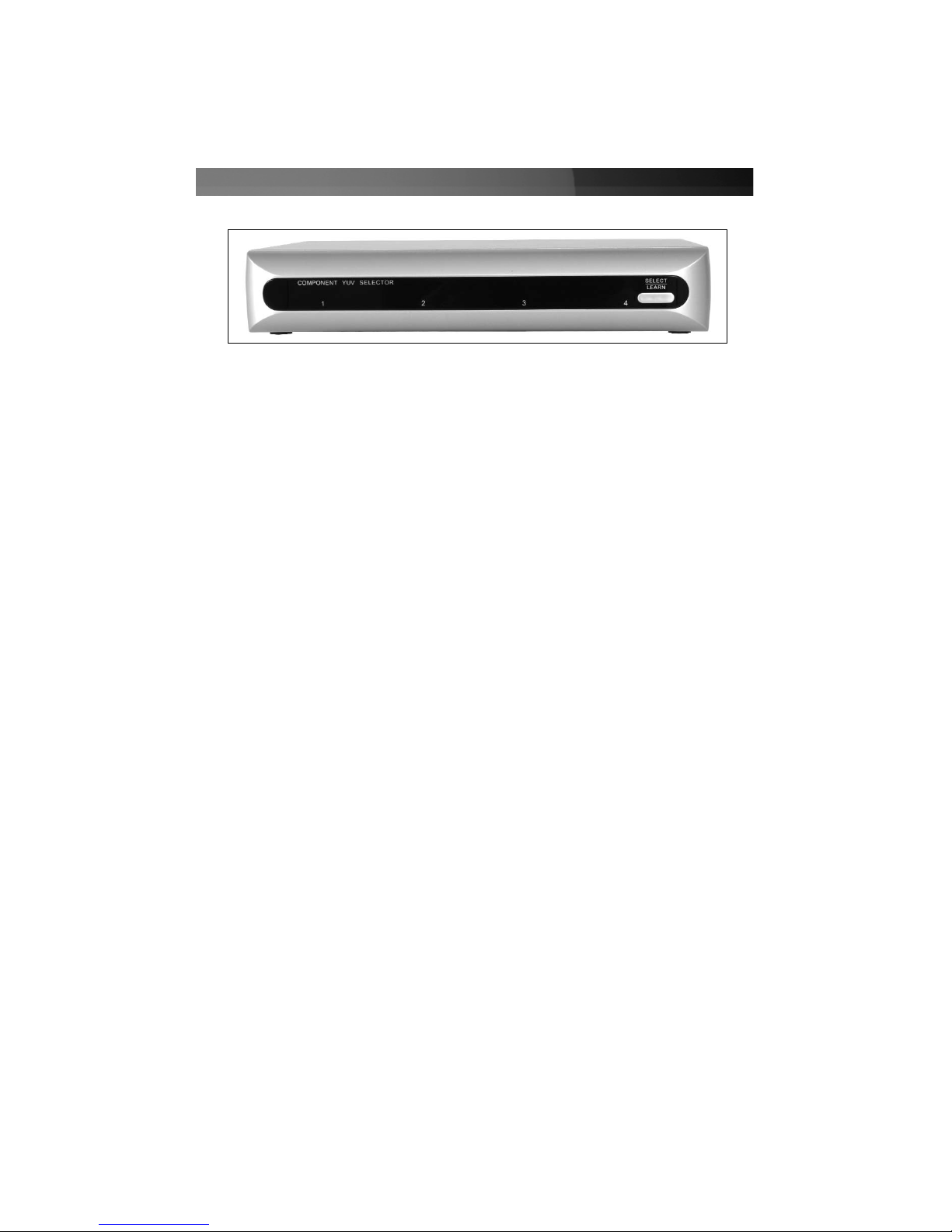

Using the Video Switch

Once you have connected devices to the video switch, you can proceed to test the

connection to the television or other display. Turn on the display, and select the input to

which you connected the video switch. Consult the documentation for your display if you

are unsure on how to select A/V inputs. Usually, there will be a button on the display’s

remote or front panel labeled INPUT or A/V. If the display has multiple inputs, you will

need to ensure the input you have selected corresponds to the connectors on the

television you used for the switch. A red LED indicator will light on the front panel of the

switch to show which device is active.

Power on all of the devices you connected to the video switch. You should now be able

to use the SELECT button on the video switch to select which device has an active

connection to the display.

UUssiinnggtthheeRReemmootteeLLeeaarrnniinnggFFeeaattuurree

This video switch allows you to select an input using the signal from any remote, using

the remote learning feature. To program an existing remote to work with CPNT410IR:

1. Press and hold the LEARN button on the video switch until the LED indicator for input

1 begins to flash.

2. Aim your universal remote at the video switch. Press the key on the remote that

corresponds to the key you want to use to select input 1 on the video switch (i.e. DVD,

VCR, SATELLITE etc.) Once the video switch has stored that setting, the LED

indicator for input 2 will flash on the video switch.

3. Repeat this process for inputs 2, 3, and 4. When the process is complete, the video

switch will automatically return to the input you selected before entering Learn Mode.

To abort the programming at any time, press the LEARN button once.

TTrroouubblleesshhoooottiinngg

If you’re having difficulty using the video switch, try the following solutions based on the

nature of the problem.

None of the devices connected to the video switch are displayed on the screen.

1) Ensure the video switch is plugged in and receiving power. One LED indicator

on the front panel will be lit when the switch is receiving power.

2) Try selecting another input on the display and verify which input the switch is

Instruction Manual

connected to. Most displays will have their A/V inputs marked with a number, so

ensure the input selected on the screen matches the physical connection between the

switch and the display.

3) Verify cable connections between the video switch and display are snug.

Some of the devices connected to the switch do not appear on the display when

they are connected

1) Ensure the device you selected is powered on and that it has media inserted (if

applicable: tape, DVD, etc.). If needed, press play on the device to ensure an image

is displayed.

2) Ensure that all the cable connections between devices and the switch are correct and

snug. Also ensure that the device is connected to the set of inputs that you selected

on the switch.

Video or audio quality is poor.

1) Ensure the connections between the devices and the switch, and the switch and the

display, are snug.

2) Try using a higher quality A/V cable to make the connection between the devices and

the switch for the best possible performance.

Instruction Manual

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

CCoommppoonneennttCCaabblleess

ZENCPNT1

Cable ZEN 3.3 ft (1m) Component Video Cable

ZENCPNT2

Cable ZEN 6.6 ft (2m) Component Video Cable

ZENCPNT3

Cable ZEN 9.8 ft (3m) Component Video Cable

DDiiggiittaallCCooaaxxCCaabblleess

ZENDIGCOAX1

Cable ZEN 3.3 ft (1m) Digital Coaxial Audio Cable

ZENDIGCOAX2

Cable ZEN 6.6 ft (2m) Digital Coaxial Audio Cable

ZENDIGCOAX3

Cable ZEN 9.8 ft (3m) Digital Coaxial Audio Cable

COAXSPDIF3

3 ft Premium Digital Coaxial Audio Cable

COAXSPDIF6

6 ft Premium Digital Coaxial Audio Cable

COAXSPDIF12

12 ft Premium Digital Coaxial Audio Cable

RRCCAAAAuuddiiooCCaabblleess

ZENAUDLR1

Cable ZEN 3.3 ft (1m) RCA Audio Cable

ZENAUDLR2

Cable ZEN 6.6 ft (2m) RCA Audio Cable

ZENAUDLR3

Cable ZEN 9.8 ft (3m) RCA Audio Cable

AUDIORCA12

12 ft Premium RCA Audio Cable

AUDIORCA3

3 ft Premium RCA Audio Cable

Instruction Manual

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Revised: 19 July 2006 (Rev. B)

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.

Altri manuali per CPNT410IR

Altri manuali StarTech.com Interruttore

StarTech.com

StarTech.com SV231UADVI Manuale utente

StarTech.com

StarTech.com DS52000 Manuale utente

StarTech.com

StarTech.com Starview SV231USBANGB Manuale utente

StarTech.com

StarTech.com SV211KUSB Manuale utente

StarTech.com

StarTech.com ST4200MINI Manuale utente

StarTech.com

StarTech.com SV1107IPEXT Manuale utente

StarTech.com

StarTech.com StarView SV231USBGB Manuale utente

StarTech.com

StarTech.com SV431DPUA2 Manuale utente

StarTech.com

StarTech.com SV211KT Manuale

StarTech.com

StarTech.com P2DD46A22-KVM-SWITCH Manuale utente

StarTech.com

StarTech.com ST4200MINI Manuale

StarTech.com

StarTech.com ST3300U3S Istruzioni per l'installazione

StarTech.com

StarTech.com SV841DUSBI Manuale utente

StarTech.com

StarTech.com KVM SWITCHBOX VGA DS15H954 Manuale utente

StarTech.com

StarTech.com MSTMDP123DP Manuale utente

StarTech.com

StarTech.com ConvergeAV VS410HDMIE Manuale utente

StarTech.com

StarTech.com StarView SV221DVIDD Manuale

StarTech.com

StarTech.com ICUSB2321X Manuale utente

StarTech.com

StarTech.com SV211KDVI Manuale utente

StarTech.com

StarTech.com 8STMSTMDP124DP Manuale utente

StarTech.com

StarTech.com SV441DUSBI Manuale utente

StarTech.com

StarTech.com DS8105 Manuale del sistema

StarTech.com

StarTech.com SV431DPUA2 Manuale utente

StarTech.com

StarTech.com 5G16AINDS-USB-A-HUB Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
