StarTech.com SV231DVIUDDM Manuale utente

Manual Revision: 08/17/2017

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV231DVIUDDM

SV431DVIUDDM

2 Port DVI USB KVM Switch with DDM and Cables

4 Port DVI USB KVM Switch with DDM and Cables

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

Product Overview ..................................................................................1

Front View (SV231DVIUDDM) ............................................................................................................... 1

Rear View...................................................................................................................................................... 1

Front View (SV431DVIUDDM) ............................................................................................................... 2

Rear View...................................................................................................................................................... 2

LED Indicators............................................................................................................................................. 3

Reset Button................................................................................................................................................ 3

Installation .................................................................................................................................................. 3

Operation..................................................................................................................................................... 4

Specications..........................................................................................6

SV231DVIUDDM ........................................................................................................................................ 6

SV431DVIUDDM ........................................................................................................................................ 7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Packaging Contents

• 1 x KVM Switch

• 2 x 2x 6ft DVI-D USB KVM Cables (4x 6ft DVI-D USB KVM Cables for SV431DVIUDDM)

• 1 x Firmware Upgrade Cable

• 1 x Universal Power Adapter (NA/EU/UK)

• 1 x Instruction Manual

Product Overview

Front View (SV231DVIUDDM)

Rear View

DC Jack Console Monitor

DDM Keyboard and Mouse Ports

RJ-45 Serial Port (Serial

Control + Firmware Upgrade)

PC KVM Ports

Reset

Button

Push-button

PC Selectors

Hot-Key

Selector and

Indicators

USB Hub

Ports

Instruction Manual

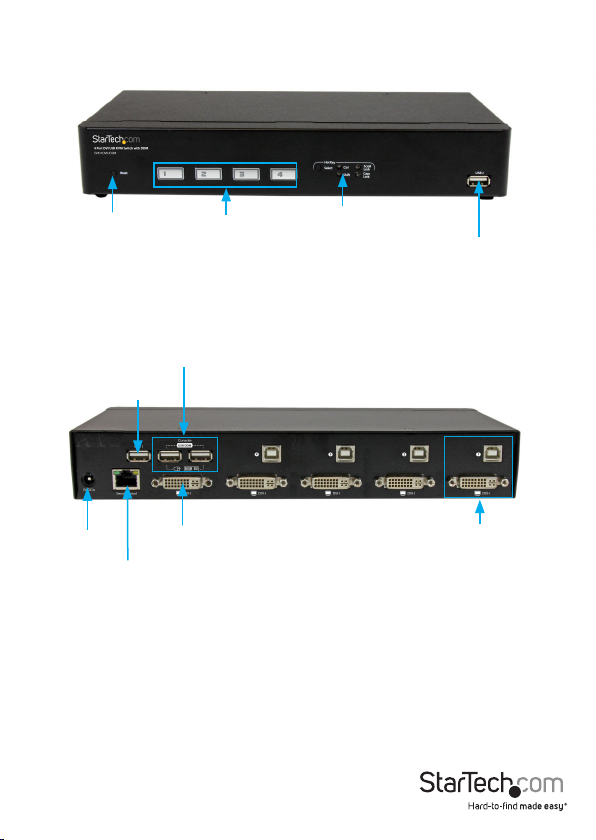

Front View (SV431DVIUDDM)

Rear View

Reset

Button Push-button

PC Selectors

Hot-Key

Selector and

Indicators USB Hub

DC Jack Console Monitor

DDM Keyboard and Mouse Ports

PC KVM Ports

RJ-45 Serial Port (Serial

Control + Firmware Upgrade)

USB Hub

Instruction Manual

LED Indicators

PC Selection Indicators Green = PC Connected

Amber = Port selected, PC connected

Red = Port selected, no PC connected

NOTE: The LED will ash quickly while the

KVM is mapping a newly connected device

Hot-key Selection Indicator Blue = Currently selected hot-key

Not-lit = hot-key has been disabled

Reset Button

The reset button causes all USB ports to reset and settings to reload. The KVM will re-

connect all devices (including DDM port and USB hub port) and PC ports like an initial

power on.

Installation

1. Connect the external power adapter from a wall outlet to the power connector on

the rear panel of the KVM switch.

2. Connect a monitor into the Console’s video connector, then plug your USB keyboard

and mouse into the DDM USB keyboard and mouse ports on the KVM switch.

NOTE: The DDM ports on the KVM are designed to be used with USB HID (Human

Input Device) only.

3. Use the included KVM cables to connect both video and USB, to one of the KVM’s PC

ports.

4. Repeat Step 3 for each PC you wish to use on the KVM.

OPTIONAL: Connect any other USB peripherals you wish to share between the

connected computers/devices to either the USB Hub port on the Console side, and/

or the front panel USB port.

Instruction Manual

Operation

Switching between computers can be accomplished using:

• Front-panel push-buttons

• Keyboard hot-keys

Note: To connect with the serial device, you need to operate at 115200 baud.

Hot-key and functions

The default hot-key is Ctrl.

Function Hot-key sequence

Change default hot-key Ctrl, Ctrl, K, <new hot-key>

Switch ports Ctrl, Ctrl, <port number 1 to 4>

Turn on or o switching

conrmation sound

Note: By default, the switching

conrmation sound is turned o.

Ctrl, Ctrl, Z

Turn on Auto Channel Scan

By default, the scanning interval is

5 seconds.

Ctrl, Ctrl, S

Change the Auto Channel Scan Interval

You can change the scanning interval to

5, 8, 15, 20, or 30 seconds.

When Auto Channel Scan is on, press an

interval number between 1 and 5

Turn o Auto Channel Scan Press any key

Assign USB port commands

Assign USB #1 for a certain port use on

Ctrl, Ctrl, H, 1, P, <port number 1 to 4>

Assign USB port commands

Assign USB #2 for a certain port use on

Ctrl, Ctrl, H, 2, P, <port number 1 to 4>

Assign USB port commands

Assign USB #1 for a certain port use on

Ctrl, Ctrl, H, 1, P, <port number 1 to 4>

Select clone EDID data Ctrl, Ctrl, V, 1

Select default EDID data Ctrl, Ctrl, V, 2

Instruction Manual

Enable switching by mouse scroll-wheel

button

Ctrl, Ctrl, M, 1

Disable switching by mouse scroll-wheel

button

The feature is turned o by default.

Ctrl, Ctrl, M, 0

Serial Command Function Screen Response

chX (X= 1,2,3...) SYNC jump to console channel X CHX

bzon Buzzer ON bzon

bzo Buzzer OFF bzo

ctrl Hotkey change to value “Ctrl” CTRL

shift Hotkey change to value “Shift” SHIFT

scroll Hotkey change to value“Scroll

Lock” SCROLL

caps Hotkey change to value “Caps Lock” CAPS

Change the Serial Device Settings to the following:

• RJ-45 serial port – control commands issued from communication applications such

as Hyper Terminal:

Speed (baud) 115200

Data bits 8

Stop bits 1

Parity None

Flow control None

Instruction Manual

Specications

SV231DVIUDDM

KVM Ports 2

Console Connectors 1 x DVI-I (29 pin) Female

2 x USB A (4 pin) Female (w/ DDM)

Computer Connectors

(per port)

1 x DVI-I (29 pin) Female

1 x USB B Female

Other Interfaces 2 x USB A Female

Switching Modes Pushbutton, Hot-key

Maximum Resolution 1920x1200

Audio Support No

On Screen Display No

Cascadable No

Rack-Mountable No

Enclosure Type Steel

Power Adapter 5V 2A,

Operating Temperature 0°C to 60°C (32°F to 140°F)

Storage Temperature -30°C to 70°C (-22°F to 158°F)

Humidity 0~80% RH Non-Condensing

Dimensions (LxWxH) 165 x 76 x 44mm

Weight 530g

Instruction Manual

SV431DVIUDDM

KVM Ports 4

Console Connectors 1 x DVI-I (29 pin) Female

2 x USB A (4 pin) Female (w/ DDM)

Computer Connectors

(per port)

1 x DVI-I (29 pin) Female

1 x USB B Female

Other Interfaces 2 x USB A Female

Switching Modes Pushbutton, Hot-key

Maximum Resolution 1920x1200

Audio Support No

On Screen Display No

Cascadable No

Rack-Mountable No

Enclosure Type Steel

Power Adapter 5V 2A,

Operating Temperature 0°C to 60°C (32°F to 140°F)

Storage Temperature -30°C to 70°C (-22°F to 158°F)

Humidity 0~80% RH Non-Condensing

Dimensions (LxWxH) 275 x 130 x 46 mm

Weight 1160g
