STATESMAN L255W Manuale utente
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.
Instruction Manual
55CM UNDER COUNTER LARDER FRIDGE
L255W - WHITE
L255B - BLACK
L255S - SILVER
2
CONTENTS
Important Safety Instructions ....................................... 3-6
Specication.....................................................................7
Appliance Overview..........................................................8
Installation .................................................................. 8-11
Operating Instructions.............................................. 11-12
Cleaning and Maintenance....................................... 12-13
Fuse Replacement .........................................................14
Disposal Information ......................................................14
Trouble Shooting Guide..................................................15
3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all of the instructions even if you feel you
are familiar with the product, and nd a place to keep this
manual handy for future reference.
Important: This product is intended for indoor domestic use, for
food refrigeration storage only. When using electrical appliances,
basic safety precautions should always be followed:
• Donotoperatetheappliancewithadamagedcordorplug,
after it malfunctions or has been dropped or damaged in any
way.Allelectricalrepairsmustbecarriedoutbyaqualied
electrician. Inadequate repairs may result in a major source of
danger for the user and invalidate the warranty.
• Theoperatingvoltageoftheapplianceis220-240Vat50Hz.
Check the voltage of the appliance matches the household
voltageontheratinglabelandspecicationforfurtherdetails.
• Useofanextensioncordisnotrecommendedwiththis
product.
• Thisappliancecanbeusedbychildrenagedfrom8yearsand
above if they have been given supervision or instruction
concerning the use of the appliance in a safe way and
understandthehazardsinvolved.
• Cleaningandmaintenanceshallnotbemadebychildren
• Keeptheapplianceanditscordoutofreachofchildren.
• Childrenshouldnotplaywiththeappliance.
• Thisappliancecanbeusedbypersonswithreducedphysical,
sensoryormentalcapabilitiesorlackofexperienceand
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
thehazardsinvolved.
• Alwaysunplugtheappliancebeforeattemptingtomove.
4
• Whendisconnectingfromtheelectricitysupply,pulltheplug
and not the cord.
• Donotstoreexplosivesubstancessuchasaerosolcanswith
aammablepropellantinthisappliance.
• Alwayskeeptheventilationopeningsclearofobstruction.
Should they become blocked, clear them straight away.
• TherefrigerantofthisproductisR600awhichisammable.
Ensure when moving the appliance or during installation that
the cooling system does not get damaged.
WARNING: The appliance is heavy and care is needed when
unpackingandmovingit.Getextrahelpandonlyholdthe
appliance by the casing – never hold by the door or the trim.
WARNING: Risk of child entrapment.
Before disposal of the old appliance, make sure that any locking
mechanismshavebeenbrokeno,doorshavebeenremoved
but shelves have been left in so that children cannot easily climb
inside. Also remove the plug so the appliance is unusable.
WARNING:Riskofre/ammablematerials.
• When positioning the appliance, ensure the supply cord is
not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
• To avoid contamination of food, pay attention to the
following:
• openingthedoorforlongperiodscancauseasignicant
increase of the temperature in the compartments of the
appliance;
5
• clean regularly surfaces that can come in contact with
food and accessible drainage systems;
• clean water tanks if they have not been used for 48 hours;
ushthewatersystemconnectedtoawatersupplyif
water has not been drawn for 5 days;
• storerawmeatandshinsuitablecontainersinthe
refrigerator so that it is not in contact with or drip onto
other food;
• two-starfrozen-foodcompartmentsaresuitablefor
storingpre-frozenfood,storingormakingice-creamand
making ice cubes;
• one-, two- and three-star compartments are not suitable
forthefreezingoffreshfood;
• if the refrigerating appliance is left empty for long periods,
switcho,defrost,clean,dryandleavethedooropento
prevent mould developing within the appliance.
6
Refrigerator location Type of food
Fridge door
Crisper bin (salad bin)
Fridge shelf – bottom
Chiller bin
Fridge shelf – middle
Fridge shelf – top
Freezerdrawer/shelf
• Foods with natural preservatives, such as jams,
juices, drinks, condiments.
• Do not store perishable foods.
• Fruits, herbs and vegetables should be
placed separately in the crisper bin.
• Do not store bananas, onions, potatoes,
garlic in the refrigerator.
• Rawmeat,poultry,sh(forshort-term
storage)
• Dairy products, eggs
• Foods that do not need cooking, such as
ready-to-eat foods, deli meats, leftovers.
• Foods for long-term storage.
• Bottomdrawer/shelfforrawmeat,poultry,sh.
• Middledrawer/shelfforfrozenvegetables,
chips.
• Topdrawer/shelfforicecream,frozenfruit,
frozenbakedgoods.
The table below contains general guidelines on the storage of
food in the refrigerator.
7
SPECIFICATION
SupplierName/TradeMark Statesman
Model Number L255
Category Type Refrigerator with one or more
fresh-food storage
compartments
EnergyEciencyClass A+
EUEco-LabelAward Y
AnnualEnergyConsumption 116kWh/annum
FreezingCapacity N/A
FridgeStorageVolume(Litre)and
Applicable Star Rating Compartment
FreezerStorageVolume(Litre) N/A
ApplicableStarRatingCompartment N/A
Refrigeration System (Frost Free,
Static, Totally No Frost)
TemperatureRiseTime N/A
ClimateClass ST/N
This appliance is intended to be used at an ambient temperature between
“16” (lowest temperature)°C and “38”(highest temperature) °C
Noise Emission (dB) 39(db)
Built-inAppliance N/A
WineStorageAppliance N/A
Voltage(V) 220-240V~
WattagePower(W) 70W
Frequency(Hz) 50Hz
Power Source AC
130L
Static
Ambient Room Temperature Limits
Class Symbol Ambient average
temperature °C
Extendedtemperature SN +10to+32
Temperature N +16to+32
Subtropical ST +16to+38
Tropical T +16to+43
8
APPLIANCE OVERVIEW
Location and air circulation
• Theappliancemuststandverticallyonaat,evensurface,tolevelthe
appliance use the levelling feet by turning them until the appliance is as
level as possible.
• Thisappliancehasbeendesignedtooperateinambienttemperatures
between 16°C and 38°C.
• Itisnotrecommendedtoplacethisapplianceinaroomwherethe
temperature is likely to drop below 5°C for prolonged periods, as the
internal appliance temperature will not be maintained.
• Theapplianceshouldnotbeplacednearsourcesofheate.g.cookers,
radiators, direct sunlight or in any unheated rooms e.g. garages, or
outhouses,asextremetemperatureswillaecttheperformanceofyour
appliance.
• Donotexposetheappliancetodampconditions,openairorrain.
• Donotlifttheappliancebythepipesorthedoorwhenmoving.
• Itisnotrecommendedtoplacetheapplianceinawallrecess,tted
cabinet or furniture as this will not allow adequate ventilation and cause a
potentialrehazard.
INSTALLATION
Internal Light and
Thermostat Control
Door Shelves
Bottle Shelf
Salad Drawer Cover
Adjustable Glass Shelves
Levelling feet
Salad Drawer
9
• Allow25mmofclearancespaceatthesidesoftheapplianceand20mm
above the appliance.
• Itisnotrecommendedtoplacetheappliancedirectlyagainstthewall,
allow at least a 15mm clearance space at the rear.
• Donotplacetheapplianceinawallrecess,ttedcabinetorfurnitureas
thiswillnotallowadequateventilationandcauseapotentialrehazard.
Providing you follow the recommended ventilation requirements you will:
• Increasethelifeoftheappliance.
• Minimisetheriskofcondensationontheoutsideoftheappliance.
• Minimiseoperatingnoisescausedbyvibration.
Reverse the door
Theappliancedoorcanbettedtoopentoeithertheleftortheright
depending on its location.
The appliance will have to be tilted and supported in order to carry this out. It
is advisable to get some help during this procedure.
Important:Donotlaytheapplianceatasthismaydamagethecoolant
system.Takecarewhenttingandtighteningscrews.
1.
To change the direction of the door, please follow these instructions:
1. Ensure the appliance is unplugged and empty.
2. Remove the 2 Screws on the back of
the top cover (Fig 1).
3. Lift the rear of the lid and push forward to
remove from the front locators. The top
hinge now is accessible (Fig 2).
4. Unscrewthetopdoorhingelocatedonthe
top of the door and then
remove the top hinge that
is holding the door in
place. (Fig 3)
5. With help, carefully tilt the
unit backwards and rest
the unit on something
solid to stop slipping.
2.
4.3.
10

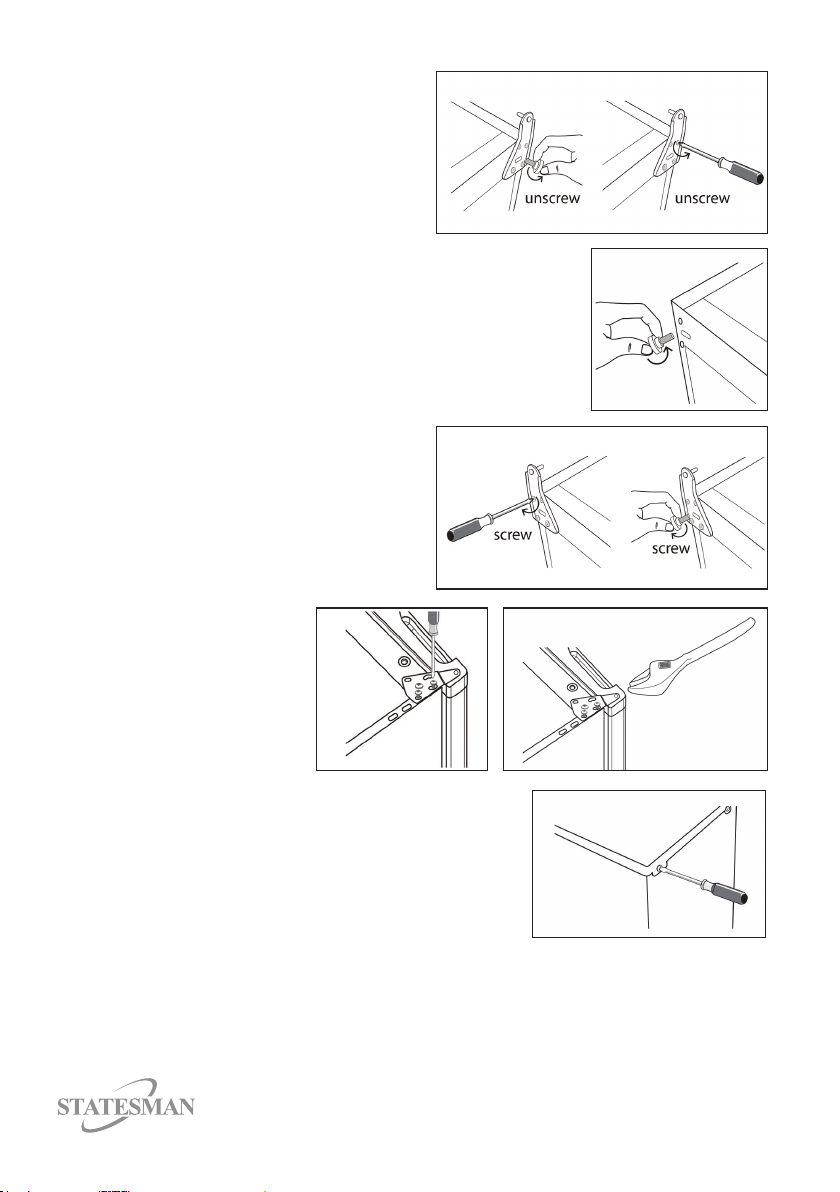

6. Liftthedoorothehingepinand
place in a safe place where it will
not get damaged
7. Remove the bottom bushing and
bottombushingcapandtthem
on the opposite side (Fig 4).
8. Unscrewthebottomhinge(Fig5).
9. Removethelevellingfootandtonthe
opposite side (Fig 6).
10. Screwthebottomhingeontheoppositeside
loosely (Fig 7).
11. Carefully slide the door on to the
bottom hinge pin.
12. Screw the top hinge loosely (Fig 8).
13. Check the fridge door is
alignedhorizontally
and vertically so that
the seals are closed
on all sides.
14. Tighten the top hinge.
Useaspannerto
tighten it if necessary
(Fig 9).
5.
6.
7.
8. 9.
15. Put the top cover back and screw
itintoplacesecurely(Fig10).
16. With the door closed, check that the door is
alignedhorizontallyandverticallyandthat
thesealsareclosedonallsidesbeforenallytighteningthebottom
hinge (Fig 11).
10.
