STEINDORFF SPMM Manuale utente

STEINDORFF®

POLARIZING Microscope

Model Number

SPMM

User Manual

STEINDORFF®

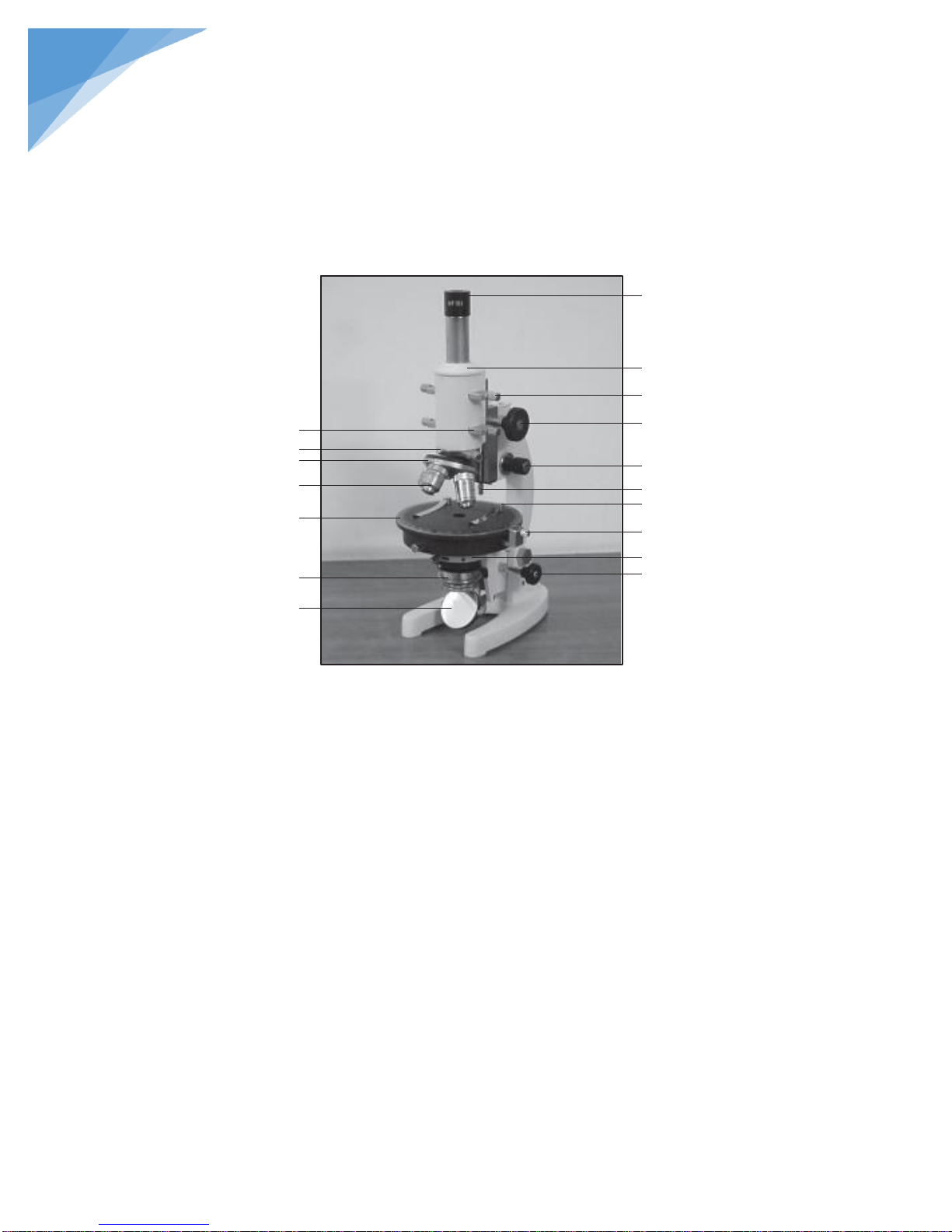

PARTS LAY-OUT

LIST OF PARTS

1. Eyepiece

2. Microscope Tube

3. Bertrand Lens

4. Coarse Motion Knobs

5. Fine Motion Knobs

6. Tube Lock

7. Stage Clips

8. Stage Lock

9. Condenser

10. Condenser Knob

11. Reflector

12. Polarizer

13. Rotating Stage

14. Objective

15. Nosepiece

16. Mica & Gypsum Plate

17. Analyzer

STEINDORFF®

The Observation of Orthoscope

Usually to observe a tissue section by Microscope, the condenser should be lower down and the Bertrand lens is taken away from

the light path. Doing like thisway, the optical nature of minerals beabletobeobserved bymeansof getting in visual field of transmitting

parallel light.

How to Use

Polarizer and Analyzer is to be set on the orthogonal crossed position.

Slide out the analyzer from the light path.

Bertrand lens is also to slide out from the light path.

Without any slide, adjust the Sub Stage Condenser as to become the samebrightnessineachobjectiveswhileobserving

throughthe microscope.

To set with 10X eyepiece and low power Objective.

Insert the Analyzer into the light path, then the field becomes dark.

To rotate the rotating stage having on a slide with specimen, to be observed through the Microscope.

Insert the Gypsum-Plate in order to change a wave length of specimen in 1/4 degree, if required.

Subject to these steps, we may be able to know a figure and color or refractive index of minerals by orthoscope.

Adjustment of Centripetal

The center of the object & rotating stage have to accord with the crossed point of specimen in visual field always. If it is not

correct, it should be adjusted by the centering screws, while rotating the stage.Focus thespecimen sharply,find a marked feature in

field view and make it situated at the center of the eyepiece cross line.

The Observation of Conoscope

Set the eyepiece & object, insert an analyzer and polarizer in the light path and adjust the condenser to observe the Conoscope or

interference figure by transmitting light with various magnifications.

How to use

Adjust the Condenser to Upper position.

Insert the Bertrand lens in the light path.

To set with 5X eyepiece & 40X Objective.

To put a specimen on the stage and adjust the focus.

Adjust the intensity of the light/through diaphragm of the condenser.

STEINDORFF®

HighPowerobjective40x ismost suitable to getanimageof Conoscope.

The condenser might to be put on a higher position for better results.

Maintenance of Lens Surface

Wipe off dust deposited on the lens surface with a soft brush or blow it off with a blower. Lightly and carefully wipe off finger

prints or oily stains with a soft, clean, cotton cloth, gauze, or lens paper moistened with a suitable lens cleaner. Do not

directly saturate the lens surface with cleaners that might creep into the optical system and impair their performance. Never

use strong solvents to clean lens, mirrors and painted surfaces. When wiping the glass surface, do it lightly several times by

sequentially using a new, unused portion of the cloth each time.

When not in use

When the Microscope is not used for a short period, protect it from dust by covering it with a plastic dust cover and store it in a

dry place. When the microscope is not used for a long period, clean it , then detach the objectives and eyepieces, install the

eyepiece tube caps and revolving nosepiece caps and cover it with a vinyl sheet for storage. Put the objectives into the case

and store them together with the eyepieces in a dessicator.
