OWNER’S MANUAL

ELECTRONIC THERMOSTAT – LOW VOLTAGE / 24 V

SAVE THESE INSTRUCTIONS

INSTALLATION

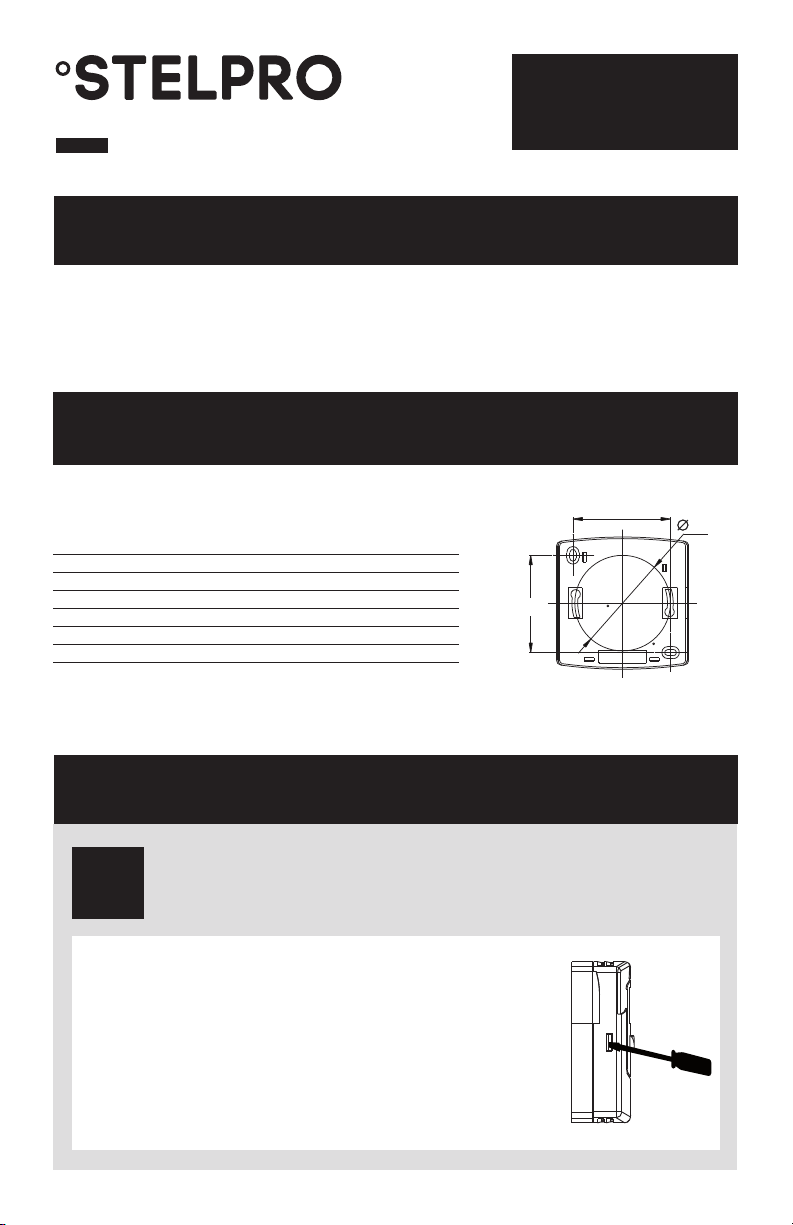

1. With a screwdriver, pull one side of the cover and gently

pull the lock hook towards the inside of the thermostat

on each side, and then remove the front cover.

2. Ensure the surface is levelled.

3. Route the wires in the terminal block.

4. Insert the two wall anchors into the wall.

5. Secure the thermostat to the wall with the two screws

provided.

1THERMOSTAT INSTALLATION

Mounting location: The thermostat must be installed indoor only. It should be mounted on a

wall, at about 1.5 m above the oor, where it can detect the temperature variations and where

the air is circulating freely. Avoid to mount it near hot surfaces (e.g. TV, heater, refrigerator), or

to expose it directly to sunlight, drought or equipment radiation, or in a laundry room. Do not

expose this unit to dripping or splashing.

CAUTION: Switch off power supply before maintenance. The maintenance

of the thermostat should be performed by a qualiﬁed person.

Temperature range 5 to 35 ºC (41 to 95 ºF)

Proportion band 2 ºC (3.6 ºF)

Voltage 24 VAC +/-10%

Frequency 50/60 Hz

Sensing element NTC Thermistor

Terminals 14 AWG Cable

Operating temperature 0 to 45 ºC (32 to 113 ºF)

Storage temperature -10 to 55 ºC (14 to 131 ºF)

IMPORTANT INSTRUCTIONS

SPECIFICATIONS:

COM

ET180

61.3 mm

60.0

61.1 mm

COM

ET180

61.3 mm

60.0

61.1 mm

°STELPRO LIMITED WARRANTY

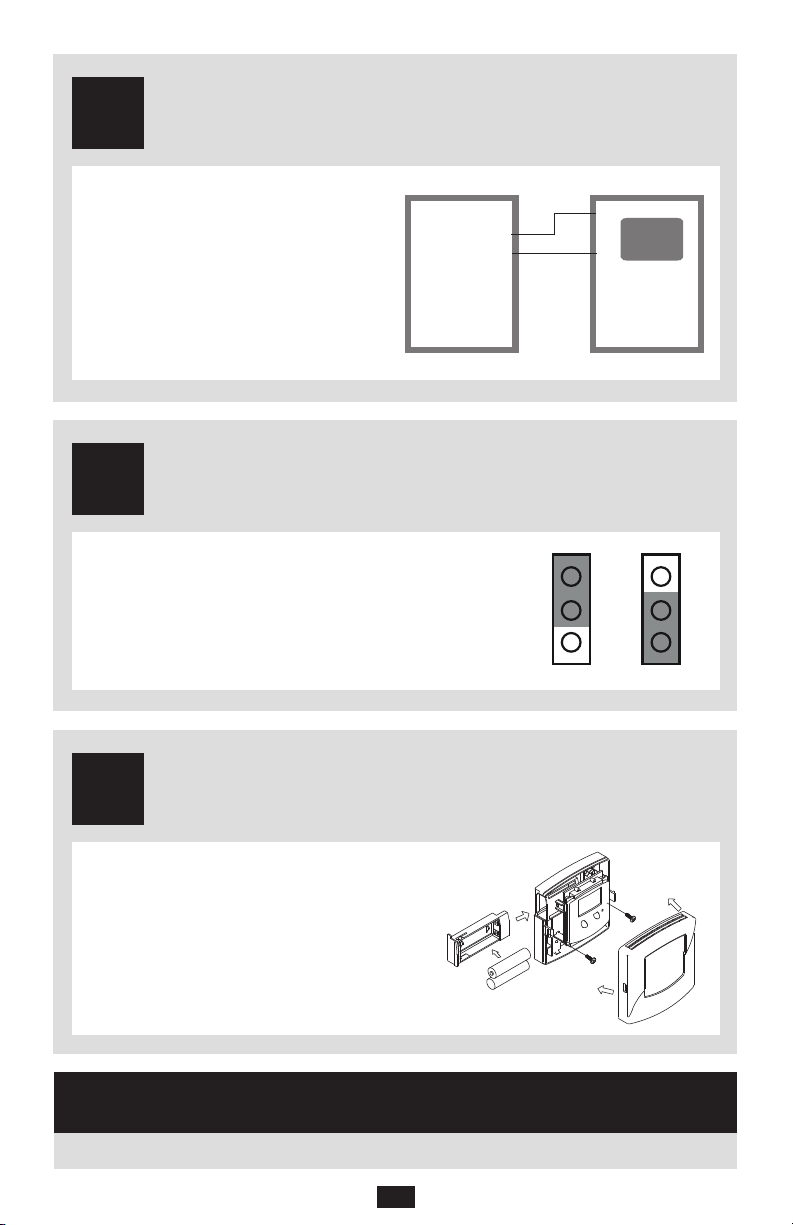

1. Make the proper electrical

connections according to the

circuit diagram.

2. Afterward, push all the wires back

into the wall.

3. To close the cover, align the

openings on each side of the cover

with the lock hooks, and push.

1. Select C for Degree Celsius or F for Degree

Fahrenheit as illustrated.

2. Select the temperature by pressing down the

thermostat buttons.

3. The display returns to the room temperature after

8seconds.

1. Open the battery compartment.

2. Install the batteries, respecting the

polarity.

3. Close the battery compartment.

2ELECTRICAL CONNECTIONS

3JUMPER SELECTION AND

TEMPERATURE SETTING UP

4INSTALL THE BATTERIES

Limited one-year warranty. See details on www.stelpro.com.
