Stelpro STE362RNP Manuale utente

INSSTE362RNP0609

“STE362RNP”

Electronic thermostat

User’s Guide

www.stelpro.com

For further information or to consult this guide on line,

please visit our Web site.

INSSTE362RNP0609

WARNING WARNING

Before installing and operating this product, the

owner and/or installer must read, understand

and follow these instructions and keep them

handy for future reference. If these instructions

are not followed, the warranty will be consid-

ered null and void and the manufacturer deems

no further responsibility for this product. More-

over, the following instructions must be adhered

to in order to avoid personal injuries or property

damages, serious injuries and potentially fatal

electric shocks. All electric connections must be

made by a qualiﬁed electrician, according to the

electric and building codes effective in your re-

gion. Do NOT connect this product to a supply

source other than 120 VAC, 208 VAC or 240 VAC,

and do not exceed the load limits speciﬁed. Pro-

tect the heating system with the appropriate cir-

cuit breaker or fuse. You must regularly clean dirt

accumulations on the thermostat. Do NOT use

ﬂuid to clean thermostat air vent. Do not install

thermostat in a wet place. However, installing it

in isolated walls is allowed.

Note:

When a part of the product speciﬁcation must be changed to improve operability or

other functions, priority is given to the product speciﬁcation itself. In such instances, the

instruction manual may not entirely match all the functions of the actual product.

Therefore, the actual product and packaging, as well as the name and illustration, may

differ from the manual.

The screen/LCD display shown as an example in this manual may be different from the

actual screen/LCD display

INSSTE362RNP0609

1.Description

The electronic thermostat STE362RNP can be used to con-

trol electric heating units such as electric baseboards, con-

vectors, or aeroconvectors. It keeps the temperature of a

room at the requested set point with a high degree of ac-

curacy. This product is designed for installations with electri-

cal current - with a resistive load - ranging from 2 A to 15

A (120/208/240 VAC). It possesses a user-friendly interface.

Furthermore, it gives you the possibility to control the tem-

perature of a room with great precision.

This thermostat is not compatible with the following

installations:

•electrical current higher than 15 A with a resistive load

(3600 W @ 240 VAC, 3120 W @ 208 VAC and 1800 W @

120 VAC);

•electricalcurrentlowerthan2Awitharesistiveload(480

W @ 240 VAC, 416 W @ 208 VAC and 240 W @ 120 VAC);

and

•centralheatingsystem.

Parts supplied:

•one(1)thermostat;

•two(2)mountingscrews;

•two(2)solderlessconnectorssuitableforcopperwires.

INSSTE362RNP0609

2. Installation

Selection of thermostat location

The thermostat must be mounted on a connection box on a

wall facing the heating unit, at around 1.5 m (5 feet) above

the ﬂoor level, on a section of the wall exempt from pipes

or air ducts.

Do not install the thermostat in a location where temperature

measurements could be altered. For example:

•closetoawindow,onanexternalwall,orclosetoadoor

leading outside;

•exposeddirectlytothelightorheatoftheSun,alamp,a

ﬁreplace or any other heat source;

•closeorinfrontofanairoutlet;

•closetoconcealedductsorachimney;and

•inalocationwithpoorairow(e.g.behindadoor),orwith

frequent air drafts conditions (e.g. head of stairs).

INSSTE362RNP0609

Thermostat mounting and connection

1. Cut off power supply on lead wires at the elec-

trical panel in order to avoid any risk of electric

shock.

2. Ensure that the air vents of the thermostat are clean and

clear of any obstruction.

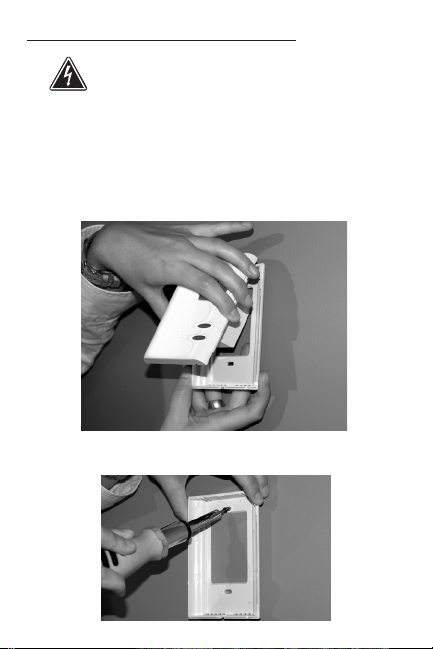

3.Using a screwdriver, loosen the screw retaining the mount-

ing base and front part of the thermostat. Remove the front

part of the thermostat from the mounting base by tilting it

upward.

4. Align and secure the mounting base to the connection box

using the two screws supplied.

INSSTE362RNP0609

5. Take the wires from the wall through the hole at the base

of the thermostat and connect them using the supplied

solderless connectors. When making the connection with

aluminum wire, make sure that you are using connectors

identiﬁed CO/ALR. Please note that the thermostat wires

do not have polarity. Therefore, the way they are connect-

ed is not important.

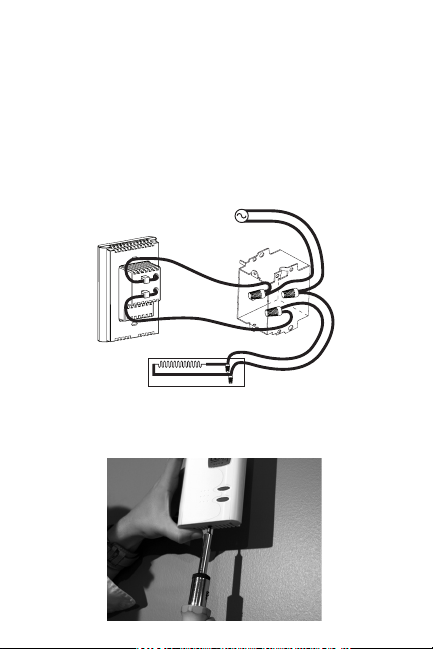

2-wire installation

6. Reinstall the front part of the thermostat on the mounting

base and tighten the screw at the bottom of the unit.

7. Turn on the power.

8. Set the thermostat to the desired setting (see the following

section).

INSSTE362RNP0609

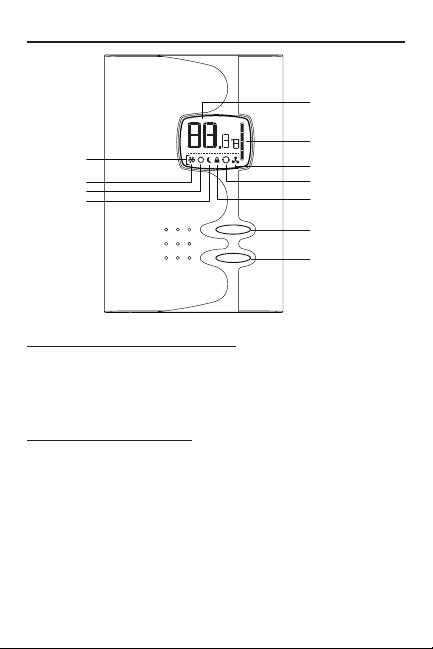

3. Operation

ambient temperature/

timer

heating power used indicator

automatic mode

lock mode

fan mode

top button

pictograms

frost-free warning

day mode

night mode

bottom button

Powering on for the ﬁrst time

When powering on for the ﬁrst time, the thermostat is initially

set to ‘Day’ mode. The temperature is displayed in Celsius

and is set at 21 degrees by default.

Temperature set points

The ﬁgures displayed above the pictogram indicate the tem-

perature set point. It can be displayed in degrees Celsius or

Fahrenheit (see “Display in degrees Celsius/Fahrenheit”).

To adjust the set point, just press down the top button to

increase the value, or the bottom button to decrease it. Set

points can be adjusted by increments of 0.5°C or 1°F. To

quickly scroll through the set point values, press and hold

down the button. The minimum set point is 3°C (37°F), and

the maximum set point is 30°C (86°F). In Day mode, you can

turn off the thermostat by lowering the set point below 3°C.

INSSTE362RNP0609

The set point value displayed will be OFF, and heating system

start up will be impossible.

Day mode and Night mode

The thermostat includes a Day mode and a Night mode,

both of them having their own independently adjustable and

recorded set point. When switching from one mode to the

other, the system will automatically use the temperature set

point corresponding to the Day/Night mode selected. The

standard factory set point adjustment is 21°C (70°F) for the

Day mode, and 18°C (64°F) for the Night mode.

The current Day/Night mode selection is indicated on the

display by the Sun or Moon icon. In order to manually switch

from one mode to the other, simultaneously press down the

two buttons and release them immediately.

Night mode timer

The Night mode features a timer that automatically returns to

the Day mode after a selectable time period. This timer allows

the temporary use of a temperature set point. The standard

factory adjustment of the timer is 8 hours. With this adjust-

ment, the thermostat automatically returns to Day mode 8

hours after being switched to the Night mode.

For example, if you want a night temperature lower than the

day temperature, both Day/ Night modes set points will ﬁrst

have to be set at the desired temperatures. Before bedtime,

the Night mode temperature set point will be activated by

switching manually to the Night mode. The timer is set for the

duration of the night. The thermostat will automatically return

to the Day mode at the end of the night, and the Day mode

temperature set point, which is higher, will become effective

at this time.

INSSTE362RNP0609

Night mode timer adjustment procedure

1. If necessary, adjust the Day/Night mode set points at the

desired temperatures. If needed, switch from one mode to

the other by simultaneously pressing down the two but-

tons and releasing them immediately.

2. From the Night mode, simultaneously press down the two

buttons for more than 3 seconds until the moon icon blink-

ing and the letter H appear.

3. If needed, adjust the timer by pressing down the top but-

ton to increase the value, or the bottom button to decrease

it. The adjustment range is from 1 hour to 999 hours. To

quickly scroll through timer values, press and hold down

the button.

4. When the adjustment is completed, release the buttons

and wait for 5 seconds to exit the adjustment function.

NOTE: The Night mode timer will be automatically reinitialized

to the latest recorded value when switching from the

Day mode to the Night mode. It is not necessary to

readjust the timer every time you switch to the Night

mode. The timer is also reinitialized when this value is

adjusted. Once the timer has completed its cycle and

when the thermostat is in the Day mode, you must

manually return to the Night mode. If you want to au-

tomatically return to the Night mode, the Automatic

mode must be selected.

Automatic mode

The Automatic mode, which is associated to the Night mode

timer, allows alternating between the Day/Night modes and

the two corresponding set points over a 24-hour period.

Once activated, this mode allows an automatic return to

the Night mode after 24 hours. The Automatic mode allows

you to deﬁne two periods in a single day with different set

points.

INSSTE362RNP0609

For example, if the Automatic mode is activated and the

Night mode timer is set at 8 hours, the thermostat will be op-

erating in the Night mode for 8 hours at the night temperature

set point. Then, it will return to the Day mode for 16 hours

operating at the day temperature set point. At the end of the

24-hour cycle, the thermostat will return to the Night mode,

and the cycle will start again. The 24-hour cycle starts with

the Night mode as soon as the Automatic mode is activated.

The Automatic mode activation should be made when you

want to return to the Night mode. The normal course of a

cycle in the Automatic mode is as follows:

1- Night mode: activated for the duration of the Night mode

timer cycle. It returns to the Day mode when the timer

cycle is completed.

2- Day mode: activated for the remaining time of the 24-hour

cycle. It returns to the Night mode at the end of the 24-

hour cycle.

Adjustment procedure of the Automatic mode:

1. If necessary, adjust the Day/Night set point at the desired

temperatures. If needed, switch from one mode to the oth-

er by simultaneously pressing down the two buttons and

releasing them immediately.

2. From the Night mode, simultaneously press down the

two buttons for more than 3 seconds. If needed, adjust

the timer by pressing down the top button to increase the

value, or the bottom button to decrease it. The Night mode

timer adjustment range is from 1 hour to 23 hours in the

Automatic mode. To quickly scroll through the timer val-

ues, press and hold the bottom button.

NOTE: If you set the timer to any value exceeding 23 hours,

it will be impossible to activate the Automatic mode

and if it was activated, the Automatic mode will be

deactivated.

Altri manuali per STE362RNP

Indice

Altri manuali Stelpro Termostato

Stelpro

Stelpro SHUT1 Series Manuale utente

Stelpro

Stelpro STE403NP Manuale utente

Stelpro

Stelpro B2T1 Series Manuale utente

Stelpro

Stelpro True Comfort PS120/240WF Manuale utente

Stelpro

Stelpro STCNP Manuale utente

Stelpro

Stelpro MAESTRO Manuale utente

Stelpro

Stelpro STZW402+ Manuale utente

Stelpro

Stelpro STE302PA Manuale utente

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente

Stelpro

Stelpro STE403NP Manuale utente

Stelpro

Stelpro STCNP Manuale utente

Stelpro

Stelpro MAESTRO Manuale utente

Stelpro

Stelpro STE402NP Manuale utente

Stelpro

Stelpro STCPW5 Manuale utente

Stelpro

Stelpro MAESTRO Manuale utente

Stelpro

Stelpro STE302P Manuale utente

Stelpro

Stelpro BA Series Manuale utente

Stelpro

Stelpro MAESTRO Manuale utente

Stelpro

Stelpro T12 Series Manuale utente

Stelpro

Stelpro STE302R2+ Manuale utente

Stelpro

Stelpro Maestro SMT402AD Manuale utente

Stelpro

Stelpro STE302P Manuale utente

Stelpro

Stelpro MAESTRO Manuale utente

Stelpro

Stelpro STCNP - 5mA Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Honeywell

Honeywell T6811 Manuale utente
