Steren BRK-200 Manuale utente
ENGLISH
ENGLISH-02
Before using your new Home theater speaker mount, please read
this instruction manual to prevent any damage. Put it away in a
safe place for future references.
INSTALLATION
ADDITIONAL INSTALLATION TOOLS
Phillips Head Screw Driver
Pencil
Electric Drill
Drill Bits:
1/8’’ drill bit for drywall
3/16’’ masonry bit for
cement wall applications
•
•
•
•
Before usin
g
y
our new Home theater speaker mount, please read
t
hi
s
i
nstruct
i
on manua
l
to prevent an
y
d
ama
g
e.
P
ut
i
t awa
y
i
n a
safe place for future references
.
ENGLISH
ENGLISH-03
IDENTIFY PARTS
Mounting plate (1)
Screw covers
Extension
Adjusting knuckle
Mounting plate (2)
Speaker plate
ENGLISH
ENGLISH-04

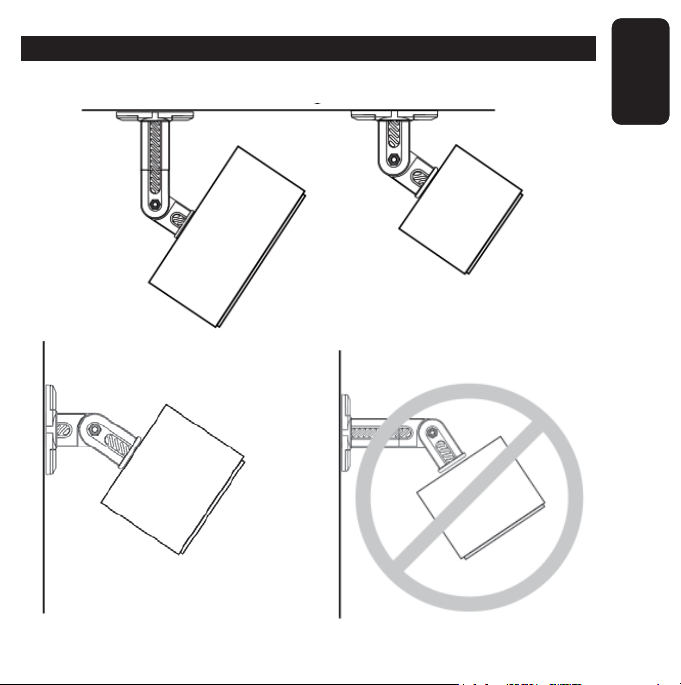

DECIDE ON LOCATION
INSTALLATION IN CEILING
INSTALLATION IN WALL INSTALLATION IN WALL
ENGLISH
ENGLISH-05
INSTALLATION OF WALL PLATE
Mounting to drywall
1.- Use wall plate as a template and mark screw hole locations.
2.- Drill into drywall with 1/8’’ drill bit. Insert the anchors into hole.
3.- Secure with 1 3/4’’ screws.
ENGLISH
ENGLISH-06
Mounting to solid concrete
1.- Drill into surface with 3/16’’ masonry drill bit to 1-3/4” deep. Insert
anchors into the holes.
2.- Secure wall plate with 1-3/4” screws.
ENGLISH
ENGLISH-07
Installation of radius plate, button stud plate or mounting plate
onto speaker.
1.- Speakers with one threaded insert or Bose®series.
Place the plate as in the figure and use a ½” – 3/16” screw to fasten it.
2.- Speakers with single keyhole in back.
a) Insert assembly into keyhole.
b) Slide upward -then tighten.
ENGLISH
ENGLISH-08
3.- Speakers without mounting holes - wood cabinet only.
a) Use wall plate (2) as a template and mark screw hole locations.
b) Drill into cabinet with 3/32’’ drill bit to 1/2” deep.
c) Place the plate and fasten it with ¾” screws.
ENGLISH
ENGLISH-09
4.- Speakers with 1/4” insert on back.
Use the plate and screw it in the right hole in the speaker.
ENGLISH
ENGLISH-10
INSTALLATION OF ADJUSTING KNUCKLE AND EXTENSION
1.- After wall plate installation, put the screws cover on it.
2.- Then insert the extension and / or the adjusting knuckle into the
mounting plate.
3.- Use a hex key to fasten the joints.
4- Secondly, insert the mounting plate of the speaker into the adjusting
knuckle.
5.- Use a hex key to fasten the joints.
6.- The speaker will be mounted correctly.
Screw covers
Set screw locations
Set screw locations
Extension
