Before using your new KVM switch, please read this instruction
manual to prevent any damage. Put them away in a safe place for
future references.
IMPORTANT
Clean only with a soft, dry cloth. Do not use solvents.
Make sure all the computers completely boot-up before switching
between them.
Do not move the mouse whilst switching between the PCs.
FEATURES
Compact and size design, easy to handle
Compatible with Microsoft, Logitech mice
Compatible with DOS, Win 3.X, Windows 95, 98, 2000, XP, Vista,
WinNT, Netware, Unix, Linux.
Hot plug, does not require to turn the device off to connect or
disconnect peripherals
High video quality, up to 1920 x 1440. Bandwidth: 200MHz
Drivers are not required
Auto scan mode
Keyboard status restored when switching PCs
LED status display
Buzzer sound for switching port confirmation
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Before usin
g
y
our new KVM switch, please read this instruction
m
anual to prevent an
y
dama
g
e. Put them awa
y
in a safe place for
f
uture references
.
ENGLISH
ENGLISH-03

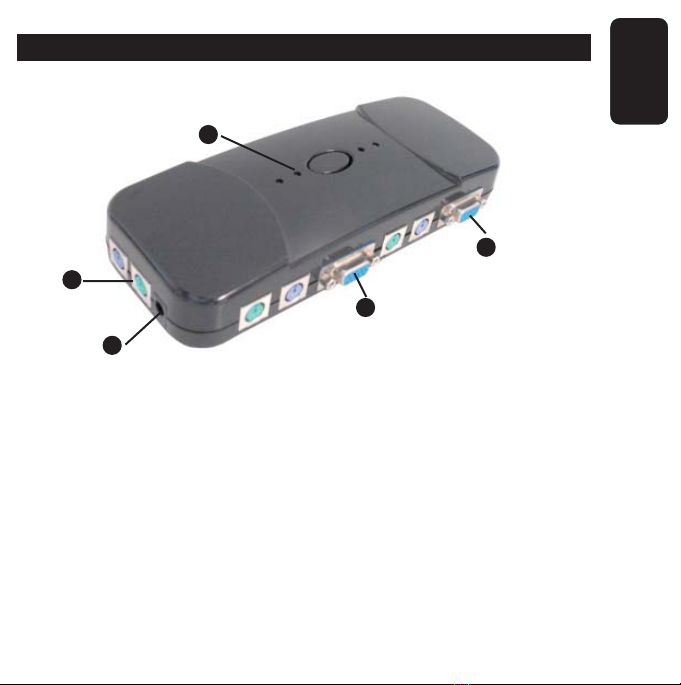

CONTROLS
1.- Mouse and keyboard connector
Allows you to connect the main mouse and keyboard
2.- AC power adapter input jack
In case you use a notebook and the KVM requires more energy, please
connect an AC power adapter with this specifications: 5V ~ 9V DC,
100mA ~ 1A
3.- Monitor connector
Allows you to connect the main monitor
1
2
5
7
8
ENGLISH
ENGLISH-04

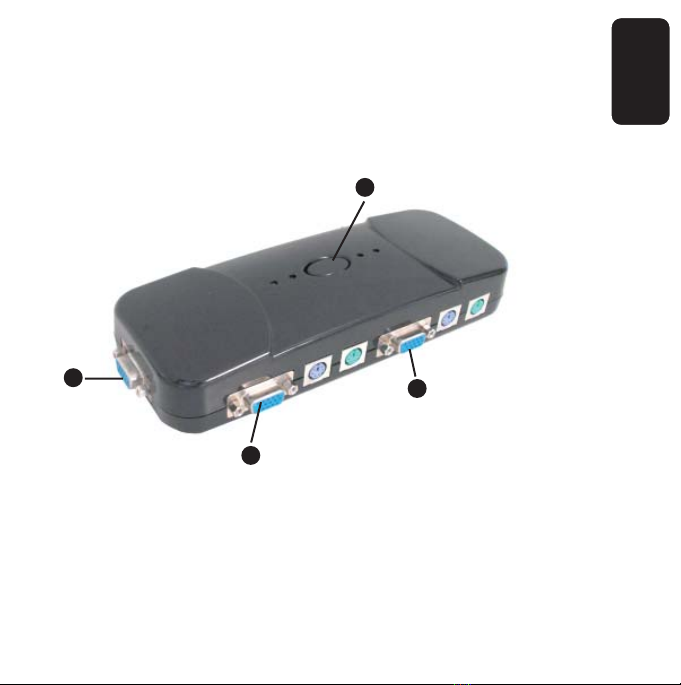

4.- CPU1 connectors
Use a KVM cable (506-220) to connect the switch to CPU1
5.- CPU2 connectors
Use a KVM cable (506-220) to connect the switch to CPU2
6.- CPU3 connectors
Use a KVM cable (506-220) to connect the switch to CPU3
7.- CPU4 connectors
Use a KVM cable (506-220) to connect the switch to CPU4
3
4
6
9
ENGLISH
ENGLISH-05
8. CPU Selector
Press it to choose a CPU
9.- LEDs indicators
A LED will light according to selected CPU
INSTALLATION
Before installing the KVM switch, assure all the external devices
are off.
1.- Connect the keyboard, mouse and monitor to the lateral KVM switch
connectors.
2.- Connect a KVM cable from the switch to the different CPUs (up to 4
CPUs can be connected)
3.- Turn the devices on, wait until the system boot up. Then you can use
the KVM switch.
Make sure to use KVM cable (male-to-male) for each CPU that you
want to use, we recommend to buy the KVM Steren cable: 506-220.
Make sure to connect the mouse, keyboard and monitor to the
KVM switch, otherwise the switch will not work.
Before installin
g
the KVM switch, assure all the external devices
a
re off
.
M
ake sure to use KVM cable
(
male-to-male
)
for each CPU that
y
ou
want to use, we recommend to bu
y
the KVM Steren cable: 506-220
.
M
a
k
e sure to connect t
h
e mouse,
k
e
yb
oar
d
an
d
mon
i
tor to t
h
e
KVM
sw
i
tc
h
, ot
h
erw
i
se t
h
e sw
i
tc
h
w
ill
not wor
k.
ENGLISH
ENGLISH-06
DIAGRAM
From monitor
From keyboard
From mouse
To keyboard connector
To mouse connector
To monitor connector
CPU 1
CPU 2 CPU 4
CPU 3
KVM cable
KVM cable
ENGLISH
ENGLISH-07
INSTRUCTIONS
1.- Turn the CPUs on.
2.- Turn the monitor, keyboard and mouse.
3.- Wait until the CPUs booted up
4.- Once the CPUs booted up, you can press the selector button to
change between different CPUs.
5.- The corresponding indicator LED will light up.
If you switch to an empty port, the corresponding LED will flash.
SHORTCUTS
Using the keyboard, you can use keypad shortcuts to quickly do an
action in KVM switch. Press the Scroll Lock key twice within 2 seconds.
You will hear a beep, then you can press other button as follows:
Previous channel
Next channel
Auto scan
If
y
ou switch to an empt
y
port, the correspondin
g
LED will flash
.
Scroll
Lock Scroll
Lock
Scroll
Lock Scroll
Lock
Scroll
Lock Scroll
Lock S
+
+
+
+
+
+
ENGLISH
ENGLISH-08
Select PC port directly
Beeper on (Factory default: off)
To leave the auto scan mode, press space bar once.
TROUBLESHOOTING
Assure all the cables are well connected. Label the cables to avoids
confusion.
1.- The KVM switch obtain the energy from the keyboard, if you use a
notebook and have not enough energy for the KVM, please use a power
adapter: 5V~9V, 100mA~1A
2.- Do not press any button whilst the select computer boot up,
otherwise, the keyboard may not be recognized.
3.- If the keyboard does not boot up but the computer, try connecting the
keyboard directly to the CPU. If does not work, use a 101, 102 or 104
keyboard.
4.- If the mouse does not boot up but the computer, try connecting the
mouse directly to the CPU. If does not work, use a new mouse or check
if it is a PS/2 mouse.
T
o leave the auto scan mode,
p
ress s
p
ace bar once
.
Scroll
Lock Scroll
Lock B
+
+
+
+
Scroll
Lock Scroll
Lock 1
2 or 3 or 4
ENGLISH
ENGLISH-09
5.- We recommend to connect a notebook before to boot up the system.
In case the system booted up and then you connect the computer to the
KVM switch, press Scroll Lock twice + P.
SPECIFICATIONS
PC ports: 4
Console port: 1
Maximum PC connections: 4
LEDs: 4
PC connectors: PS/2 keyboard 6 pin mini-din
PS/2 mouse 6 pin mini-din
VGA 15-pin HDDB
(female connectors)
Console connectors: PS/2 keyboard 6 pin mini-din
PS/2 mouse 6 pin mini-din
VGA 15-pin HDDB
(Female connectors)
Scan intervals: 8 seconds
Keyboard emulation: PS2
Mouse emulation: PS2
VGA resolution: 1920x1440
Bandwidth: 200MHz
Weight: 140g
Dimensions: 110x74x29mm
Product design and specifications are subject to change without
previous notice
P
roduct desi
g
n and specifications are sub
j
ect to chan
g
e without
p
rev
i
ous not
i
c
e
WARRANTY
This Steren product is warranted under normal usage against defects in workmanship and
materials to the original purchaser for one year from the date of purchase.
CONDITIONS
1.- This warranty card with all the required information, invoice or purchase ticket, product
box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accesories to costumer, as well as
warranty service, at any of the addresses mentioned later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,
failure to follow enclosed instructions, improper repair by unauthorized personnel, improper
safe keeping, among others.
a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.
Product: 4 port KVM switch
Part number:COM-315
Brand: Steren
