ENGLISH

SYMBOLS

The following symbols are displayed on the ma-

chine in order to remind you about the safety pre-

cautions and attention necessary when using the

machine.

The symbols mean:

Warning! Read the Instruction Book and

Safety Manual before using the machine.

Warning! Keep spectators away. Beware of

objects being flung out.

Warning! Before starting any repair work,

disconnect the plug from the wall socket.

Warning! Keep the extension cord away

from the cutting deck.

Warning! Do not put hands or feet under the

cover of the machine when it is running.

Warning! The blades continue to rotate

even after the machine has been switched

off.

ASSEMBLING

PARTS TO ASSEMBLE

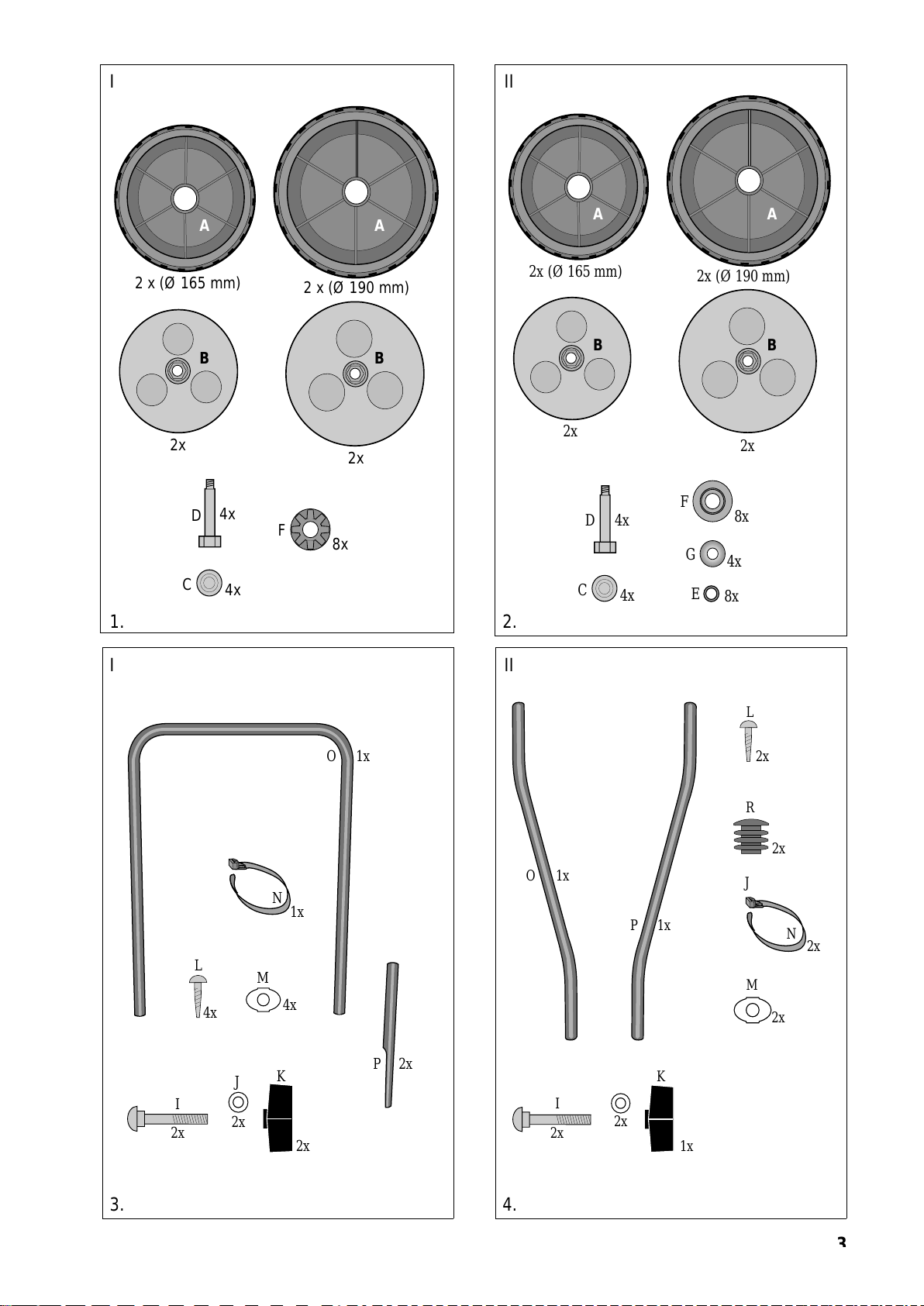

Wheel type I (fig. 1)

Wheel type II (fig. 2)

Steering type I (fig. 3)

Steering type II (fig. 4)

TOOLS FOR ASSEMBLEY

WHEELS type I (fig. 5)

1. Fit the bearings F in the wheel.

2. Apply the parts B, (F) and A on the wheel bolt.

3. Snap-on the centre cup C.

4. Fasten the wheel on the mower.

5. Tighten securely by hand using the finger-grip

holes in the hub cap.

WHEELS type II (fig. 6)

1. Fit the bearings F in the wheel.

2. Apply the parts B, G, E, (F) and A on the wheel

bolt.

3. Snap-on the centre cup C.

4. Fasten the wheel on the mower.

5. Tighten securely by hand using the finger-grip

holes in the hub cap.

STEERING type I (fig. 7)

1 .Insert the tubes into the ends of the handlebar.

2. Fit the screws. Tighten securely.

3. Inserttheends of the U tubeintotheholes inthe

chassis.

4. Fit the screws. Tighten securely.

5. Attach the handle to the U tube using the bolts,

washers and locking knobs provided. The han-

dlebar can be folded forwards by undoing the

locking knobs slightly. This reduces the space

the mower takes up during transport, etc.

6. Secure the electrical cable into the cable holder.

7. Fix the electrical cable using a cable tie.

STEERING type II (fig. 8)

1. Press the plugs intothesteering sockets. Ensure

that the plugs are inserted in the correct end.

2. Press the steering sockets into the holes in the

chassis.

3. Fit the screws. Tighten securely.

4. Attach the handlebar to the steering sockets us-

ing screws, washers and locking knobs. The

handlebar can be tilted forward by loosening

the locking knobs slightly. The mower will then

take up less space during transportation.

5. Fix the electrical cable using a cable tie.

STOP

All manuals and user guides at all-guides.com

ENGLISH GB

GRASS COLLECTOR (fig. 9)

Fabric collector bin: Pull the fabric collector bag

over the steel frame and snap the bag on the plastic

cover.

Plastic collector bin:Snap the two halves together

and then the upper part.

Open the cover on the machine and hook the grass

collector onto the chassis.

Note! The lawn mower can be used without the

grass collector. The grass will then collect in a

bead behind the machine.

USING THE MOWER

CUTTING HEIGHT (fig. 10)

Depending on the model, the cutting height is ad-

justed as follows:

I. Fasten the wheels in one of the four possible po-

sitions.

II. Set the height adjustment lever to the desired

position.

Note! The same cutting height should be set on all

four wheels.

CONNECTION (fig. 11)

Only use an extension cable approved for outdoor

use. If uncertain please contact your dealer.

To increase safety the lawn mower should be con-

nected to an earth-fault breaker.

Supportthe extensioncable inthecable supporton

the steering.

START/STOP (fig. 12)

Start the mower on flat, solid ground. Do not start

in long grass. Press on the steering so that the front

wheels liftslightlyfrom the ground toreduce grass

resistance.

Starting the motor:

1. Press the button

2. Pull the handle towards the steering.

Stopping the motor: Release the handle.

CUTTING (fig. 13)

Always cut away from the cable.

Empty the grass collector in good time so that the

grass deflector does not get blocked and reduce

grass collection capacity.

To avoid overloading the motor, do not push the

mower too quickly in long grass.

MAINTENANCE

CHANGING BLADES (fig. 14)

Alwayspullouttheplugbeforecarrying

out maintenance, cleaning or other ac-

tions on the machine.

Wear protective gloves. Loosen the blade bolts us-

ing a 26 mm spanner. Fit a new blade. Tightening

torque 22 Nm.

Always use genuine spare parts.

CLEANING AND STORAGE (fig. 15)

Always wipe or brush off the mower after use.

The cold air intake around the motor casing should

always be kept free from grass and dirt so that the

motor does not overheat.

The underside of the chassis can be scraped clean.

Never rinse with water.

The mower should be stored in the dry.
