Stow G-4.5R Guida

OPERATION AND PARTS MANUAL

MODEL G-4.5R

PORTABLE AC GENERATOR

(GASOLINE ENGINE)

S/N 5498030 AND BELOW

S/N 5498031 AND ABOVE

Revision #3 (03/13/06)

THIS MANUAL MUST ACCOMPANY

THE EQUIPMENT AT ALLTIMES.

PAGE 2 — STOW G-4.5R A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #3 (03/13/06)

STOW G-4.5R A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #3 (03/13/06) — PAGE 3

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

ON-HAND

WHEN CALLING

STOW MAIN OFFICE

Post Office Box 6254 888-252-STOW

Carson, Ca 90749

FAX:

310-537-1986

Email: [email protected]

Internet: www.stowmfg.com

PARTS DEPARTMENT

800-427-1244 FAX: 800-672-7877

310-537-3700 FAX: 310-637-3284

SERVICE DEPARTMENT

800-421-1244 FAX: 310-537-4259

310-537-3700

TECHNICAL ASSISTANCE

800-478-1244 FAX:310-631-5032

WARRANTY DEPARTMENT

800-421-1244, EXT. 279 FAX: 310-537-1173

310-537-3700, EXT. 279

SALES DEPARTMENT

310-661-4242 FAX:310-604-9237

877-289-7869 (877-BUY-STOW)

STOW Construction Equipment and the STOW logo are registered trademarks of STOW and may not be used, reproduced, or

altered without written permission. All other trademarks are the property of thier respective owners and used with permission.

This manual MUST accompany the equipment at all times.This manual is considered a permanent part of the equipment and should

remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations are

based on the

G-2.9R Portable AC Generator.

STOW Construction Equipment reserves the right to discontinue or change specifications,

design or the information published in this publication at any time without notice and without incurring any obligations.

To find the latest revision of this

publication, visit our website at:

www.stowmfg.com

PAGE 4 — STOW G-4.5R A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #3 (03/13/06)

TABLE OF CONTENTS

Specification and part

number are subject to change

without notice.

ROBIN

EX270D20110

Engine (EPA)

Crankcase Assembly .........................................56-57

Crankshaft, Piston Assembly .............................58-59

Governor Assembly ........................................... 60-61

Intake and Exhaust Assembly ............................ 62-63

Air Cleaner Assembly......................................... 64-65

Cooling Starting Assembly .................................66-67

Fuel Lubricant Assembly ...................................68-69

Flywheel Assembly ............................................70-71

Electric Device Assembly ...................................72-73

Terms and Conditions Of Sale — Parts .................. 74

NOTE

As a continuing effort to

update our parts book,

contact the STOW literature

department for the latest

revision of your "Operation

and Parts Manual"

Generator Component

Drawings

Nameplate and Decals (S/N 5498030 & Below) ............ 42-43

Nameplate and Decals (S/N 5498031 & Above) ........... 44-45

Generator Assembly .......................................... 46-47

Control Box Assembly (S/N 5498030 & Below) ............. 48-49

Control Box Assembly (S/N 5498031 & Above) ............ 50-51

Pipe Frame Assembly (S/N 5498030 & Below) .............. 52-53

Pipe Frame Assembly (S/N 5498031 & Above) .............. 54-55

STOW G-4.5R — AC

Portable Generator

Here's How To Get Help ............................................ 3

Table Of Contents ..................................................... 4

Parts Ordering Procedures ....................................... 5

Dimensions ............................................................... 6

Specifications ............................................................ 7

Safety Alert Message Symbols .............................. 8-9

Rules for Safe Operation ................................... 10-12

Operation and Safety Decals (S/N 5498030 & Below) ...... 14

Operation and Safety Decals (S/N 5498031 & Above) ...... 15

General Information ................................................ 16

Load Application ..................................................... 17

Controls and Indicators ...................................... 18-21

Generator Refueling ............................................... 22

Installation .......................................................... 23-24

Pre-Inspection ......................................................... 25

Pre-Inspection (Engine) .......................................... 26

Initial Start-up (Engine) ........................................... 27

Initial Start-up (Engine/Operation) ..................... 28-29

Preparation For Long Term Storage ....................... 30

Maintenance ...................................................... 32-33

Wiring Diagram (S/N S/N 5498030 & Below) .......................... 34

Wiring Diagram (S/N 5498031 & Above) ................................. 35

Troubleshooting (Engine) ................................... 36-37

Troubleshooting (Generator) .................................. 38

Explanation Of Codes In Remarks Column ............ 40

Suggested Spare Parts ........................................... 41

STOW G-4.5R A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #3 (03/13/06) — PAGE 5

PARTS ORDERING PROCEDURES

When ordering parts,

please supply the following information:

❒❒

❒Dealer account number

❒❒

❒Dealer name and address

❒❒

❒Shipping address (if different than billing address)

❒❒

❒Return fax number

❒❒

❒Applicable model number

❒❒

❒Quantity, part number and description of each part

❒❒

❒Specify preferred method of shipment:

✓FedEx or UPS Ground

✓FedEx or UPS Second Day or Third Day

✓FedEx or UPS Next Day

✓Federal Express Priority One

✓DHL

✓Tr u ck

Note:Unless otherwise indicated by customer, all

orders are treated as “Standard Orders”, and will

ship within 24 hours.We will make every effort to

ship “Air Shipments” the same day that the order is

received, if prior to 2PM west coast time. “Stock

Orders” must be so noted on fax or web forms.

STOW CONSTRUCTION EQUIPMENTSTOW CONSTRUCTION EQUIPMENT

STOW CONSTRUCTION EQUIPMENT

A DIVISION OF MULTIQUIP INC.

POST OFFICE BOX 6254 CARSON, CA 90749

888-252-STOW[888-252-7869] 310-537-3700

FAX: 310-537-1986 FAX: 800-556-1986

E-MAIL: [email protected] INTERNET: www.stowmfg.com

Here’s how to get help...

Please have the model and serial number

on hand when calling.

STOW MAIN OFFICE

18910 Wilmington Ave. 800-421-1244

Carson, CA 90746

FAX:

310-537-3927

Email: [email protected]

Internet: www.stowmfg.com

SALES DEPARTMENT

310-661-4242 Fax: 310-604-9237

877-289-7869 (877-BUY-STOW)

PARTS DEPARTMENT

800-427-1244

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

SERVICE DEPARTMENT

800-421-1244

FAX:

310-537-4259

310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

FAX:

310-631-5032

WARRANTY DEPARTMENT

800-421-1244,

EXT.

279

FAX:

310-537-1173

310-537-3700,

EXT.

279

Extra Discounts!

All parts orders which include complete part numbers and

are received by our automated web parts order system, or

by fax qualify for the following extra discounts:

Ordered Standard Stock orders

via orders ($750 list and above)

Fax 3% 10%

Web 5% 10%

Special freight allowances

when you order 10 or more

line items via Web or Fax!**

FedEx Ground Service

at no charge for freight

No other allowances on freight shipped by any other

carrier.

**Common nuts, bolts and washers (all items under $1.00

list price) do not count towards the 10+ line items.

Place Your Parts Order Via Web or Fax

For Even More Savings!

(Domestic USA Dealers Only)

NOTE:DISCOUNTSARESUBJECTTOCHANGE

Direct TOLL-FREE access

to our Parts Department:

Toll-free nationwide — 800-427-1244

Toll-free FAX — 800-6-PARTS-7 (800/672-7877)

PAGE 6 — STOW G-4.5R A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #3 (03/13/06)

STOW G-4.5R — DIMENSIONS

Figure 1. Dimensions

STOW G-4.5R A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #3 (03/13/06) — PAGE 7

STOW G-4.5R — SPECIFICATIONS

Effects of Altitude and Heat

The maximum output of the engine listed above is applicable to supplying electrical power for continuous service at ambient

conditions in accordance with SAE Test cord J607. The above ambient conditions are at standard sea level, with a barometric

reading of 29.92 inches and a temperature of 60 degrees fahrenheit.

Generally, the engine output power will decrease 3 1/2% for each 1000 feet of altitude above sea level, and 1% for each 10

°°

fahrenheit above the standard temperature of 60

°°

snoitacificepS.1elbaT

LEDOMR5.4-G

ROTARENEG

epyT dleiFgnivloveRepyTsselhsurB,eloP-2

)zH(ycneuqerF06

)Wk(tuptuOsuounitnoC07.3

)Wk(tuptuOmumixaM5

)CAV(segatloV042/021

CAV021spmAsuounitnoC/xaM8.03/5.73

CAV042spmAsuounitnoC/xaM4.51/57.81

)MPR(deepSdetaR0

063

rotcaFrewoP0.1

)mm(.ni)HxWxL(noisnemiD 52.02X5.81X32

)515X074X595(

)gk(.sblthgieWteNyrD

enignEsedulcnI )8

6(941

ENIGNE

ledoM 01102D072XENIBOR

epyT daehrevO,rednilyCelgniS,ekorts-4,delooc-riA

enignEenilosaG,tfahsma

)cc(tnemecalpsiD562

)nim/Wk(tuptuOsuounitnoC0063@1.5

)nim/Wk(tuptuOmumixaM0004@0.9

)L(.laGyticapaCknaTleuF)

91(2.4

leuF enilosaGelibomotuAdedael-noN

)L(.stQyticapaCliOebuL)1.1(61.1

dohteMlortnoCdeepS epyTthgiew-ylFl

agufirtneC

dohteMgnitratStratSlioceR

)mm(.ni)HxWxL(noisnemiD 41.61X5.61X79.31

)014X024X553(

)gk(.sblthgieWt

eNyrD)12(3.64

PAGE 8 — STOW G-4.5R A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #3 (03/13/06)

STOW G-4.5R — SAFETY MESSAGE ALERT SYMBOLS

Safety precautions should be followed

at all times when operating this

equipment. Failure to read and

understand the Safety Messages and

Operating Instructions could result in

injury to yourself and others.

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

This Owner's Manual has been

developed to provide complete

instructions for the safe and efficient

operation of the STOW Model G-4.5R

Portable Generator

. Refer to the

engine manufacturers instructions for

data relative to its safe operation.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you

about potential hazards that could injure you or others. The

Safety Messages specifically address the level of exposure to

the operator, and are preceded by one of three words: DANGER,

NOTE

You WILL be

KILLED

SERIOUSLY INJURED

if you DO NOT follow these directions.

You CAN be KILLED or

SERIOUSLY INJURED

you DO NOT follow these directions.

You CAN be

INJURED

if you DO NOT follow

these directions.

CAUTICAUTI

CAUTION

DANGERDANGER

DANGER

WARNINGWARNING

WARNING

Lethal Exhaust Gases

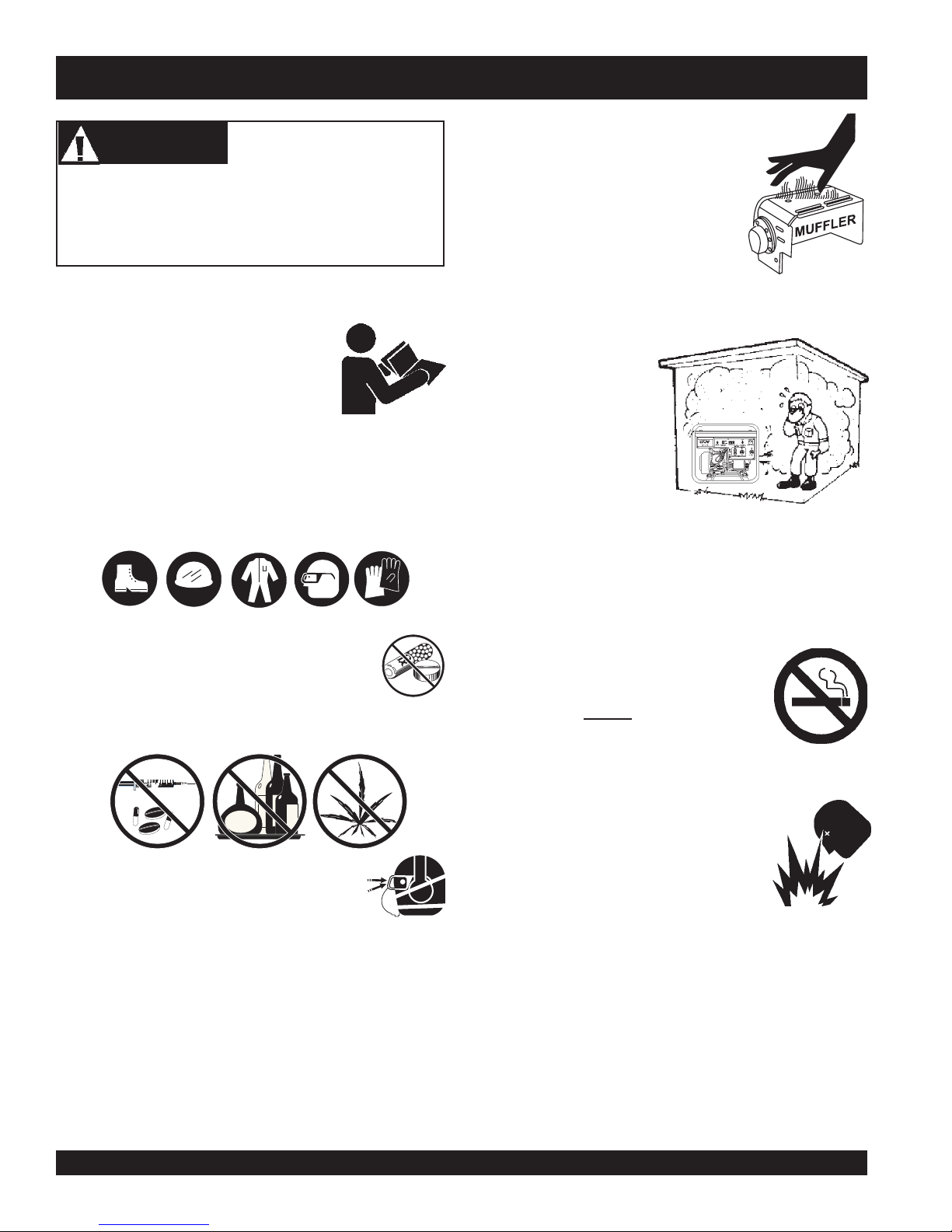

HAZARD SYMBOLS

Potential hazards associated with the operation of a

STOW

G-4.5R Portable Generator

will be referenced with Hazard

Symbols which appear throughout this manual, and will be

referenced in conjunction with Safety Message Alert

Symbols.

Engine exhaust gases contain

poisonous carbon monoxide. This gas

is colorless and odorless, and can

cause death if inhaled. NEVER operate

this equipment in a confined area or

enclosed structure that does not provide

ample free flow air.

Gasoline is extremely flammable, and

its vapors can cause an explosion if

ignited. DO NOT start the engine near

spilled fuel or combustible fluids.

DO NOT fill the fuel tank while the engine is running or

hot. DO NOT overfill tank, since spilled fuel could ignite if

it comes into contact with hot engine parts or sparks from

the ignition system. Store fuel in approved containers, in

well-ventilated areas and away from sparks and flames.

Engine components can generate extreme

heat. To prevent burns, DO NOT touch

these areas while the engine is running or

immediately after operations. Never

operate the engine with heat shields or heat

guards removed.

ALWAYS wear approved

respiratory

protection when required.

Lethal Exhaust Gas Hazards

WARNINGWARNING

WARNING

Explosive Fuel Hazards

WARNINGWARNING

WARNING

Burn Hazards

WARNINGWARNING

WARNING

Respiratory Hazards

WARNINGWARNING

WARNING

Before using this generator,ensure that the operating

individual has read and understands all instructions in this

manual.

STOW G-4.5R A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #3 (03/13/06) — PAGE 9

STOW G-4.5R — SAFETY MESSAGE ALERT SYMBOLS

ALWAYS wear approved eye and

hearing protection.

NEVER operate equipment with covers,

or guards removed. Keep fingers, hands,

hair and clothing away from all moving

parts to prevent injury.

Rotating Parts Hazards

CAUTIONCAUTION

CAUTION

Eye and Hearing Hazards

CAUTIONCAUTION

CAUTION

Other important messages are provided throughout this

manual to help prevent damage to your portable generator,

other property, or the surrounding environment.

Equipment Damage

Hazards

CAUTIONCAUTION

CAUTION

ALWAYS place the power source, circuit

breakers or ON/OFF switch in the OFF

position, when the generator is not in use,

unless connected to transfer switch.

Accidental Starting Hazards

CAUTIONCAUTION

CAUTION

PAGE 10 — STOW G-4.5R A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #3 (03/13/06)

STOW G-4.5R — RULES FOR SAFE OPERATION

The following safety guidelines should always be used when

operating the STOW G-4.5R Portable Generator:

GENERAL SAFETY

■

DO NOT operate or service this

equipment before reading this entire

manual.

■

This equipment should not be operated by persons under

18 years of age.

■

NEVER operate this equipment without proper protective

clothing, shatterproof glasses, steel-toed boots and other

protective devices required by the job.

■

The engine section of this generator requires an adequate

free flow of cooling air.

NEVER

operate the generator in

any enclosed or narrow

area where free flow of

the air is restricted. If the

air flow is restricted it will

cause serious damage to

the generator or engine

and may cause injury to

people. Remember the

generator's engine gives

off

DEADLY

carbon

monoxide gas.

DANGERDANGER

DANGER

Failure to follow instructions in this manual may lead

to serious injury or even death! This equipment is to

be operated by trained and qualified personnel only!

This equipment is for industrial use only.

■

NEVER operate this equipment under the influence of

drugs

alcohol

Read this manual!

■

NEVER touch the hot exhaust

manifold, muffler or cylinder. Allow

these parts to cool before servicing

engine or generator.

■

ALWAYS wear proper respiratory (mask),

hearing and eye protection equipment when

operating the generator.

■

Whenever necessary, replace nameplate, operation and

safety decals when they become difficult read.

■

Manufacturer does not assume responsibility for any

accident due to equipment modifications.

■

NEVER use accessories or attachments, which are not

recommended by STOW for this equipment. Damage to

the equipment and/or injury to user may result.

■

NEVER operate this equipment when not

feeling well due to fatigue, illness or taking

medicine.

■

ALWAYS refuel in a well-ventilated area, away from sparks

and open flames.

■

ALWAYS use extreme caution when

working with flammable liquids. When

refueling, stop the engine and allow it to

cool. DO NOT

smoke

around or near the

machine. Fire or explosion could result

from fuel vapors, or if fuel is spilled on a

hot engine.

■

NEVER operate the generator in an

explosive atmosphere or near

combustible materials. An explosion or

fire could result causing severe

bodily

harm or even death.

■

NEVER disconnect any

"emergency or safety devices"

These devices are intended for operator safety. Disconnection

of these devices can cause severe injury, bodily harm or even

death! Disconnection of any of these devices will void all

warranties.

Indice

Altri manuali Stow Generatore portatile

Stow

Stow LT-12D Manuale utente

Stow

Stow G-2.9R Guida

Manuali Generatore portatile popolari di altre marche

Kohler

Kohler 20EORZ Manuale di istruzioni

Powerhorse

Powerhorse 83171 Manuale utente

HURST

HURST ML-630-SI Manuale utente

ETQ

ETQ TG4000 Manuale utente

Briggs & Stratton

Briggs & Stratton 40265 Guida all'installazione

ConMed

ConMed 7550 Manuale utente

Owon

Owon Waveform Generator Manuale utente

evertz

evertz 7700 Series Manuale utente

Power Stroke

Power Stroke PS906025 Manuale utente

Firefly

Firefly Cygnus CYG2400/460/24 Manuale utente

Draper

Draper PG950S Aggiornamento firmware

PowerBoss

PowerBoss PowerBoss Manuale utente

SDMO

SDMO SH 4000 Manuale utente

EINHELL

EINHELL STE 5500 Manuale utente

Wanco

Wanco WI3000P Manuale utente

Full Boar

Full Boar FBT-3300 Manuale utente

Dwyer Instruments

Dwyer Instruments ASG Manuale utente

Westinghouse

Westinghouse WH1000i Series Manuale utente
