Streamit SIR80 Manuale utente

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 i

Streamit Internet Radio

SIR series of devices

User’s manual

ENGLISH

Streamit Internet Radio

SIR series of devices

User’s manual

ENGLISH

Version: 1.0

Date: May 2008

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 2

Understanding of Instructions

WARNING: These are instructions which can cause harm to people or damage to the

device if not followed properly. It is important to read and follow these instructions carefully.

IMPORTANT: These instructions are important in order to understand the correct behavior

of the device.

Notices about trademarks

•The SIRxxx (SIR family of devices) is a registered trademark of Streamit.

•Streamit is a registered trademark.

•All other tradenames which are used in this users guide, are owned by their respective

owners.

without the written permission of Streamit. No patent liability is assumed, with respect to the use

of the information contained herein.

Disclaimer

This manual has been validated and reviewed for accuracy. The instructions and descriptions it

contains are accurate for the Streamit Internet Radios at the time of this manual’s production.

However, succeeding Streamit Internet Radios and manuals are subject to change without notice.

Streamit assumes no liability for damages incurred directly or indirectly from errors, omissions or

discrepancies between the internet radio and the manual.

EU Declaration of Conformity

This product carries the CE-Mark in accordance with the related European Directives. CE

marking is the responsibility of Streamit B.V., Flight Forum 3543, 5657 DW Eindhoven,

Netherlands.

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

FCC Compliance Statement

NOTE: This device complies with Part 15 of the FCC limits for Class B digital devices

FOR HOME OR OFFICE USE (“home or office” interference requirements are more stringent

than “outdoor” requirements). Operation of this device is subject to the following conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

The Streamit Internet Radio device does not contain any user-serviceable parts. Repairs should

be made only by an authorized Streamit service center. Unauthorized repairs or modifications

could result in permanent damage to the equipment, and void your warranty and your authority to

operate the device under Part 15 regulations.

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 3

ENGLISH

Contents

GETTING STARTED ..........................................................................................................4

1.1

IRST AND FOREMOST

…................................................................................................4

1.2

SIR

SUPPORT

...............................................................................................................4

1.3

EFERENCES

...............................................................................................................4

1.4

NPACKING YOUR DEVICE

..............................................................................................5

1.5

ACK VIEW

...................................................................................................................5

1.6

RONT

IEW

................................................................................................................5

1.7

OTTOM

IEW

..............................................................................................................6

INSTALLATION..................................................................................................................7

2.1

ACK MOUNT

...............................................................................................................7

2.1.1

Mounting a single SIR in a 19 inch rack ..................................................................7

2.1.2

Mounting two SIRs in a 19 inch rack.......................................................................8

2.2

ABLE

OUNT

..............................................................................................................9

2.3

ONNECTING YOUR

SIR................................................................................................9

2.3.1

Connecting the Protective earth..............................................................................9

2.3.2

Connecting the Power supply .................................................................................9

2.3.3

Connecting the Ethernet cable..............................................................................10

2.3.4

Connecting the audio output.................................................................................10

2.3.5

Connecting the USB service cable........................................................................10

2.4

WITCHING YOUR

SIR

FOR THE FIRST TIME

....................................................................10

2.4.1

The Configuration Wizard.....................................................................................11

2.4.2

Playing from a stream...........................................................................................12

2.4.3

The MMC/SD/SDHC Card...................................................................................13

2.4.4

Choosing a Static IP from the configuration wizard ...............................................13

2.4.5

Choosing to turn the Keylock ON from the configuration wizard ............................14

SIR CONFIGURATION – SETUP MENU ..........................................................................16

3.1

HANGING THE MENU LANGUAGE

..................................................................................16

3.2

HANGING THE NETWORK SETTING

...............................................................................16

3.3

HANGING VOLUME SETTING

........................................................................................17

3.4

HANGING BASS SETTING

............................................................................................18

3.5

HANGING TREBLE SETTING

.........................................................................................18

3.6

HANGING

EYLOCK SETTINGS

....................................................................................18

3.6.1

Turning Keylock ON .............................................................................................19

3.6.2

Turning Keylock OFF............................................................................................19

3.6.3

Forcing Keylock OFF............................................................................................20

3.6.4

Changing your Keylock PIN code..........................................................................20

SERVICE MENU...............................................................................................................21

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 4

1 Getting Started

1.1 First and foremost…

thank you for purchasing the Streamit Internet Radio (SIR). We greet you as a new user of the

Streamit products and hope that your new Internet Radio Device will give you many years of

pleasure. The SIR is a modern device and we strongly recommend you to read this manual

thoroughly before you start installing and using the device for the first time.

The SIR is a fully autonomous working IP-audio receiver, able to tune in to web casts of internet

radio stations and audio distributors. Three different versions, the SIR80, SIR100, SIR120 and

the SIR120PRO each deliver the right set of features for your application.

The SIR can be configured using the Channelservice.fm website, but also with the Streamit

Terminal Program (STP).

<Channelservice.fm profile…>

STP is a user friendly software application for your Windows PC which is meant for advanced

configuring and monitoring your SIR device. This program can be downloaded from our website

free of charge.

Through its unique ID code a SIR can identify itself, so the user is able to get access to closed

user group web casts.

The MMC, SD or SDHC card (optional) can be used as an additional buffer facility. This provides

for adequate fall back in case of network or streaming failures.

For more information on Streamit products and technologies, we invite you to visit our website

http://www.streamit.eu.

Finally, we wish you a lot of pleasure using your Streamit Internet Radio device.

Streamit B.V.

1.2 SIR support

With this manual we have tried to clearly describe the operation your SIR radio. But we can

imagine you have a question or came across an issue which is not covered in this manual. In

such case, you are welcome to visit our website (http://www.streamit.eu) where you will find up-

to-date documentation and the latest software release(s).

When you have purchased your SIR from one of our local dealers, we recommend you contact

your dealer first.

1.3 References

[1] STP Installation Guide and User’s Manual (STPhelp.chm – The help of Streamit Terminal

Program) – 2008, Streamit B.V.

[2] SIR Internet Radio (Technical Manual) – 2008, Streamit B.V.

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 5

ENGLISH

1.4 Unpacking your device

Carefully take out of the package the device and the supplied materials. Make sure that all of the

following components are included:

1x SIR (80, 100, 120 or 120PRO)

1 x 12V-500mA power supply with screw-on connector

1 x USB-AB cable

1 x User manual (this one)

1.5 Back view

Figure 1.1: Streamit Internet Radio back view

A– External Protective Earth connector

B– RJ45 Ethernet connector

C– USB connector

D– Screw power supply connector

E– Left RCA audio (cinch) connector

F– Right RCA audio (cinch) connector

G– Balanced left XLR connector

H– Balanced right XLR connector

The balanced audio output is only available for SIR120PRO devices. For other SIR family

devices the XLR connectors are not present.

1.6 Front View

Figure 1.2: Streamit Internet Radio front view

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 6

I – MMC/SD/SDHC card connector

J– Power on/off button

K– Infrared receiver indicator

L– Status indicator

M– 2x16 characters LCD display

N– Product type

O– Preset buttons

P– menu buttons

Q– Streamit logo

R– Source control button

1.7 Bottom View

Figure 1.3: Streamit Internet Radio bottom view

S– Product sticker

T– 4 x rubber feet

U– 4 x chassis mount openings

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 7

ENGLISH

2 Installation

This section of the manual will cover the installation of your SIR internet radio starting from how to

mount and connect your device, to configuration.

2.1 Rack mount

Taking inspiration from the professional audio market, the SIR internet radio was designed to give

you the option to easily mount in conventional 19 inch racks. For rack mounting, the SIR Rack-

mounting Kit is required. This kit can be ordered from Streamit or official Streamit dealers and

contains 5 mounting plates in total as shown below in Figure 2.1. Using combination of these

plates, it is possible to mount either one or two SIR radios in a 19” rack.

Figure 2.1: Streamit Rack-mounting kit

2.1.1 Mounting a single SIR in a 19 inch rack

To mount a single SIR device in an 19’’ rack, we only make use of the large side mounting plate

and one of the small side mounting plates. If you take a look at the sides of your device you will

see that it has two screws and two small slot-looking openings in each. Start with one sides of

your SIR and remove the Phillips-head screws using an appropriate screwdriver. Place the large

side mounting plate as shown below in Figure 2.2. You will see that the holes of the mount plate

will match them of the SIR. Carefully fasten the screws back on to bound the SIR together with

the mounting plate. The same is done for the other side, but in this case one of the small side

mounting plates is use.

Figure 2.2: One SIR rack mount configuration

At this point you could mount the whole setup in the rack by bolting the sides to the frame of the

rack. In most cases though, we recommend that the device is first connected and then mounted;

for the simple reason that, all connections of the SIR are located in the back and once mounted

the SIR will not be as easy to access. Connecting the device is described in the following chapter.

STREAMIT INTERNET RADIO

User’s manual May 2008 Version 1.0 8

2.1.2 Mounting two SIRs in a 19 inch rack

Mounting two SIR devices in a 19’’ rack requires using the two SIR-SIR mounting plates and the

two small side mounting plates. Mounting the side plates is done in the same way as when

mounting a single SIR (please see § 2.1.1 above). You just have to make sure that the plates are

oriented from outside as shown below in Figure 2.3. Once this is done, we have to connect the

two devices together using the SIR-SIR mounting plates. Turn the first device over. You will see it

has four Phillips-head screws with black rubber feet, two for each side. Using an appropriate

screwdriver, remove the two feet on the opposite side to the side mounting plate. The openings

of the side now form slots with the same width as the SIR-SIR mounting plates and depth of half

the length of the SIR-SIR mounting plates. Fit the SIR-SIR mounting plates in the slots and you

will see its wholes matching with the device’s. Carefully screw the rubber feet back on.

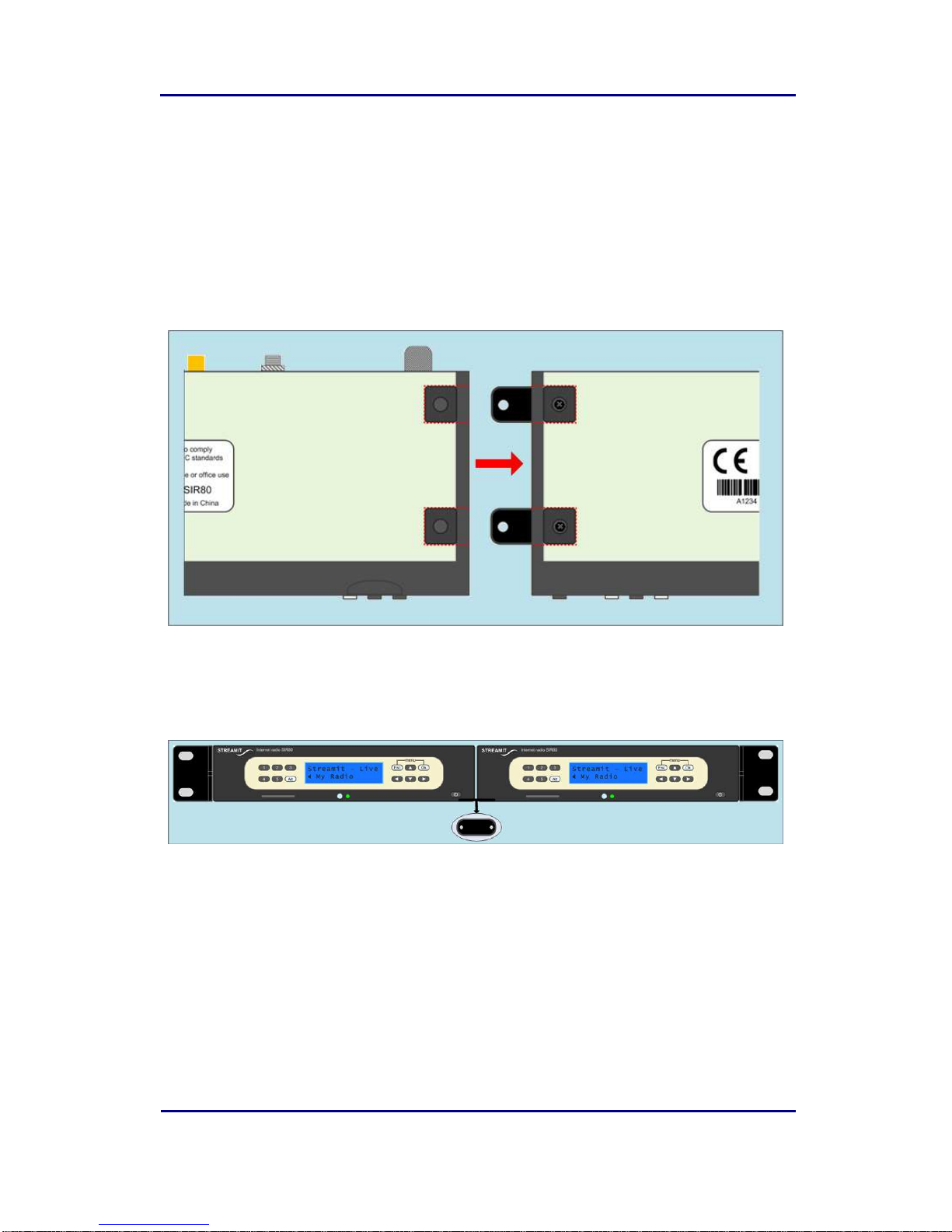

Figure 2.3: Connecting two SIRs together

Now take the second device and remove the rubber feet just like you did with the first one then

connect the two devices together by screwing the rubber feet of the second device back on. See

Figure 2.3. When properly done, the resulting setup will look same as the one shown below.

Figure 2.4: Two SIRs rack mount configuration

At this point you could mount the whole setup in the rack by bolting the sides to the frame of he

rack. In most cases though, we recommend that the device is first connected and then mounted;

for the simple reason that, all connections of the SIR are located in the back and once mounted

the SIR will not be as easy to access. Connecting the device is descried in the following chapter.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Streamit Radio

Streamit

Streamit Lukas II Manuale utente

Manuali Radio popolari di altre marche

EisSound

EisSound KBSound iSelect Manuale utente

Midland

Midland 1001LWX Manuale utente

Konig

Konig HAV-SR41 Manuale utente

Roberts

Roberts exprssion Manuale utente

VDigi

VDigi DD3.0 Manuale utente

Radio Shack

Radio Shack 21-1863 Manuale utente

Roberts

Roberts Stream 207 Manuale utente

Sony

Sony Walkman SRF-M97 Manuale utente

Stanley

Stanley FatMax FMC770 Manuale utente

auna

auna DAB-Radio 10026947 Manuale utente

SOUNDMASTER

SOUNDMASTER UR190 Manuale utente

HYT

HYT TC-320 Manuale utente

auna multimedia

auna multimedia Yellowstone 10026851 Manuale utente

B-Tech

B-Tech GMRS-V2 Manuale utente

Weierwei

Weierwei VEV-V8 Manuale utente

SOUNDMASTER

SOUNDMASTER DAB750 Manuale utente

Telefunken

Telefunken TF-1505 Manuale utente

Makita

Makita LXRM03 Manuale utente
