Studio Experience PREMIERE 50HD Manuale utente

This manual may not be copied in any media or form without the written consent of the manufacturer.

Preface

Table of Contents

Chapter 1

Introduction

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Chapter 2

Connections

Before Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Device Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Wired Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

+12VDC Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Turning On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Turning Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Chapter 3

Operation

Operating the Control Panel and Remote Control . . . . . . . . . . . . . . . . . . .14

Zoom and Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Color Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Navigation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

The Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Setting Up the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Preface

Chapter 4

OSD Menus

About the OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Input Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Picture (Video Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Video System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

FLI De-interlacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

RS232 Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Aspect Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Appendix A

Specifications

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Appendix B

Maintenance

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Lamp Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cleaning the Air Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Appendix C

The Gamma Manager Utility

About the Gamma Manager Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Required Hardware and Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connecting the Projector to the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Connecting the Projector to a PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Uninstalling the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using the Gamma Manager Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Appendix D

Throw Ratio

About the Throw Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Preface

iii

Desktop Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Ceiling Mount Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Appendix E

RS-232 communication

RS-232C communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Communications setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Computer (Windows) - HyPer Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Command Or Read command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Computer (Windows) - RS232ControlAP.exe . . . . . . . . . . . . . . . . . . . . . . .54

Command data chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Preface

About this manual

This manual is designed for use with the PREMIERE 50HD DLP Projector. Informa-

tion in this document has been carefully checked for accuracy; however, no guaran-

tee is given to the correctness of the contents. The information in this document is

subject to change without notice.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic

or other means, in any form, without prior written permission of the manufacturer.

Trademarks

All trademarks and registered trademarks are the property of their respective own-

ers.

FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that

may cause undesired operation.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful inter-

ference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful inter-

ference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Preface

NOTICES

Warning! To meet FCC requirements, a shielded power cord is

required in order to prevent interference. It is essential that only the

supplied power cord be used. Use only shielded cables to connect

I/O devices to this equipment. You are cautioned that changes or

modifications not approved by the party responsible for compliance

could void your authority to operate the equipment.

Warning! The projector cooling fan continues to run for approxi-

mately two minutes after the projector is turned off using the Power

button on the control panel or remote control. Never turn off the

projector using the power switch on the projector while the lamp is

lit. This can damage the lamp or power supply.

Warning! High brightness light source. Do not stare into the beam

of light, or view directly. Do not allow children to stare directly into

the beam of light.

Warning! To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture.

Caution!

For minimal servicing and to maintain high image quality, we rec-

ommend that you use the projector in an environment that is smoke

and dust free. When used in areas where there is a lot of smoke or

dust, the filter and lens should be cleaned often to lengthen the ser-

vice life of the projector.

Warning! The ventilation slots, lamp, and objects next to them may

get extremely hot during operation. Do not touch these areas until

they have sufficiently cooled down.

Warning! When replacing the lamp, turn off the power switch and

disconnect the input power. Allow the lamp to cool at least 15 min-

utes prior to opening the lamp door.

Preface

Warning! Be careful when removing the lamp. In the event of a lamp

rupture there may be small fragments of glass in the lamp housing

and the projector. Clean out the fragments as much as possible tak-

ing care not to touch the fragments. Alternately, you can contact

Technical Support to have the projector serviced.

Precautions

When using the projector, refer to the following instructions :

• Read and follow all instructions and warnings provided.

• Save these instructions for future use.

• When servicing or replacement parts are required, ensure work is done by a

qualified technician.

• Do not use this unit near water or in a rainy/moist environment, or near heat

sources such as radiators, stoves, or space heaters.

• Use supplied cables only.

• Never insert any objects through ventilation holes.

• The projector power cable is equipped with a three-prong plug for grounding.

Do not alter the plug and defeat this safety feature. If your outlet does not

accommodate a three-prong grounding type plug, contact an electrician to

replace it.

• Only mount the projector on a tabletop or ceiling as recommended by the

manufacturer.

• Do not place the projector on an unstable cart or stand.

• Allow at least 0.3 foot (10 cm) space between the ventilation slots and the

nearest object or wall.

• When the ventilation slots are obstructed, the projector lamp automatically

turns off as a safety precaution. When this happens, the over temperature

alarm LED will light. Remove the obstruction and push the power button again

to return the projector to normal operating condition.

Any electrical equipment is hazardous if handled improperly. Ensure that you follow

the preceding safety instructions to avoid harm to yourself and damage to the unit.

Note: The projector has an over temperature warning LED on the control

panel. If the projector overheats because of a dirty filter or other problem,

the LED will flash, and the projector lamp will turn off, after which a 2-

minute cooling off period occurs. If, after correcting the over temperature

condition and restarting the projector, the projector still doesn't function

properly, contact technical support to arrange for service.

INTRODUCTION

Chapter 1

Introduction

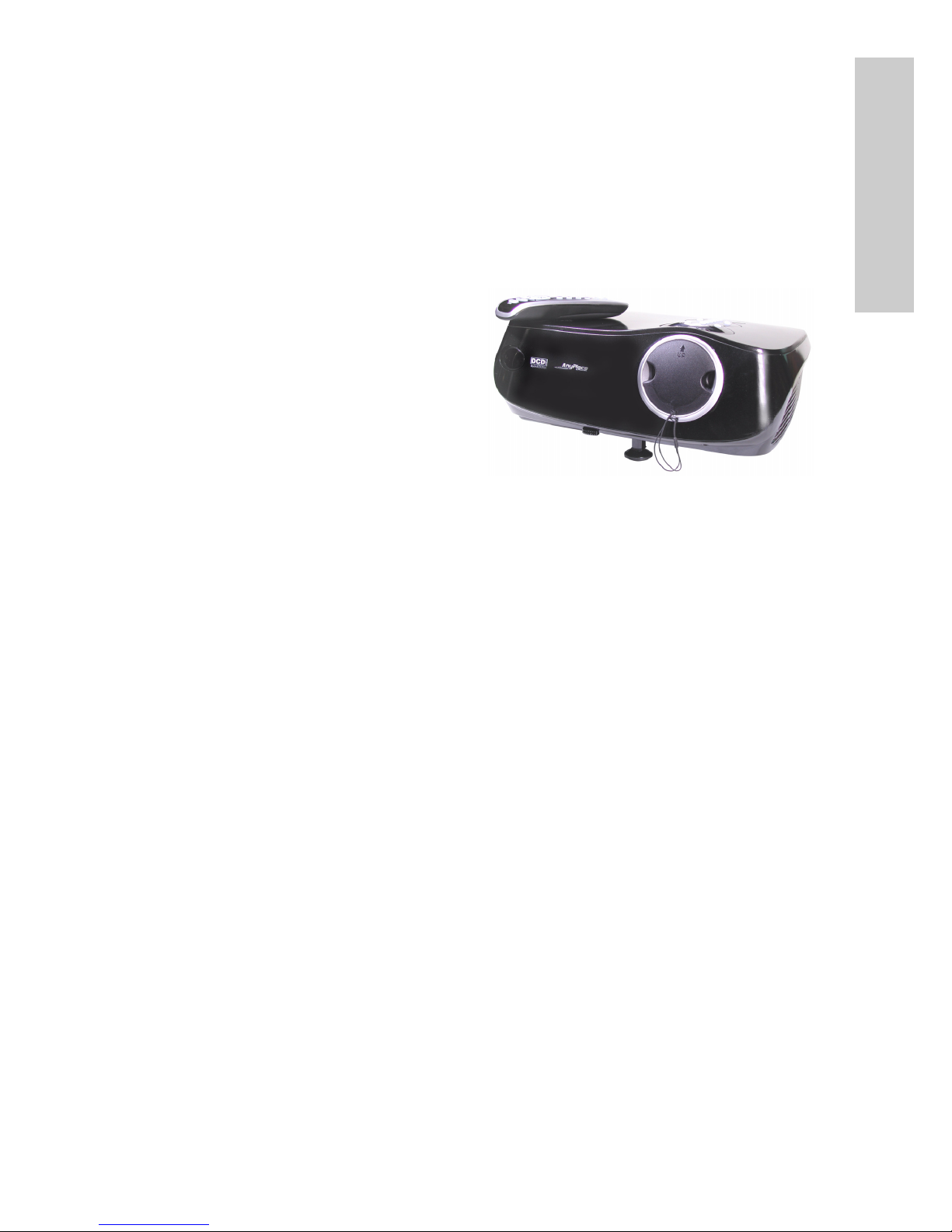

Congratulations on selecting the Premiere 50HD DLP Projector.

The Premiere 50HD DLP is the first

mainstream projector to offer Silicon

Optix AnyPlace™ technology, which

provides flexibility in projector place-

ment while displaying a high-definition

image.

The projector is equipped with a full

set of I/O connectors, enabling you to

attach a wide variety of input devices

including Composite Video, S-Video,

Digital Video Interface (DVI), Computer VGA, and Component Video.

The control panel and remote control enable you to easily set up functions such as

input source, aspect, gamma correction, and color temperature. The keystone fea-

ture provides maximum flexibility in projector placement while still providing a flat

image.

The menu driven OSD (On-Screen Display) provides a suite of functions that enable

you to set such items such as the source input device, gamma, brightness, contrast,

clock, and phase. The RS-232 port enables easy upgrades to ensure that the projec-

tor firmware is always up-to-date.

The Silicon Optix image processor is incorporated in the design with its unique Any-

Place™ technology, which adjusts for the vertical and horizontal projection angles to

the screen, allowing users to place the projector anywhere in the room and still dis-

play a perfect image. This eliminates the need for room remodelling, and enables the

projector to naturally blend into a room. In addition to AnyPlace placement flexibility,

the Premiere 50HD DLP projector delivers superior keystone and scaling image

quality.

The Premiere 50HD DLP Projector is supported by a standard two-year limited war-

ranty.

Indice

Altri manuali Studio Experience Proiettore

Studio Experience

Studio Experience CINEMA 17SF Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
