Studiomaster Auto 4 Manuale utente

POWER

LEVEL

OUTPUT

LEVEL

-3

-6

-10

-20

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

LEVEL LEVEL LEVEL LEVEL

ACTIVE ACTIVE ACTIVE ACTIVE LOCKOUT

FIXED

PRIORITY

MASTER

OFF

LOUD LOUD LOUD LOUD

NORM. NORM. NORM. NORM.

SOFT SOFT SOFT SOFT

VOX

BYPASS

VOX

BYPASS

VOX

BYPASS

VOX

BYPASS

1234THRESHOLD

SELECTED CHANNEL

Auto 4

Owner’s Manual

MIXER

AUTOMATIC MICROPHONE

CONTENTS

Introduction

Format

Unpacking

Important Information

Input Connectors

Front Panel Controls and Indicators

Rear Panel Controls 4

Rear Panel Controls

Set Up Procedure

Application Note

Operation of Single Auto 4 Mixer

Fixed Priority Mode

Auto Mode - All Low-Priority Channels

Auto Mode - Only one High-Priority Channel

Auto Mode - All High-Priority Channels

Cascaded Operation of Multiple Auto 4 Mixers

Control of External Lamps or Cameras

Control of Overhead Speakers

Technical Specifications

INTRODUCTION

Auto 4 is a four channel automatic mixer, designed primarily for use in debating/discussion application.

Microphones can be connected to the Auto 4 with previously set priority for each microphone. Normally,

only one low-priority microphone will be active at any time and connected to the output. Every other low-

priority microphone will be partly muted as long as another microphone is active.

Any microphone can be set to high-priority. In this case, the high-priority microphone can override other

low-priority microphones.

A unique feature of the Auto 4 mixer is the threshold setting for each microphone. If the signal exceeds

the threshold, then that channel can be made active depending on priority settings.

Each channel of the Auto 4 mixer has three threshold settings: Loud, Normal and Soft. These should be

selected according to the actual speaker.

Several Auto 4 mixers can be interlinked to enable more than four microphones to be connected to the

overall system. This is done using the Link In/Link Out connectors on the rear panel.

Interconnection is by CAT5 cable and RJ45 connectors.

FORMAT

The Auto 4 Mixer operates with an external SMPS. Both the Auto 4 and the SMPS are packed together

for convenience.

UNPACKING

Remove the Auto 4 Mixer from the packing and make sure that you have a SMPS with mains cord and a

connector for connection to the mixer. Also, make sure that you have a warranty card. Keep the packing

in the eventuality that your Auto 4 Mixer needs to be moved or returned for service or repair.

Please complete and return your warranty card. Returning the completed warranty card does no diminish

your statutory rights in any way.

IMPORTANT INFORMATION

Do not use your Auto 4 Mixer in environments having a very high humidity or where liquids may

accidentally enter the mixer.

When powering up the system, switch on the power amplifiers after the Auto 4 Mixer has been turned on.

This will avoid unexpected loudspeaker thumps.

In the event that a fault occurs, return the Auto 4 Mixer to your dealer or to an authorized service agency.

Do not attempt to repair it yourself as this could be dangerous and will void the warranty.

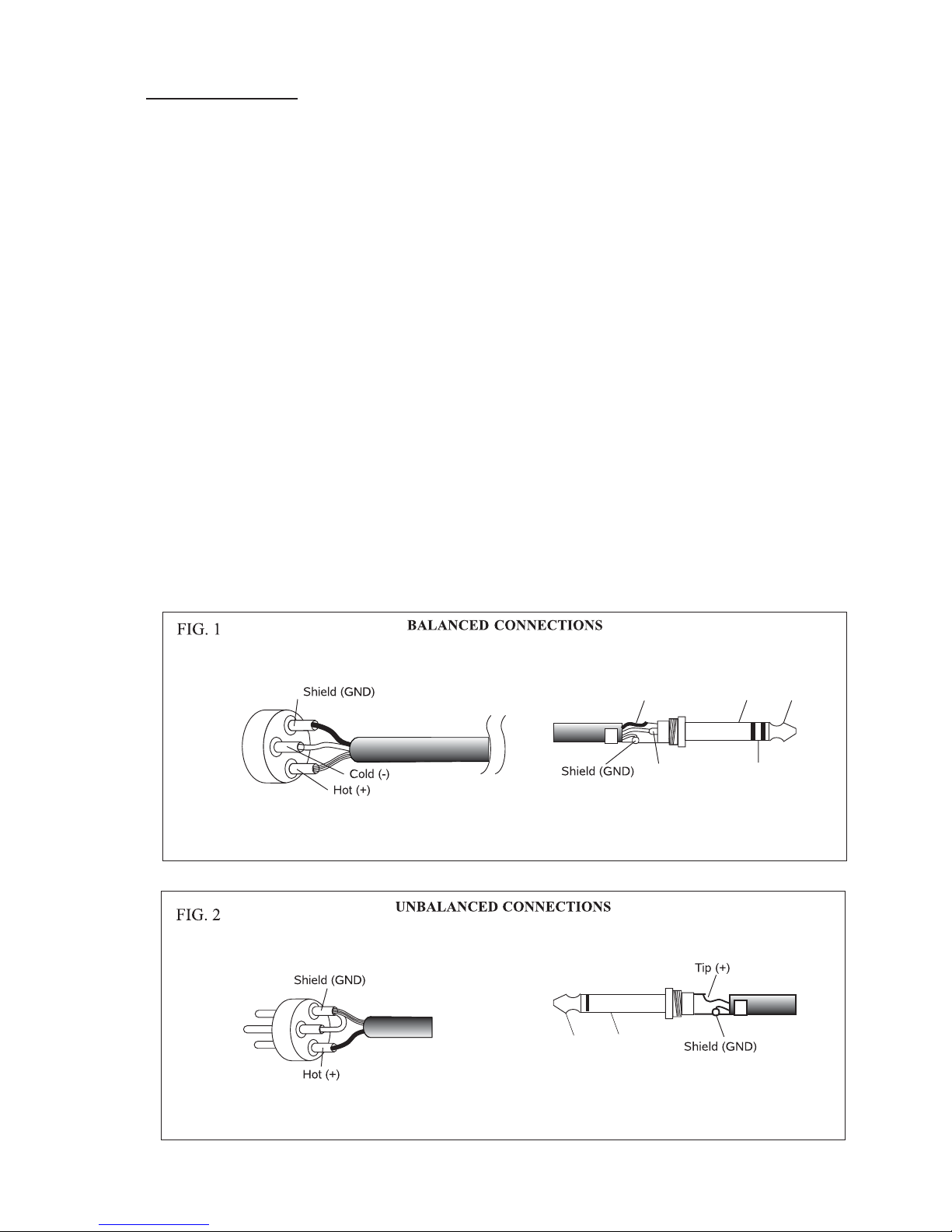

INPUT CONNECTORS

Each channel is provided with one XLR mic input and one ¼” TRS jack line input. Both mic and line

sockets should not be used simultaneously.

MIC 3 pin XLR input

For balanced, low impedance microphones, wire pin 1 to screen/ground/earth, pin 2 to

positive/hot/+ve phase, and pin 3 to negative/cold/-ve phase.

For unbalanced microphones, wire pin 1 to ground, pin 2 to signal, and pin 3 to pin 1.

48V phantom power may be applied to the microphone by selecting the appropriate switch on the rear

panel.

Do not connect 48V phantom power to unbalanced microphones.

LINE ¼” TRS Jack for use with balanced, line level input signals

Wire Tip to positive/hot/+ve phase, Ring to negative/cold/-ve phase and Sleeve to ground.

For unbalanced microphones, use a TS jack and wire Tip to signal and Sleeve to ground

The line input is electronically balanced but may also be used with unbalanced signals simply by

plugging in an unbalanced TS jack.

Mono Jack

6.3 1/4’’mm

XLR CONNECTOR

Tip

(+)

Sleeve

(GND)

Stereo Jack

6.3 mm 1/4’’

XLR CONNECTOR

Sleeve

(GND)

RING (-)TIP (+)

RING (-) TIP (+)

POWER

LEVEL

OUTPUT

LEVEL

-3

-6

-10

-20

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

LEVEL LEVEL LEVEL LEVEL

ACTIVE ACTIVE ACTIVE ACTIVE LOCKOUT

FIXED

PRIORITY

MASTER

OFF

LOUD LOUD LOUD LOUD

NORM. NORM. NORM. NORM.

SOFT SOFT SOFT SOFT

VOX

BYPASS

VOX

BYPASS

VOX

BYPASS

VOX

BYPASS

1234THRESHOLD

SELECTED CHANNEL

14 2 5

3 9

6 7 8 10 11

Auto 4

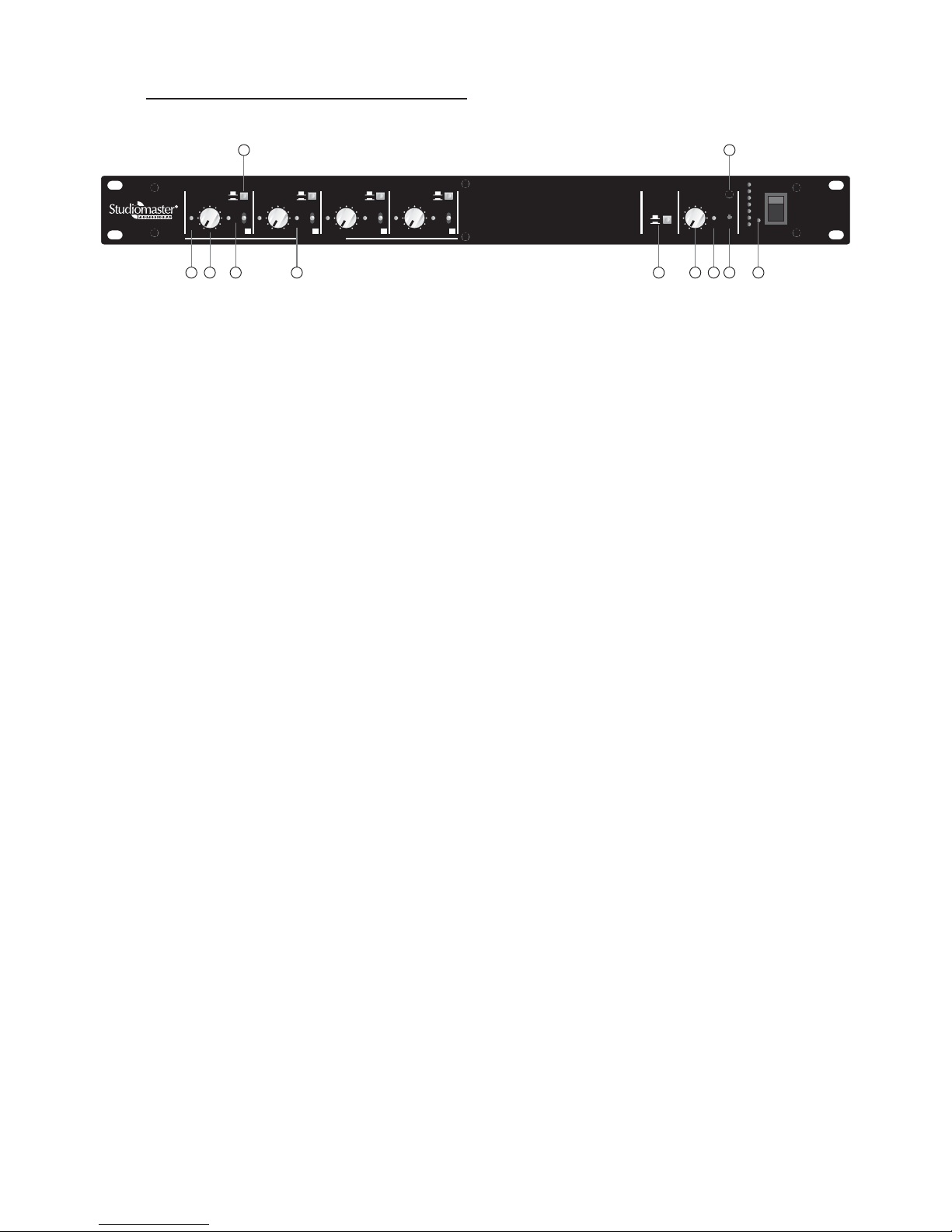

FRONT PANEL CONTROLS AND INDICATORS

1) LEVEL

2) LOUD/NORMAL/SOFT Channel threshold selection

3) VOX/BYPASS Threshold bypass for background music, VOX for voice operation

4) SIGNAL/CLIP Bicolor LED lights green at -20dBu, and red for clip at 0dBu

5) ACTIVE Green LED indicates that the channel is active

6) FIXED PRIORITY When selected, channel priority is in the following fixed order:

Channel 1 has priority over channels 2, 3 and 4

Channel 2 has priority over channels 3 and 4

Channel 3 has priority over channel 4

7) MASTER THRESHOLD

Threshold control is the level which activates the channel. If the channel signal exceeds the

threshold, the channel is activated depending on the priority settings.

8) LOCKOUT

9) MASTER LEVEL

10) OUTPUT LEVEL

11) POWER Power on/off switch with LED indication

Channel level control

Common threshold control for all four channels

LED indicated that a high priority channel is active

Recessed control to adjust output level

LED bar graph indicates output level

LINK OUT

INSERT

LINK IN OUTPUT

MIC

PHANTOM

PRIORITY

ATTEN.

20dB

INPUT 4 INPUT 3 INPUT 2 INPUT 1

CONTROL VOLTAGE OUT

EXT. DC

24V

USE ONLY

RECOMMENDED PSU

12 13 14

1517 16

1819

OFF ON

LIMITER

LAST MIC

ATTEN.

12dB

LINE

12dB

LINE

12dB

LINE

12dB

LINE

REAR PANEL CHANNEL CONTROLS

A 4-position DIP switch is provided on the rear panel for each input channel. These switches are:

12) PRIORITY Set high priority (up) or low priority (down)

13) MIC/LINE Set Mic input (up) or Line input (down)

14) PHANTOM Set Phantom supply (48V) for Mic input (up). It is internally disabled for Line

15) ATTEN. 12dB/20dB Set attenuation of inactive channel : 20dB (up) or 12dB (down)

REAR PANEL COMMON CONTROLS

A 2-position DIP switch controls the output. These switches are:

16) LIMITER Set Limiter On (up) or Off (down).

17) LAST MIC Set Last Mic On (up) or Off (down)

The internal limiter restricts the output if it exceeds a threshold which is set to about 0dBu. This is

designed to minimize signal clipping if the output signal is too large.

Normally, when a microphone is inactive, it is mu

ted. During a live discussion, every inactive microphone

is followed by another microphone which is active. At the end of the discussion, when all microphones

are inactive, there is no output from the Auto 4 mixer, as if the entire system has “gone dead”.

To prevent this, the Last Mic option can be enabled. In that case, the last microphone is not muted,

giving the effect that the microphone is not being used but “not gone dead”. Output from the amplifier

would then be the ambient background sound.

18) CONTROL VOLTAGE OUT CMOS compatible logic signals, active high (5V)

Whenever any microphone is active, a corresponding control output is available on the rear panel.

This can be used for a variety of applications such as activating a camera, disabling overhead speaker,

etc.

19) EXT. DC 24V The Auto 4 Mixer can be operated on external 24V dc supply.

Please note that the negative terminal of this 24V supply should not be connected to signal ground.

20) INSERT ¼” TRS insert jack for connection to external signal processing units.

Wire Tip to Send, Ring to Return and Sleeve to Ground.

21) LINK IN & LINK OUT RJ45 connectors for linking several Auto 4 mixers.

Use a CAT 5 cable to connect Link Out of one Auto 4 mixer to Link In of the next mixer. When several

Auto 4 mixers are linked in this way, output of the last mixer should be connected to the amplifier.

22) DC Input Connector

Connector to power supply unit. Use the power supply which has been supplied with the mixer.

SET UP PROCEDURE

=Connect Microphone to input 1 XLR

=Select rear panel switches to set Low Priority, Mic mode, Phantom off, Attenuation 20dB

=Set VOX/ Bypass switch to Bypass

=Connect output XLR to input of amplifier

=the power to the Auto 4Switch on

=Switch on the amplifier

=Speak normally into the microphone

=Set Channel Level until the Signal/Clip Led lights occasionally

=Set Master level (screw-driver adjustment) as required

=Set VOX/Bypass switch to VOX

=Set channel threshold to normal

=If required, set to Loud or Soft, depending on the speaker

=Set Master Threshold to minimum

=Increase Master Threshold so that background sound does not turn on the channel

=Speak normally into the microphone

=If required decrease Master Threshold so that sound does not break at the beginning of a word

=Repeat above procedure for all other channels

APPLICATION NOTE

OPERATION OF SINGLE AUTO 4 MIXER

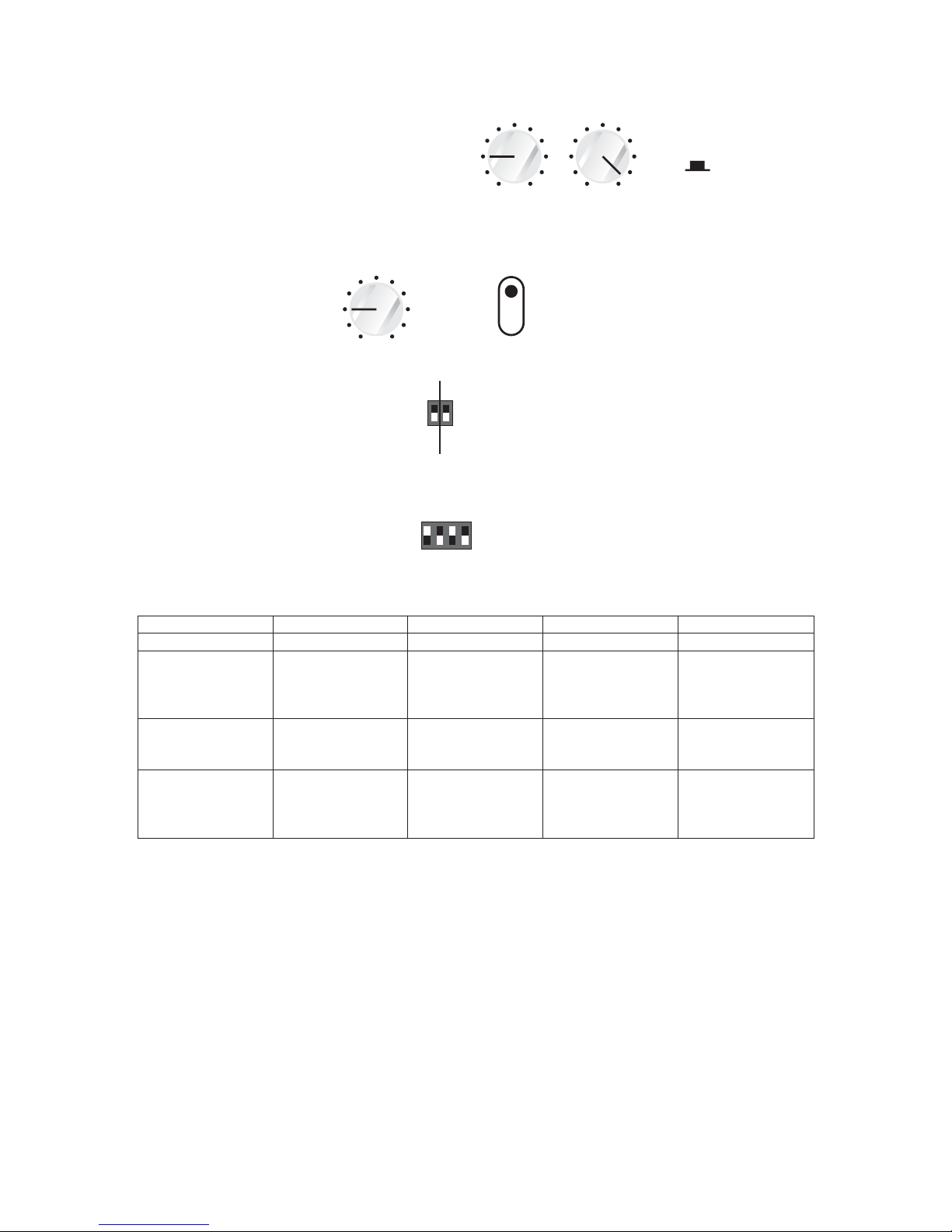

Fixed Priority Mode

Front Panel Settings

Common Settings:

Master Threshold: 9 o’clock position

Fixed Priority: on (pressed)

Master Level: Maximum

Settings for each channel:

Level: (or, according to microphone requirement)9 o’clock position

Threshold: Normal

Rear Panel Settings

Common Settings:

Last Mic: Off

Limiter: Off

Settings for each channel:

Priority Switch: Low

Mic/Line Switch: Mic

Phantom Switch: Low

Atten. Switch: 20dB

Channel 1 Channel 2 Channel 3 Channel 4 Output

On On or Off On or Off On or Off Output from Ch. 1

– other channels

attenuated by

20dB and mixed

with Ch.1

Off On On or Off On or Off

– other channels

attenuated by

20dB and mixed

with Ch.2

Off Off On On or Off

– channel 4

attenuated by

20dB and mixed

with Ch.3

In this mode:

Channel 1 has priority over channels 2, 3, and 4

Channel 2 has priority over channels 3 and 4

Channel 3 has priority over channel 4

All non-priority channels are attenuated and mixed with the priority channel.

Off Off Off On Output from Ch. 4

FIXED PRIORITYMASTER

THRESHOLD

OFF ON

LIMITER

LAST MIC

MASTER

LEVEL

MIC

PHANTOM

PRIORITY

ATTEN.

20dB

12dB

LINE

LEVEL THRESHOLD

LOUD

NORM.

SOFT

Output from Ch. 2

Output from Ch. 3

THRESHOLD

LOUD

NORM.

SOFT

Auto Mode - All Low-Priority Channels

Front Panel Settings

Common Settings:

Master Threshold: 9 o’clock position

Master Level: Maximum

Fixed Priority: Off (released)

Settings for each channel:

Level: (or, according to microphone requirement)9 o’clock position

Threshold: Normal

Rear Panel Settings

Common Settings:

Last Mic: Off

Limiter: Off

Settings for each channel:

Priority Switch: Low

Mic/Line Switch: Mic

Phantom Switch: Low

Atten. Switch: 20dB

On Off Off Off

On Becomes On but

inactive while

Channel 1 is

active

Off Off Channel 1 added

with 20dB

attenuated

Channel 2

while Channel 1 is

active

Off On

inactive while

Channel 2 is

active

with 20dB

attenuated

Channel 3

In this mode:

Only one channel is active at any time.

All other channels are inactive.

Inactive channels are attenuated by 20dB and mixed with the active channel.

Channel 1 Channel 2 Channel 3 Channel 4 Output

Off Becomes On Off Off Channel 2

Becomes On but Off Channel 2 added

Channel 1

MASTER

THRESHOLD

MASTER

LEVEL

OFF

FIXED PRIORITY

LEVEL

OFF ON

LIMITER

LAST MIC

MIC

PHANTOM

PRIORITY

ATTEN.

20dB

12dB

LINE

Indice

Altri manuali Studiomaster Mixer musicale

Studiomaster

Studiomaster C3X Manuale utente

Studiomaster

Studiomaster Air Pro 24 Manuale utente

Studiomaster

Studiomaster DJX-300 Manuale utente

Studiomaster

Studiomaster Air-X Series Manuale utente

Studiomaster

Studiomaster Fusion+ Manuale utente

Studiomaster

Studiomaster PRO VI 24.6 Manuale utente

Studiomaster

Studiomaster digiLiVE Manuale utente

Studiomaster

Studiomaster DigiLiVe16 Manuale utente

Studiomaster

Studiomaster Diamond Pro-3 Series Manuale utente

Studiomaster

Studiomaster Professional DJX 825 Manuale utente

Studiomaster

Studiomaster BASIC CUB Manuale utente

Studiomaster

Studiomaster DJX 855 Manuale utente

Studiomaster

Studiomaster MIXDOWN Manuale utente

Studiomaster

Studiomaster air pro series Manuale utente

Studiomaster

Studiomaster Platinum Basic MKI Manuale utente

Studiomaster

Studiomaster Powerhouse 1000X-10 Manuale utente

Studiomaster

Studiomaster AiR 6 Manuale utente

Studiomaster

Studiomaster 16x4x2 Manuale utente

Studiomaster

Studiomaster Powerhouse 300 Manuale utente

Studiomaster

Studiomaster digiLiVE 16 Manuale utente

Studiomaster

Studiomaster MIXDOWN Manuale utente

Studiomaster

Studiomaster DJX 925 Manuale utente

Studiomaster

Studiomaster palladium 1842 Manuale utente

Studiomaster

Studiomaster 162BPX Manuale utente

Manuali Mixer musicale popolari di altre marche

Neve

Neve 8816 Manuale utente

Mackie

Mackie Onyx Analogue Mixer Manuale utente

Behringer

Behringer EUROPOWER PMP518M Manuale utente

Peavey

Peavey S-32 Sanctuary Series Manuale utente

Rane

Rane MP 4 Manuale utente

True

True T9 Touchscreen Console Manuale utente

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Manuale utente

Roland

Roland M-160 Manuale utente

Yamaha

Yamaha MR1642 Manuale utente

Ecler

Ecler MAC40v Manuale utente

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Manuale utente

Veeder-Root

Veeder-Root TLS-350 Series Manuale utente

Alto

Alto APM80.QUAD Manuale utente

Omnitronic

Omnitronic PM-211 Manuale utente

SoundCraft

SoundCraft B400 Manuale utente

Roland

Roland SoundCanvas SC-8820 Manuale utente

CARVIN

CARVIN RX 1200 Manuale utente

Roland

Roland M-16E Manuale utente
