Sub-Zero ICBBI-36R Guida
INTERNATIONAL DESIGN GUIDE
Features and specications are subject to change at any
time without notice.
IMPORTANT NOTE: Throughout this guide, dimensions may
vary by ± 3 mm.
Contents
3Built-In Refrigeration
30 PRO 48 Refrigeration
35 Integrated Refrigeration
44 Wine Storage
71 Sub-Zero Warranty
subzero.com
|
3
BUILT-IN REFRIGERATION
•Dual refrigeration; two compressors preserve food’s
goodness in two sealed compartments.
•Energy efcient.
•Internal dispenser model provides ice and chilled water
inside the refrigerator.
•Crisper and deli drawers form a lower-temperature zone
for produce and meats.
•Flip-up grille provides easy access for quick routine
maintenance.
•All models are Star-K certied.
Built-In Refrigeration
For the built-in line, Sub-Zero designers and engineers took
a fresh look at everything, inside and out. Exterior rene-
ments include redesigned grilles and lower-prole hinges.
Inside, new technology in food preservation makes the built-
in line nothing short of revolutionary.
KEY FEATURES
•Three distinct design approaches: overlay, ush inset
and stainless steel.
•Handle options coordinate with handles of Wolf cooking
products.
ICBBI-36R
ICBBI-36F
ICBBI-30U
ICBBI-36U
ICBBI-36UFD
ICBBI-36S
ICBBI-42S
ICBBI-42SD
ICBBI-48S
ICBBI-48SID
ICBBI-48SD
BUILT-IN MODELS
BUILT-IN PRO 48 INTEGRATED WINE
4
|
English
Overall Dimensions
ALL REFRIGERATOR / ALL FREEZER
Overall dimensions are based on stainless steel models.
For ush inset applications, add 13 mm to door clearance
dimensions.
Model ICBBI-36R and ICBBI-36F.
BUILT-IN REFRIGERATION
914 mm
2134
mm
102 mm
1873
mm
606
mm
946
mm
359 mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
665 mm
OVER-AND-UNDER
Model ICBBI-30U.
762 mm
2134
mm
102 mm
1289
mm
584
mm
606
mm
600
mm 796
mm
308 mm
665 mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
WINE INTEGRATED PRO 48 BUILT-IN
subzero.com
|
5
BUILT-IN REFRIGERATION
Overall Dimensions
OVER-AND-UNDER
Model ICBBI-36U.
914 mm
2134
mm
102 mm
1289
mm
584
mm
606
mm
600
mm 946
mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
665 mm
359 mm
BUILT-IN PRO 48 INTEGRATED WINE
Model ICBBI-36UFD.
914 mm
2134
mm
102 mm
1289
mm
584
mm
606
mm
600
mm
495
mm
203
mm
606 mm
HEIGHT DIMENSIONS ± 13 mm
60 mm
665 mm
6
|
English
BUILT-IN REFRIGERATION
Model ICBBI-36S.
914 mm
2134
mm
102 mm
1873
mm
606
mm
565
mm
184
mm 222
mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
665 mm
Overall Dimensions
SIDE-BY-SIDE

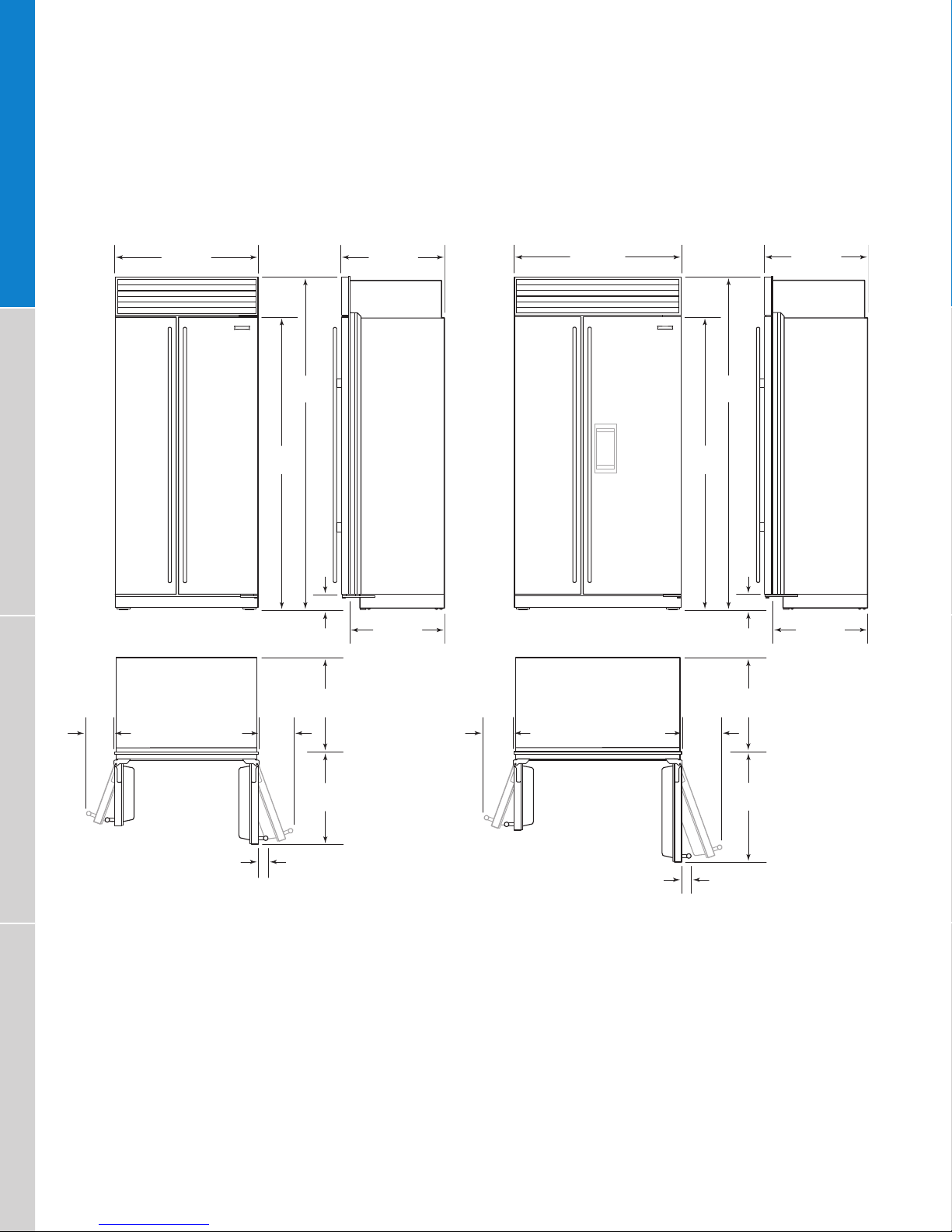

Model ICBBI-42S and ICBBI-42SD.
1067 mm
2134
mm
102 mm
1873
mm
606 mm
606
mm
668
mm
264
mm
191
mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
665 mm
WINE INTEGRATED PRO 48 BUILT-IN
subzero.com
|
7
BUILT-IN REFRIGERATION
BUILT-IN PRO 48 INTEGRATED WINE
Overall Dimensions
SIDE-BY-SIDE
Model ICBBI-48S, ICBBI-48SID and ICBBI-48SD.
1219 mm
2134
mm
102 mm
1873
mm
606 mm
606
mm
762
mm
295
mm
213
mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
665 mm
Specications
BUILT-IN MODELS
INTERIOR CAPACITY
ALL REFRIGERATOR / ALL FREEZER R (L) F (L)
ICBBI-36R 613
ICBBI-36F 612
OVER-AND-UNDER R (L) F (L)
ICBBI-30U 311 111
ICBBI-36U 367 143
ICBBI-36UFD 357 144
SIDE-BY-SIDE R (L) F (L)
ICBBI-36S 328 225
ICBBI-42S 430 220
ICBBI-42SD 408 194
ICBBI-48S 500 264
ICBBI-48SID 491 244
ICBBI-48SD 478 244
8
|
English
BUILT-IN REFRIGERATION
Opening Dimensions
STANDARD INSTALLATION
2127 mm
OPENING
HEIGHT
610 mm
OPENING
DEPTH
NOTE: Shaded line represents profile of unit.
FRONT VIEW
SIDE
VIEW
TOP VIEW
W
OPENING WIDTH
OPENING WIDTH
MODEL W
ICBBI-36R, ICBBI-36F 902 mm
ICBBI-30U 749 mm
ICBBI-36U, ICBBI-36UFD, ICBBI-36S 902 mm
ICBBI-42S, ICBBI-42SD 1054 mm
ICBBI-48S, ICBBI-48SID, ICBBI-48SD 1206 mm
If a 2108 mm grille height is specied, the opening height
must be decreased by 22 mm. If a 2235 mm grille height is
specied, the opening height must be increased by 102 mm.
If two units are installed side by side, refer to page 10 for
dual standard installations.
WINE INTEGRATED PRO 48 BUILT-IN
subzero.com
|
9
BUILT-IN REFRIGERATION

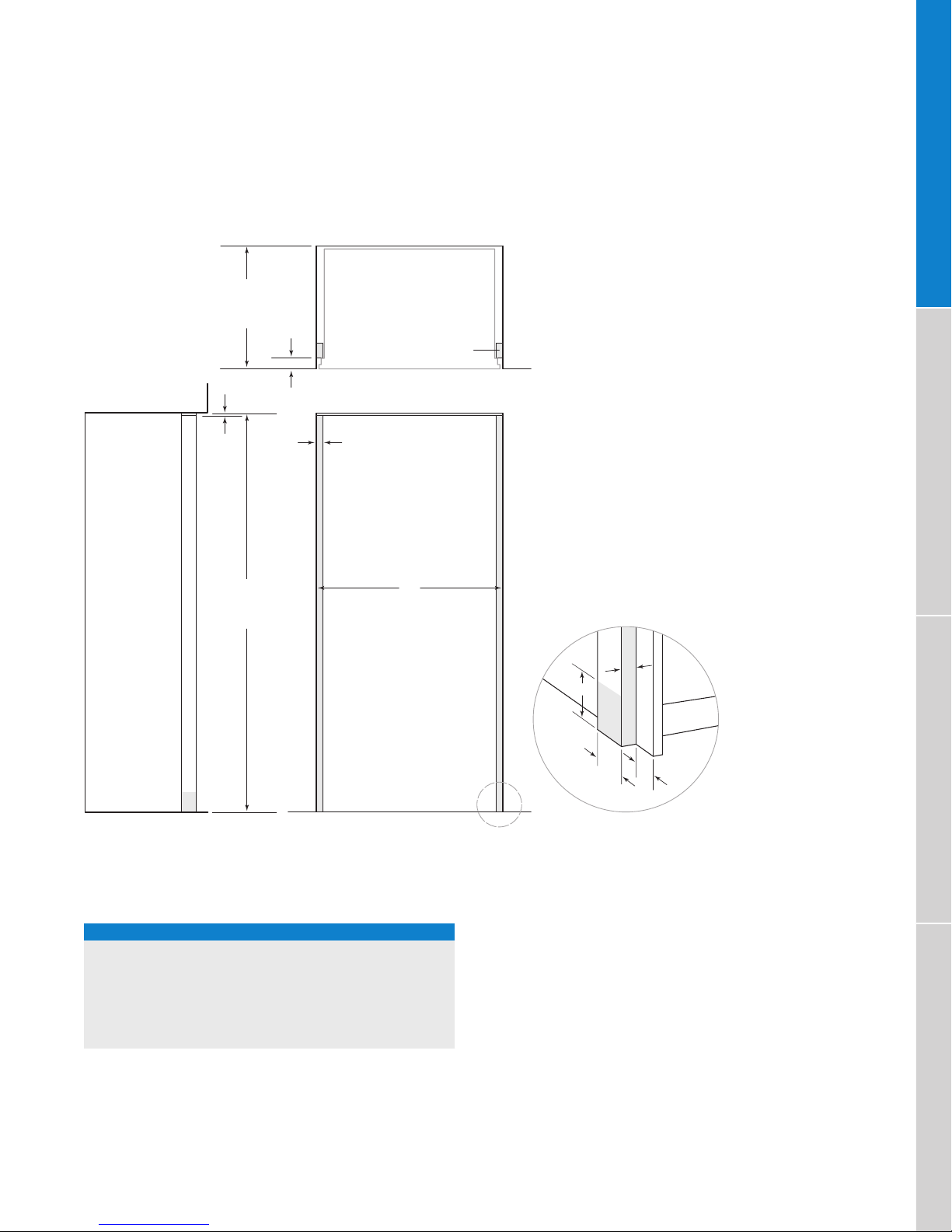

Opening Dimensions
FLUSH INSET INSTALLATION
FLUSH INSET WIDTH
MODEL W
ICBBI-36R, ICBBI-36F 965 mm
ICBBI-30U 813 mm
ICBBI-36U, ICBBI-36UFD, ICBBI-36S 965 mm
ICBBI-42S, ICBBI-42SD 1118 mm
ICBBI-48S, ICBBI-48SID, ICBBI-48SD 1270 mm
Dimensions assume a 19 mm panel thickness.
If a 2108 mm grille height is specied, the ush inset height
must be decreased by 22 mm. If a 2235 mm grille height is
specied, the ush inset height must be increased by 102
mm.
If two units are installed side by side, refer to page 11 for
dual ush inset installations.
2134 mm
FLUSH
INSET
HEIGHT
6 mm
665 mm
FLUSH
INSET
DEPTH 56
mm
*
76 mm typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
19 mm panel.
FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
32 mm
W
FLUSH INSET WIDTH
102 mm
32
mm
56
mm
76
mm*
TYPICAL
BUILT-IN PRO 48 INTEGRATED WINE
10
|
English
BUILT-IN REFRIGERATION
Opening Dimensions
DUAL STANDARD INSTALLATION
2127 mm
OPENING
HEIGHT
610 mm
OPENING
DEPTH
NOTE: Shaded line represents profile of unit.
FRONT VIEW
SIDE
VIEW
TOP VIEW
W
OPENING WIDTH
OPENING WIDTH
MODELS W
Two 762 mm Models 1518 mm
762 mm Model and 914 mm Model 1670 mm
Two 914 mm Models 1822 mm
A dual installation kit will be required for this installation.
WINE INTEGRATED PRO 48 BUILT-IN
