Sub-Zero INTEGRATED REFRIGERATION Manuale utente

Integrated Refrigeration Use & Care Guide

Sub-Zero Customer Care 800.222.7820

INTEGRATED REFRIGERATION

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 4 for rating plate

location. For warranty purposes, you will also need the date

of installation and name of your authorized Sub-Zero dealer.

Record this information below for future reference.

If your product ever needs attention, be sure to use a

Sub-Zero factory certied service provider recommended

by our customer care center, or select one from our list of

providers available at subzero.com/locator. All factory certi-

ed service providers are carefully selected and thoroughly

trained by us.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

Contents

4Integrated Features

5Electronic Controls

6Storage

9Operation

11 Care Recommendations

12 Troubleshooting

15 Sub-Zero Warranty

subzero.com

Thank You

Thank you for your purchase. We look forward to being part of your home for decades to

come. As a third-generation family-owned company, we take a very personal stake in the

preservation of your family’s food. We built our business and our reputation on helping

families serve the freshest food possible.

With your purchase, you receive one of the strongest warranties in the appliance industry.

Take a moment to read the full warranty statement on page 15. It’s also important to

such as; assurance that you will be taken care of in the unlikely event that service

becomes necessary during the warranty period, and a proof-of-purchase record in case

of a home insurance claim. You may register by one of the following options:

•Mail in the completed Sub-Zero product registration card.

•Register online at subzero.com/register and create a personalized My Sub-Zero/Wolf

account using the serial number on your product.

•Register by phone by calling Sub-Zero Customer Care at 800-222-7820.

As a Sub-Zero owner, you can count on ongoing support, day in and day out. Our cus-

tomer care center is available 24 hours a day, seven days a week and staffed by knowl-

edgeable product experts at our factory in Madison, Wisconsin. Should the need arise,

simply call 800-222-7820 and speak with one of our product experts. They will help

troubleshoot any issues you might have.

We are condent this guide will answer your questions about the features, operation, and

maintenance of your Sub-Zero, but if you have additional questions, please contact us at

800-222-7820 or visit us online at subzero.com.

Sub-Zero Customer Care 800.222.7820

Integrated Features

FEATURE PG

1Product Rating Plate 2

2Electronic Control Panel and Display 5

3Freshness Cards (column models) 6

4Door Shelves 6

5Dairy Compartment 6

6Glass Shelves 6

7Deli Drawer 7

8Refrigerator Drawers 7

9Storage Drawers 8

10 Crisper Cover 8

11 Automatic Ice Maker 9

12 Ice Container 8

13 Condenser (behind kickplate) 13

INTEGRATED FEATURES

Column all refrigerator.

Tall combination.

Drawer all refrigerator.

subzero.com

ELECTRONIC CONTROLS

Control Panel

FUNCTION

COLDER

WARMER

Adjusts temperature in one-degree increments.

Combination units have separate temperature con-

trols for refrigerator and freezer. Temperatures are

preset at 38°F (3°C) and 0°F (-18°C).

ICE Turns power to ice maker on or off. Use to disable

ice maker during extended vacations.

ALARM Activates or deactivates door/drawer alarm. An

audible chime indicates door/drawer has been left

ajar for more than 30 seconds.

POWER Turns unit on or off. When power is off, ‘OFF’ will

appear in control panel display. Turning power off at

the control panel eliminates the need to unplug or

turn power off at the circuit breaker during service

or extended vacations.

Control panel and display (model 700TCI shown).

Display

INDICATOR

SERVICE Illuminates or ashes when electronic control

system has detected a temperature or ice maker

problem, or if the condenser needs to be cleaned.

ICE Illuminates when ice maker system is activated.

Illuminates when door alarm is activated.

Sub-Zero Customer Care 800.222.7820

Refrigerator Storage

DOOR SHELVES

To remove a door shelf or the dairy compartment, lift from

the bottom and slide out. To reinstall, place in the desired

position and slide the shelf down onto the guides. Refer to

the illustration below.

IMPORTANT NOTE: If door opening is limited to 90°, door

shelves may need to be removed before removing a storage

drawer or glass shelf.

GLASS SHELVES

To remove or adjust a glass shelf, tilt up, then lift up and out.

To reposition, insert shelf in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

The stationary glass shelf at the bottom of the compartment

should be placed with beveled edge facing front. Rear sup-

port legs space the shelf away from the back wall to ensure

proper air ow through the unit.

IMPORTANT NOTE: Use care when handling glass shelves to

prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature before

immersing in warm water.

Keeping Food At Its Best

This Sub-Zero features a unique dual refrigeration system

to keep food fresher longer.

With the Sub-Zero dual refrigeration system, individual

refrigerator and freezer systems have been designed to

maintain accurate, consistent temperatures and proper

humidity levels for longer food life expectancy. Dual refrig-

eration eliminates transfer of fresh food odors to frozen food

and ice and does not freeze the moisture out of the air in

the fresh food section.

STORAGE

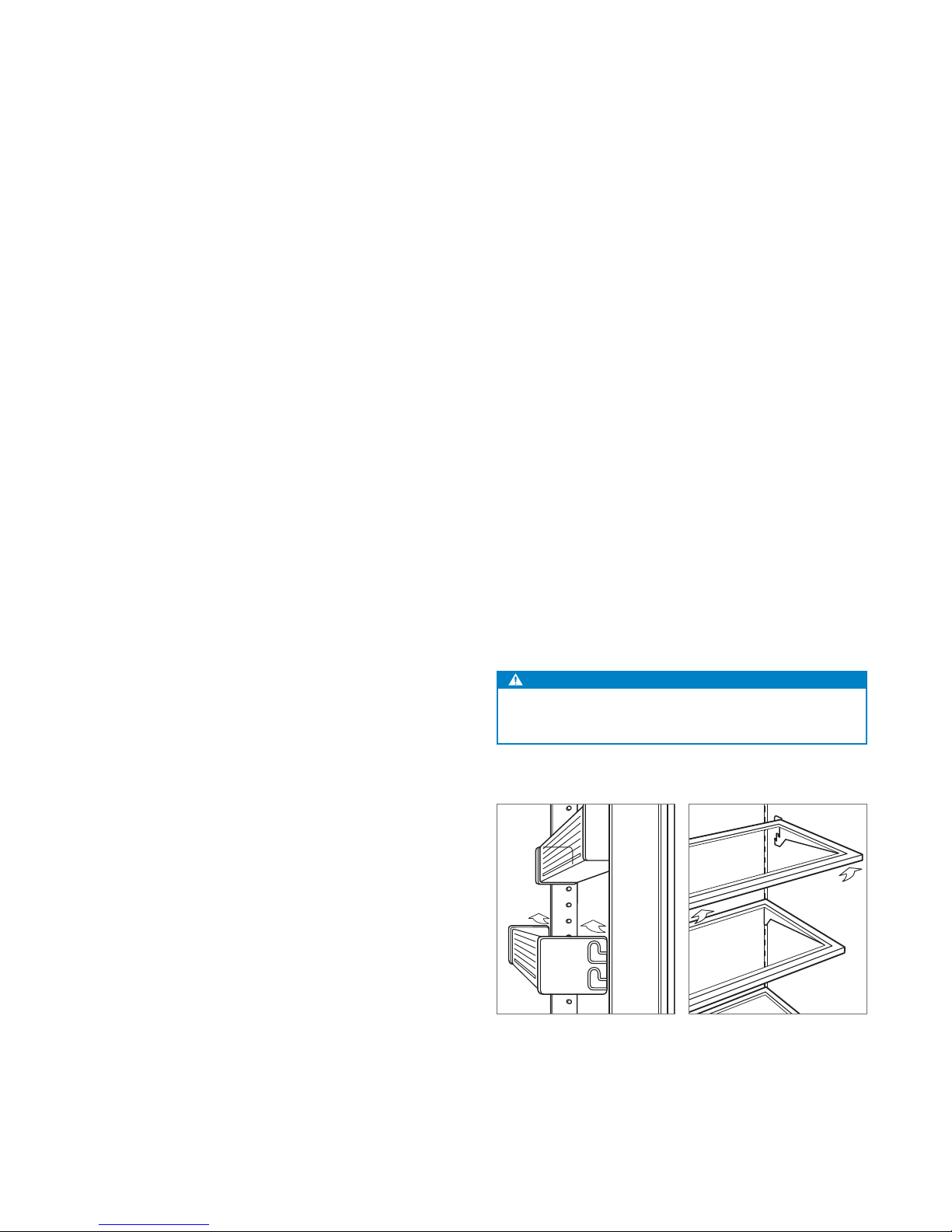

Door shelf removal.

Glass shelf removal.

subzero.com

Refrigerator Storage

DELI DRAWER AND SHELF

Models 700TR, 700TCI and 736TR |To remove the deli

drawer and shelf assembly, tilt up, then lift up and out. To

reposition, insert assembly in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

CRISPER

Model 736TCI |To remove the crisper, lift the glass shelf

off side supports, then remove crisper bin from support

assembly. To reinstall, place crisper bin into assembly then

reinstall glass shelf. Refer to the illustration below.

REFRIGERATOR DRAWERS

Model IC-27R |To remove, pull the refrigerator drawer

forward until it stops. Lift the front of the drawer slightly,

then pull forward. To reinstall, push drawer slides in. Align

the drawer with slides and push back until it stops. Press

down on the front of the drawer to engage the slides. Refer

to the illustration below.

If door opening is limited to 90°, the shallow door shelves

must be removed before removing a drawer.

To remove a drawer divider, pull straight up. To reinstall,

align tabs on the divider with notches in the drawer and

slide down.

STORAGE

Refrigerator drawer removal.

Deli drawer and shelf removal.

Crisper removal.

Sub-Zero Customer Care 800.222.7820

Storage Drawers

CRISPER COVER

Tall and drawer |To remove the crisper cover, pull the

refrigerator storage drawer forward until it stops. Lift the

front of the crisper cover and pull it up and out. Refer to the

illustration below.

DRAWER DIVIDER

Upper storage drawer |To remove the divider, pull it for-

ward and release the back edge from notches in the drawer.

Lift up and out. Reverse to reinstall. Refer to the illustration

below.

Lower storage drawer |For models with an ice maker, the

divider is not removable. For models without an ice maker,

the center divider can be removed by extracting three

screws located on the back of the drawer.

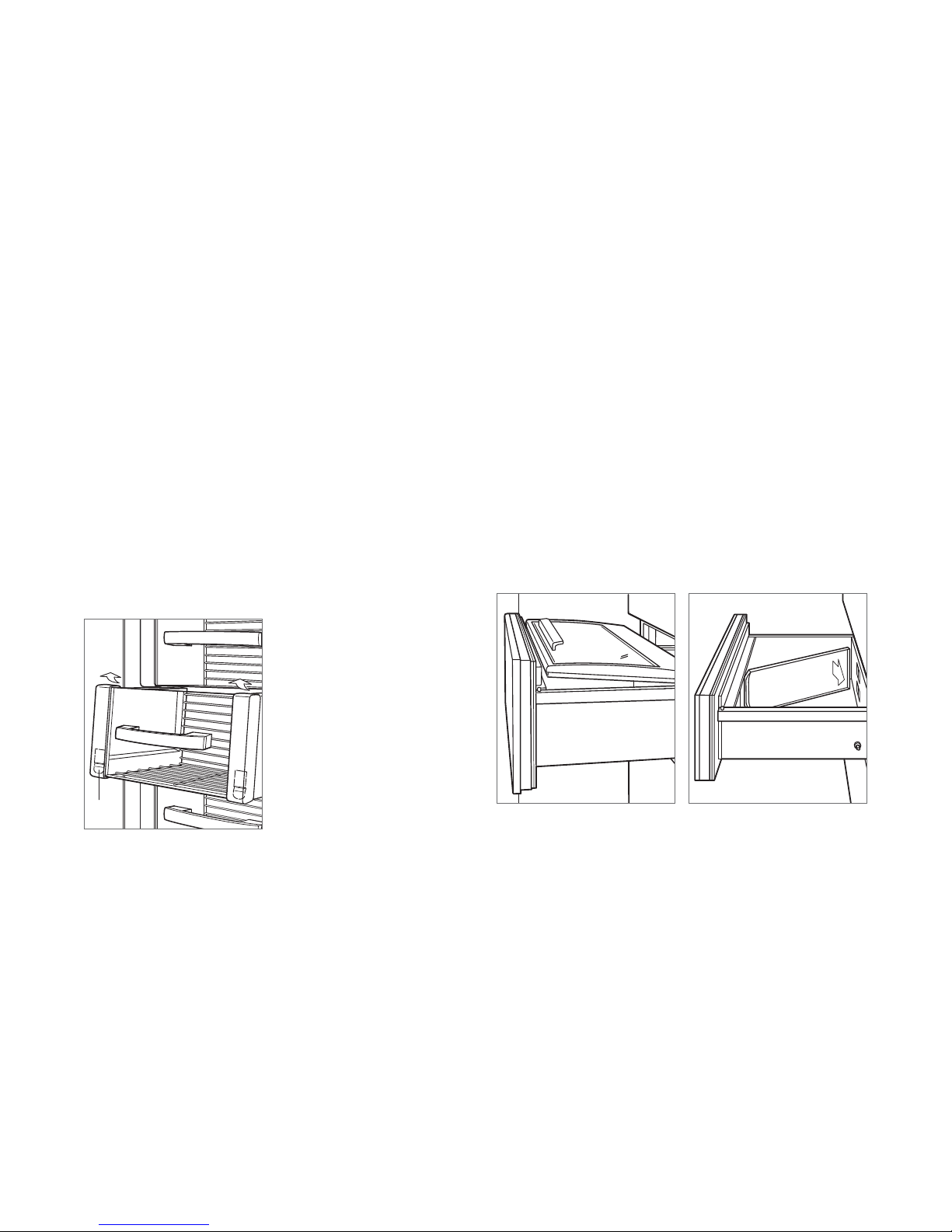

Crisper cover.

Drawer divider.

STORAGE

Freezer Storage

FREEZER DRAWERS

Column |To remove, pull the freezer drawer forward until

it stops. Pull the two metal clips located behind the bottom

two corners of the drawer forward, then lift up and out. To

reinstall, push drawer slides in. Align the drawer with slides

and push back until it stops. Press down on the front of the

drawer to engage slides. Refer to the illustration below.

If door opening is limited to 90°, the shallow door shelves

must be removed before removing a drawer.

ICE CONTAINER

Column |To remove the ice container, pull the top freezer

drawer forward until it stops and lift container out.

Tall and drawer |To remove the ice container, pull the

lower storage drawer forward until it stops and lift container

out.

TA B

Freezer drawer removal.

subzero.com

Storage Drawers

DRAWER REMOVAL

To remove, pull the storage drawer forward until it stops.

Lift the front of the drawer slightly and pull straight out. To

reinstall, place drawer onto the slides, then align the holes at

the front of the drawer with the pegs on the slides. Refer to

the illustration below.

For drawer models, the upper drawer has a control cable

that must be disconnected before removing the drawer.

Refer to the illustration below.

PEG

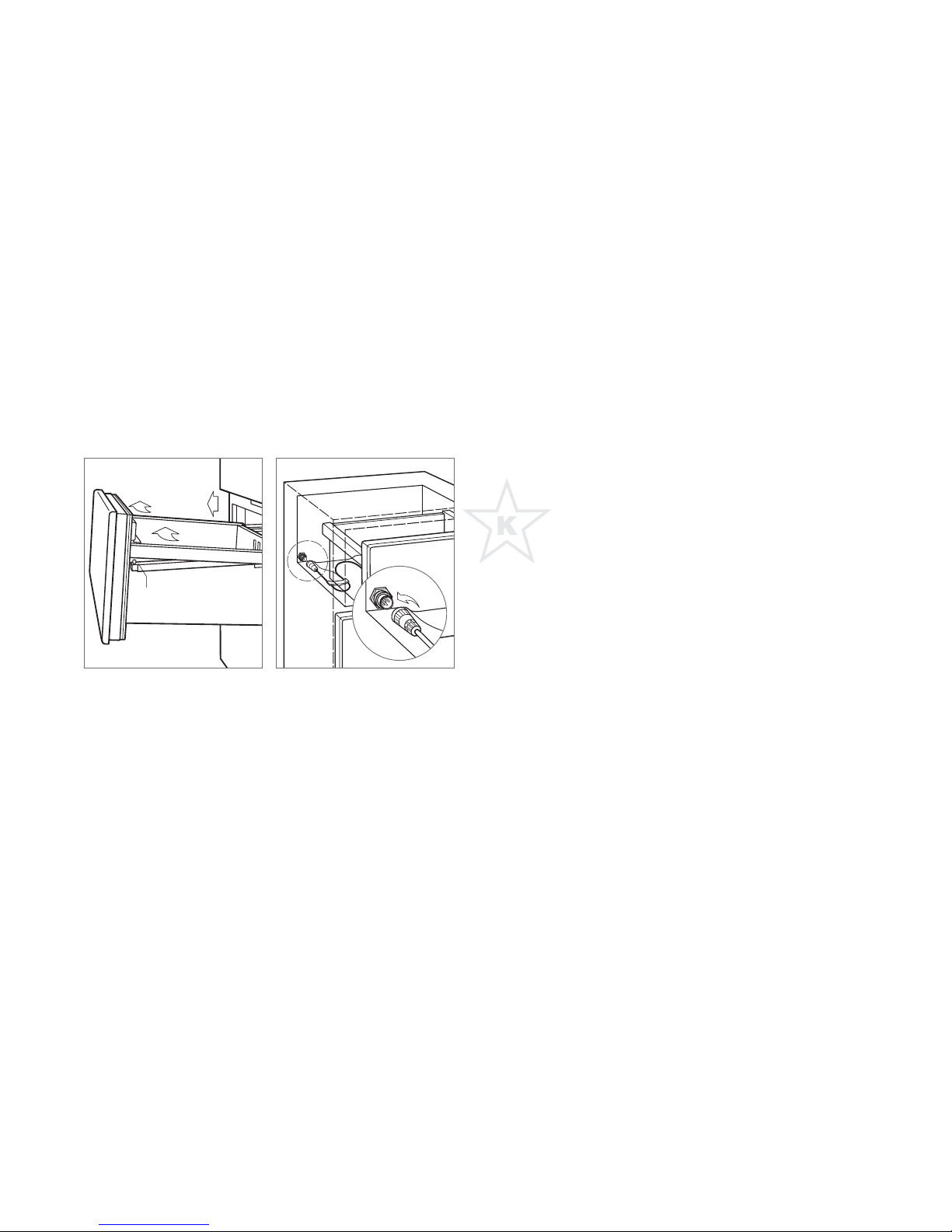

Storage drawer removal.

Control cable (drawer models).

OPERATION

Ice Maker Operation

To initiate ice production, touch ICE on the control panel. To

deactivate, touch ICE again. After initial start-up, discard the

rst few batches of ice. The ice may contain impurities from

new plumbing connections.

The ice maker will cycle (eight cubes) every two hours. If ice

is not used regularly it may fuse together. To avoid, discard

ice and allow ice maker to replenish.

For column models, the ice maker must be turned off at the

control panel when the ice container is removed. For tall and

drawer models, the ice maker is deactivated when the ice

container is removed. Ice production will resume when the

container is reinstalled.

Sabbath

This appliance is certied by Star-K to meet strict religious

regulations in conjunction with specic instructions found

on www.star-k.org.

Column and tall models may require a wire harness kit to ini-

tiate Sabbath mode. The kit is available through your autho-

rized Sub-Zero dealer. For local dealer information, visit the

nd a showroom section of our website, subzero.com.

To initiate Sabbath mode, while the unit is on, touch POWER

on the control panel. ‘OFF’ appears in the control panel dis-

play. Touch and hold POWER for 10 seconds until the lights

turn off, indicating Sabbath mode has been initiated. Lights,

ice maker (if applicable) and door alarm will be disabled. To

return to normal operating conditions, touch POWER.

Sub-Zero Customer Care 800.222.7820

OPERATION

Interior Lighting

WARNING

Turn power off at the control panel before replacing light

bulbs. Wear protective gloves when handling bulbs.

OVERHEAD LIGHTING

Column and tall |Overhead lighting uses 40-watt bulbs.

To access bulbs, remove the light shield by releasing the

locking clip from each side of the light shield. Hold the

bottom of the shield then slide back until the slots are

aligned with the wall studs. To reinstall, align slots with

studs then slide forward. Once in position, rotate locking

clips back into position. Refer to the illustrations below.

REFRIGERATOR DRAWER LIGHTING

Column |Drawer lighting uses 40-watt bulbs. To access

bulbs, remove the drawer and glass shelf, then slide light

shield up to remove. To reinstall light shield, place over

bulbs then slide down into position. Reinstall drawer and

glass shelf. Refer to the illustration below.

STORAGE DRAWER LIGHTING

Tall and drawer |Drawer lighting uses a 25-watt bulb. The

bulb is recessed into the top of each drawer compartment.

To access the bulb, pull the drawer forward until it stops or

remove completely by lifting up and out. Refer to the illus-

tration below.

LOCKING CLIPLIGHT

SHIELD

LOCKING CLIPLIGHT

SHIELD

Overhead lighting—column.

Overhead lighting—tall.

RECESSED BULB

Refrigerator drawer lighting.

Storage drawer lighting.

Altri manuali per INTEGRATED REFRIGERATION

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Sub-Zero Frigorifero

Sub-Zero

Sub-Zero 500 Series Guida rapida alla configurazione

Sub-Zero

Sub-Zero PRO 48 Manuale utente

Sub-Zero

Sub-Zero IT-30FI Manuale utente

Sub-Zero

Sub-Zero 642 Manuale utente

Sub-Zero

Sub-Zero BI-36U/S/TH Manuale utente

Sub-Zero

Sub-Zero 685 Manuale utente

Sub-Zero

Sub-Zero BI-36F Istruzioni per il montaggio

Sub-Zero

Sub-Zero Sub-Zero 648PROG Manuale utente

Sub-Zero

Sub-Zero IT-36RID Manuale utente

Sub-Zero

Sub-Zero 661 Manuale utente

Sub-Zero

Sub-Zero 249R Istruzioni per l’uso

Sub-Zero

Sub-Zero UC-24C Manuale utente

Sub-Zero

Sub-Zero 700BR Manuale utente

Sub-Zero

Sub-Zero BI-36U Manuale utente

Sub-Zero

Sub-Zero IT36CIRH Manuale utente

Sub-Zero

Sub-Zero BI-42SD/S/PH Manuale utente

Sub-Zero

Sub-Zero Sub-Zero BI series Manuale utente

Sub-Zero

Sub-Zero 600 Series BI-30U Manuale utente

Sub-Zero

Sub-Zero BI-30UG Manuale operativo

Sub-Zero

Sub-Zero 601F Manuale utente

Sub-Zero

Sub-Zero BI-36S Istruzioni per il montaggio

Sub-Zero

Sub-Zero Classic Series Manuale utente

Sub-Zero

Sub-Zero 700BCI Istruzioni per il montaggio

Sub-Zero

Sub-Zero PRO 48 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
