Subaru 2001 IMPREZA Manuale utente
FUJI HEAVY INDUSTRIES LTD. G1830GE6
2001 IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX
BODY SECTION
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.
HVAC SYSTEM
(HEATER, VENTILATOR AND A/C) AC
HVAC SYSTEM (AUTO A/C)
(DIAGNOSTICS) AC
AIRBAG SYSTEM AB
AIRBAG SYSTEM (DIAGNOSTICS) AB
SEAT BELT SYSTEM SB
LIGHTING SYSTEM LI
WIPER AND WASHER SYSTEMS WW
ENTERTAINMENT ET
COMMUNICATION SYSTEM COM
GLASS/WINDOWS/MIRRORS GW
BODY STRUCTURE BS
INSTRUMENTATION/DRIVER INFO IDI
SEATS SE
SECURITY AND LOCKS SL
IMMOBILIZER (DIAGNOSTICS) IM
SUNROOF/T-TOP/CONVERTIBLE TOP
(SUNROOF) SR
EXTERIOR/INTERIOR TRIM EI
2001 IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX
BODY SECTION
G1830GE6
EXTERIOR BODY PANELS EB
CRUISE CONTROL SYSTEM CC
CRUISE CONTROL SYSTEM
(DIAGNOSTICS) CC
SEAT BELT SYSTEM SB
Page
1. General Description ....................................................................................2
2. Inspection Locations After a Collision.........................................................7
3. Front Seat Belt............................................................................................8
4. Rear Seat Belt...........................................................................................10
5. Disposal of Pretensioner...........................................................................13
SB-2
SEAT BELT SYSTEM GENERAL DESCRIPTION
1. General Description
A: COMPONENT
1. FRONT SEAT BELT
BO0239
T3
(1) (2)
(3)
(4)
T2
T2
T2
T1
(1) Adjuster anchor ASSY Tightening torque: N·m (kgf-m, ft-lb)
(2) Anchor cover T1: 7.5 (0.76, 5.5)
(3) Outer belt ASSY T2: 30 (3.1, 22)
(4) Inner belt ASSY T3: 53 (5.4, 39)
SB-3
SEAT BELT SYSTEM
GENERAL DESCRIPTION
2. REAR SEAT BELT (SEDAN BODY)
BO0240
T
T
T
(7)
(3)
(5)
(4)
(2)
(1)
(6)
(1) Outer seat belt RH (5) Inner seat belt CENTER Tightening torque: N·m (kgf-m, ft-lb)
(2) Outer seat belt CENTER (6) Inner seat belt LH T: 30 (3.1, 22)
(3) Outer seat belt LH (7) Case center ELR T2: 30 (3.1, 22)
(4) Inner seat belt RH T3: 53 (5.4, 39)
SB-4
SEAT BELT SYSTEM GENERAL DESCRIPTION
3. REAR SEAT BELT (WAGON BODY)
BO0241
(3)
(2)
(1)
(4)
(5)
T1
T1
T2
T2
T1
T1
(1) Outer seat belt RH (5) Inner seat belt LH Tightening torque: N·m (kgf-m, ft-lb)
(2) Outer seat belt CENTER T1: 30 (3.1, 22)
(3) Outer seat belt LH T2: 53 (5.4, 39)
(4) Inner seat belt RH
SB-5
SEAT BELT SYSTEM
GENERAL DESCRIPTION
B: CAUTION
•Before starting, turn the ignition switch OFF, dis-
connect the battery ground cable and wait for 20
seconds or more.
•The pretension system has a backup power
source. The pretensioner might deploy if you do
not wait for 20 seconds or more before starting
work.
•Do not drop or apply any impact to the preten-
sioner.
•If oil, grease, or water gets on the pretensioner,
wipe it off immediately with a dry cloth.
•Do not expose the pretensioner to high tempera-
ture or flame.
•Do not allow current to flow through or voltage to
reach the pretensioner. Do not use a circuit tester
to check resistance of the pretensioner.
•Do not disassemble or attempt to repair the pre-
tensioner. If it is dented, cracked, or deformed, re-
place it with a new one.
•Do not use the air bag or pretensioner parts from
other vehicles. Always replace parts with new
parts.
•When handling a seat belt with a deployed pre-
tensioner, wear gloves and goggles. Wash your
hands afterwards.
•Do not re-use a seat belt with a deployed preten-
sioner again.
•Be sure to deploy pretensioner before disposal.
<Ref. to SB-13, OPERATION, Disposal of Preten-
sioner.>
•If the material gets in your eyes or on your skin
during deployment, wash it away with clean water,
and then consult a doctor.
SB-6
SEAT BELT SYSTEM GENERAL DESCRIPTION
C: PREPARATION TOOL
1. SPECIAL TOOLS
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299FE010 ADAPTER C
(DEPLOYMENT) •Used for deploying the pretensioner.
•Used with DEPLOYMENT TOOL
(98299PA030).
98299PA030 DEPLOYMENT
TOOL •Used for deploying the pretensioner.
•Used with ADAPTER A (DEPLOYMENT)
(98299FC030).
B5M1114
B5M1115
SB-7
SEAT BELT SYSTEM
INSPECTION LOCATIONS AFTER A COLLISION
2. Inspection Locations After a
Collision
A: INSPECTION
Check for the following, and then replace with new
parts if necessary.
•Center pillar lower garnish is discolored or
cracked.
•Wire harness and/or connector is damaged.
SB-8
SEAT BELT SYSTEM FRONT SEAT BELT

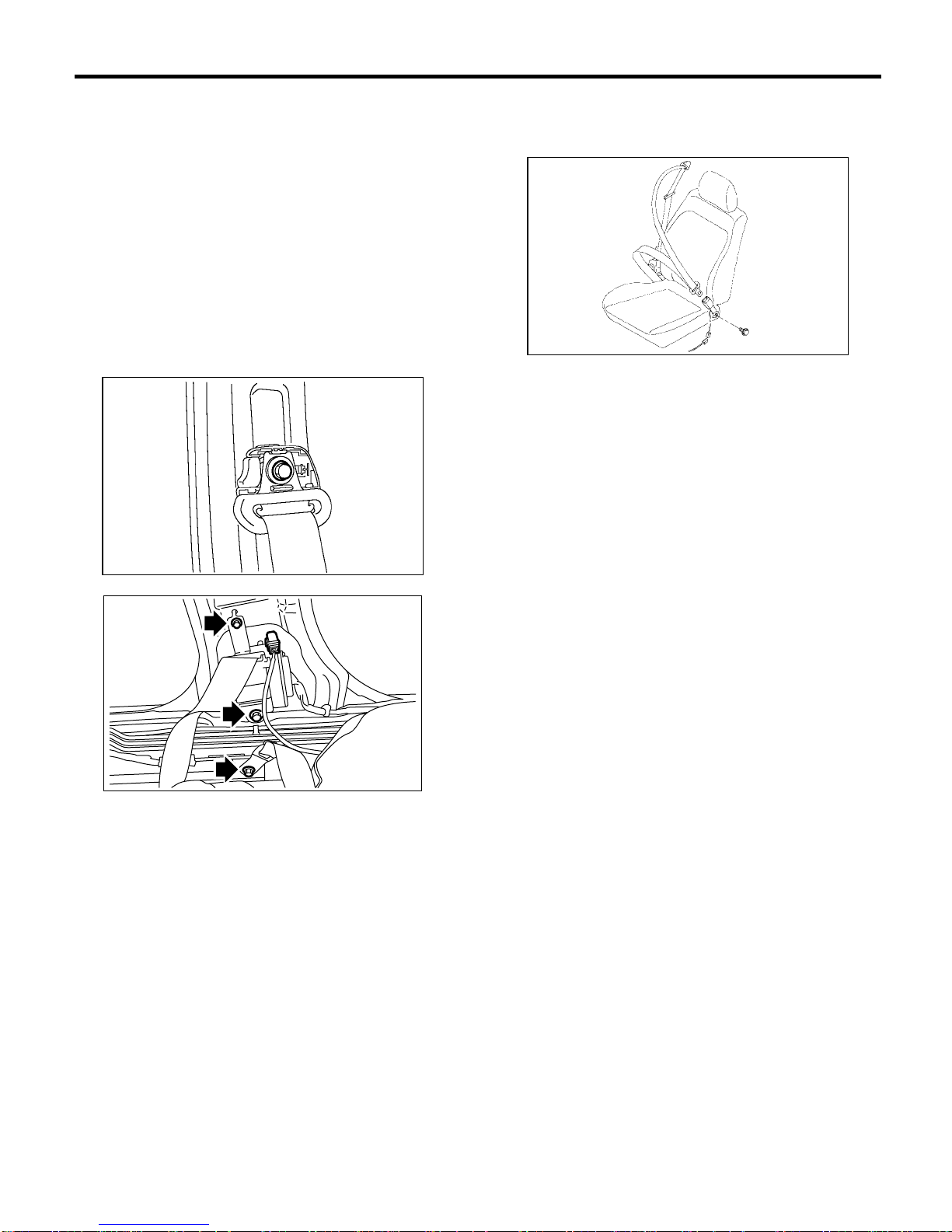

3. Front Seat Belt
A: REMOVAL
1. OUTER BELT (FRONT)
1) Fold backrest all the way forward, and then
move front seat all the way forward.
2) Turn ignition switch OFF, disconnect ground ca-
ble from battery, and wait for more 20 seconds be-
fore starting work.
3) Remove center pillar lower trim. <Ref. to EI-29,
REMOVAL, Lower Inner Trim.>
4) Remove anchor cover. Loosen shoulder anchor
bolt, and then detach shoulder anchor from center
pillar.
5) Turn over the floor mat to remove bolts.
6) Disconnect yellow connector of pretensioner
harness, and remove outer belt (front).
CAUTION:
•Do not drop or apply any impact to preten-
sioner.
•Pretensioner and bracket should be treated
as an assembly. Do not attempt to disassemble
it.
2. INNER BELT (FRONT)
1) Disconnect connector.
2) Remove anchor bolt, and then detach inner belt.
B5M1070
RE0003
S5M0234
