[PRODUCT NO. & NAME] Issue: A Page 1 of 9

SERVICE MANUAL

EM0480

Coffee Burr Grinder

ISSUE: A

DATE: 7 April 2005

[PRODUCT NO. & NAME] Issue: A Page 2 of 9

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Item

Description

No. of

Parts

Supplier’s

Code

Sunbeam

Part No.

Hopper Lid

C3-1008

EM0480101

Hopper

C3 -1005

EM0480102

Hopper

assembly

Blade

C3 -2106

Spring

38 -5092

Hopper Base

C3 -2006

Hopper Small Cover

C3 -2004

Dial

C23-1131

Dial Insert

C3 -2015

Safety Switch Bracket

C3 -2005

Dial Base

C3 -2004

Dial Spring

38-5094

Screw

31-3004-SS

Screw

31-1006

Screw

31-5006-SS

EM0480110

–Upper &

lower burr

ass’y

Top - Burr

C3-1004

Top Burr Base

C23-8060

Burr Blade

C23-1150

Coffee Cover

C3-2003

Cap Nut

C23-1145

Inter Washer

34-7028

Bottom Burr

C213-8059

Safety Switch Spring

38-5093-2

Micro Switch

089-8024-

Safety Switch Rod

C3-1012

Paddle Rod

C23-2215

Paddle

C3-9024

EM0480113

Paddle Plate

C23-2212

Bearing Washer

C23-2226

Thrust Bearing Plate

C3-2007

Ball 040613

C23-8064

Coffee Chute

C3-2002

Coffee Outlet

C3-1007

Lock Button

C3-1007

Lock Spring

38-5093-1

Screw

31-1067

Main Housing

C23-1130

Push Switch Bracket

C3-2001

Push Switch Spring

38-5095

Micro Switch

089-82014-

Push Switch Leaf

C3-2000

[PRODUCT NO. & NAME] Issue: A Page 3 of 9

Item

Description

No. of

Parts

Supplier’s

Code

Sunbeam

Part No.

Group handle locator small

C3-1003

EM0480106

Group handle locator large

C3-1010

EM0480107

T Piece

C3-1002

Push Switch Rod

C23-1143-

Screw

31-1006

Screw

31-1100

NBR Seal

45-6196

Gear Box

18-8100

Screw

31-1020

Motor Group

50-2043

Screw - 1

31-1064

Gasket

34-2014

Rubber Cushion

45-6194

Motor Bracket

C23-2209

Toggle Switch Bracket

C3-9025

Toggle Switch

50-1060

Blade

20-2035

Screw- 1

31-1141

Storage container lid

C3-1009

EM0480103

Storage container

C3-1006

EM0480104

Rubber mat

C3-6003

EM0480105

Base Casting

C23-1132

Screw - 1

31-1076

Base Cover

C3-5000

Feet Rubber

45-6195

Screw - 1

31-1339

Power Cord

17-33002-

Cable Clamp

C3-2112

Screw - 3

31-1005

Location Pin

C23-2216-

Burr cleaning brush

EM0480108

Spacer

EM0480109

Silicone Spout

75-054

EM0480112

[PRODUCT NO. & NAME] Issue: A Page 4 of 9

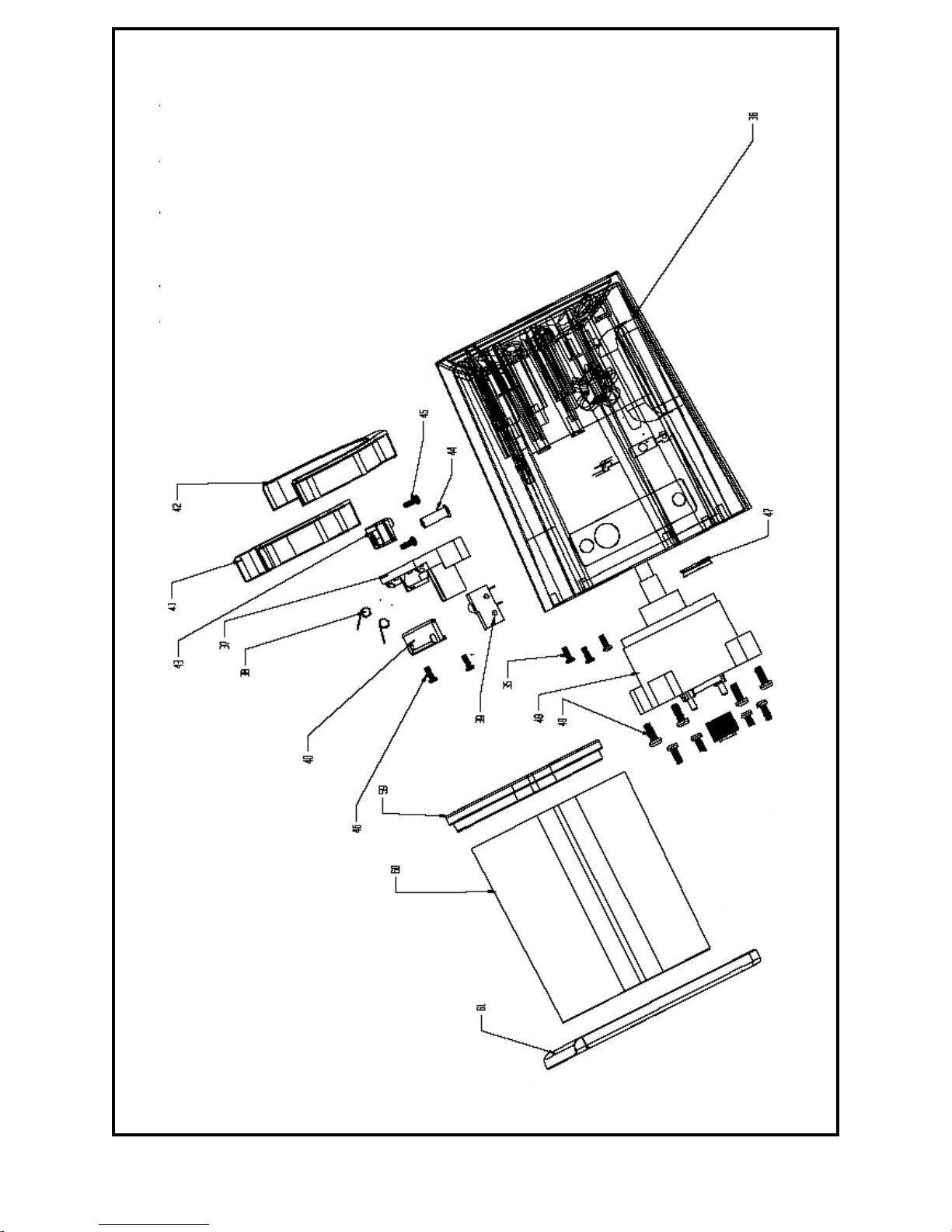

EXPLODED VIEW DRAWING

[PRODUCT NO. & NAME] Issue: A Page 5 of 9

[PRODUCT NO. & NAME] Issue: A Page 6 of 9

[PRODUCT NO. & NAME] Issue: A Page 7 of 9

[PRODUCT NO. & NAME] Issue: A Page 8 of 9

[PRODUCT NO. & NAME] Issue: A Page 9 of 9

CIRCUIT DIAGRAM
