TH400

Smart Infrared bathroom Heater

Installation & Operation Instructions

Version: SDUM-1804

Table of Contents

1. Notice to purchaser

2. General Introduction

3. Safety Instructions

3.1 Product related safety warnings

3.2 Dangers for children and persons with limited abilities

3.3 Electric safety directions

3.4 Waterproof

4. How to care for your heater

4.1 Cleaning

4.2 Using/Working

4.3 Repair

4.4 Disposal

5. Installation

5.1 Mounting installation

5.2 Electric power connections

6. Operation

6.1 General introduction of the smart control system

6.2 Control box description

6.3 Manual control

6.4 Wi-Fi and APP operation

6.4.1 How to download the Sundirect Smart App

6.4.2 Wi-Fi connection

6.4.3 Modify Device Name, Device Sharing and device group control

6.4.4 Disconnect the Wi-Fi

7. Technical Speciﬁcations

8. Warranty

2

1. Notice to Purchaser

Thanks for purchasing this Sundirect infrared heater. We hope you enjoy this innovative technology

and that this product will bring a pleasant atmosphere to your home.

Please read these instructions carefully and keep safe for future use. Failure to comply with these

instructions will void your warranty. Do not disassemble or tamper with the product at any time!

Please pay special attention to the safety instructions and use the heater according to these

instructions. Sundirect Technology Ltd. shall not be liable for any damage or loss occurred resulting

from failure to follow these instructions.

2. General Introduction

Sundirect Infrared heaters heat objects instead of the air, making this heater much more efﬁcient

than traditional convection heaters.

The TH400 represents a new generation of infrared bathroom heaters, equipped with our “Smart

Easy” Wi-Fi enabled touchscreen control box on the backside of the glass.

With “Sundirect Smart” APP, you have advanced room temperature control including

-Manual mode: simple temperature control and timer function

-Smart mode: 7days program, 4 time zones per day

-Holiday mode: set up a ﬁxed temperature during your absence and automatically switch back to

normal settings after your holiday

The set up process is very simple and can be ﬁnished within few minutes. Even if your WIFI is

disabled, the heaters can still be controlled manually.

3

Read the installation and operating instructions completely before

starting any installation works and save the instructions for later use.

3. Safety instructions

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

3. 1 Product related safety warnings

•Sundirect infrared heaters operate at a surface temperature of around 75-85°C when mounted.

Do NOT touch the heater when switched on.

•Prolonged contact may cause injuries or burns.

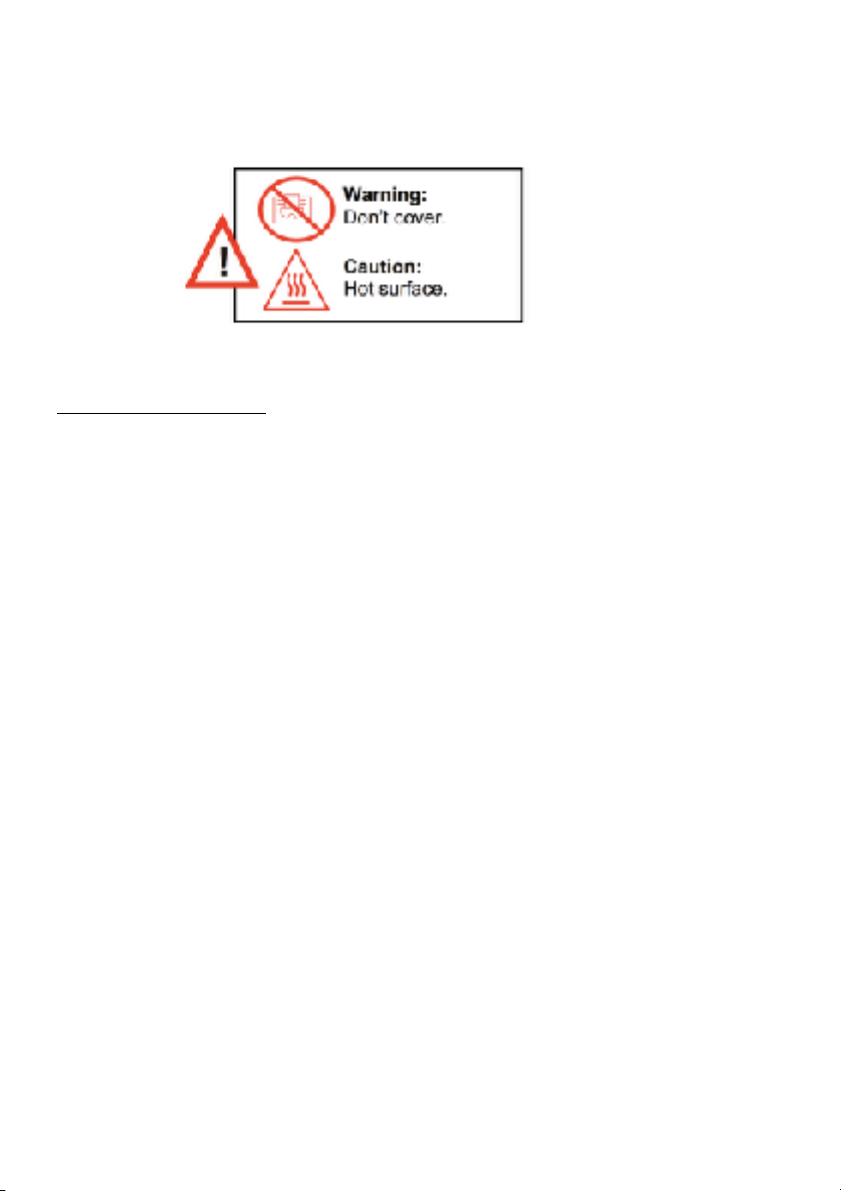

•Do NOT cover the heater with anything. Covering may cause overheating and can result in ﬁre.

•This heater is designed to be wall mounting, please don’t mount them on the ceiling.

•This can be easily operated using your smartphone, via the same WLAN, via a different WLAN, or

via a 3G or 4G mobile network. This makes it possible to operate your heater remotely, without

your direct supervision. However, please make sure that all safety precautions stated in this

manual must be taken even with remote operation.

3.2 Dangers for children and persons with limited abilities

•Children or persons with limited physical, mental or sensory abilities shall not be operating,

switching on, plugging in, regulating or cleaning the heater.

•Small children should be kept away from the heater unless constantly supervised.

•Do NOT operate the heater in small rooms when occupied by people not capable of leaving the

room by themselves. The surface of the heater can reach a surface temperature of up to 95°C,

keep out of reach of children and disabled persons.

•Keep away babies and children from all packaging material such as plastic bags to avoid danger

of suffocation.

3.3 Electric safety directions

•When installing, repairing or servicing the heater it must be turned off and disconnected from

power. Before installation please check if the heater is free of damages.

4

•If the heater or the power cord is damaged in any form do NOT use the heater and contact your

Sundirect dealer for repair or replacement. Repairs, maintenance or any changes must be carried

out by an authorized Sundirect dealer.

•Do NOT attempt to repair the heater by yourself, this will void your warranty.

•If the heater has been dropped do NOT operate it and contact your Sundirect dealer to make sure

it is free of any damages.

•If the safety glass is damaged in any way please dismount the heater as soon as possible to avoid

any injuries from possible impact of the falling glass.

•Sundirect heaters are designed to operate at 220-240V, 50Hz AC. If your supply mains do not

comply with this, do NOT use the heater.

3.4 Water Proof

This heater is IP44 rated, meaning you are safe to use them in the bathroom.

However, when installing the heater in humid rooms it must be secured in such way that there is no

risk of the heater falling into any water container. Never pour water on the device or put it in a water

container.

Sundirect shall not be liable for any injuries or damages resulting from inadequate mounting or

incorrect positioning close to water sources.

4. How to care for your Sundirect heater

4. 1 Cleaning

Always unplug your heater and let it cool down completely before cleaning. Never dip into water

and never splash water on it. Clean the heater with a soft damp cloth. Do not use any abrasive

materials, solvents or harsh cleaning sponges as this could cause scratches or other irreparable

damage.

4.2 Using/Working

If you notice any noise, smells, visible changes or exceptionally high temperatures please

discontinue use and contact an authorised Sundirect dealer.

4.3 Repair

Repairs must be carried out by authorised Sundirect dealers or by Sundirect directly. If you attempt

to alter the product or to proceed with any repairs yourself it will void your warranty.

4.4 Disposal

Sundirect infrared heaters are electric appliances and therefore electric waste. At the end

of its working life please dispose the heater in accordance with local regulations

concerning electric waste.

5

5. Installation

5.1 Mounting installation instruction

Note: The kit supplied in the package is designed for mounting vertically on a solid wall.!If mounted

onto other types of walls, you will need appropriate ﬁxings (not supplied).!Please make sure the wall

is safe to mount.!We highly recommend to have the panel installed by a qualiﬁed electrician or

installer authorized by Sundirect.!

Step 1. Use the mounting

bracket to mark the

position of the hole on

the wall.

Step 2.!Drill holes using a

8mm drill.

Step 3.!Insert the dowels

into the holes.

Step 4.!Install the bracket

on the wall.

Step 5. Mount the panel

on the bracket.

Step 6. Insert the plastic

part to the side of the

glass according to the

drawing.

Step7. Fix the towel rails

to the plastic part and

screw in the middle

bottom part of the heater

to secure the mounting.

6

WALL

5.2 Electric power connection

Installation and electric connection should only be carried out by qualiﬁed personnel such as an

electrician. National electric safety standards must be considered when wiring to this panel.

Make sure the mains power is switched off before you start the installation when hardwiring. Any

ﬁxed wiring outside the heater coming into contact with the heater must have a protection sleeving

that is heat resistant of at least 90°C. Make sure that cables are not coiling and that there is no

excess cable behind the heater. The length of the cable should be measured exactly to the length

needed. Do not connect a heater that is damaged in any way to the power network. Before

installation make sure that the heater, cable and plug are completely free from damages. When in

doubt contact your local Sundirect dealer for assistance.

7

6. Operation:

6.1 General introduction of the smart control

The TH400 has already had the integrated Wi-Fi touchscreen control box, there is no other

additional thermostat is needed to control your heater. The panel can either work manually with the

manual control touch screen on the right bottom of the glass surface or be operated via your

smartphone. Once the heater has been connected to the APP, the smart phone will take the control

together with the control box. If your home internet is not working it is still possible to operate the

heater via the touchscreen, power off the heater and power on again after few seconds, the heater

can be operated manually via the touchscreen, once the heater is re-connected to the WiFi, the

heater will be controlled by both smart phone automatically.

6.2 Touch screen description:

6.3 Manual control:

Activate the Power switch, the screen will show the current room temperature reading, adjust your

desired room temperature by pressing “-” or “+” button.

To set up the timer manually, you can press the Timer button, and the screen will show “1H”-

meaning the heater will operate on the countdown timer and will power off after 1 hour. Press again

to shift to “2H”, then “3H” and so on(Up to 24hours)

8

1. Power switch

2. Screen

3. “+” button

4. “-” button

5. Timer

6. Wi-Fi indicator

6.4 Wi-Fi and APP operation:

6.4.1 How to download the Sundirect Smart APP

Scan the QR code bellow to start the procedure to download the APP, or you can download the APP

“Sundirect Smart” on APP Store or Google play, open the APP and register with your phone number

or Email address.

6.4.2 Connect to WiFi:

Step1: Activate the Power switch, press the “ON/OFF” button, the Wi-Fi indicator will start to ﬂash

rapidly, open the APP on your smart phone and add your device.

Step2: Enter the Wi-Fi password of your home network. Please make sure your home

Wi-Fi is working as well as keep the heater and smartphone as close as possible to the WLAN router.

Step3: Waiting till the connecting status shows 100% to ﬁnish the process.

If you failed to connect, please power off the heater and power it back on again in few seconds

later. Long press the “Timer” button on the touch screen for 10 seconds until the Wi-Fi indictor is

ﬂashing slowly and repeat the connection process.

9

6.4.3 Modify Device Name, Device Sharing and Device group control

Select … at top right in the control screen and you can modify the device name, operate the device

sharing as well as the group control for the same type of APP.

6.4.4 Disconnect the Wi-Fi

If you would like to disconnect the Wi-Fi of your current heater, long press “Timer” button on the

touchscreen for 10 seconds until the Wi-Fi indicator start to ﬂashing again. Now the heater is

operating manually without Wi-Fi.
