Sunfire SDG-1 Manuale utente
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18)
Gas Convection Ovens
models SDG-1, SDG-2
UP TO
(serial#) 12052300xxxxx (date) 31-May-12
Phone (US & Canada): 1 800 427 6668
Fax (US & Canada): 1 800 361 7745
www.Garland-Group.com
Quality Factory Replacement Parts for the World’s Finest
Foodservice Equipment Solutions
This parts list is updated regularly. Please find the most current revision
on our website @
www.Garland-Group.com
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18) Page 3
Table of Contents
Rating Plate Location / Serial# Interpretation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Manual Control Panel Components
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Electronic Control Panel Components (IM300 Series)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Burner and Gas Line Components
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Door Components & Assemblies
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Main Exterior Components
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
List of Wiring Diagrams, Caster and Ventilatio Kits
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Related Bulletins
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Revision History
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Gas Convection Ovens
models SDG-1, SDG-2
UP TO
(serial#) 12052300xxxxx (date) 31-May-12
Blank Page
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18) Page 5
Rating Plate Location
Units Built UPTO 31-MAR-2011
Rating Plate
(On the Inside of Lower Front Cover)
Rating Plate
(On the Outside of Left Body Side Panel)
Motor
Door
Units Built FROM 01-APR-2011
Serial# (Year/Month Information)
The Serial Number is 13 Digits long and is stamped on the Rating Plate.
10 05 2300 00668
Sequential Number
Factory Code
Month
Year
The Rating Plate (Product Identication Plate) contains important
information on the unit’s conguration.
510
15
14A
9
4
13 (For Timer Item# 14B)
8
3
7
11
6
1
Manual Control Panel
12
11 & 12 For Thermostat Item# 15
12 & 11 (For Timer Item# 14A)
12 11
OR
16 (Harness)
14B
OR
1050
OFF
POWER
ON
COOK HIGH
DOWN
COOL LOW
OFF
TIMER
60
55
0
5
45
30
35
40
25
20
TEMP
500F
450F
0
400F
350F 300F
250F
15
200F
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18)Page 6
Gas Convection Ovens models SDG-1, SDG-2

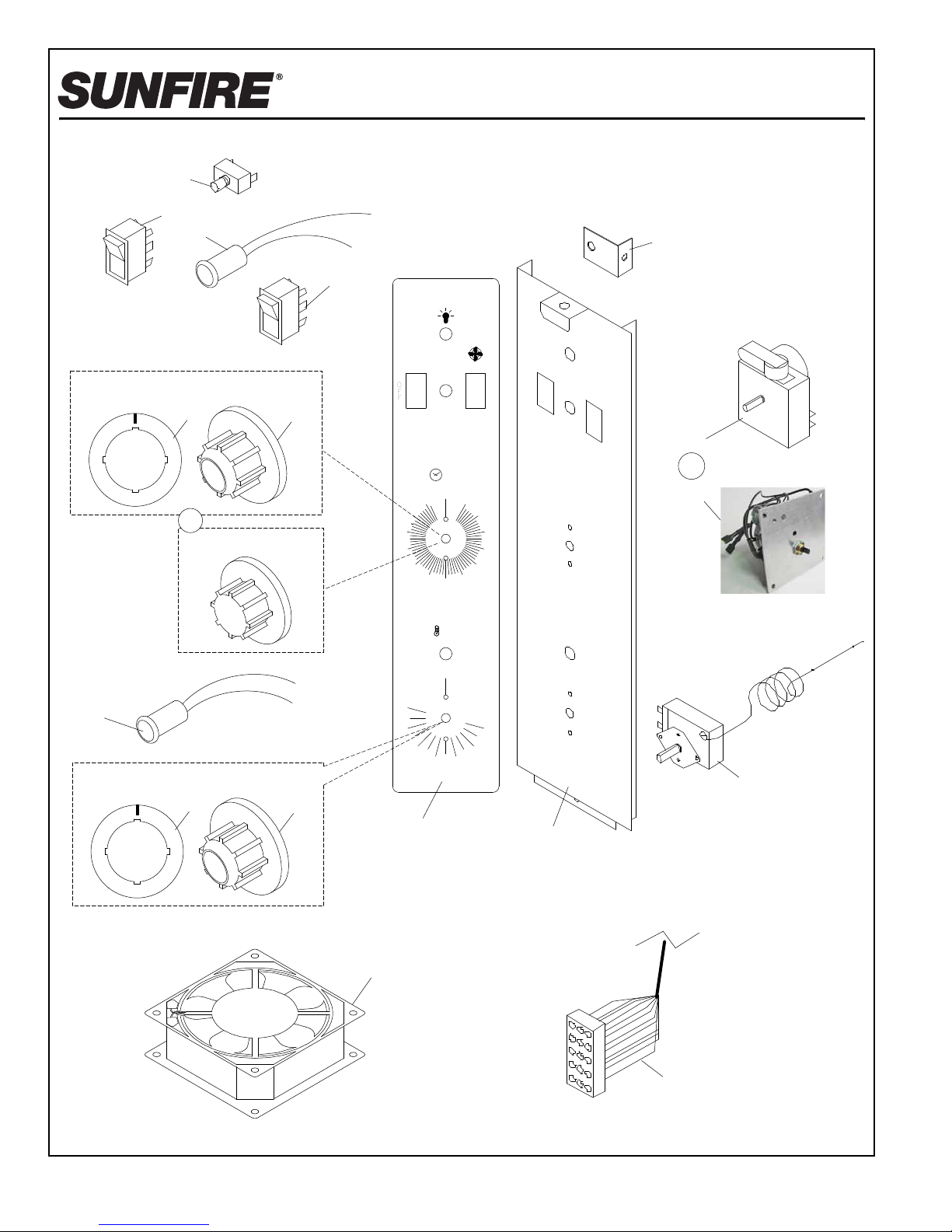

MANUAL CONTROL PANEL COMPONENTS
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18) Page 7
SUNFIRE PARTS IDENTIFICATION
Gas Convection Ovens models SDG-1, SDG-2
MANUAL CONTROL PANEL COMPONENTS
ITEM PART # DESCRIPTION QTY
CRITICAL
1 1719805 Control Panel - S/S, Manual
Note: Control Panel with P/N 1719801 is No Longer Available. 1
3 1657913 Overlay - Manual Control, 2SP, Sunre 1
4 1671100 Polar Fan - 115V, 120mm 1 C
5 1006489 Pilot Light - Green, 120V 1
6
1006496 Amber Pilot Light (115V)
Note: Used UP TO December, 1987. 1
1270000 Pilot Light - Amber (28V)
Note: Used FROM 6-Nov-95. 1
7 1955402 Rocker Switch - ON/ON 1 C
8 1955401 Rocker Switch - ON/OFF/ON 1 C
9 1181000 Momentary Push Switch 1 C
10 1749201 Panel Restraining Bracket 1
11 G027161
Dial - Small Shaft, Universal
Note: Used for the Thermostat (item 15) and the Mallory Timer (item14A). There
are two types of timers. Please check the type of timer used in the unit before
ordering.
MAX.
2C
12 1314121 Dial Insert (for item 11) MAX.
2
13 1765802
Fluted Knob (includes 2 set screws)
Note: Used FROM 1-Jan-07. Required for Timer P/N 1956001 (item 14B). There
are two types of timers. Please check the type of timer used in the unit before
ordering.
1
14A 1285700 Mallory Timer - 1hr, 115V, 50-60Hz
Note: Used UP TO 31-Dec-06. Used with the Universal Dial (item 11). 1 C
14B 1956001 Timer with Alarm - 1hr, 115V
Note: Used FROM 1-Jan-07. Used with the Fluted Knob (item 13). 1 C
15 G0290201 Thermostat 1 C
16 4515632 Main Harness SDG-1, 120V, Gas 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
IM300 Control Panel
11
1
12
2
13
3B
4
6A
7
8
9
3A
4A
4B
4C
4D
6B
250
100
AUTO COOLLOAD PROBE
LOW
HIGH COOL DOWN
ERROR
160
250
130
225
300
275
325
DOWN
190
400
375
350
220
425
475
450
OFF
TEMPERATURE
55
175
70
200
150
F°
C°
60
50
45
40
35
5
550
280
500
525
0
10
15
25
30
20
TIMER
OFF
ON
LIGHT
5
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18)Page 8
Gas Convection Ovens models SDG-1, SDG-2

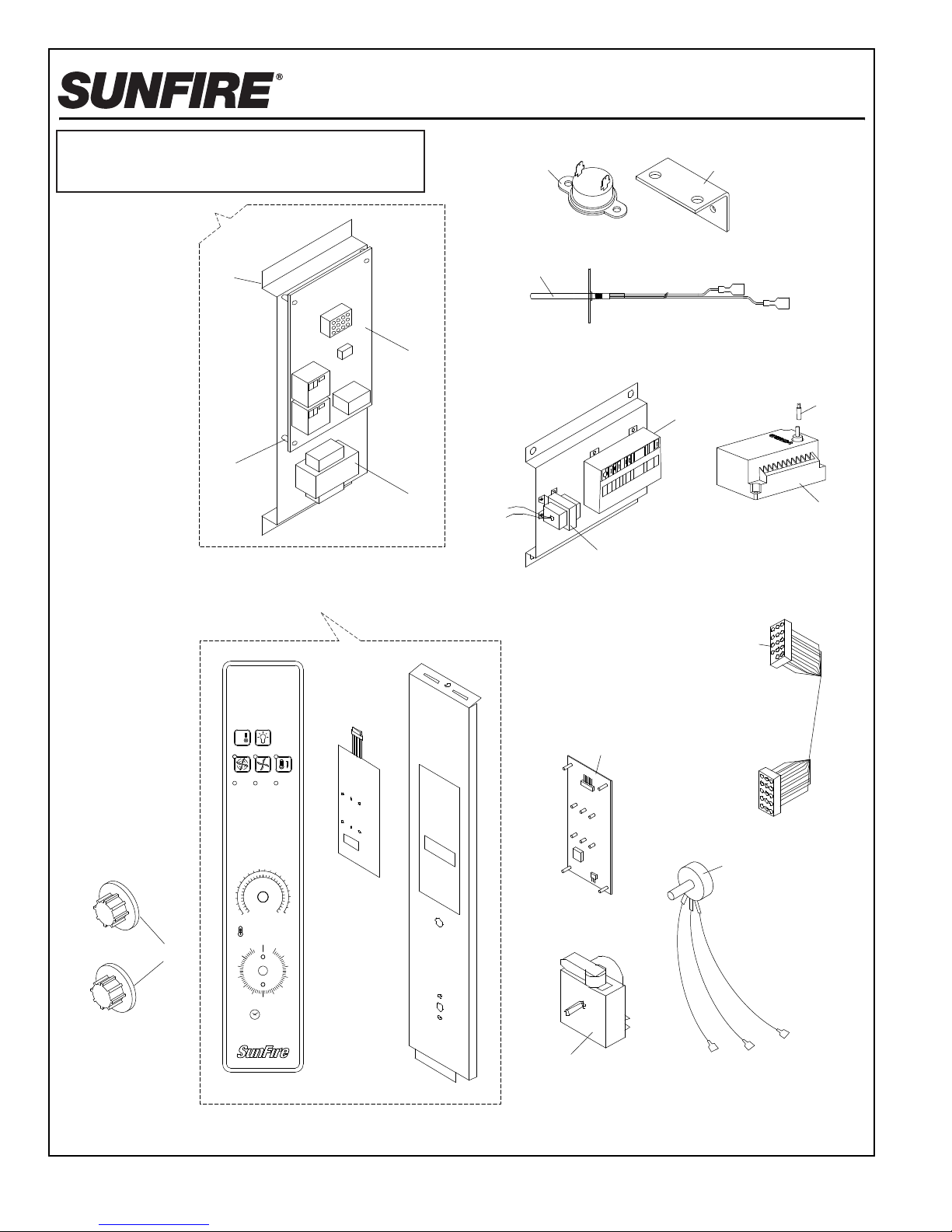

ELECTRONIC CONTROL PANEL COMPONENTS IM300 SERIES
IM300 Series Control:
Used FROM March-1999 UP TO March-2003
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18) Page 9
SUNFIRE PARTS IDENTIFICATION
Gas Convection Ovens models SDG-1, SDG-2
ELECTRONIC CONTROL PANEL COMPONENTS
(IM300 Series - Used FROM March-1999 UP TO March-2003)
ITEM PART# DESCRIPTION QTY
CRITICAL
1CK1946693
Control Panel Assembly
Note: Assembly includes an overlay (1908517), a control panel SDG IM300
(1946693), and a Fast Control keypad (1911701).
1 C
2 4515632 Main Harness SDG-1 1
3A 1910901 Hi-Limit Bracket 1
3B 1955101 Thermal Disc Cooling Switch 1 C
41917099 Relay Board Assembly - 120V 1 C
4A 1916901 Relay Board 1 C
4B 1917199 Transformer 120V to 24V 1 C
4C 1767901 Teon Spacers 4
4D 1916801 Relay Board Assembly Bracket 1
5 1765802 Fluted Knob with Two Set Screws 2
6A 2152700 Spark Ignition Module
Note: Item is No Longer Available. Use Kit 4529434 (item 6B). 1 C
6B 4529434 Ignition Module Service Kit
Note: Kit includes an ignition module (part# 4528856) and instructions. 1 C
7 1269899 Transformer, class 2, 120V-24V 1 C
8 1285700 Mallory Timer - 1Hr, 115V 50/60Hz 1 C
91911801 Potentiometer 1 C
11 1905701 Digital Control 1 C
12 1666300 1/4 Space to RAJH Type Adapter 1
13
1842901 Probe
Note: Used UP TO NOV-2000. 1 C
1906002 Probe
Note: Used FROM NOV-2000. 1 C
14* 1807838 Wiring Digram - 115V, IM300, SDG-1
15* 1804723 Harness HTR/IGN SDG-1
16* 1804724 Door Harness SDG-1
17* 1804713 Hi-Limit Harness
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
Gas Components
33
22
11
1
12
2
3
34
35
24
36
26
38
28A
29
30
4
5
6
17
18
19
10A
25
25
10B
24
26
26
28B
OR
U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18)Page 10
Gas Convection Ovens models SDG-1, SDG-2
BURNER AND GAS LINE COMPONENTS
