Sunix Universal PCI Express Multi-IO RS-232/Parallel Communication... Manuale utente

Universal PCI Express

Multi-IO

RS-232 / Parallel

Communication Board

USER’S MANUAL

English Version

Second Edition, March 2014

SUNIX Co., Ltd.

Tel: +886-2-8913-1987

Fax: +886-2-8913-1986

Http://www.sunix.com

i[email protected]

___________________________________________________________________________________

PCI Express Multi-IO Communication Board

User’s Manual

No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language,

or transmitted in any from or by any means, photocopying, manual, or otherwise, without prior written permission from

SUNIX.

Disclaimer

SUNIX shall not be liable for any incidental or consequential damages resulting from the performance or use of this

equipment.

SUNIX makes no representations or warranties regarding the contents of this manual. Information in this manual has

been carefully checked for reliability; however, no guarantee is given as to the correctness of this content. In the

interest of continued product improvement, this company reserves the right to revise the manual or include change in

the specifications of the product described within it at any time without notice and without obligation to notify any

person of such revision or changes. The information contained in this manual is provided for general use by the

customers.

Trademarks

SUNIX is a registered trademark of SUNIX Group.

All other trademarks or registered marks in this manual belong to their respective owners.

Safety Information

1. Keep this User’s Manual for future reference.

2. Always read the safety information carefully.

3. Keep this equipment away from direct sunlight, or in humid or damp places.

4. Do not place this equipment in an unstable position, or on vibrating surface before setting it up.

5. Do not use or place this equipment near magnetic fields, televisions, or radios to avoid electronic

interface that affects device performance.

___________________________________________________________________________________

Regulatory Compliance

FCC Conditions

This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This equipment may not cause harmful interference

(2) This equipment must accept any interference received, including interference that may

cause undesired operation.

Important! Changes or modifications not expressly approved by the manufacturer responsible

for compliance could void the user’s authority to operate the equipment. Use an approved

phone set.

This equipment is in compliance with the requirements of the following regulations: EN 55022:

CLASS B

WEEE Information

For EU (European Union) member users: According to the WEEE (Waste electrical and

electronic equipment) Directive, do not dispose of this product as household waste or

commercial waste. Waste electrical and electronic equipment should be appropriately

collected and recycled as required by practices established for your country. For information

on recycling of this product, please contact your local authorities, your household waste

disposal service or the shop where you purchased the product.

___________________________________________________________________________________

Table of Contents

Chapter 1

Introduction

1.1 Overview..................................................................................................................... 6

1.2 Package Checklist....................................................................................................... 6

1.3 Product Features......................................................................................................... 7

1.4 Product Specifications................................................................................................. 8

Chapter 2

Hardware Installation

2.1 Hardware Installation ................................................................................................ 11

2.2 Pin Assignment ......................................................................................................... 13

Chapter 3

Software Installation

3.1 Windows Driver Installation....................................................................................... 16

3.2 Windows Driver Uninstall .......................................................................................... 19

3.3 Windows Verify Installation ....................................................................................... 20

3.4 Linux Driver Installation............................................................................................. 21

Chapter 4

Port Configuration

4.1 Configure Com / LPT Port Settings........................................................................... 24

4.2 Com / LPT Port Number Settings.............................................................................. 25

4.3 Com / LPT System Resource.................................................................................... 25

4.4 Com Port Fifo Settings.............................................................................................. 25

Chapter 5

Appendix

5.1 Troubleshooting ........................................................................................................ 27

5.2 Product Family.......................................................................................................... 29

5.3 Contact Information................................................................................................... 31

___________________________________________________________________________________

WHQL Certification Approval

The Designed for Microsoft Windows 32/64-bit operation system WHQL logo

identifies products that meet Microsoft’s quality standards, SUNIX I/O products

carry with this logo and listed on Windows Catalog. WHQL logo includes below

operation system version

Microsoft Windows Client: Windows XP / Vista / 7 / 8 / 8.1 (X86/X64)

Microsoft Windows Server: Windows 2003 / 2008 / 2012 (X64)

___________________________________________________________________________________

Introduction

______________________________________________

SUNIX Golden I/O series, a line of PCI Express Multi-port Serial and Parallel

Multi-IO Communication Board, is designed to meet PCI Express Base

Specification Ver1.1 (Compliable with PCI Express General 2 Specification).

Its can be installed in virtually any available PC system and compatible with all

major operating systems. Users do not need to manually set jumpers to

configure I/O addresses and IRQ locations.

This board offers independent both serial and parallel ports for connecting

terminals, modems, printers, scanners, cash registers, bar code readers,

keypads, numeric displays, electrical scales, data acquisition equipment, and

other serial / parallel devices for the PC and compatible systems. This board

offers a reliable and high performance solution for Multi-IO communications.

The following topics covered in this chapter:

1.1 Overview

1.2 Package Checklist

1.3 Product Features

1.4 Product Specifications

___________________________________________________________________________________

1.1 Overview

The majority of today’s motherboards are not equipped with any RS-232 or

Parallel port. With SUNIX PCI Express Serial and Parallel Multi-IO

Communication Board, users can expand both COM and LPT ports on their

system, allowing them to use serial and parallel devices further. It is

compatible with RS-232.V24 standard serial and IEEE1284 Parallel interfaces.

Furthermore, this Multi-IO board supports majority of the OS on the market.

We provide driver support for Microsoft Windows and Linux 32/64-bit platform,

making it the best and cost efficient solution for commercial and industrial

automation applications.

1.2 Package Checklist

Please check if the following items are present and in good condition upon

opening your package. Contact your vendor if any item is damaged or missing.

1. Hardware:

PCI Express Serial and Parallel Multi-IO Communication Board, ×1

Cable: (Only for 2S/1P, 2S/2P or 4S/1P Solution)

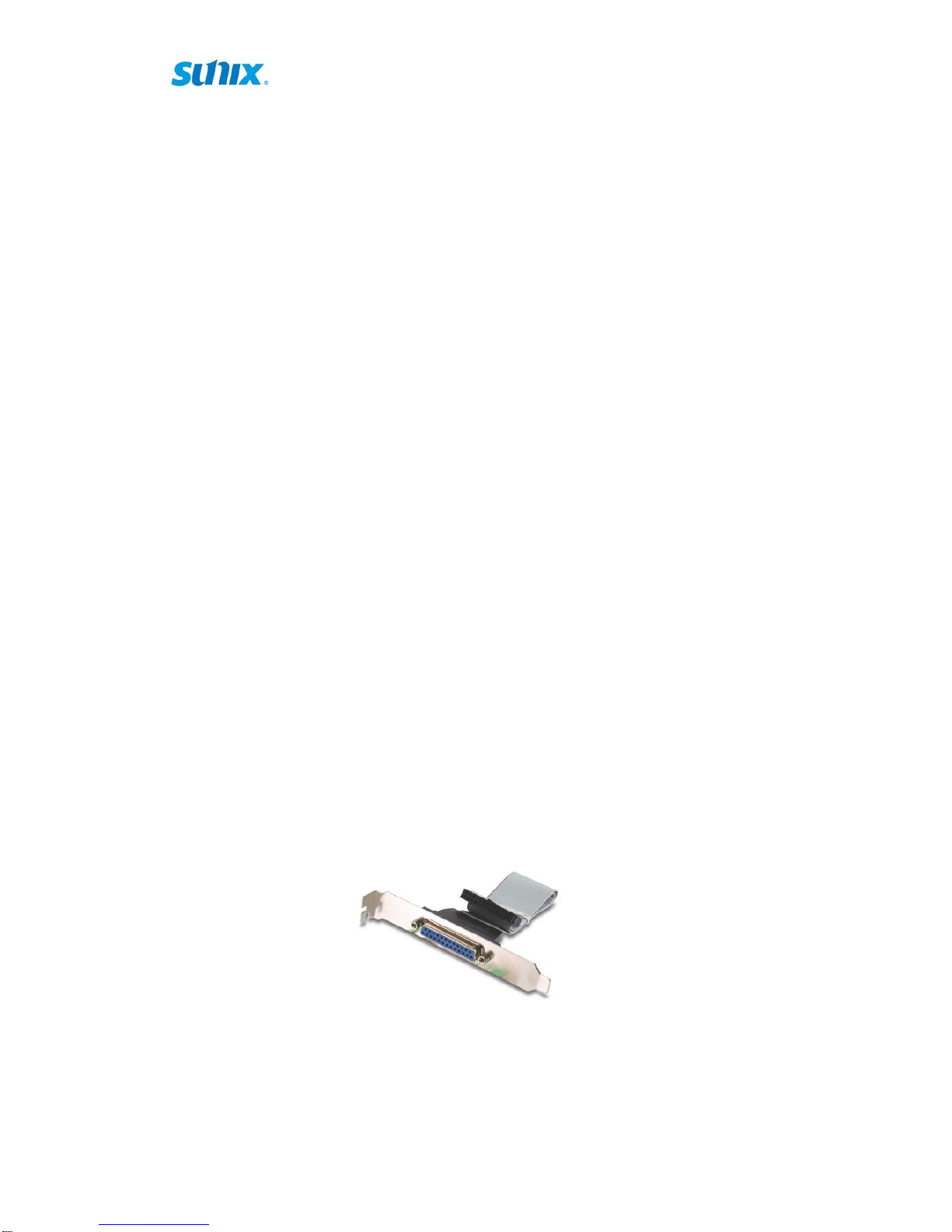

13x2 Pin Header to DB25F Flat Cable With Bracket set ×1

2. CD Driver

3. User's Manual (This document)

___________________________________________________________________________________

1.3 Product Features

Expands both RS-232 COM and IEEE1284 LPT ports on system.

High performance SUNIX 16C950 UART Multi-IO controller on-board.

Ultra low power consumption design for Green Environment.

Designed to meet PCI Express Base Specification Revision 1.1.

Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

RS-232 COM port communication speed supports up to 115.2Kbps

(921.6Kbps Optional*).

On-chip hardware auto flow control to guarantee no data loss.

Built-in ±15KV ESD protection for all serial signals.

Parallel LPT port supports IEEE 1284-1994 parallel port standard

- ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)

- SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)

Auto-switching between ECP/EPP/SPP/BPP modes without configuration.

Plug-n-Play, I/O address and IRQ assigned by system.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.

___________________________________________________________________________________

1.4 Product Specifications

Board Communication

Serial Communication

Parallel Communication

Driver Support

Interface PCI Express

BUS One lane (x1)

Controller SUNIX SUN2212 (16C950 UART Compatible)

IRQ & IO Assigned by System

Interface RS-232

No. of Port 1, 2, or 4-port (Depend on product user bought)

FIFO 128 byte Hardware

Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

Baud rate 50bps ~115.2Kbps (921.6Kpbs Optional*)

Stop bit 1, 1.5, 2

Parity even, odd, none, mark, space

Flow Control None, Xon/Xoff, RTS/CTS

Protection ±15KV ESD protection for each signal Human Body Model (HBM)

Board Connector DB9 Male

Interface IEEE-1284

Mode SPP/ECP/EPP/BPP (Auto-switching)

Data Speed Maximum 1.8 MB/s

FIFO 16 byte Hardware

Number of Port 1 or 2-port (Depend on product user bought)

Board Connector DB25 Female

Windows Client

XP / Vista / 7 / 8 / 8.1 (X86/X64)

Windows Server

2003 / 2008 / 2012 (X64)

Microsoft Embedded Windows XP Embedded / POS Ready 2009 / Embedded System

Linux Linux 2.4.x / 2.6.x

DOS DOS

___________________________________________________________________________________

Regulatory Approvals

Environment

Note:

SUNIX High Speed RS-232 Card (HVersion) baud rate setting supports

921.6Kpbs. Please refer to the Chapter 5 Appendix, Product Family for

detail.

LPT port does NOT support legacy 278 / 378 ISA address under Windows

nor Linux operation systems, but only DOS mode.

Do not support LPT Key Locker Parallel devices, because of legacy ISA

address limitation.

Hardware

EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,

FCC Part 15 Class B, RoHS

Software

Microsoft WHQL Windows

Microsoft Client: XP / Vista / 7 / 8 / 8.1 (X86/X64)

Microsoft Server: 2003 / 2008 / 2012 (X64)

Operation

Temperature

0 to 60°C (32 to 140°F)

Operation

Humidity

5 to 95% RH

Storage

Temperature

-20 to 85°C (-4 to 185°F)
