Sunix Universal PCI ExpressMulti-IORS-232 / ParallelCommunication... Manuale utente

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

RS-232/422/485

Universal PCI/PCI Express

USER’S MANUAL

Industrial Multiport Serial Cards

Ver. 1.0, Feb. 2007

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

RS-232/422/485 Universal PCI/PCI Express

Industrial Multuport Serial Cards

No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or

transmitted in any from or by any means, photocopying, manual, or otherwise, without prior written permission from

SUNIX Co., Ltd.

Disclaimer

SUNIX Co., Ltd. Shall not be liable for any incidental or consequential damages resulting from the performance or use of

this equipment.

SUNIX Co., Ltd. makes no representations or warranties regarding the contents of this manual. Information in this manual

has been carefully checked for reliability; however, no guarantee is given as to the correctness of this content. In the

interest of continued product improvement, this company reserves the right to revise the manual or include change in the

specifications of the product described within it at any time without notice and without obligation to notify any person of

such revision or changes. The information contained in this manual is provided for general use by the customers.

Trademarks

SUNIX is a registered trademark of SUNIX Co., Ltd.

Other registered marks used herein are for identification purposes only and may be trademarks of their respective

owners.

Safety Information

1. Keep this User’s Manual for future reference.

2. Always read the safety information carefully.

3. Keep this equipment away from direct sunlight, or in humid or damp places.

4. Do not place this equipment in an unstable position, or on vibrating surface before setting it up.

5. Do not use or place this equipment near magnetic fields, televisions, or radios to avoid electronic interface that

affects device performance.

6. Do not attempt to disassemble or repair the equipment or the warranty would be useless.

7. To avoid damaging your system and equipment, please make sure that your computer is off before you install the

product.

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

INDEX

Chapter 1 Introduction........................................................................................

Overview................................................................................................................................1-2

Package Checklist.................................................................................................................. 1-2

Product Features.. ................................................................................................................. 1-3

Product Specifications............................................................................................................ 1-4

Chapter 2 Hardware Installation...........................................................................

Hardware Installation............................................................................................................. 2-1

Pin Assignment ........ ............................................................................................................ 2-2

Chapter 3 Software Installation ............................................................................

Windows 2000/XP/2003 (32bit) ....................................................................................... 3-1

Windows 2000/XP/2003 (32bit WHQL) ........................................................................... 3-2

Windows XP/2003 (64bit) .................................................................................................. 3-3

Windows Vista (32bit) ......................................................................................................... 3-4

Linux. ................................................................................................................................. 3-5

Chapter 4 Trouble Shooting .................................................................................

Chapter 5 Appendix.... .... .... ...............................................................................

Contract Information......................................................................................................... 5-1

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

1. Introduction

SUNIX Serial Communication Boards family provides an array of PCI Express, PCI, PCI-104 and PC/104 interfaces to meet

your serial port expansion needs. Multi-port Serial Communication Board comes in the selection of 2.4.8 ports in choice

of RS-232, RS-422/485 or 3-in-1 combo with DB9 or DB25 serial connectors and compatible with all major operating

system for industrial applications.

The following topics covered in this chapter:

Overview

Package Checklist

Product Features

Product Specifications

1-1. Overview

Thanks for purchasing Universal PCI / PCI-E Industrial Multi-Port Communication Card. The Multi-port serial card

equips with 2, 4, or 8 independent DB9 or DB25 RS-232/422/485 high-speed serial ports which accessed through DB-9

or DB-25 male connectors for industrial communication and automation applications. Each serial port has built-in 64byte

hardware FIFO, on-chip hardware flow control, provides baudrate speed up to 921Kb/Sec and also compatible with the

popular 16C750/16C550/16C450 UART controller.

1-2. Package Checklist

Please check if the following items are present and in good condition upon opening your package. Contract your vendor if

any item is damaged or missing.

1. Hardware:

Serial Communication Board : Communication Board × 1

Cable : (Depend on what product you bought)

2 ports PCI series: DB44 Female to 2 ports DB9/25 Male Cable × 1

4 ports PCI series: DB44 Female to 4 ports DB9/25 Male Cable × 1

8 ports PCI series: Mini SCSI 68pin to DB9 Male Cable × 1

Bracket : Standard Bracket × 1

Low Profile Bracket × 1

2. CD Driver

3. Quick Installation Guide

4. User's Manual (This document)

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

1-3. Product Features

New Design of Matrix UART controller

Matrix is a highly integrated multi-port UART controller that includes all of its functions into a single chip. In addition to

those functions provided by a standard 16C750 UART chip, it also equips lots of advanced features that make the serial

communication much more reliable and easy to use.

With the large buffer and special designed flow-control circuit inside the chip, it could provide the transfer speed up to

921Kbps for each port. Highly integration makes the response time much fast and consumes little power dissipation even

when it is worked at full speed. Those features together make it suitable for those applications that require low latency,

real-time control, high reliability and low-power environments.

The Matrix is ideal for POS system, industrial automation, data collection and any other applications that require serial

connection.

Sunix Proprietary AHDC/CS for Automatic RS-485 Direction Control

In the early days, RS-485 transmission required manual switching of the direction of the line driver. Switching manually is

prone to error and is not an efficient way. In order to solve such problem, Sunix has developed a special technique call

AHDC/CS for RS-485 transmission to provide a precise data direction control automatically. Unlike ordinary RS-485

direction control, AHDC/CS also makes its best to avoid possible collisions which provides even more reliable

communication.

AHDC/CS works seamlessly with transmit and receive unit of Matrix UART Controller and control the direction on-the-fly,

hence it won’t incur any additional overhead and latency.

Automatic RS-422/RS-485 Detection and Switching

SUNIX developed a unique technology “Auto Detect and Switching RS-422 / 485”, which can automatically detect the state

of RS-422 full duplex or RS-485 half duplex and control the data transmitting and receiving wires at the same port

without any jumper settings. This design gives users the convenience to change the communication mode setting without

any system shut downs.

Built-in Surge protection and Isolation (Option for SI version)

Surges are high amplitude electrical pulses lasting only several millionths of a second in duration. They can be caused by

heavy-duty equipment, power lines, short circuits, or large motors. A surge suppressor has the ability to effectively

absorb the high energy in an extremely short period of time, preventing the connected devices from damage. Sunix Martix

Multi-port Serial Card (SI version) has built-in 400W surge protection on all of the signals that meets IEC61000-4-5

standards.

Isolation eliminates the direct galvanic connection between digital system and output drivers/receivers. Optocouplers is

used for data isolation and magnetic transformers for power source isolation.

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

Galvanic isolation removes the ground-loop currents from data lines; hence, the impressed noise voltage that affects the

signal also is eliminated. Common-mode noise can be removed completely and many forms of radiated noise can be

reduced to negligible limits using this technique.

It is highly recommended for use in high-noise environments.

1.10. Product Specifications

Universal PCI Interface

zFunction

Type Universal PCI Industrial Multi-Port Serial Card

Bus Transceivers RS-232, 422 Full-Duplex, RS-485 Half-Duplex

Drivers per Line RS-232, RS-422, RS-485 1 Driver

Receivers per Line RS-232 1 , RS-422 10 , RS-485 32 Receivers

zHardware

IC Matrix

Controller 16C750 compatible UART

Bus Interface

64-bit & 32-bit PCI Bus

3.3V & 5V Connector Key

Number of Ports 2, 4 or 8 ports

Bracket Standard 121 mm, Low Profile79.2 mm

zCommunication

IRQ & I/O address Assigned by BIOS / O.S.

FIFO 64 byte hardware FIFO

Baud rate 75bps ~ 921.6 Kbps

Data bit 5,6,7,8

Stop bit 1,1.5,2

Parity even, odd, none, mark, space

Flow Control none, Software, Hardware

15KV ESD Surge Protection (for RS-232)

400W Surge Protection (for RS-422/485)

Protection

2.5KV Isolation Protection (for RS-422/485)

232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

422 : TxD+, TxD-, RxD+, RxD-, GND

Signal

485 : 4 Wire - TxD+, TxD-, RxD+, RxD-, GND

2 Wire - Data+, Data-, GND

zDriver support

Microsoft Windows 2000/XP/2003/VISTA

Driver Support

DOS, Linux 2.0.x / 2.2.x / 2.4.x / 2.6.x

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

zDimensions

Dimensions (W × D)

125 x 63 mm (for RS-232 only and RS-422/485 only)

135 x 63 mm (for 3-in-1 only)

zRegulatory Approvals

Regulatory Approvals CE, FCC

PCI Express Interface

zFunction

Type PCI Express Industrial Multi-Port Serial Card

Mode of Operation Hand-Shaking

Bus Transceivers RS-232, 422 Full-Duplex, RS-485 Half-Duplex

Drivers per Line RS-232, RS-422, RS-485 1 Driver

Receivers per Line RS-232 1 , RS-422 10 , RS-485 32 Receivers

zHardware

IC Matrix

Controller 16C750 compatible UART

Bus Interface PCI Express Bus Spec. Revision 1.0a

Number of Ports 2, 4 or 8 ports

Bracket Standard 121 mm, Low Profile79.2 mm

zCommunication

IRQ & I/O address Assigned by BIOS / O.S.

FIFO 64 byte hardware FIFO

Baud rate 75bps ~ 921.6 Kbps

Data bit 5,6,7,8

Stop bit 1,1.5,2

Parity even, odd, none, mark, space

Flow Control none, Software, Hardware

15KV ESD Surge Protection (for RS-232)

400W Surge Protection (for RS-422/485)

Protection

232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

422 : TxD+, TxD-, RxD+, RxD-, GND

Signal

485 : 4 Wire - TxD+, TxD-, RxD+, RxD-, GND

2 Wire - Data+, Data-, GND

zDriver support

Microsoft Windows 2000/XP/2003/VISTA

Driver Support

DOS, Linux 2.0.x / 2.2.x / 2.4.x / 2.6.x

zDimensions

Dimensions (W × D)

125 x 63 mm (for RS-232 only)

135 x 63 mm (for 3-in-1 only)

zRegulatory Approvals

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

Regulatory Approvals CE, FCC

2. Hardware Installation

This chapter includes information about hardware installation for RS-232 Universal PCI Multi-Port Communication Board.

The following topics are covered:

Hardware Installation

Pin Assignments

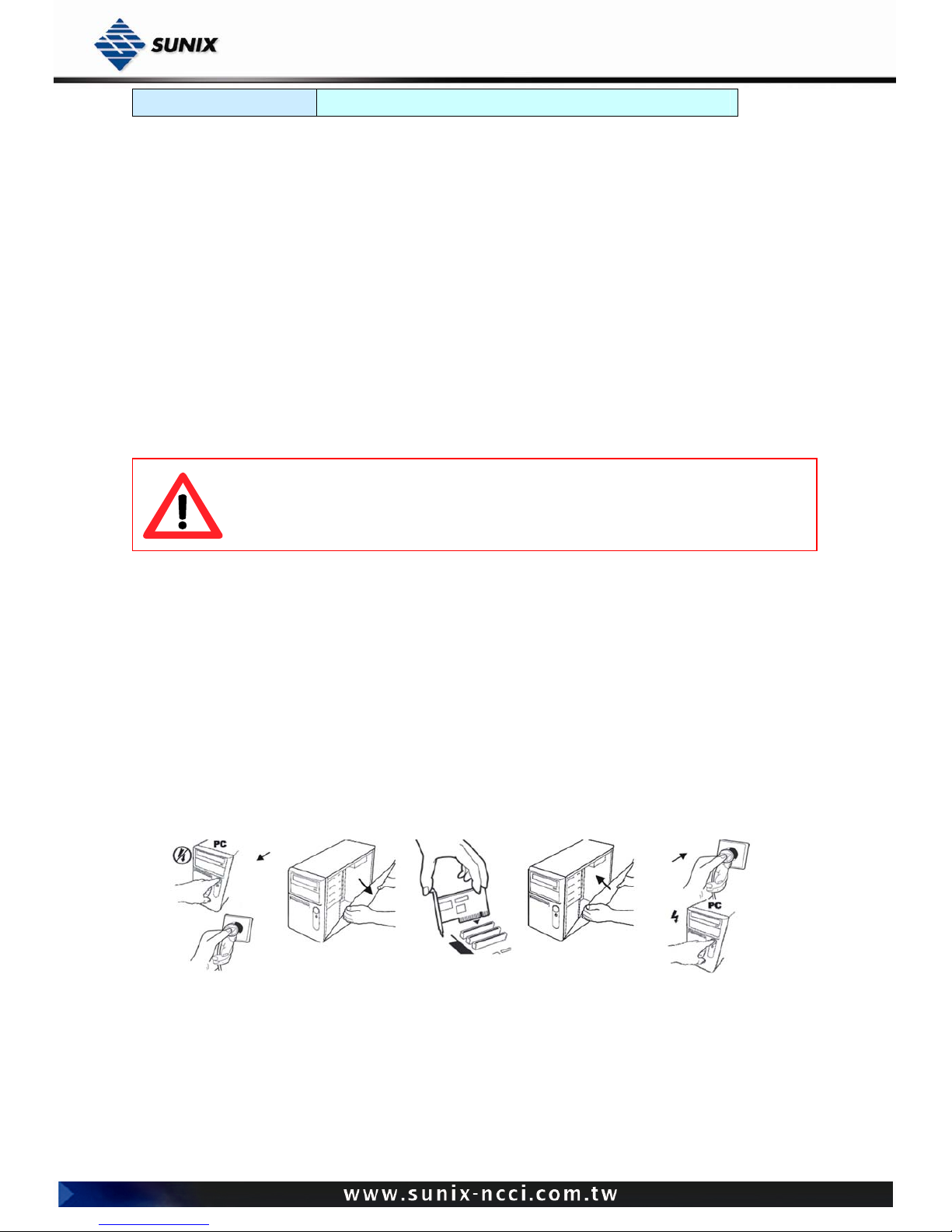

2-1. Hardware Installation

The hardware installation of PCI / PCI-E serial boards is easy to carry out. Before inserting the card into the PCI / PCI-E bus,

please follow the detailed steps given below to install the PCI / PCI-E serial board in your computer.

Safety First

To avoid damaging your system and boards, make sure your PC’s power is turned off

before installing PCI/PCI-E card.

Step 1: Turn your PC’s power off, and shut off the power to any peripheral.

Step 2: Remove the power plug from the plug socket.

Step 3: Remove the cover from the computer case.

Step 4: If fitted. Remove the metal cover plate on the rear of a free PCI slot.

Step 5: Insert Universal PCI / PCI-E Multi-Port Communication Board into the free PCI / PCI-E slot and screw it firmly on

the bracket side.

Step 6: Place the cover back onto the computer.

Step 7: Insert the plug into the plug socket.

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

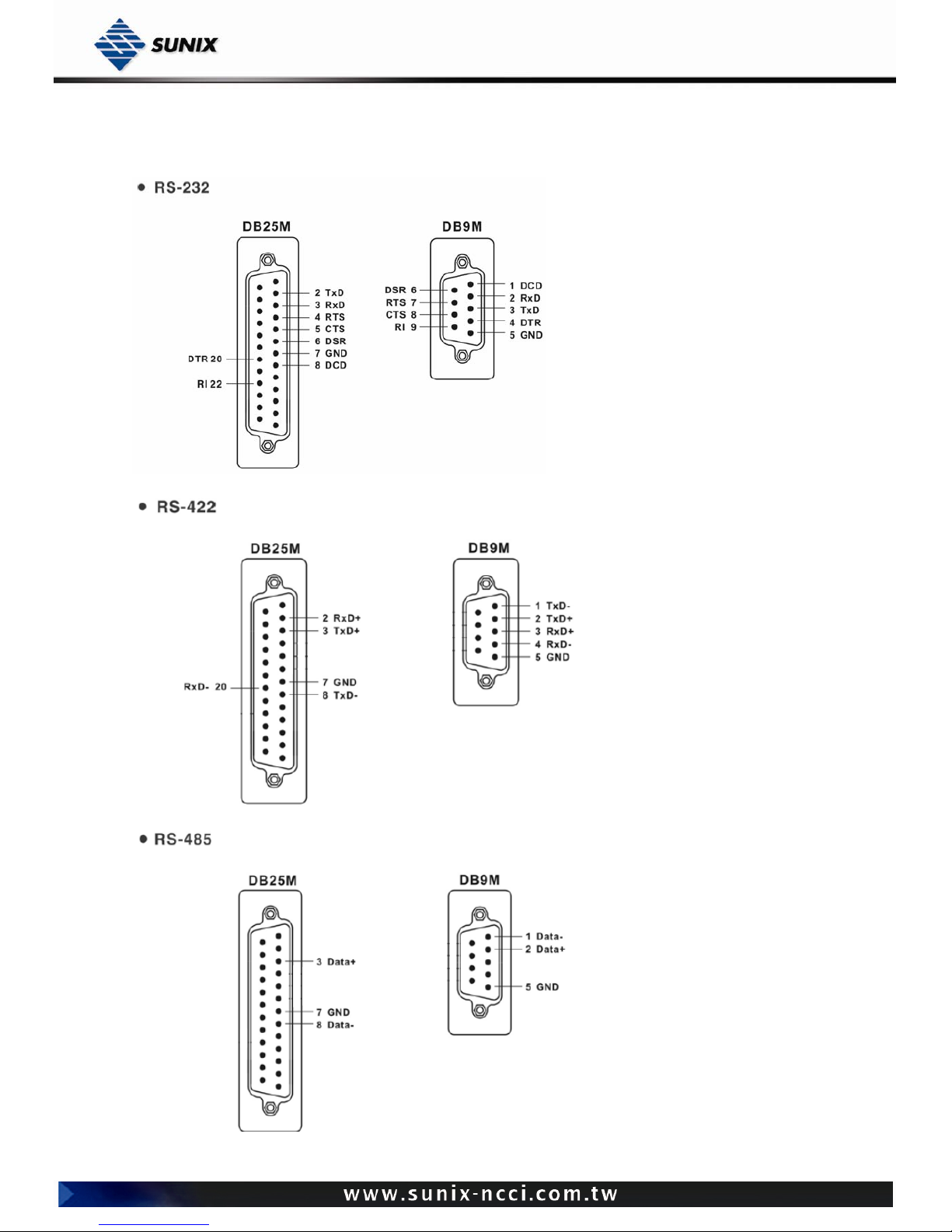

2-2. Pin Assignment

SUNIX NCCI Co., Ltd.

TEL : +886-2-8913-1987

Email : [email protected]

3. Software Installation

After installing the RS-232/42/485 Universal PCI / PCI Express Multi-Port Communication Board in your system

successfully, please follow the step by step software installation guide to confirm how to install appropriate driver and

configure the serial port settings.

The driver for PCI / PCI-E serial board supports various operating systems, and you can select your requirement in the

following chapter:

The following topics covered in this chapter:

Windows 2000

Windows XP (32 / 64-bit)

Windows Server 2003 (32 / 64-bit)

VISTA (32-bit)

Linux

3-1. Windows 2000/XP/2003 (32-bit)

Installing Driver

On booting up, system will detect present of the PCI Serial Board and prompt for driver installation wizard, and show the

picture.

Altri manuali per Universal PCI ExpressMulti-IORS-232 / ParallelCommunication...

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sunix Hardware per computer

Sunix

Sunix USB2321C Manuale utente

Sunix

Sunix Universal PCI ExpressMulti-IORS-232 / ParallelCommunication... Manuale utente

Sunix

Sunix LAN1425 Manuale utente

Sunix

Sunix PC104 Manuale utente

Sunix

Sunix SDC4880B Manuale utente

Sunix

Sunix IPC-M2204S Manuale utente

Sunix

Sunix Universal PCI Express Multi-IO RS-232/Parallel Communication... Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
