Sunricher SR-2803 Manuale utente

RF CCT Controller 09.283CT.04337

Note:Before the first use, please remove the protective film on the battery.

Function introduction

Important: Read All Instructions Prior to Installation

Output RF signal

Operation Frequency 868/915/434MHz

Operating temperature 0-40°C

Relative humidity 8% to 80%

Dimensions 136.3x38.9x10.7mm

Front side

Back side

• Control 6 zones of RF receiver

• Dual color controller

• Compatible with universal serie RF receiver

• 1 receiver can be paired by max 8 different remote controls.

• Waterproof grade: IP20

Product Data

• This device contains a button lithium battery that shall be stored and disposed properly.

• DO NOT expose the device to moisture.

Safety & Warnings

Power Supply 3V(1xCR2025 battery)

Control the receiver's cw channel,

Press and hold down to increase/

decrease light intensity

6 zones, click to choose a zone,

press and hold down to turn ON/OFF

corresponding zone

Control the receiver's ww channel,

Press and hold down to increase/

decrease light intensity

On/Off

Press and hold down to increase light

intensity smoothly

Press and hold down to decrease light

intensity smoothly

Pair with RF receiver

Step 3:Choose and click a zone number(e.g. zone 4)

Step 2:Click the “Learning Key” button on RF receiver to set it into pairing status

Note: one receiver can be paired with max 8 remote controls.

Learning Key

RF LED Receiver

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the

instruction of RF receiver that you would like to pair with.

Step 4:Click any of the four buttons , LED lights connected with

the RF receiver flicker once means the receiver is paired with zone 4 successfully.

After pairing, choose and click one or multiple zone nunbers , then press and

hold any of the four buttons to do the operate

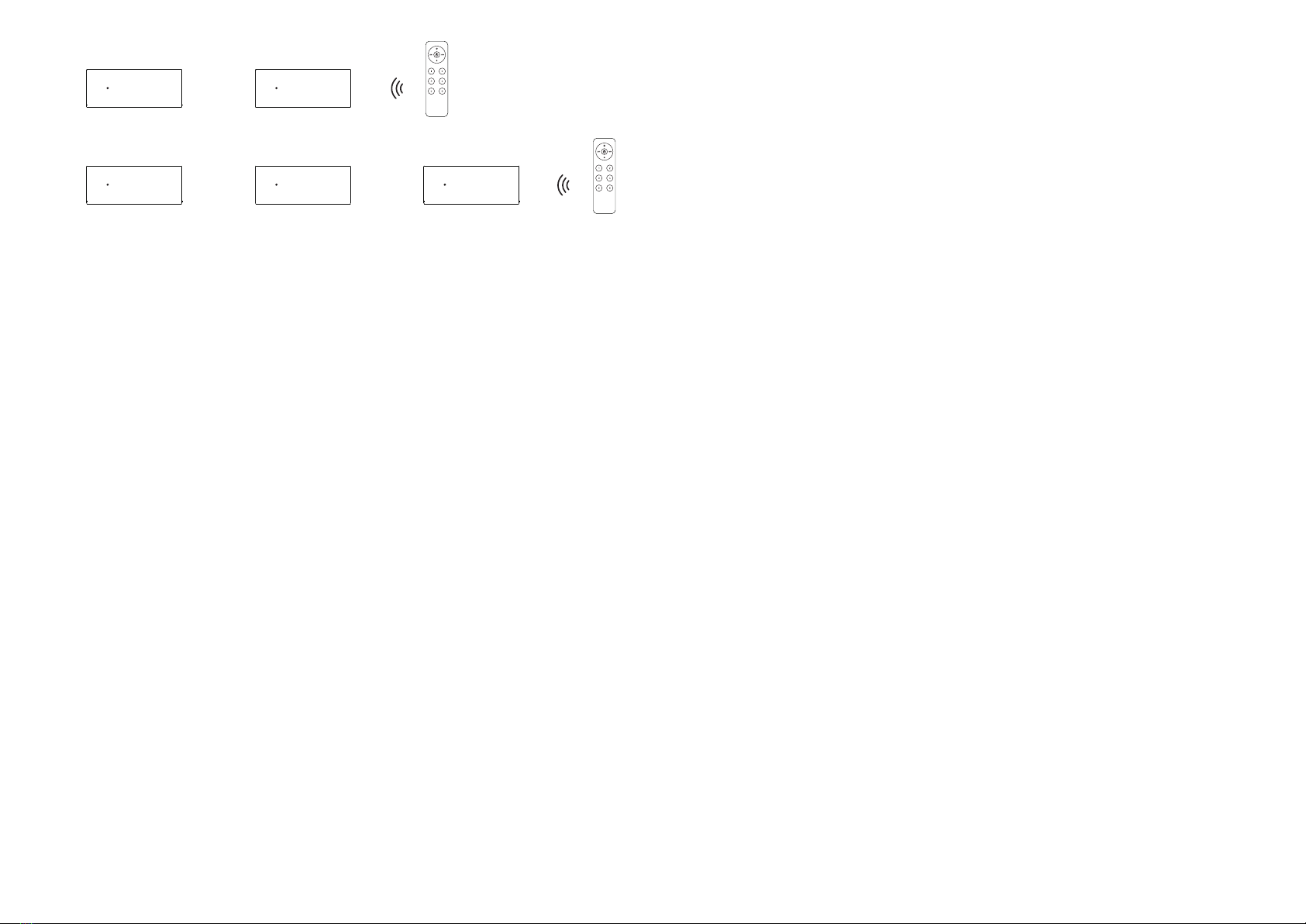

If you use multiple receivers, you have two choices:

Option 1: have all the receivers in the same zone, like zone 1

Lear ning K ey

RF LED Re ceive r

Zone 1

Option 2: have each receiver in a different zone, like zone 1, 2, 3 or 4

Zone 1 Zone 2 Zone 3

RF remote

Lear ning K ey

RF LED Re ceive r

Lear ning K ey

RF LED Re ceive r

Lear ning K ey

RF LED Re ceive r

Lear ning K ey

RF LED Re ceive r
