SUNSTONE SUNCHSZ30 Manuale utente
Read all instructions before you
operate
your grill.
Save these instructions!
To installer or person assembling grill: Leave this manual
with grill for future reference.
To consumer: Keep this manual for future reference.
www.sunstonemetalproducts.com
ITEM O. SU CHSZ30
CERTIFIED
Welcome & Congratulations
Congratulations on your purchase of a new Sunstone Gas Hybrid Charcoal Wood Burning Grill We are very
proud of our product and we are completely committed to providing you with the best service possible.
Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions
about how to install, operate and maintain for optimum performance and longevity. We know you’ll enjoy
your new grill and thank you for choosing our product. We hope you consider us for future purchases.
How to Obtain Service
Before you call
Is there Gas supplied to the Grill?
Have you recently refilled the LP Tank?
Please make sure you have the following information:
MODEL UMBER | DATE OF PURCHASE| I VOICE UMBER.
For warranty service, contact SUNSTONE Customer Service Department at (888)-934-9449 or email
service@sunstonemetalproducts.com.
Must keep copy of your sales slip for proof of purchase.
NAME_________________________________ DATE OF PURCHASE _______________________
ADDRESS_______________________________________________________________________________
MODEL NO_____________________________INVOICE NO_______________________________________
COMPANY THAT YOU PURCHASED FROM ________________________________________________
SUNSTONE METAL PRODUCTS LLC.
16004 Central Commerce Dr, Pflu erville Texas 78660.
Business Hours.
Mon. to Thur. 9:00AM to 4:30PM
Closed Fri/Sat/Sun
Tel: 51 -487-5116
Toll Free: 888-934-9449 (Technical Support Line)
Fax: 51 -487-7016
I DEX DIRECTORY
ATTE TIO : Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate personal injury, or property damage.
WAR I G:
Indicates an imminently hazardous
situation which, if not avoided, will result in death or
serious injury.
VOLTAGE:
Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate electrical shock.
EXPLOSIO :
Indicates an imminently hazardous
situation which, if not avoided, will result in possible
explosion and cause death or severe injury.
BODILY I JURY:
Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate personal injury, or property damage.
HOT SURFACE:
Indicates an imminently hazardous
hot
surface which, if not avoided, will result in
serious
burn or injury.
LIVE CIRCUIT:
Indicates a potentially hazard from
Live electrical current that if extreme caution is not
used, may result in minor or moderate personal injury,
or property damage.
HAZARDS & WAR I G SIG S
START-UP
CHECKLIST
“FIRST TIME STARTUP CHECKLIST”
Transformer Electrical Plug is properly installed.
Installation of the proper gas type and regulator settings.
The proper Regulator & Gas Connection is complete.
Minimum 2 ” Inch to Combustible Clearances are maintained.
All packaging has been removed from Interior of Grill
All parts and components are properly installed.
An installer-supplied manual gas shut-off valve is fully accessible.
LP hose is clean and inspected for cuts, wear, abrasion, or leaks.
Replace if necessary, with a suitable UL, ETL or CSA Listed part with
internally threaded connection.
EXPLOSION: When Igniting the Grill – Always keep
the Hood Open.
ATTENTION: Never operate the grill unattended.
GRILL
PARTS
–
PARTS I DEX
PAGE 1
GRILL PARTS
–
PARTS DIAGRAM
PAGE 2
LIVE CIRCUIT
: Use only with a Ground-Fault Circuit Interrupter - GFCI protected Outlet
with this grill.
VOLTAGE
: Use only extension cords approved for outdoor use marked with W-A and
rated for the power of this appliance.
GRILL
I STALLATIO
–
STEP BY STEP GUIDE
1. Mount Transformer
Using metal screws and attach the
transformer to the back inner wall of your
island’s cabinet wall, somewhere near the
already installed GFCI electrical outlet.
When you plug the transformer in, double
check the GFCI breaker switch, that the
outlet has power.
2
. Elect. Connection
Locate the Light Button on Left side of grill
control panel. The Transformer's electrical
connection to grill is located behind control
panel, next to light button. The connection
clips together to form a secure connection.
Double check that all wires are tightly
pushed into plug sockets, so all wires make
proper connections. You can tuck wire into
body of grill or island frame.
PAGE 3
3. Gas Line Connection
See the BACK-RIGHT UNDER-SIDE – This is
where the Gas Line will connect to the Grill.
Grill is shipped as Liquid Propane ONLY and
includes a LP-Regulator for portable tank.
Recommendation to have an 18” hose to
allow grill to be pulled out if necessary. For
LP & NG Gas Installation, see page 10 thru 13
for complete instructions or call 888-934-
9449 for assistance.
5. Install the Battery
The back left side of grill, find the vented
box extruding out. This box can be
unhinged by lifting upwards and off
revealing the black igniter box within.
Next unscrew the black cap which will
release the igniter box from the hole
mount. Now you can place an AA Battery
in the open port, with the Male Side
facing out.
GRILL
I STALLATIO
–
STEP BY STEP GUIDE
PAGE 4
6
. Allow for Ventilation
The grill is engineered with special vents
on the back of unit, which allow proper
airflow out of the back of grill. Be sure to
allow a minimum of 6" behind grill for
proper air ventilation and to allow hood
to open properly. Push grill all the way
into cut-out, so there are no gaps
present to inside of island frame and grill
control panel is flush against island wall.
4. Slide Grill in Place
The grill is specially designed with an
internal built in hanger lip located at the
Right, Left and Back sides. The grill lip
allows it to hang by the three supported
edges on the right, left and back. The
front control panel requires no
supporting edge, it is designed to hang
down the front of your cut-out.

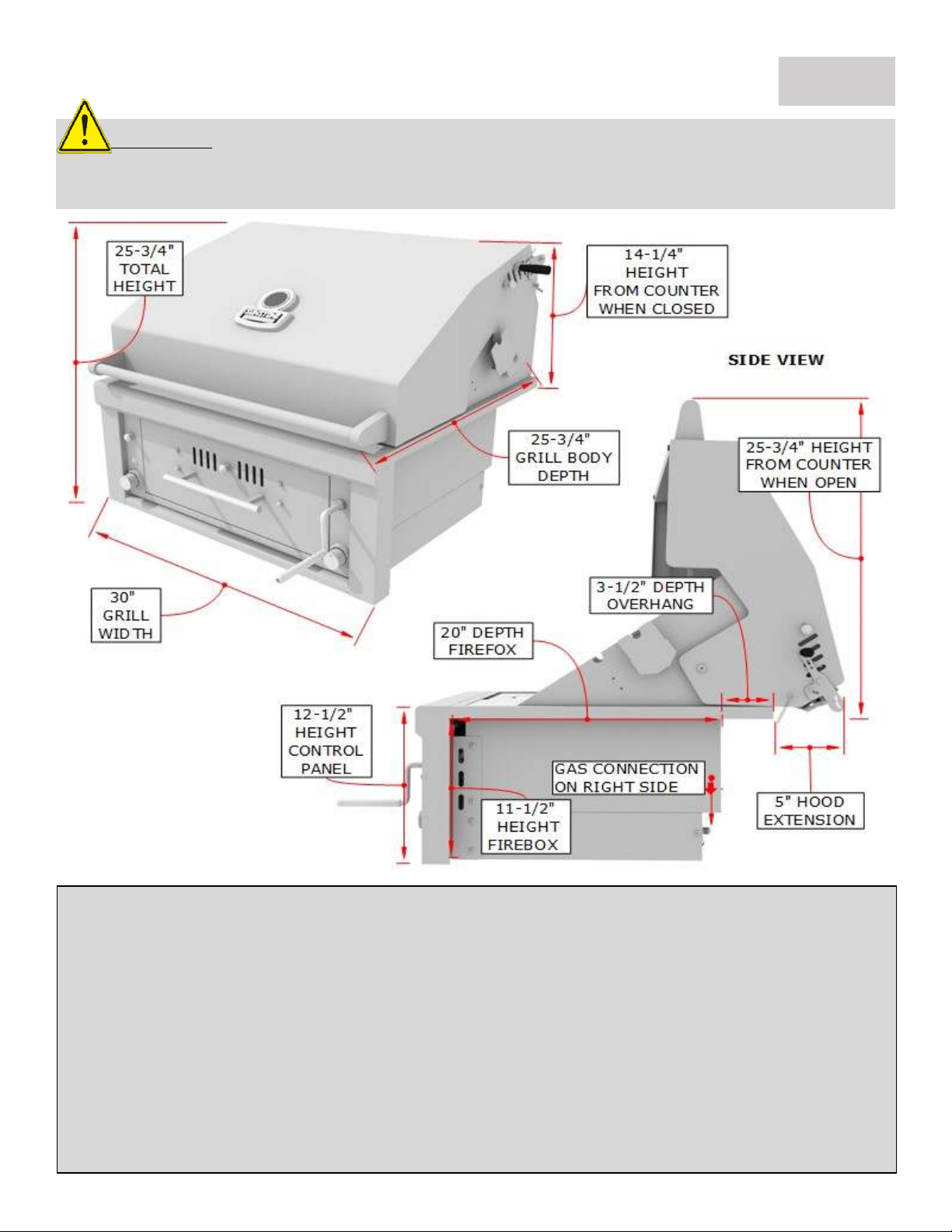

Product Size
Overall Width-------------------- 30"
Overall Height------------------- 25-3/4"
Overall Depth-------------------- 25-3/4"
Control Panel Height----------- 12-1/2”
Hood Closed -------------------- 14-1/4”
Firebox Size
Box Width (Not Shown)------ 26"
Box Height---------------------- 11-1/2"
Box Depth----------------------- 20"
Control Panel Height----------- 12-1/2”
GRILL
I STALLATIO
–
PRODUCT DETAILS
PAGE 5
Technical Measurements – See measurement box next page
If the cut-out is smaller than what ours is shown, or you are installing grill into cabinet structure you may
need to refer to these engineer dimensions specifically the grill firebox dimensions. See next page for
Dimension Table. (Measurements were obtained from engineer drawing, margin of error is within 1/8” to
actual product)
ATTE TIO
: Never build an enclosure under the Grill or partition side walls, the Grill
must be Free Hanging supported by the countertop only Must have clear access to
underside of Grill within reach of at least Two Vents.
GRILL
I STALLATIO
–
CUT
-
OUT DETAILS
PAGE 6
1.
Countertop Slide
-
in Installation
(A) Grill Cut-out Depth ------------------------------------------------------------------ 22” Depth
(B) Grill Cut-out Height (Allow ¾” Air-Flow Gap Below Drip Pan) ------------ 12-3/4” Height
(C) Grill Cut-out Width------------------------------------------------------------------- 27-1/2” Width
(D) Make 1-3/4”W x1”D Notch Cut-Out on both sides of cut-out counter edge, to allow grill to slide
flush against the island finish wall.
(E) Leave Minimum ¾” Gap below Drip Pan for Air/Gas Ventilation
Must have TWO Vents in HIGH position for Natural Gas
Must have TWO Vents in LOW position for Liquid Propane
Properly stow-away the Liquid Propane Tank
