SunSynk SUNSYNK-3.6K-SG01LP1 Manuale utente
v.19 (12/09/22)
USER MANUAL
SUNSYNK-3.6K-SG01LP1 / SUNSYNK-3.6K-SG01LP3
SUNSYNK-3.6K-SG02LP1
SUNSYNK-5K-SG01LP1 / SUNSYNK-5K-SG01LP3
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.
171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong.
Tel: +852 2884 4318 Fax: +8522884 4816
HYBRID PARITY
(SUPER) INVERTER
HYBRID INVERTER | Installer Manual2
Table of Contents
1. SAFETY 5
1.1. General Safety 5
1.2. Symbols 5
1.3. Safety Instructions 6
1.4. Disposal 6
2. PRODUCT INTRODUCTION 7
2.1. Product Size 9
2.2. Basic System Architecture 10
3. TECHNICAL SPECIFICATIONS 11
4. INSTALLATION 14
4.1. Parts List 14
4.2. Selecting the Mounting Area 15
4.3. System Diagram 15
4.4. Mounting the Inverter 16
4.5. Battery Connection 17
4.5.1. Recommended DC Battery Protection 19
4.6. Connecting a Lithium Battery 19
4.7. Battery Temperature Sensor Connection 20
4.8. Connecting the AC 22
4.8.1. Recommended AC Surge Protector 23
4.9. Installing the CT Coil 24
4.10. Earth Connection (MANDATORY) 25
4.11. Meter Connection 26
4.11.1. System Connection for the CHNT Meter 26
4.12. Wiring System for Inverter 27
4.13. PV Connection 28
4.13.1. PV Module Selection 28
4.13.2. PV Module Wiring 28
4.14. PV Protection 29
4.15. Typical Application Diagram of Diesel Generator 29
4.16. Single-Phase Parallel Connection Diagram 30
4.17. Three-Phase Parallel Inverter 31
HYBRID INVERTER | Installer Manual3
5. OPERATION 32
5.1. Display 32
5.2. Switching ON/OFF 32
5.3. Home Page 33
5.4. Status Page 33
5.5. System Flow Page 34
5.6. Setup Page 35
5.7. Set Time (Clock) 36
5.8. Set Company Name / Beeper / Auto dim 36
5.9. Factory Reset and Lock Code 37
5.10. Battery Setup Page 38
5.11. Generator & Battery Page 39
5.12. Battery Discharge Page 41
5.13. Setting Up a Lithium Battery 43
5.14. Program Charge & Discharge Times 48
5.15. Grid Supply Page 50
5.16. Connecting the DRM’s 51
5.17. Advanced Settings for Paralleling Inverters 52
5.18. Solar Power Generated 55
5.19. Grid Power 55
5.20. Advanced Settings for Wind Turbines 56
5.21. Advanced Settings for Auxiliary Load 57
5.22. Advanced Settings for Peak Shaving 58
5.23. Fault Codes 59
6. COMMISSIONING 62
6.1. Start-Up / Shutdown Procedure 62
6.2. Information for Commissioning the Inverter 62
6.3. GDFI Fault 63
7. MAINTENANCE 63
APPENDIX A 64
APPENDIX B 65
APPENDIX C 65
HYBRID INVERTER | Installer Manual4
APPENDIX D 65
APPENDIX E 65
HYBRID INVERTER | Installer Manual5
1. SAFETY
This device should only be used in accordance with the instructions within this manual and in
compliance with local, regional, and national laws and regulations. Only allow this device to be installed,
operated, maintained, and repaired by other person(s) who have read and understood this manual.
Ensure the manual is included with this device should it be passed to a third party.
DO NOT allow minors, untrained personnel, or person(s) suering from a physical or mental impairment
that would aect their ability to follow this manual, install, maintain or repair this device.
Any untrained personnel who might get near this device while it is in operation MUST be informed that it
is dangerous and instructed carefully on how to avoid injury.
1.1. General Safety
1.2. Symbols
WARNING This symbol indicates information that if ignored, could result in personal
injury or even death due to incorrect handling.
CAUTION This symbol indicates information that if ignored, could result in personal
injury or physical damage due to incorrect handling.
PLEASE NOTE Indicates information that is considered important, but not hazard-related.
HYBRID INVERTER | Installer Manual6
1.3. Safety Instructions
Be sure to read this manual thoroughly before installation.
Do not attempt to install the inverter by yourself. Installation work must be carried out in compliance
with national wiring standards and by suitably qualied personnel only. Do not turn on the power until all
installation work is complete.
Do not disassemble the inverter. If you need repair or maintenance, contact a professional service
centre.
Always use an individual power supply line protected by a circuit breaker and operating on all wires with
a distance between contacts of at least 3mm for this unit.
The unit must be correctly grounded, and the supply line must be equipped with a suitable breaker and
RCD to protect people.
Disconnect all wires/cables before performing any maintenance or cleaning to reduce the risk of
electrical shock.
The unit is not explosion-proof, so it should not be installed in an explosive atmosphere.
Never touch electrical components immediately after the power supply has been turned o since the
system can still have residual energy, so an electric shock may occur. Therefore, after turning o the
power, always wait 5 minutes before touching electrical components.
This unit contains no user-serviceable parts. Always consult an authorised contractor for repairs.
1.4. Disposal
DO NOT dispose this product with domestic waste!
Electrical devices should be disposed of in accordance with regional directives on electronic and/ or
electronic-waste disposal. In case of further questions, please consult your supplier. In some cases, the
supplier can take care of proper disposal.
WARNING
HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION.
Sunsynk Single-Phase Hybrid Inverter can only be installed by a qualied licensed electrical
contractor. This is not a DIY product.
HYBRID INVERTER | Installer Manual7
2. PRODUCT INTRODUCTION
The Sunsynk Single-Phase Hybrid Inverter is a highly ecient power management tool that allows the user
to hit those ‘parity’ targets by managing power-ow from multiple sources such as solar, mains power (grid),
and generators, and then eectively storing and releasing power as and when utilities require.
INTERACTIVE
Easy and simple to understand display
Supporting Wi-Fi or GSM monitoring
Visual power ow screen
Smart settable 3-stage MPPT charging for optimized battery performance
Auxiliary load function
Parallel / multi invert function grid-tied and o-grid
COMPATIBLE
Compatible with main electrical grid voltages or power generators
Compatible with wind turbines
220V single phase, pure sine-wave inverter
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Auto earth bond feature (Via a relay)
CONFIGURABLE
Fully programmable controller
Programmable supply priority for battery or grid
Programmable multiple operation modes: on-grid/o-grid & UPS
Congurable battery charging - current/voltage based on applications by LCD setting
Congurable AC / solar / generator charger priority by LCD setting
SECURE
Overload/over-temperature/short-circuit protection
Smart battery charger design for optimized battery protection
Limiting function installed to prevent excess power overow to grid
APPLICATIONS
Marine (vessel power management)
Power shedding (home/oce/factory)
UPS (fuel-saving systems)
Remote locations with solar and wind generators
Building sites
Military locations
Telecommunication
HYBRID INVERTER | Installer Manual8
1. Inverter Indicators 8. Parallel Port 15. DC Switch
2. LCD Display 9. Function Port 16. PV Input with Two MPPT
3. Function Buttons 10. RS 485 Port 17. Battery
4. Battery Input Connectors 11. Generator Input 18. Temperature Sensor
5. BMS 485 Port 12. Load 19. Wi-Fi Interface
6. BMS CAN Port 13. Grid 20. Fan (not included in all inverters)
7. DRMs Port 14. Power On/O Button
1
2
5
9
11
12
13
15
16
19 20
18
17
14
7
10
6
3
4
8ON
1 2
HYBRID INVERTER | Installer Manual9
2.1. Product Size
Inverter Size
Mounting bracket
HYBRID INVERTER | Installer Manual10

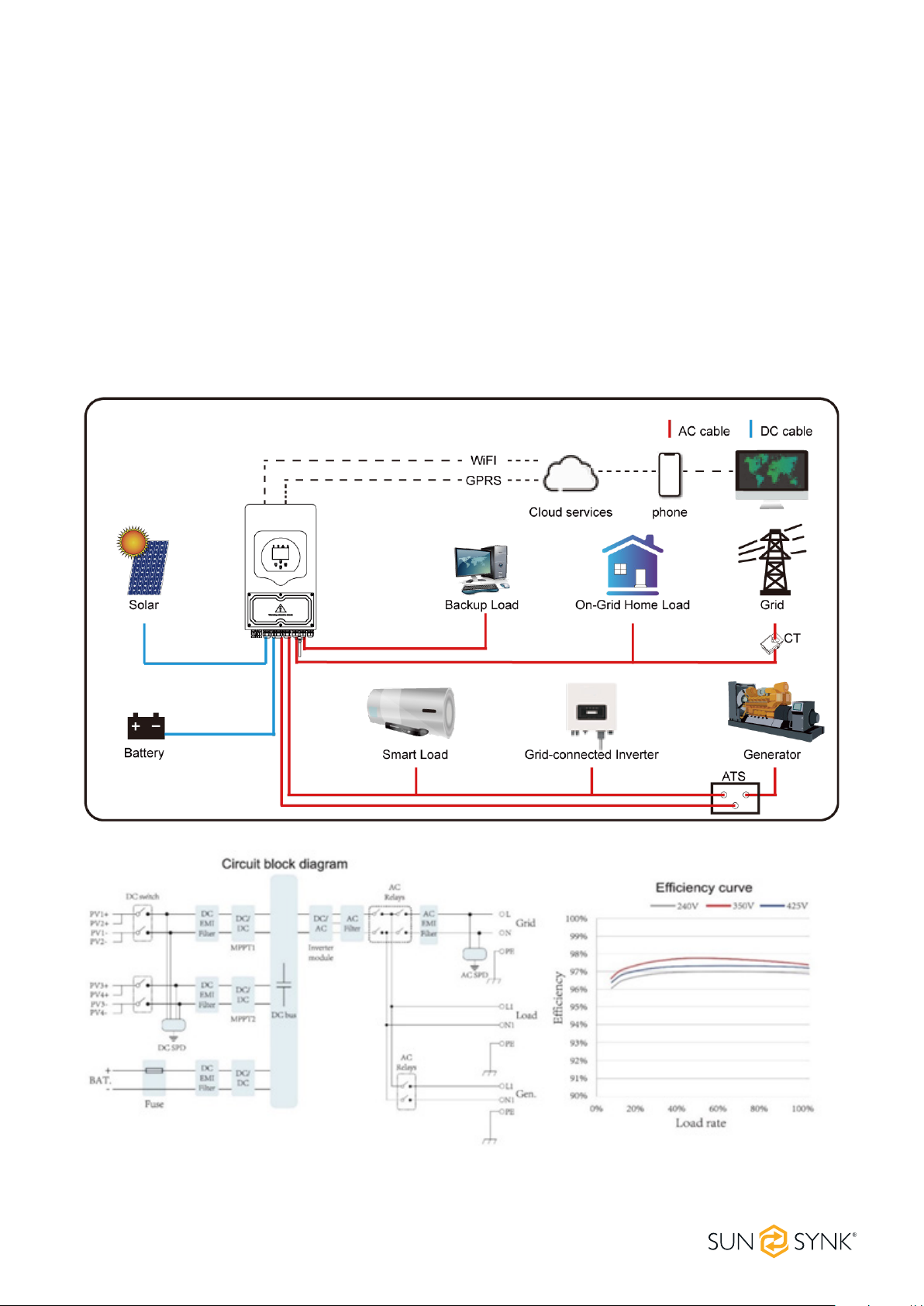

2.2. Basic System Architecture
The following illustration shows the basic application of this inverter.
It also includes the following devices to have a Complete running system.
Generator or Utility
PV modules
Consult with your system integrator for other possible system architectures depending on your
requirements
This inverter can power all kinds of appliances in a home or one environment, including motor-type
appliances such as refrigerators and air conditioners
When no PV is connected, the inverter can be used for just UPS functionality.
