SunSynk SUNSYNK-3.6K-SG01LP1 Manuale utente
v.26 (04/27/23
USER MANUAL
SUNSYNK-3.6K-SG01LP1 / SUNSYNK-3.6K-SG03LP1 /
SUNSYNK-5K-SG01LP1 / SUNSYNK-5K-SG03LP1
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.
171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong.
Tel: +852 2884 4318 Fax: +8522884 4816
SINGLE-PHASE
HYBRID INVERTER
PLEASE RETAIN FOR
FUTURE REFERENCE
SINGLE PHASE HI 3.6/5kW | User Manual2
Table of Contents
1. SAFETY 5
1.1. General Safety 5
1.2. Symbols 5
1.3. Safety Instructions 6
1.4. Disposal 6
2. PRODUCT INTRODUCTION 7
2.1. Product Overview 7
2.2. Product Size 8
2.3. Product Features 9
2.4. Basic System Architecture 10
3. TECHNICAL SPECIFICATIONS 11
4. INSTALLATION 13
4.1. Parts List 13
4.2. Selecting the Mounting Area 14
4.3. Mounting the Inverter 15
4.4. Battery Connection 16
4.4.1. Function port denition 18
4.4.2. Recommended DC Battery Protection 19
4.5. Connecting a Lithium Battery 19
4.6. Temperature Sensor Connection for Lead-Acid Battery 21
4.7. Connecting the AC 22
4.7.1. Recommended AC Surge Protector 23
4.8. PV Connection 24
4.8.1. PV module selection 24
4.8.2. PV module wiring 24
4.8.3. PV Protection 25
4.9. Installing the CT Coil 25
4.10. Meter Connection 27
4.10.1. System Connection for the CHNT Meter 27
4.11. Earth Connection (MANDATORY) 27
4.12. Wiring System for Inverter 29
4.13. Typical Application Diagram of Diesel Generator 30
4.14. Single-Phase Parallel Connection Diagram 31
4.15. Three-Phase Parallel Inverter 32
SINGLE PHASE HI 3.6/5kW | User Manual3
5. OPERATION 33
5.1. Switching ON/OFF 33
5.2. Display 33
5.2.1. LED indicators 33
5.2.2. Function buttons 33
5.3. LCD operation ow chart 34
5.4. Home page 35
5.5. Status Page 35
5.6. System Flow Page 36
5.7. Setup Page 37
5.8. Basic Setup 38
5.8.1. Set Time (Clock) 38
5.8.2. Set Company Name / Beeper / Auto dim 38
5.8.3. Factory Reset and Lock Code 39
5.9. Battery Setup Page 40
5.10. Generator & Battery Page 41
5.11. Battery Discharge Page 43
5.12. Setting Up a Lithium Battery 45
5.13. Program Charge & Discharge Times 51
5.14. Grid Supply Page 55
5.15. Advanced Settings for Paralleling Inverters 59
5.16. Connecting the DRM’s 62
5.17. Advanced Function Setup 63
5.18. Solar Power Generated 63
5.19. Grid Power 64
5.20. Advanced Settings for Wind Turbines 65
5.21. Advanced Settings for Auxiliary Load 66
6. Operation Modes 69
6.1. Mode I: Basic 69
6.2. Mode II: Generator 69
6.3. Mode III: With Aux-Load 70
6.4. Mode IV: AC Couple 70
7. Fault Codes 72
SINGLE PHASE HI 3.6/5kW | User Manual4
8. COMMISSIONING 76
8.1. Start-Up / Shutdown Procedure 76
8.2. Information for Commissioning the Inverter 76
8.3. GDFI Fault 77
9. MAINTENANCE 77
APPENDIX A 78
APPENDIX B 79
APPENDIX C 79
APPENDIX D 79
APPENDIX E 79
SINGLE PHASE HI 3.6/5kW | User Manual5
1. SAFETY
This device should only be used in accordance with the instructions within this manual and in compli-
ance with local, regional, and national laws and regulations. Only allow this device to be installed, oper-
ated, maintained, and repaired by other people who have read and understood this manual. Ensure the
manual is included with this device should it be passed to a third party.
DO NOT allow minors, untrained personnel, or person(s) suering from a physical or mental impairment
that would aect their ability to follow this manual, install, maintain or repair this device.
Any untrained personnel who might get near this device while it is in operation MUST be informed that it
is dangerous and instructed carefully on how to avoid injury.
1.1. General Safety
1.2. Symbols
WARNING This symbol indicates information that if ignored, could result in personal
injury or even death due to incorrect handling.
CAUTION This symbol indicates information that if ignored, could result in personal
injury or physical damage due to incorrect handling.
PLEASE NOTE Indicates information that is considered important, but not hazard-related.
SINGLE PHASE HI 3.6/5kW | User Manual6
1.3. Safety Instructions
This chapter contains important safety and operating instructions. Read and keep this manual for future
reference.
Before using the inverter, please read the instructions and warning signs of the battery and correspond-
ing sections in the instruction manual.
Do not disassemble the inverter. If you need maintenance or repair, take it to a professional service
center.
Improper reassembly may result in electric shock or re.
To reduce the risk of electric shock, disconnect all wires before attempting any maintenance or cleaning.
Turning o the unit will not reduce this risk.
Never charge a frozen battery.
For optimum operation of this inverter, please follow the required specications to select the appropri-
ate cable size. It is very important to operate this inverter correctly.
Be very cautious when working with metal tools on or around batteries. Dropping a tool may cause a
spark or short circuit in batteries or other electrical parts, even causing an explosion.
Please strictly follow the installation procedure when you want to disconnect AC or DC terminals.
Please refer to this manual's "Installation" section for details.
Grounding instructions - this inverter should be connected to a permanent grounded wiring system. Be
sure to comply with local requirements and regulations to install this inverter.
Never cause AC output and DC input to short-circuit. Do not connect to the mains when DC input short
circuits.
1.4. Disposal
DO NOT dispose this product with domestic waste!
Electrical devices should be disposed of in accordance with regional directives on electronic and/ or elec-
tronic-waste disposal. In case of further questions, please consult your supplier. In some cases, the supplier
can take care of proper disposal.
WARNING
HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION.
Sunsynk Single-Phase Hybrid Inverter can only be installed by a qualied licensed electrical
contractor. This is not a DIY product.
SINGLE PHASE HI 3.6/5kW | User Manual7
2. PRODUCT INTRODUCTION
This multifunctional inverter combines the functions of an inverter, solar charger and battery charger to oer
uninterruptible power support with a portable size. Its comprehensive LCD display oers user-congurable
and easily accessible button operations such as battery charging, AC/solar charging, and acceptable input
voltage based on dierent applications.
1. Inverter Indicators 7. DRMs Port 13. Power On/O Button
2. LCD Display 8. Parallel Port 14. DC Switch
3. Function Buttons 9. Function Port 15. PV Input with two MPPT
4. Battery Input Connectors 10. Generator Input 16. Battery
5. RS485/Meter Port 11. Load 17. Temperature Sensor
6. BMS 485/CAN Port 12. Grid 18. Wi-Fi Interface
ON
1 2
1
2
5
9
10
11
12
13
14
15
16
17
18
7
6
3
4
8
2.1. Product Overview
SINGLE PHASE HI 3.6/5kW | User Manual8
2.2. Product Size
Inverter Size
Mounting bracket
SINGLE PHASE HI 3.6/5kW | User Manual9
2.3. Product Features
INTERACTIVE
Easy and simple to understand display
Supporting Wi-Fi or GSM monitoring
Visual power ow screen
Smart settable 3-stage MPPT charging for optimized battery performance
Auxiliary load function
Parallel / multi invert function grid-tied and o-grid
COMPATIBLE
Compatible with main electrical grid voltages or power generators
Compatible with wind turbines
220V single phase, pure sine-wave inverter
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Auto earth bond feature (Via a relay)
CONFIGURABLE
Fully programmable controller
Programmable supply priority for battery or grid
Programmable multiple operation modes: on-grid/o-grid & UPS
Congurable battery charging - current/voltage based on applications by LCD setting
Congurable AC / solar / generator charger priority by LCD setting
SECURE
Overload/over-temperature/short-circuit protection
Smart battery charger design for optimized battery protection
Limiting function installed to prevent excess power overow to grid
APPLICATIONS
Marine (vessel power management)
Power shedding (home/oce/factory)
UPS (fuel-saving systems)
Remote locations with solar and wind generators
Building sites
Military locations
Telecommunication
SINGLE PHASE HI 3.6/5kW | User Manual10

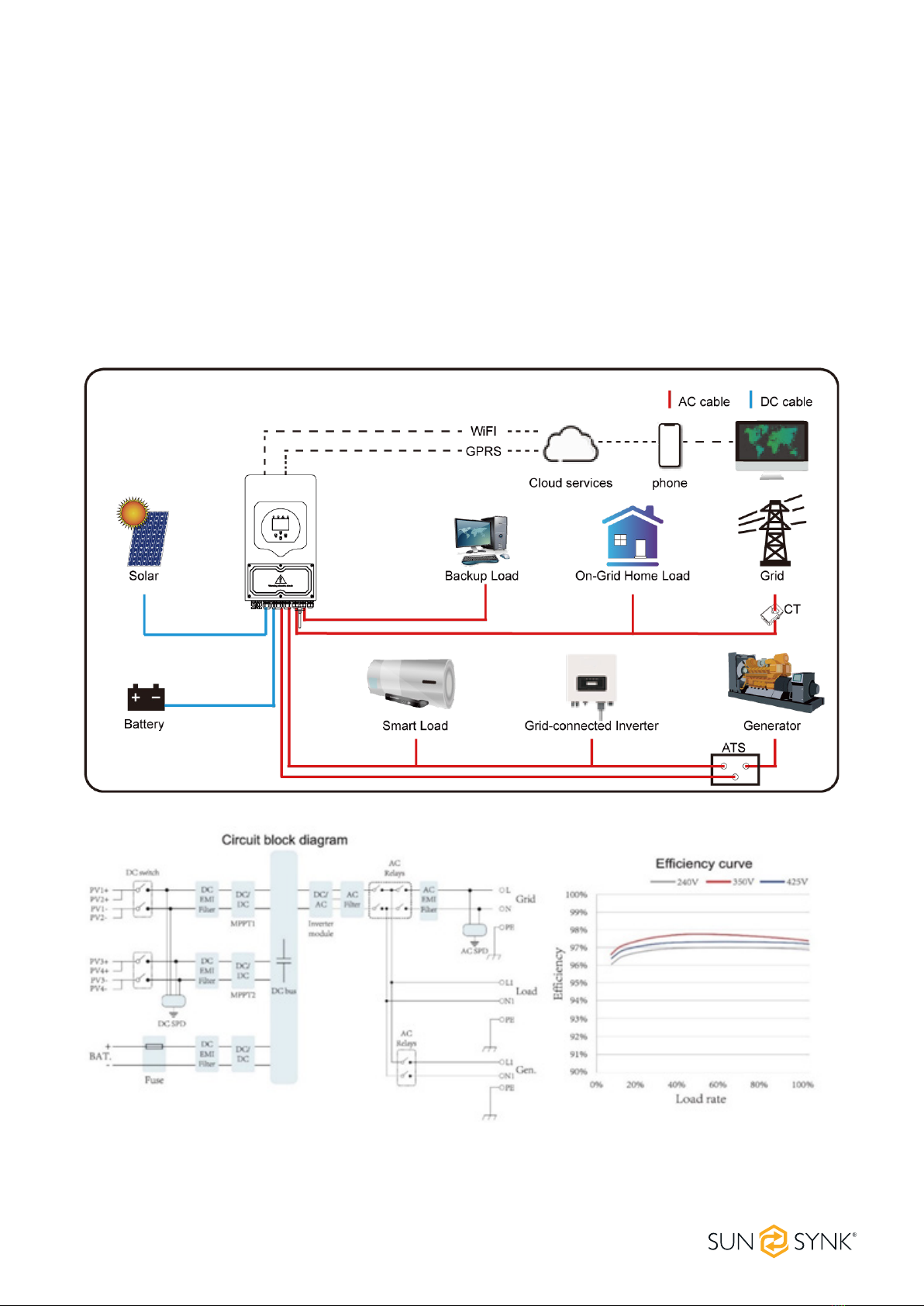

2.4. Basic System Architecture
The following illustration shows the basic application of this inverter.
It also includes the following devices to have a Complete running system.
Generator or Utility
PV modules
Consult with your system integrator for other possible system architectures depending on your
requirements.
This inverter can power all kinds of appliances in a home or one environment, including motor-type
appliances such as refrigerators and air conditioners
