Supaswift SSU420ACM Manuale utente
1
REEL MOWER
17" & 20"
OPERATOR’S MANUAL
2
• Always wear protective footwear. Never wear thongs or sandals.
• Wear long pants.
• Read the instruction manual prior to use, understand the controls. Learn how to stop the engine quickly in an
emergency.
• Keep well clear of blade.
• Stay alert, watch what you are doing and use common sense when operating the mower. DO NOT use the
mower whilst tired or under the influence of drugs, alcohol or medication. A moment of inattention while
operating may result in serious injury.
• Always stop the engine and disconnect the spark plug lead before working on the machine.
• Make sure the lawn is clear of loose debris, wire etc. before using the Mower.
• Check all nuts and bolts and screws are tightened if necessary.
• Do not use the machine near people or pets. (15 Metres)
• Refuel outside only. Do not refuel near naked flames or people smoking. Always add fuel before starting the
machine, not whilst it is running or if the engine is hot. If fuel is spilled, move the machine away from the area
of spillage and wait until the fuel has evaporated from the machine before starting.
• Avoid excessive noise by replacing worn or faulty silencer.
• Only use the Mower when adequate lighting is available.
• Start the engine carefully ensuring all body parts are clear of the blade or chains.
• Ensure the machine is held firmly when starting as described in the “starting” section.
• Never operate the machine in an enclosed space, where exhaust fumes can collect.
• Never leave the machine running or unattended, always stop the machine.
• Not to be used by children, or inexperienced operators.
• Store the machine in a well-ventilated room away from naked flames.
• Store fuel only in an approved container in a cool area.
• Should the Mower vibrate ABNORMALLY-stop the engine, disconnect the spark plug and inspect the machine.
• Always stop the engine when moving the machine from one area to another. Never push the Mower across
paths or driveways whilst it is running.
• This Instruction manual includes the operation and maintenance of the Reel Mower. Please read and understand
this instruction manual prior to use.
SAFETY INSTRUCTIONS
WARNING
!
!
Improper use of this machinery
can cause injury or property
damage. Read the instructions
thoroughly before operating this
machine.
Follow these instructions
carefully to avoid damage and
possible loss of warranty
3
CONTENTS:
INSTRUCTIONS:
Unpacking and assembly ...............................................................................4
Getting started...............................................................................................7
Starting .........................................................................................................8
Mowing .........................................................................................................9
Stopping......................................................................................................10
Fitting and emptying catcher .......................................................................11
Grass deflector ............................................................................................12
Cutting height ..............................................................................................12
Blade setting ...............................................................................................13
Checking the blade setting...........................................................................13
Blade adjustment.........................................................................................14
Blade drive chain.........................................................................................15
Clutch and drive chains................................................................................16
Lubrication ..................................................................................................16
Maintenance................................................................................................17
Handle adjustment.......................................................................................17
Drive cable adjustment ................................................................................18
Model and serial number placement ............................................................18
Warranty......................................................................................................18
4

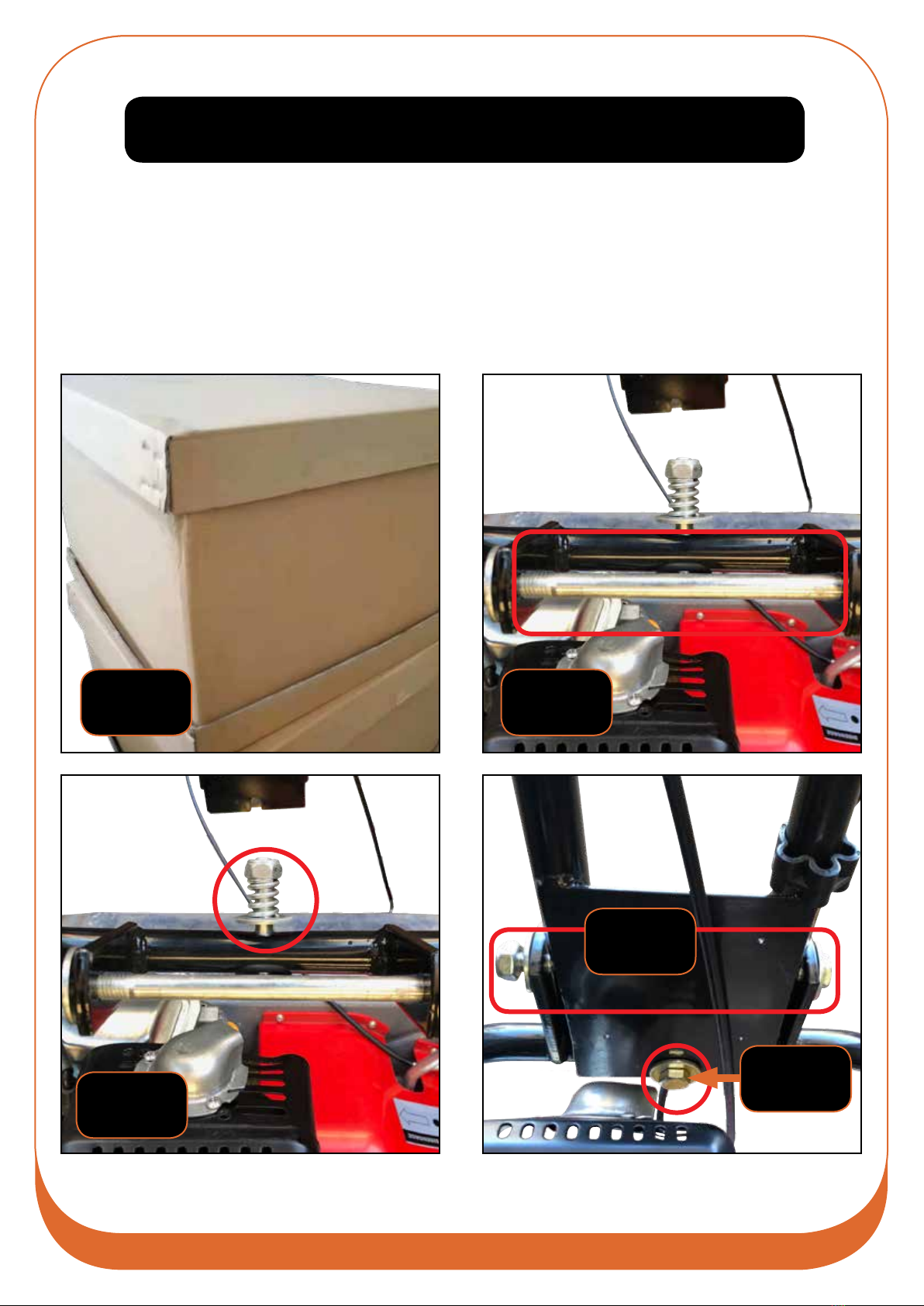

UNPACKING & ASSEMBLY
1. Remove unit from cardboard box. Fig. 1
2. Remove top bolt from lower handle to fit upper handle. Refer to red circle in Fig. 2 (17mm Spanners).
3. Do not remove bottom bolt in lower handle. Refer to red circle in Fig. 3.
4. Insert upper handle onto lower frame bolt (Fig. 4a) and reinstall top bolt (Fig. 4b).
FIG. 1 FIG. 2
FIG. 3
FIG. 4b
FIG. 4a
5
UNPACKING & ASSEMBLY

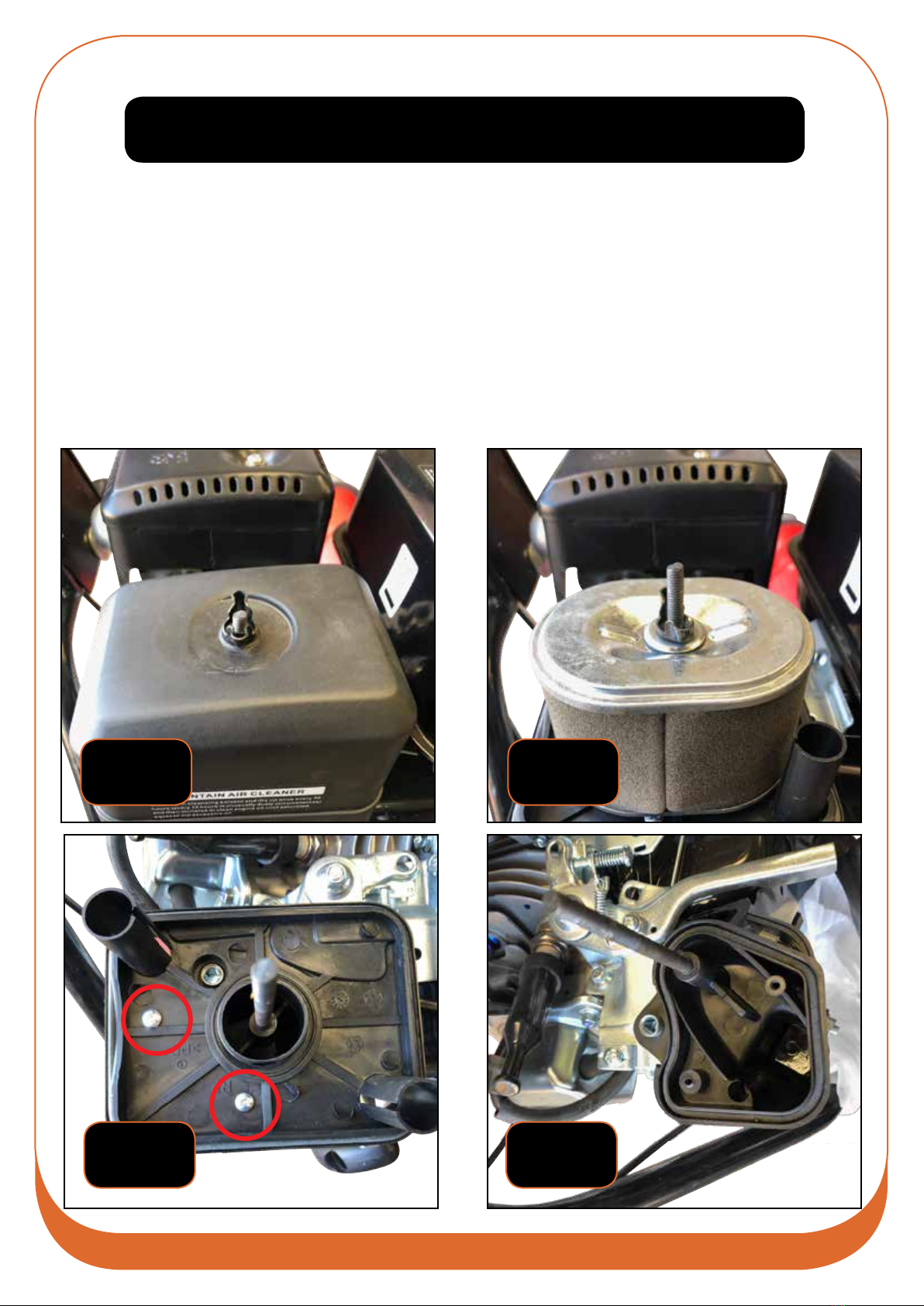

Fitting of Throttle Cable
1. Remove air filter cover. Refer to Fig. 5
2. Remove air filter. Refer to Fig. 6
3. Remove X2 screws from air filter base. Refer to red circles in Fig. 7
4. Remove air filter base. Refer to Fig. 8
5. When mounting up the throttle cable there is two options, Option 1- Z shape cable to be mounted in hole on
throttle linkage. Refer to red circle in Fig. 9. option 2 – Cut Z shape off throttle cable and mount into linkage
slot nut. Refer to red circle in Fig. 10
6. Clamp down throttle cable. Refer to red circle in Fig. 11
7. Reinstall air filter base, screws, air filter and air filter cover. (Check that air filter seal is in place. Refer to red
circle in Fig. 12)
FIG. 5 FIG. 6
FIG. 8FIG. 7
6
UNPACKING & ASSEMBLY

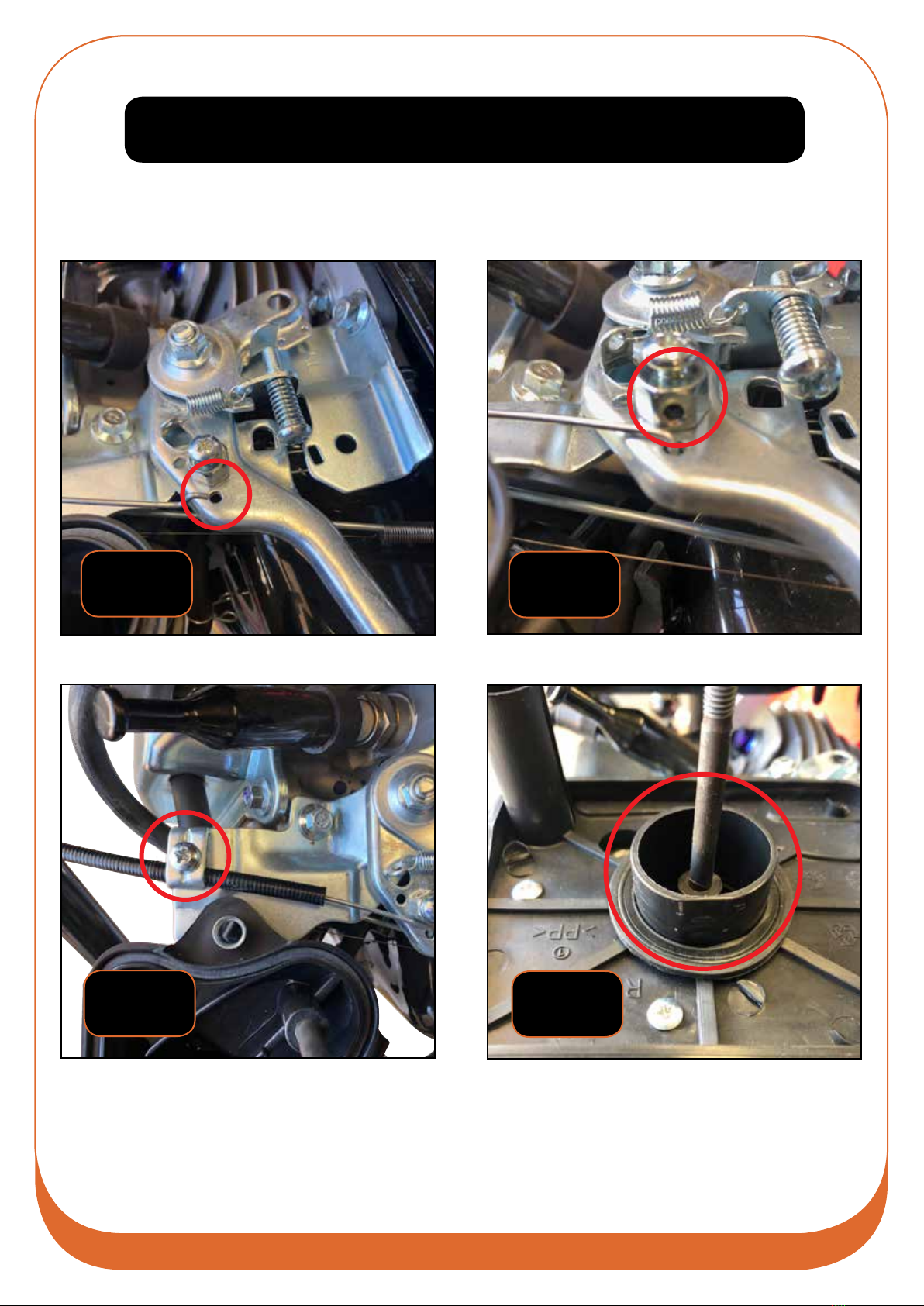

Fitting of Throttle Cable
FIG. 9
FIG. 11
FIG. 10
FIG. 12
7
WARNING
Study safety instructions carefully before use
!

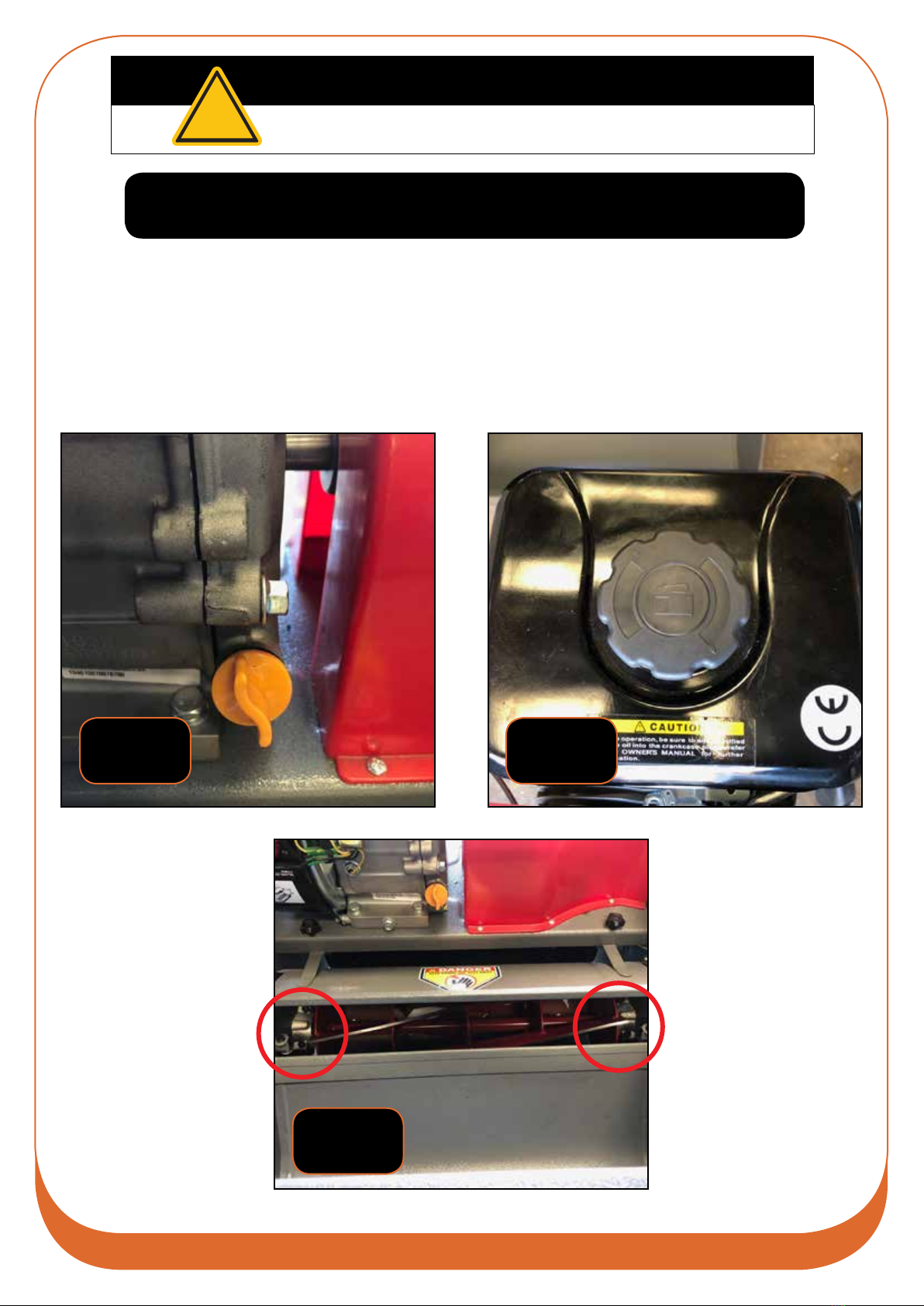

GETTING STARTED
1. Ensure mower is on level ground.
2. Fill the oil to the top of the crankcase with SAE 30 Engine Oil. Refer to Fig. 13
3. Fill the fuel tank with Unleaded fuel. Refer to Fig. 14
4. Check spark plug cap is connected.
5. Inspect all nuts, bolts, screws and tighten if required.
6. Fit catcher by hooking the base of the catcher over the support studs on the body of the mower. Refer to red
circles in Fig. 15 (more details on page 11)
FIG. 13 FIG. 14
FIG. 15
8

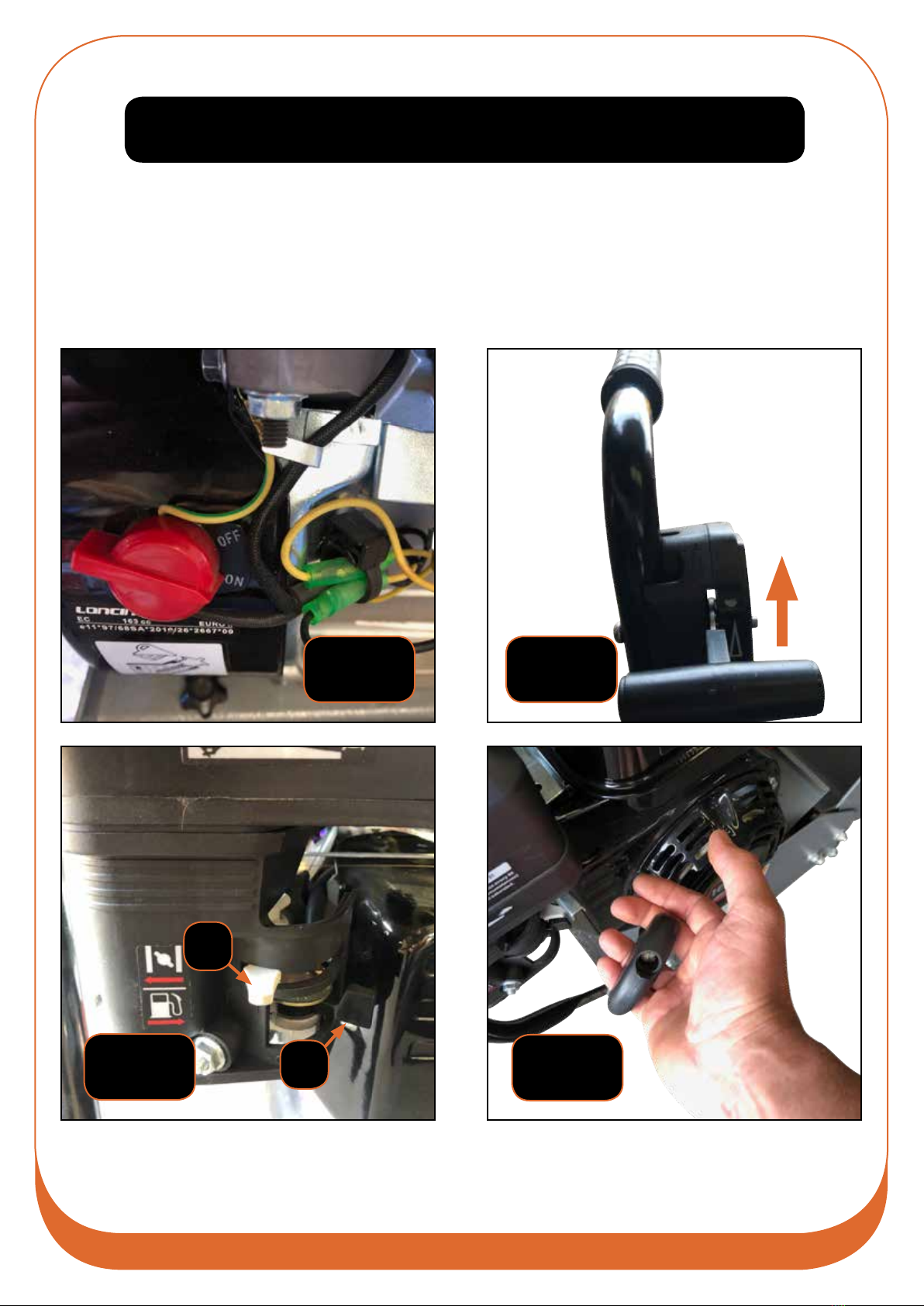

STARTING
1. Ensure engine switch is “ON”. Refer to Fig. 16
2. Slide the throttle to Turtle position. Refer to Fig. 17
3. Slide the choke (A) to the “ON” position. Slide the fuel (B) to the “ON” position. Fig. 18.
4. Place left hand on the handle and pull the starter handle with right hand. Fig. 19.
5. After successfully starting the engine, slide the choke (A) to “OFF” position. Fig. 18.
FIG. 16 FIG. 17
FIG. 18
A
BFIG. 19
9

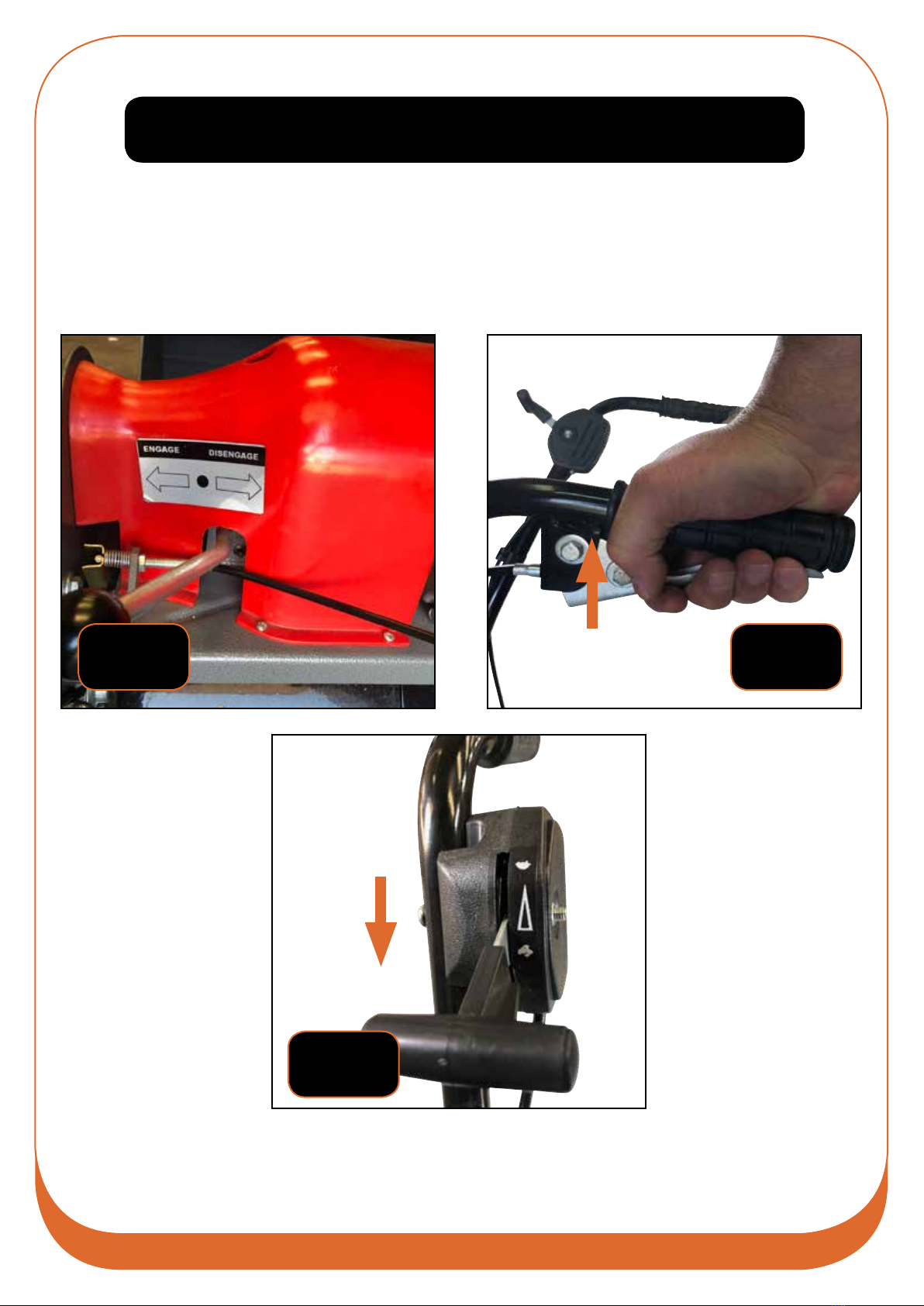

MOWING
1. Lift the blade driver lever to engage position. Fig 20.
2. Squeeze the hand clutch to commence the rear drive roller. Fig. 21.
3. Slide the throttle to Rabbit position. Fig. 22.
FIG. 20 FIG. 21
FIG. 22
10

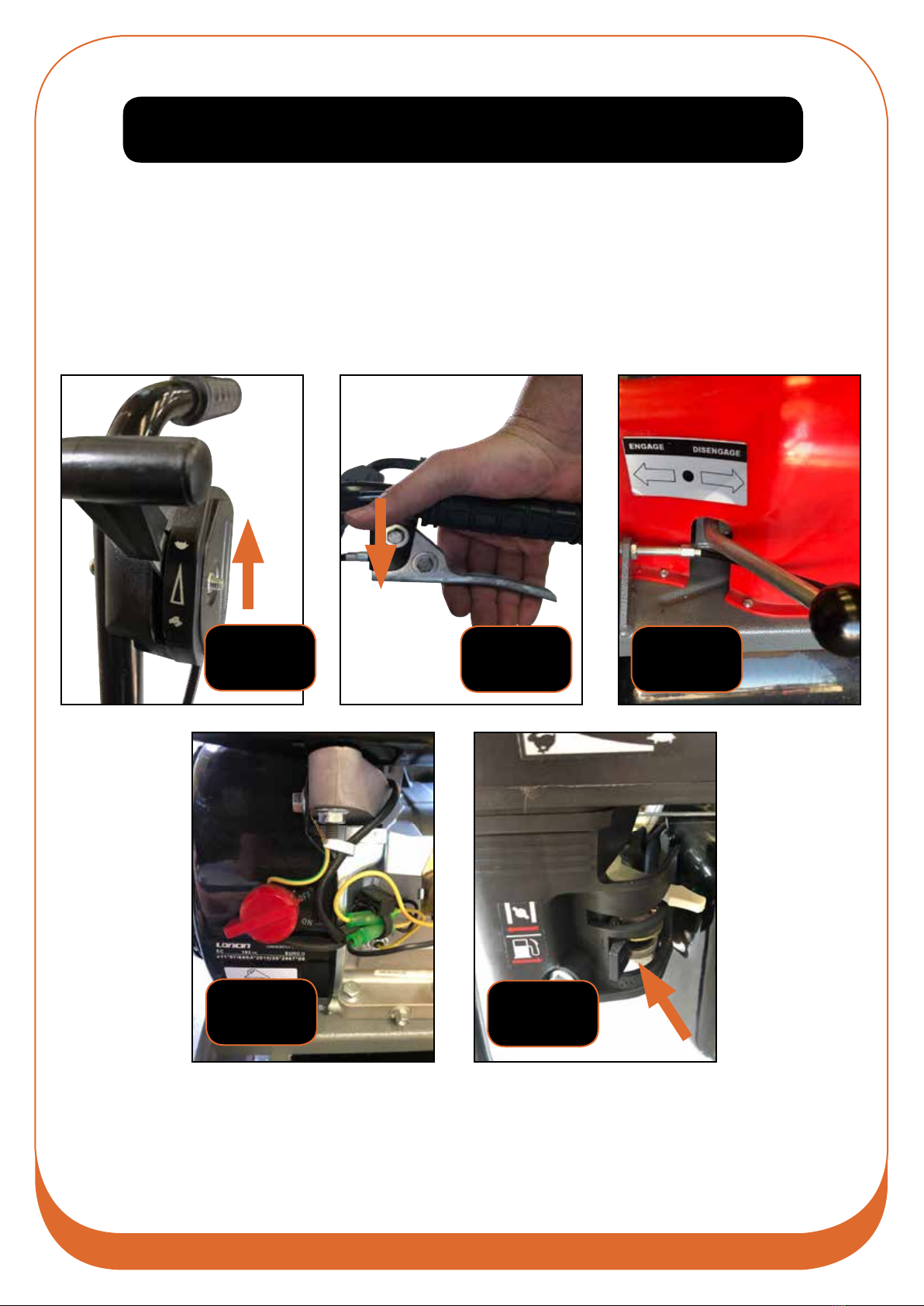

STOPPING
1. Slow the engine RPM back to Turtle on throttle control. Refer to Fig. 23
2. Release the hand clutch. Refer to Fig. 24
3. Disengage the blade driver lever. Refer to Fig. 25
4. Turn engine switch “OFF”. Refer to Fig. 26
5. Turn fuel off. Refer to Fig. 27
FIG. 23 FIG. 24 FIG. 25
FIG. 27
FIG. 26
