Super Circuits DVRM6 Manuale utente

Wireless Advanced 4 Channel

Digital Video Recorder

Network Setup Guide

Product: DVRM6

Please read this manual before using your recorder, and always follow the

instructions for safety and proper use. Save this manual for future reference.

DVRM6_SetupGuide

ii www.supercircuits.com

CAUTION

Operate this recorder only in environments where the temperature or humidity is within

the recommended range. Operation in extreme temperatures or humidity levels may cause

electric shock and shorten the life of the product.

LEGAL NOTICE

Supercircuits products are designed to meet safety and performance standards with the use of specic

Supercircuits authorized accessories. Supercircuits disclaims liability associated with the use of non-

Supercircuits authorized accessories.

The recording, transmission, or broadcast of any person’s voice without their consent or a court order is

strictly prohibited by law.

Supercircuits makes no representations concerning the legality of certain product applications such as

the making, transmission, or recording of video and/or audio signals of others without their knowledge

and/or consent. We encourage you to check and comply with all applicable local, state, and federal laws

and regulations before engaging in any form of surveillance or any transmission of radio frequencies.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Supercircuits, Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

No part of this document may be reproduced or distributed in any form or by any means without the

express written permission of Supercircuits, Inc.

11000 N. Mopac Expressway, Building 300, Austin, TX 78759

Sales/Support: 1.800.335.9777 | Fax: 1.866.267.9777Table of Contents

1Wireless 4 Channel DVR Network Setup Guide

Table of Contents

SECTION 1 Networking your DVR ............................................2

1.1 Features ...................................................2

1.2 Install the client software ......................................2

1.3 Using SVMultiClient ..........................................3

1.3.1 Connect on an internal network . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.3.2 Connect through an air card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3.3 Viewing your cameras ...................................5

1.3.4 Conﬁguring your DVR ...................................6

2www.supercircuits.com

SECTION 1: NETWORKING YOUR DVR

SECTION 1

Networking your DVR

1.1 Features

The DVRM6 has three networking options:

• Connection to an internal network. If you are connecting the DVMR6 to a network with a router,

use the Ethernet port under camera input #1. This is also known as the ‘uplink’ port. This will allow

the DVR to obtain an IP address from your network’s router or DHCP server.

• Direct computer connection. If you are connecting your computer directly to the DVRM6, attach

your network cable to any network port OTHER THAN the one below the Vin1 BNC connector.

These inputs are tied to the DVRM6’s internal router. Ensure that your computer is set to

automatically obtain an IP address. The DVRM6 will assign your computer a new direct IP address.

You may have to recongure the your computer network settings for the adjustments to take place.

• Cellular connection. Ensure your DVR has the latest router rmware for the greatest air card

support. We strongly recommend a static IP address for the greatest reliability and ease of use.

Currently, we recommend the Sprint U727 and the Verizon U760. Insert the card into either the

USB1 or USB2 port.

1.2 Install the client software

Client software for access to the DVRM6 with a Microsoft® Windows operating system is available

through the Supercircuits.com DVRM6 product page.

3Wireless 4 Channel DVR Network Setup Guide

SECTION 1: NETWORKING YOUR DVR

1. Open the internet Supercircuits.com web page.

2. Using the Keyword Search feature, nd and open the DVRM6 Product page.

3. Click the PRODUCT RESOURCES tab near the bottom of the page.

4. Download and install the Client Software (SVMultiClient) and MapWinGIS ActiveX package on a

Windows operating system. You may need to restart your computer to complete the installation.

1.3 Using SVMultiClient

Open the SVMultiClient application.

1.3.1 Connect on an internal network

1. Click the Search icon in the lower left corner of the SVMultiClient window. The DVR will show up on

the list.

2. Click Connect and the DVR will appear in the list on the left panel.

4www.supercircuits.com

SECTION 1: NETWORKING YOUR DVR

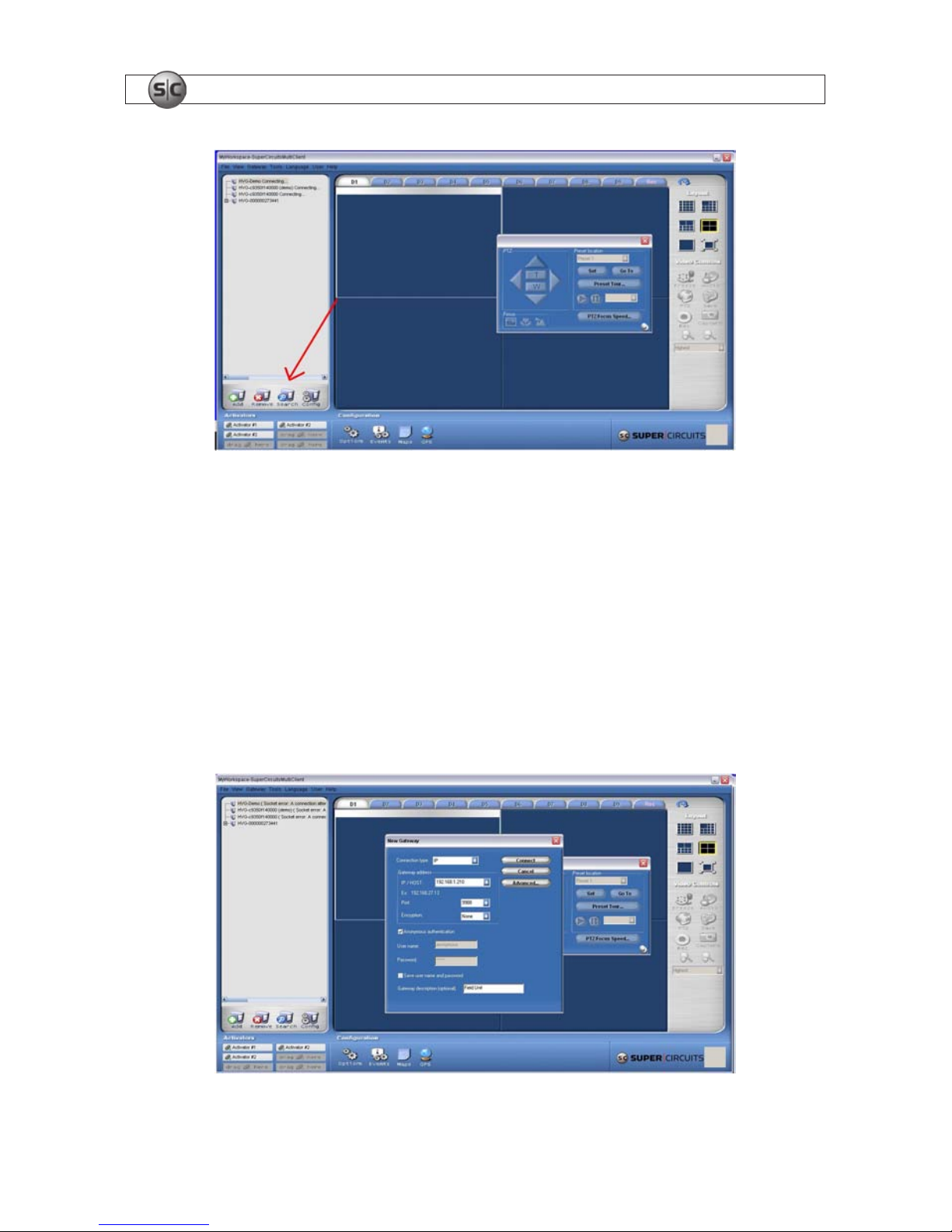

1.3.2 Connect through an air card

If connecting to the DVRM6 through an air card, you will need to manually enter the IP address of the

card.

1. Acquire the IP address of the card from the service provider. The IP address is similar to:

68.27.21.xxx

2. Click the Add icon in the left corner of the CMS software.

3. In the New Gateway popup window, enter the IP address of the air card.

5Wireless 4 Channel DVR Network Setup Guide

SECTION 1: NETWORKING YOUR DVR

4. In the Port eld, enter 9988.

5. In the Encryption eld, select None.

6. If not already selected, click Anonymous authentication to select it.

7. Click Save user name and password to select it.

8. Enter a Gateway description in the entry eld if needed. You can give the unit a description for

easy identication, such as “Field Unit #1” or “Corner of Main and 5th”.

1.3.3 Viewing your cameras

1. When the DVR is added, a + sign will appear to the left of the entry in the left frame. Click + to

expand your cameras and/or sensors.

2. Click and drag the cameras over into your work space. You can arrange them in any order you wish.

6www.supercircuits.com

SECTION 1: NETWORKING YOUR DVR

3. If you have a PTZ camera, highlight that camera, then click the “PTZ” button on the right hand side

of the window. The PTZ control screen will appear and allow you to control the camera.

1.3.4 Conguring your DVR

To make adjustments to the DVR, highlight the target DVR in the list to the left, and then click the Cong

icon in the lower left corner of the window.

7Wireless 4 Channel DVR Network Setup Guide

SECTION 1: NETWORKING YOUR DVR

Internet Explorer will open to the IP address of the DVR. In the USER NAME and PASS WORD elds,

enter svuser and the password is servconf (lower case) then click Logon.

After making any changes, you must update then reboot the system. Normally, the cameras will

disappear from your workspace and the DVR on the list will say ‘connecting’ for a few minutes. The

cameras will re appear when connection is re established.

NOTE: For more information about the DVRM6, see the DVRM6 User Manual, available for

download that Supercircuits.com DVRM6 product page under the PRODUCT RESOURCES tab.
