Super Circuits MDVR-14 Manuale utente

MDVR-14

SOLID STATE MINI DVR

User Guide

Contents

1. SAFETY PRECAUTIONS..........................................................................................................3

2. FEATURES................................................................................................................................4

3. PACKING LIST...........................................................................................................................4

4. MDVR DESCRIPTION.............................................................................................................. 5

5. BASIC CONFIGURATION.........................................................................................................7

6. DISPLAY....................................................................................................................................8

7. OPERATION.............................................................................................................................9

8. MAIN MENU...........................................................................................................................10

8.1 DATE/ TIME.......................................................................................................................12

8.2 Motion Detection ...............................................................................................................13

8.2 Schedule Record...............................................................................................................11

8.3 Manual Record...................................................................................................................12

8.4 Playback...........................................................................................................................13

9. SD CARD ..............................................................................................................................14

10. FACTORY DEFAULT............................................................................................................14

11. KEY LOCK............................................................................................................................14

12. SPECIFICATION...................................................................................................................15

1. SAFETY PRECAUTIONS

Read the Safety Precaution Guide through carefully before operating the product, to prevent unsafe use of this product.

WARNING: The triangle symbols above are intended to alert the user to the presence of un-insulated

dangerous voltage.

CAUTION: This symbol is intended to alert the user to presence of important operating and maintenance

(Servicing) instructions in the literature accompanying the appliance.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other

European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household

waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and

electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. The recycling of materials will help to conserve natural

resources. For more detailed information about recycling of this product, please contact your local city ofﬁce ,

your household waste disposal service or the shop where you purchased the product.

Do not Plug and unplug the power cord, it may result product malfunction. Do not install the product

in an environment where the humidity is high. Do not drop the product or subject the unit to physical

shocks. Never place the product in direct sun light can cause damage. Do not spill liquid on the

product. If the unit gets wet, wipe it dry immediately. Do not install the product in extreme temperature

conditions. Operating temperatures are between 5 degrees C (41 degrees F) ~ 45 degrees C.(113 degrees

F). Provide ventilation when operating under high temperatures.

2. FEATURES

• DVR supports NTSC or PAL video, and auto detects video loss.

• DVR comes with MPEG4-SP video and Audio Codec G.726. Supports 1 channel video, 1 channel audio recording and

playback .

• Uses SD card with FAT16/ 32 ﬁle system and ASF ﬁle format.

• You can view video using popular PC media players.

• Record time for 1 GB SD card is about 5 hours when DVR is set at Standard Quality, NTSC: 30 fps @ 352 x 240 and

PAL: 25 fps @ 352 x 280.

• Motion detection, schedule recording mode with independent video size, quality, and frame rate set up.

• Adjust motion sensitivity to control different types of motion triggers.

• Disable controls with key lock function.

• Use a 110AC/ DC power adaptor for indoor or nickel metal hydride (NiMH), alkaline batteries for remote applications.

3. PACKING LIST

Check to make sure all of the items shown below are included in your Recorder Kit. If something is missing, contact

your dealer as soon as possible.

Mini DVR Recorder Audio/ Video Cable X 2

Power Adaptor

Input: AC 100~240V

Output: DC 5V/ 1A

Manual

Quick Guide

4. MDVR14 DESCRIPTION

4.1 Front View

1. Power LED: Power Indicator

2. Play LED: Play Indicator

3. Menu/ Lock LED: Menu/ Key Lock indicator

4. Rec LED: During recording, record indicator will ﬂash

slowly. On playback recording is disabled and the

record indicator will ﬂash quickly.

Warning: LED’s 2, 3, 4, will ﬂash quickly when recording

is disabled, causes can be SD card is not

inserted, full, damaged, or setup to read-only.

Press Enter button to reset warning.

5. Stop/ Exit Button: Stop Record or Play/ Exit Menu

6. Rec Button: Manual Record Button

7. & 8. Up Button/ Down Button: Moves cursor Up/

Down for menu selection.

9. & 10. - Left button/ + Right Button:

In Playback - Press to Fast Forward or Fast Rewind.

In Pause - Press - L & +Rbuttons to Step Playback.

In Menu - Press to Increase/ Decrease Setup values.

11. Enter Button: Use to enter Sub-Menu.

Use to reset warning.

Use to Key Lock/ Unlock: During monitoring or playback - Simultaneously pressing Enter ﬁrst and then

the Menu button to switch Key Lock ON or OFF.

12. Display Button: Display status Line ON or OFF.

13. Play Button: Press to Playback.

Pause Button: During playback - Press to Pause, press again to

play.

14. Menu Button: Press to enter Menu Setup.

4.2 Side View

(15) AV IN: Audio/ Video Input: 3.5 mm jack for audio/ video line in.

(17) POWER: DC/ Battery Power Switch

(18) DC 5V IN: 5V/ 1A Power Input

(19) SD Card Slot

(20) Battery Compartment Cover

(16) AV Out: Audio/ Video Output 3.5 mm jack for audio/ video line out.

5. BASIC CONFIGURATION

1. Power: Use the power adaptor supplied, or a nickel metal hydride (NiMH), alkaline batteries.

2. Connect the camera to AVI input, MDVR will auto detect NTSC/ PAL video.

3. Switch to DC when using the supplied power adaptor or switch to BATT when using battery.

Use (256MB or above) SD Memory Card.

Remove SD card when the power is off or when in the main menu display. Removing the SD card under any

other circumstance will corrupt stored video or data.

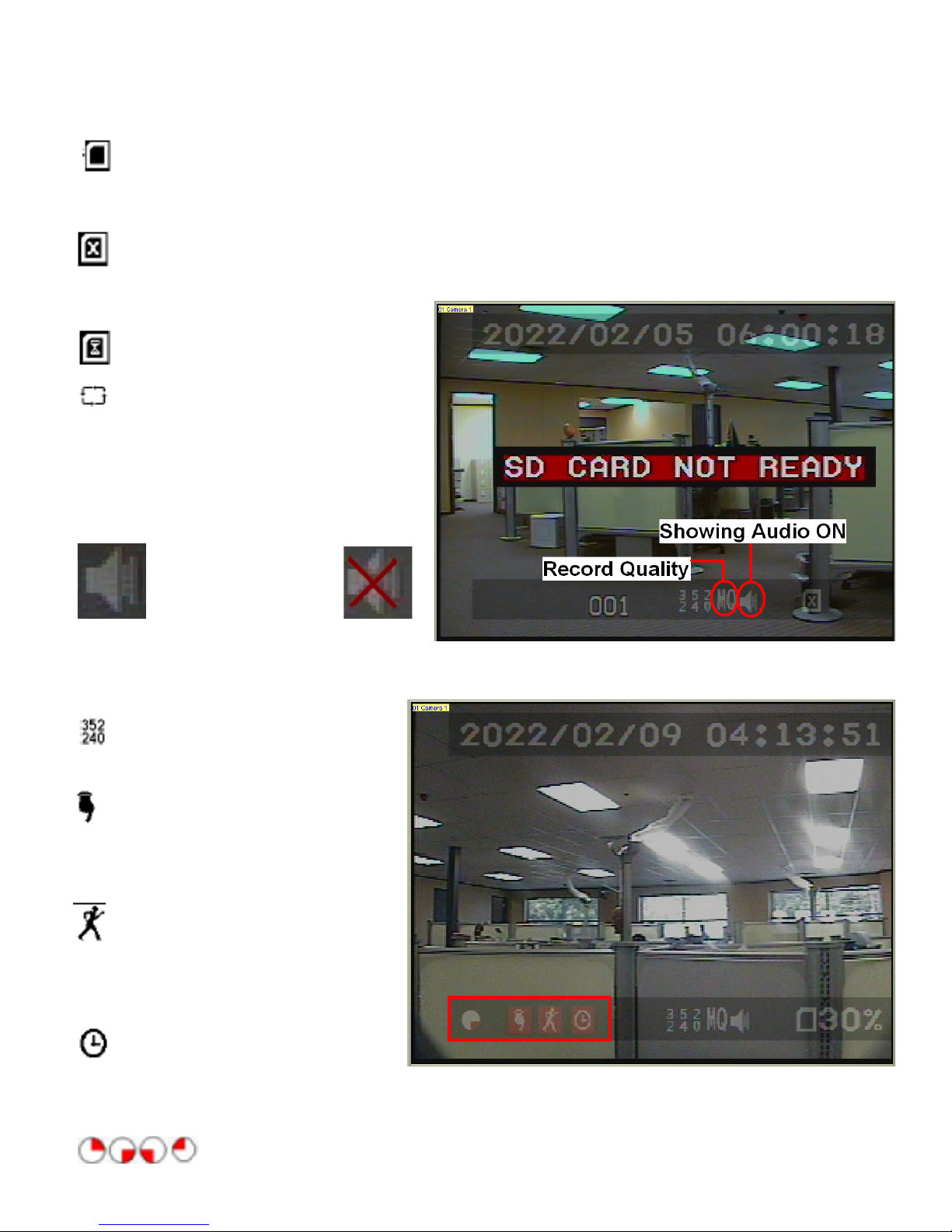

6.2.1 Record status

1. MQ Symbol is your Record Quality indicator.

a. H - High b. M - Med c. L - Low

2. Icon indicates audio is ON.

Audio is OFF.

3. 2022/02/05 06:00:18 is the Date and Time and and should be reset as soon as possible. See setting date and time in

this manual.

4. Record Resolution, set resolution see

setting resolution in this manual.

5 Manual Record: Press (Rec) button, to

enter manual recording or record on

demand. For more information, see

Manual Recording in In this manual.

6 Motion Detection Record: Icon represents

you are recording only when images are in

motion. See Motion Recording in this

manual.

7. Schedule Recording: MDVR is in

schedule mode will record only on set

dates and time. See Schedule

Recording in this manual.

8. Indicates recording is in progress.

6.0 DISPLAY

6.2.1 SD Card status

1. “ ” icon displayed in bottom right hand

corner on the status line, indicates that SD card

is operating normally.

2. This icon indicates SD card is not inserted

or is malfunctioning. Try re-formatting before

proceeding.

3. SD card is in self test.

4. SD disk is full and in overwrite. Old data is

being overwritten.

7.2 Power On

1. Switch power to DC when using the supplied power

adaptor or switch to BATT when using battery.

NOTE: MDVR will auto-detect external peripherals.

While booting up the REC LED will start

ﬂ a shing indicating SD card test.

2. After powering on, the system will start displaying live

video. If the SD card is not installed you will get a

message telling you the “SD CARD IS NOT READY”

and Play, Menu, and Rec LED’s will start ﬂashing.

NOTE: If the MDVR experiences power loss the system will automatically return to the previous settings.

7.0 OPERATION

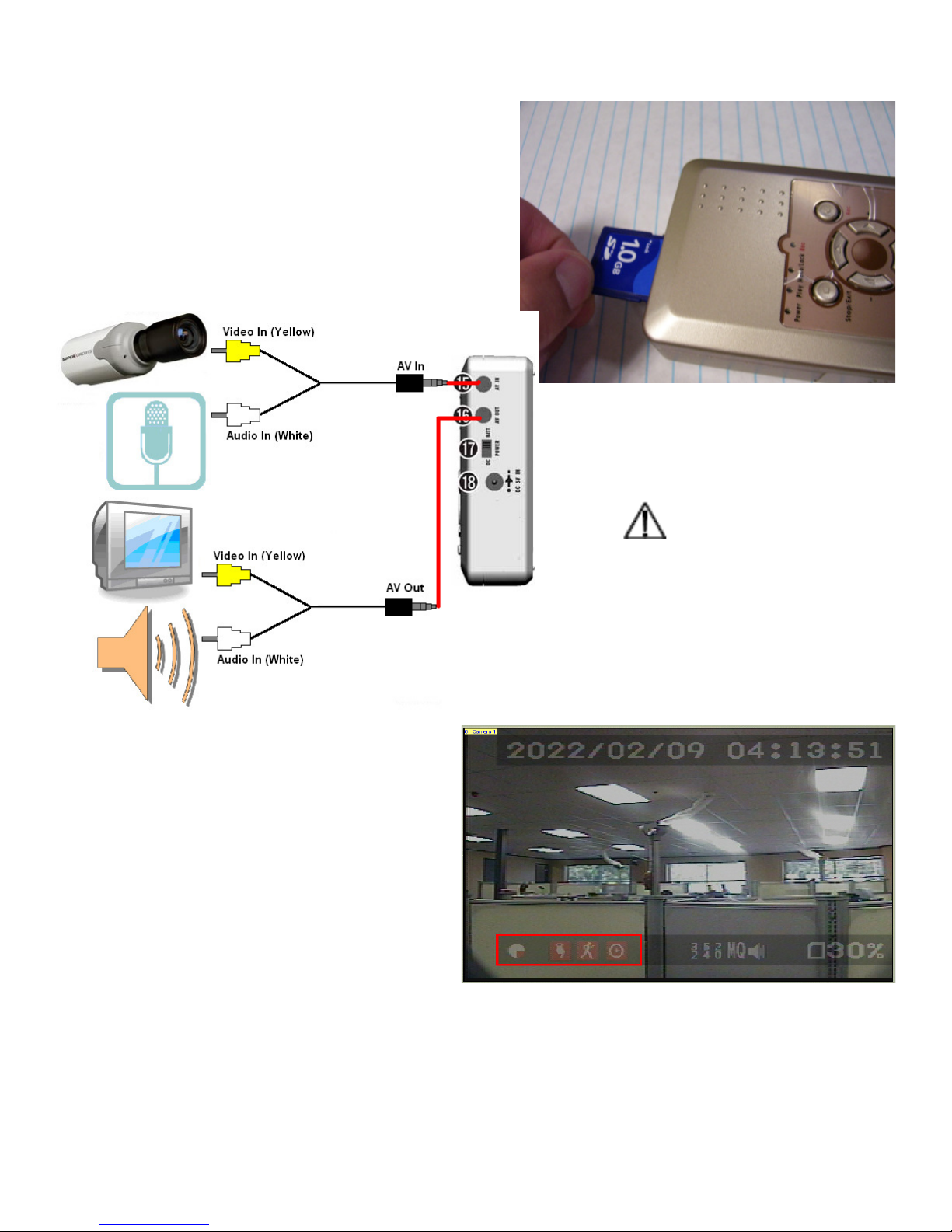

7.1 HARDWARE SETUP

1. Insert SD card into MDVR14 SD slot while the unit is off.

2. Plug AV IN cable in MDVR14 AV IN and connect camera to

yellow AV IN cable connector. Connect AV OUT cable to

MDVR14 AV OUTPUT and connect yellow AV OUT cable

to monitor.

NOTE: When recording, record indicator will ﬂash slowly.

NOTE: Do not remove the SD card

while booting, this will corrupt your

video recording.

8.0 MAIN MENU

8.1 DATE/ TIME SETUP

1. Press Menu button and you will see the MAIN MENU. Select

SET DATE/ TIME and press the ENTER button on MDVR14.

Set time and date by using + and - buttons to change date

values and Up/ Down buttons to scroll up and down. Press

Exit button to exit menu.

8.2 MOTION SETUP

1. Move cursor to SET MOTION DETECT and press the

ENTER button. Select SET MD AREA by pressing

ENTER button. Select MODE type by pressing Play/Pause

button.

MODE TYPES:

FUNCTION

DESCRIPTION

CELL EDIT

Single detection cell setup

(detection/ non-detection)

DEL BLOCK

Disable a block.

DEL ALL

Disable all cells.

ADD BLOCK

Enable a block.

ADD ALL

Enable all cells.
