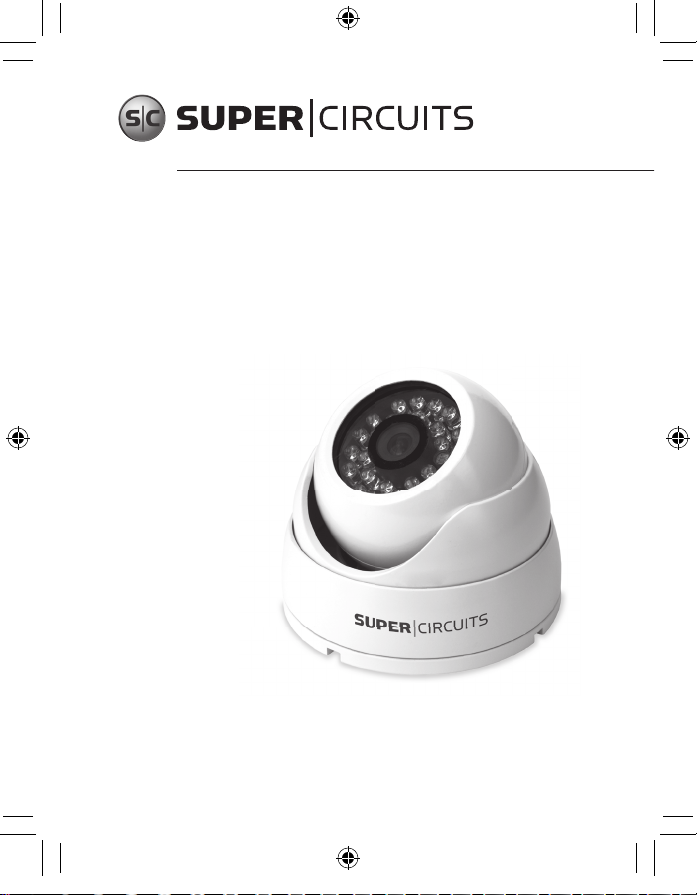

Super Circuits CD33-2 Manuale utente

Infrared Dome CCD

Camera User Manual

Products: CD33-2, CD33VF-2, CD33VFHR-2,

CD33VFW-2, CD33W-2, CD33WHR-2

Please read this manual before installing and using this camera and always follow

instructions for proper use. Please le this manual away for future reference.

CD33-2_CM

CD33W.indd 1 3/30/2010 3:19:22 PM

LEGAL NOTICE

Supercircuits’ products are designed to meet safety and performance

standards with the use of specic Supercircuits authorized accessories.

Supercircuits disclaims liability associated with the use of non-

Supercircuits authorized accessories.

The recording, transmission, or broadcast of any person’s voice without

their consent or a court order is strictly prohibited by law.

Supercircuits makes no representations concerning the legality

of certain product applications such as the making, transmission,

or recording of video and/or audio signals of others without their

knowledge and/or consent. We encourage you to check and comply

with all applicable local, state, and federal laws and regulations before

engaging in any form of surveillance or any transmission of radio

frequencies.

No part of this document may be reproduced or distributed in any form or

by any means without the express written permission of Supercircuits, Inc.

Supercircuits, Inc.,

11000 N. Mopac Expressway, Building 300, Austin, TX 78759

Sales/Support:

1.800.335.9777 | Fax: 1.866.267.9777 | www.supercircuits.com

WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

To reduce the risk of electric shock, do not

remove cover (or back). No user serviceable

parts inside. Refer servicing to qualied

service personnel.

CD33W.indd 2 3/30/2010 3:19:22 PM

iii

Infrared Dome CCD Camera User Manual

WARNINGS & CAUTIONS

WARNING

!Do not use the camera if fumes, smoke or a strange

odor is emitted from the unit, or if it seems to not

function correctly. Disconnect the power source

immediately and consult your supplier.

CAUTION



Always follow the instructions in the installation guide

when applying power. Fire and equipment damage can

occur if power is applied incorrectly. For the correct

power supply, refer to the specication sheet.

CAUTION

Do not install or operate in small, unventilated areas.

Heat build up can signicantly reduce the performance

and operating life of the product and may cause a re.

CAUTION

To prevent damage, do not drop the camera or

subject it to strong shock or vibration.

CAUTION



If installed close to a TV, radio transmitter, magnet,

electric motor transformer or audio speakers the

magnetic eld generated may interfere with or distort

the image.

CD33W.indd 3 3/30/2010 3:19:23 PM

iv www.supercircuits.com

WARNINGS & CAUTIONS

CAUTION



Whether or not the camera is used outdoors, never

point it toward the sun. Use caution when operating the

camera in the vicinity of spot lights or other bright lights

and light reecting objects.

CAUTION



Do not use the camera in extreme environments where

high temperatures or high humidity exists. Use the

camera under conditions where temperatures are

between -4°F ~ 122°F (-20°C ~ 50°C), and humidity

is below 85%.

CD33W.indd 4 3/30/2010 3:19:23 PM

Infrared Dome CCD Camera User Manual

TABLE OF CONTENTS

Table of Contents

SECTION 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Camera components . . . . . . . . . . . . . . . . . 2

1.2 Camera connections . . . . . . . . . . . . . . . . . 3

SECTION 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 What’s in the box . . . . . . . . . . . . . . . . . . . . 4

2.2 Tools you need. . . . . . . . . . . . . . . . . . . . . . 4

2.3 Installation instructions . . . . . . . . . . . . . . . 5

SECTION 3 Aiming the Camera. . . . . . . . . . . . . . . . . . . . . 11

SECTION 4 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SECTION 5 Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . 13

SECTION 6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 15

Tables

Table 1. Speciﬁcations for

CD33W-2, CD33-2, CD33WHR-2 cameras. . . . . . . . . . . . . . . . 13

Table 2. Speciﬁcations for

CD33VF-2, CD33VFHR-2, CD33VFW-2 cameras . . . . . . . . . . . 14

CD33W.indd 5 3/30/2010 3:19:23 PM

1www.supercircuits.com

SECTION 1: FEATURES

SECTION 1

Features

The CD33-2 series weatherproof, vandal resistant turret dome

cameras are ideal for exterior locations where surveillance in low-light

environments is required. These cameras include:

• Advanced image sensors for greater picture clarity

• Precision lenses to achieve the perfect view

• The ability to see in the dark with built-in IR array

• A turrent design for increased vandal resistance

CD33W.indd 1 3/30/2010 3:19:23 PM

Infrared Dome CCD Camera User Manual

SECTION 1: FEATURES

1.1 Camera components

Drop

Cable

Video 75 Ohm

12 V DC

Base

Housing Bezel

Turrent Style

Camera Housing

Focus Adjust

(VF Models)

Camera Lens

IR LEDs

CD33W.indd 2 3/30/2010 3:19:24 PM

3www.supercircuits.com

SECTION 1: FEATURES

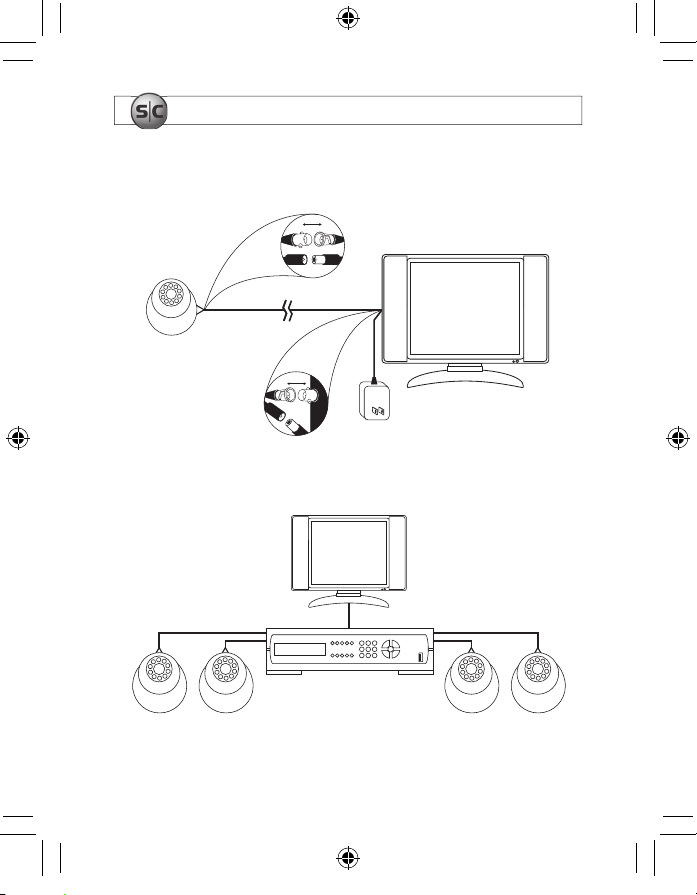

1.2 Camera connections

Single camera with monitor (above);

Multiple camera system with DVR and monitor (below)

Connect

CD33W.indd 3 3/30/2010 3:19:24 PM

Infrared Dome CCD Camera User Manual

SECTION 2: INSTALLATION

SECTION 2

Installation

2.1 What’s in the box

The camera package contains:

• Camera assembly

• Instruction manual

• Hardware kit, including four 1" screws and four wall inserts

2.2 Tools you need

To install the camera, you will need:

• Phillips #2 screwdriver

• Small blade screwdriver (for adjusting VF model cameras)

Depending on how the camera is mounted, you may also need:

• Hammer

• Drill with 3/32" and 3/16" drill bits

• 3/4" hole saw

CD33W.indd 4 3/30/2010 3:19:24 PM

5www.supercircuits.com

SECTION 2: INSTALLATION

2.3 Installation instructions

1. Separate the base from the rest of the camera assembly by

unscrewing the housing bezel.

Removal of housing bezel

2. Determine where the camera will be mounted.

3. Using the base as a template, mark the location of the four

mounting screw holes.

CD33W.indd 5 3/30/2010 3:19:25 PM
