1www.supercircuits.com CCR-1_QuickStart

CCR-1 Covert Camera System

Quick Start Guide

The CCR-1 kit includes a snake camera, alarm (reed) switch and magnet, DVR, a

MON-1 setup monitor, and associated cables and accessories.

DVR Remote Control

Video - Power

Cable Harness

Power Adapter

Audio - Video

Out

Cable

Video - In

Cable

RCA Male to

RCA Male Cable

MON-1

Setup

Monitor

Alarm

Switch

Cable

DVR

Snake Camera

and Adapter

CCR-1 System Major Components

Step 1. Connections

• insert an SD card into the DVR.

• Connect the alarm switch cable to the DVR.

• Mount the alarm switch in an appropriate location. Position the magnet close to

the switch.

• Connect the Snake camera adapter cable to the camera drop cable, and to the

RCA male video – power end of the video – power cable harness as shown

below.

Connect the other end of the video – power cable harness to the mating AV IN

and DC 12V ports on the DVR.

• Install 3 AAA batteries in the MON-1 setup monitor.

Connect one end of the RCA male to RCA male cable to the video in port on

the MON-1 setup monitor, then connect the other end of the cable to the video

(yellow RCA female) connector of the Audio - Video Out cable.

Connect the other end of the Audio - Video Out cable into the AV OUT connector

on the DVR.

Continue ➥

2www.supercircuits.com © 2010 Supercircuits, Inc. All rights reserved.

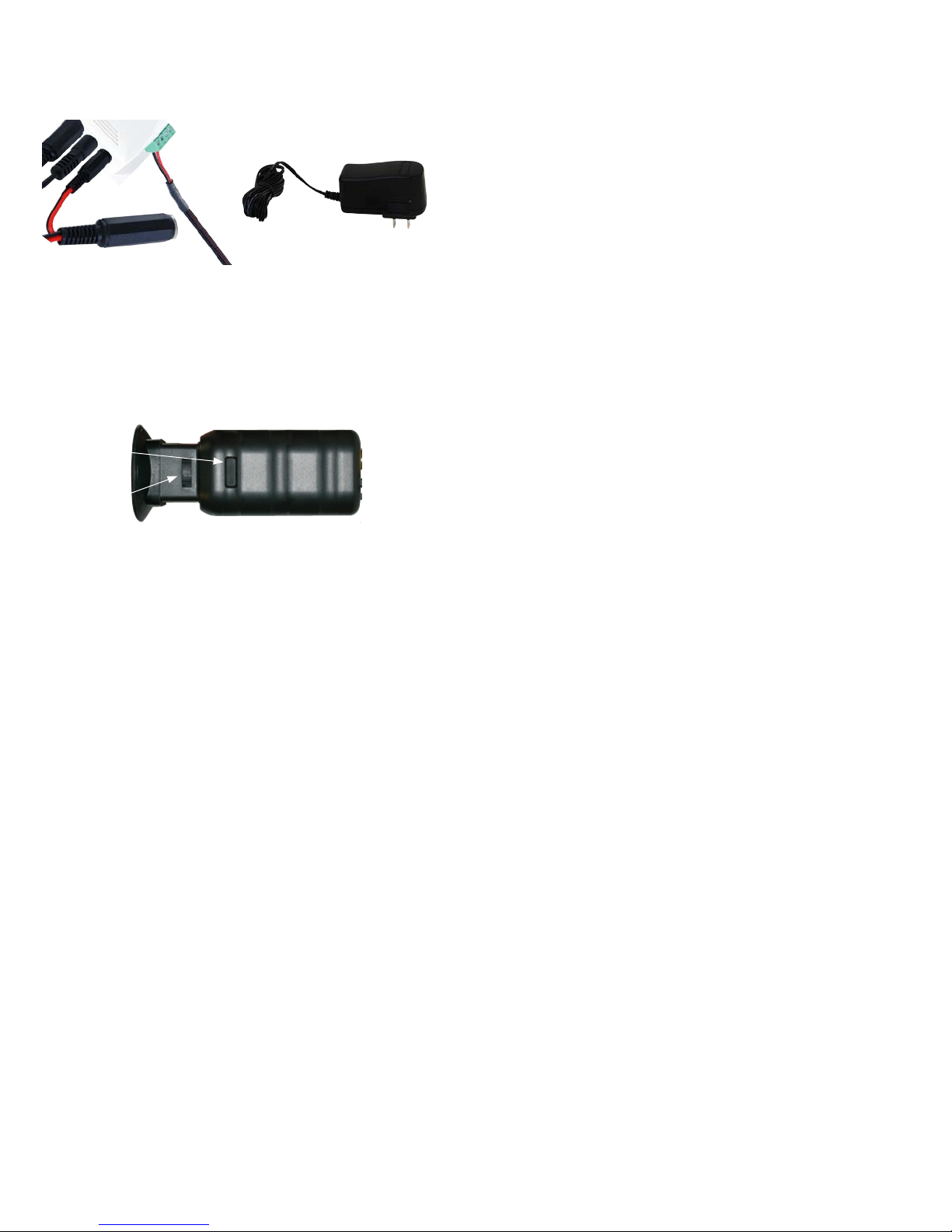

• Connect the power adapter to the power connector on the video – power cable

harness. NOTE: An additional power adapter, also include, is for powering the

DVR without using the video - power cable harness.

Step 2. Setup the DVR

• Plug the power adapter into a standard electrical outlet to power on the system.

• While pressing the (power) button on the side of the MON1 monitor, look into

the eyepiece. You should see a video image from the camera.

Power

Button

Focus

Adjust

Video In

• The DVR is pre congured for alarm contact recording. The default password

for the DVR is 0000. Note: You must use the included software to play back the

video les. You can also use the software to convert to a standard AVI format.
