Super Circuits PC177IR-8 Manuale utente

Weatherproof IR Color

Day/Night Cameras

Products: PC177IR-8, PC177IR-9, PC177IR-10,

PC177IRHR-8, PC177IRHR-9,

PC177IRHR-10

Please read this manual before installing and using this camera and always follow

instructions for proper use. Please le this manual away for future reference.

PC177IR_CM

PC177IR_CM.indd 1 2/25/2010 10:32:09 AM

ii www.supercircuits.com

LEGAL NOTICE

Supercircuits’ products are designed to meet safety and performance

standards with the use of specic Supercircuits authorized accessories.

Supercircuits disclaims liability associated with the use of non-

Supercircuits authorized accessories.

The recording, transmission, or broadcast of any person’s voice without

their consent or a court order is strictly prohibited by law.

Supercircuits makes no representations concerning the legality

of certain product applications such as the making, transmission,

or recording of video and/or audio signals of others without their

knowledge and/or consent. We encourage you to check and comply

with all applicable local, state, and federal laws and regulations before

engaging in any form of surveillance or any transmission of radio

frequencies.

Other trademarks and trade names may be used in this document

to refer to either the entities claiming the marks and names or their

products. Supercircuits, Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

No part of this document may be reproduced or distributed in any form or

by any means without the express written permission of Supercircuits, Inc.

Supercircuits, Inc.,

11000 N. Mopac Expressway, Building 300, Austin, TX 78759

Sales/Support: 1.800.335.9777 | Fax: 1.866.267.9777

WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

To reduce the risk of electric shock, do not

remove cover (or back). No user serviceable

parts inside. Refer servicing to qualied

service personnel.

PC177IR_CM.indd 2 2/25/2010 10:32:09 AM

iii

Weatherproof IR Color Day/Night Cameras

WARNINGS & CAUTIONS

WARNING

!Do not use the camera if fumes, smoke or a strange

odor is emitted from the unit, or if it seems to not

function correctly. Disconnect the power source

immediately and consult your supplier.

WARNING

Do not adjust or modify the camera’s internal circuits

or power supply modules. No user serviceable parts

exist inside. For internal settings and repairs, consult

your supplier.

CAUTION



Always follow the instructions in the installation guide

when applying power. Fire and equipment damage can

occur if power is applied incorrectly.

CAUTION

To prevent damage do not drop the camera

or subject it to strong shock or vibration.

CAUTION

Never point the camera toward the sun. Use caution

when operating the camera in the vicinity of spot lights

or other bright lights and light reecting objects.

PC177IR_CM.indd 3 2/25/2010 10:32:10 AM

iv www.supercircuits.com

WARNINGS & CAUTIONS

CAUTION



Do not install the camera or route video cables near a

TV, radio transmitter, magnet, electric motor transformer

or audio speakers. The magnetic elds generated by

these devices may interfere with or distort the image.

CAUTION

Only use the camera in areas where the

temperature and humidity are within the

recommended specications.

PC177IR_CM.indd 4 2/25/2010 10:32:11 AM

Weatherproof IR Color Day/Night Cameras

TABLE OF CONTENTS

Table of Contents

SECTION 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.1 Camera components . . . . . . . . . . . . . . . . . 2

1.2 Camera connections . . . . . . . . . . . . . . . . . 3

SECTION 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 What’s in the box . . . . . . . . . . . . . . . . . . . . 4

2.2 What you need. . . . . . . . . . . . . . . . . . . . . . 4

2.3 Installing the camera . . . . . . . . . . . . . . . . . 5

SECTION 3 Aiming the Camera. . . . . . . . . . . . . . . . . . . . . . 7

SECTION 4 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

SECTION 5 Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 1. Speciﬁcations for PC177IR-8,

PC177IR-9, PC177IR-10 . . . . . . . . . . . . . . . . . 9

Table 2. Speciﬁcations PC177IRHR-8,

PC177IRHR-9, PC177IRHR-10 . . . . . . . . . . . 10

SECTION 6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 11

PC177IR_CM.indd 1 2/25/2010 10:32:11 AM

2www.supercircuits.com

SECTION 1

Features

The PC177IR series weatherproof, IR color day/night cameras are highly

durable and easy to install. These cameras include:

• Advanced image sensors for greater picture clarity

• Ability to see in the dark with a built-in IR array

• Built-in auto IR on/off control

• Precision lenses for added clarity

• IP66-rated weatherproof case

1.1 Camera components

Video

75 Ohm

12 V DC

SECTION 1: FEATURES

Sunshield

Lens

IR LED Array

Bracket

Mounting Point

PC177IR_CM.indd 2 2/25/2010 10:32:11 AM

Weatherproof IR Color Day/Night Cameras

SECTION 1: FEATURES

1.2 Camera connections

Single camera system with monitor

Multiple camera system with DVR and monitor

Connect

PC177IR_CM.indd 3 2/25/2010 10:32:12 AM

4www.supercircuits.com

SECTION 2: INSTALLATION

SECTION 2

Installation

2.1 What’s in the box

The camera package contains:

• Camera assembly

• Bracket screws

• Instruction manual

2.2 What you need

To install the camera, you will need:

• #2 Phillips screwdriver

• Hardware to attach the mounting bracket to the mounting surface

• Mounting bracket

PC177IR_CM.indd 4 2/25/2010 10:32:12 AM

Weatherproof IR Color Day/Night Cameras

SECTION 2: INSTALLATION

2.3 Installing the camera

This procedure steps through the installation of a PC177IR camera

using the Supercircuits MB22 mounting bracket (sold separately). If you

are using a different mounting bracket, this procedure can serve as a

general guideline for installing your equipment.

1. Using the bracket mounting plate as a template, mark the location

of the holes for the mounting screws on the mounting surface.

Bracket as guide

2. Drill mounting screw holes into the mounting surface.

3. Mount the camera to the bracket.

Mounting

holes

Mounting

holes

Mounting

holes

PC177IR_CM.indd 5 2/25/2010 10:32:12 AM

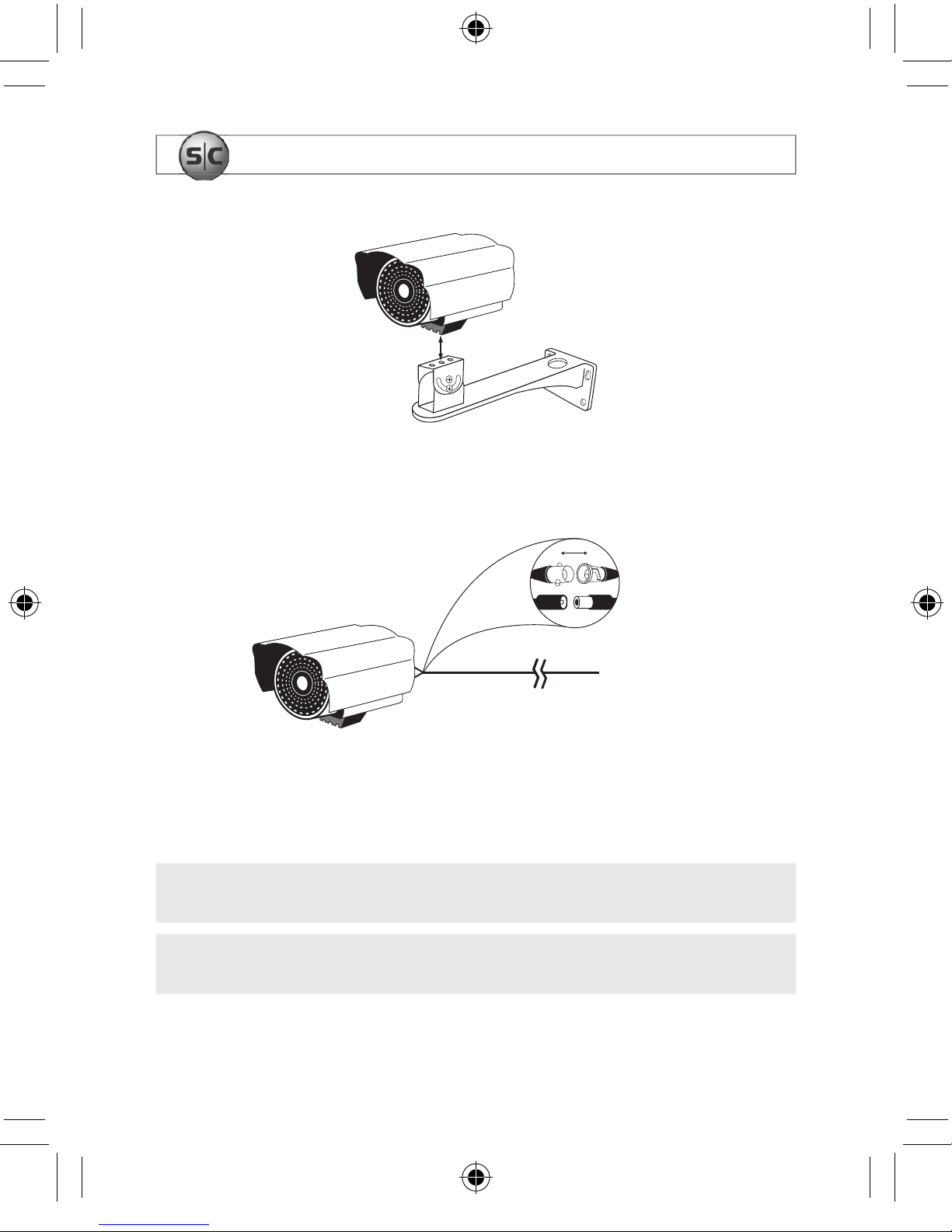

6www.supercircuits.com

SECTION 2: INSTALLATION

Camera to bracket

4. Attach the mounting bracket to the mounting surface with the

included hardware.

Cable attachment

5. Attach the BNC cable to the camera drop cable as required.

NOTE Connectors on the video/power cable are different at each end!

NOTE Connections are not weatherproof.

Connect

To DVR/Monitor

and Power

To DVR/Monitor

and Power

PC177IR_CM.indd 6 2/25/2010 10:32:13 AM
