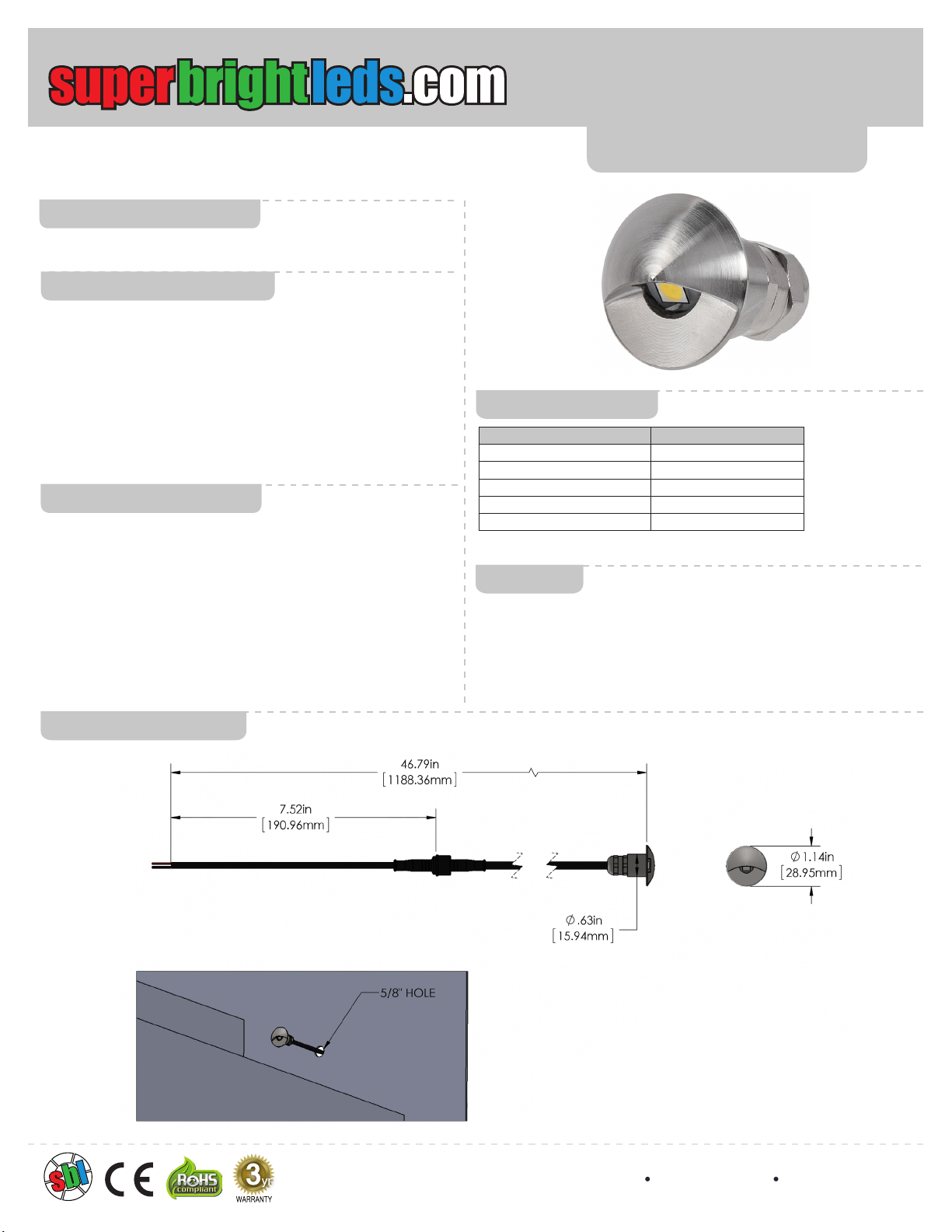

Recessed LED Step Lights

User Manual

Important: Read all instructions prior to installation. RSL-Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 07/31/2020

Included Parts

Optional Accessories

Specications

Safety and Notes

1 - step light (stainless steel or black nish)

1 - wire pigtail

RSL-6S - six light wire harness for single color light

RSL-S2M - 6.6 ft (2 m) extension harness for single color light

RSL-6RGB - six light wire harness for RGB lights

RSL-RGB3M - 9.8 ft (3 m) extension harness for single RGB light

• This product should be installed and serviced in accordance with

applicable national, state, and local building and electrical codes.

• To reduce the risk of electric shock, ensure that the main power source

and circuit breakers are switched o󰀨 before performing any installation

or wiring procedures.

• While the light is IP68 water-resistant, the connectors built into the

harness are not.

• When interconnected, each six light accessory harness will support

ve lights each instead of six.

Installation

1. Mark and drill 5/8” hole in mounting surface.

2. Make electrical connection

3. Test t light. If needed, apply silicone adhesive

to assist in securing light.

Model RSL-x

Total Power Consumption 1 Watts

Operating Voltage Range 12 VDC

Operating Temperature -4–122° F (-20–50° C)

Beam Angle 150°

Warranty 3 Years

Dimensional Drawings RSL-40K1-S shown (dimensions represent all models)

Recessed LED Step Lights

User Manual

Important: Read all instructions prior to installation. RSL-Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V0.1 07/31/2020

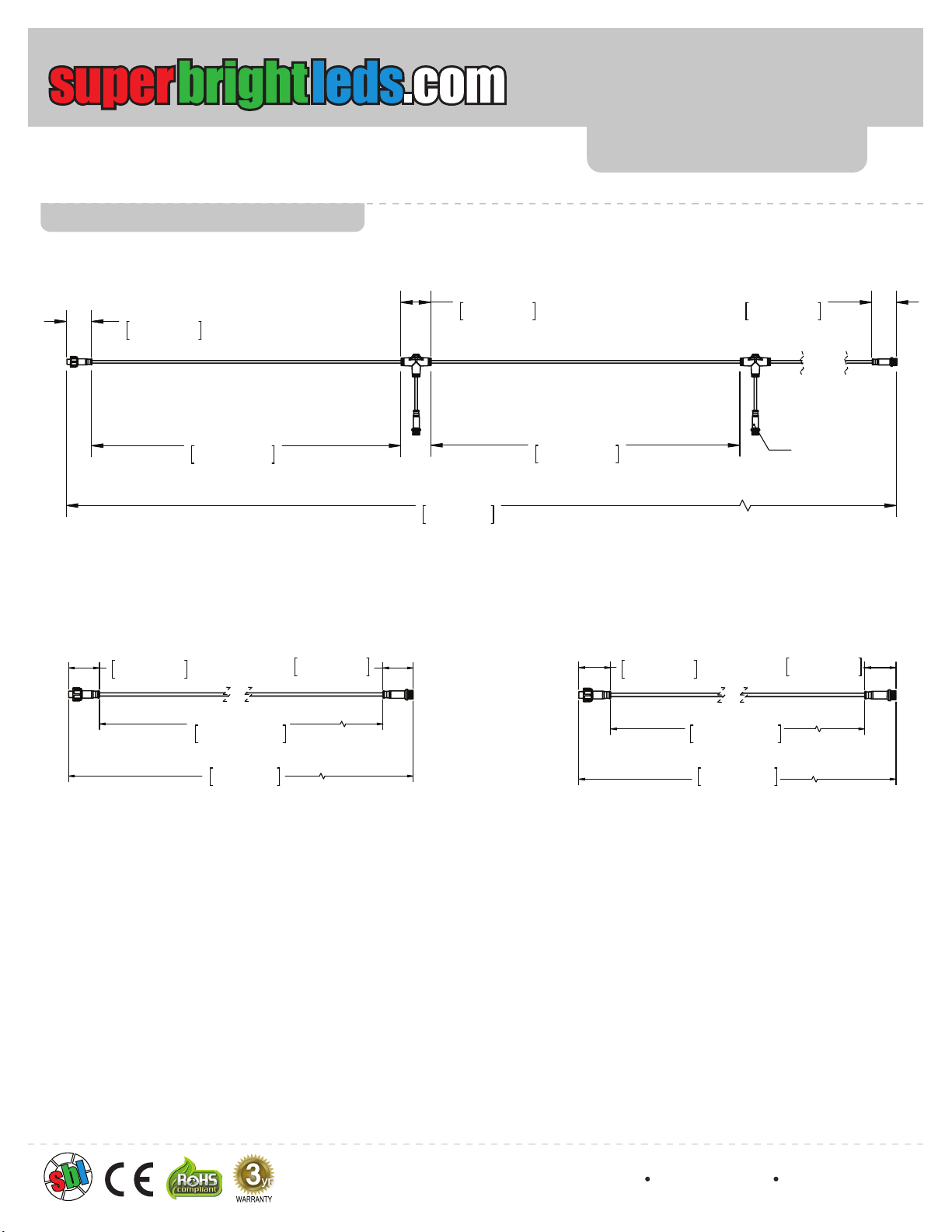

Dimensional Drawings (accessories)

RSL-6RGB (Dimensions also represent RSL-6S)

RSL-S2MRSL-RGB3M

TOTAL LENGTH

17.50in

444.50mm

1.70in

43.18mm

10ft

3048mm

17.50in

444.50mm

1.42in

36.07mm

1.39in

35.39mm

PIG TAIL

(5 total per harness)

1.39in

35.39mm

117.19in

2976.62mm

76.19in

1935.22mm

10ft

3048mm

79in

2006.6mm

1.42in

36.07mm

1.39in

35.39mm

1.42in

36.07mm
