Superbrightleds USP Series Manuale utente

Universal Switch Panel Kit

Important: Read all instructions prior to installation. USP Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 12/14/2021

User Manual

Safety and Notes

Layout / Wiring

Button Settings

Environmental Specications

Operating Temperature -40°–221° F(-40°–105° C)

• To reduce the risk of electric shock, ensure the

main power source (battery) is disconnected before

performing any installation or wiring procedures.

• Do not exceed the maximum of 60 A combined

across all output channels.

Specications

When the fuse/switch box and switch control panel are connected and powered

on, the default setting for each button will be to function as a simple on/o󰀨 switch

for the connected light or accessory.

Buttons on the switch panel can also be set to a momentary setting or a strobe

setting. This can be done by rst holding down the master on/o󰀨 button, then

holding any button until the light above that button illuminates. This process can

be repeated to cycle through the three settings as needed.

30 A ground (-)

positive (+)

30 A

20 A20 A

10 A10 A

5 A5 A

to momentary switch for dimming

whitered

to switched / ignition on power

master on/off

(turns all connected lights

and accessories on/off)

switch button

Switch Control Panel

Fuse/Switch Box

Circuit Breaker

2345678

Universal Switch Panel Kit

Important: Read all instructions prior to installation. USP Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 12/14/2021

User Manual

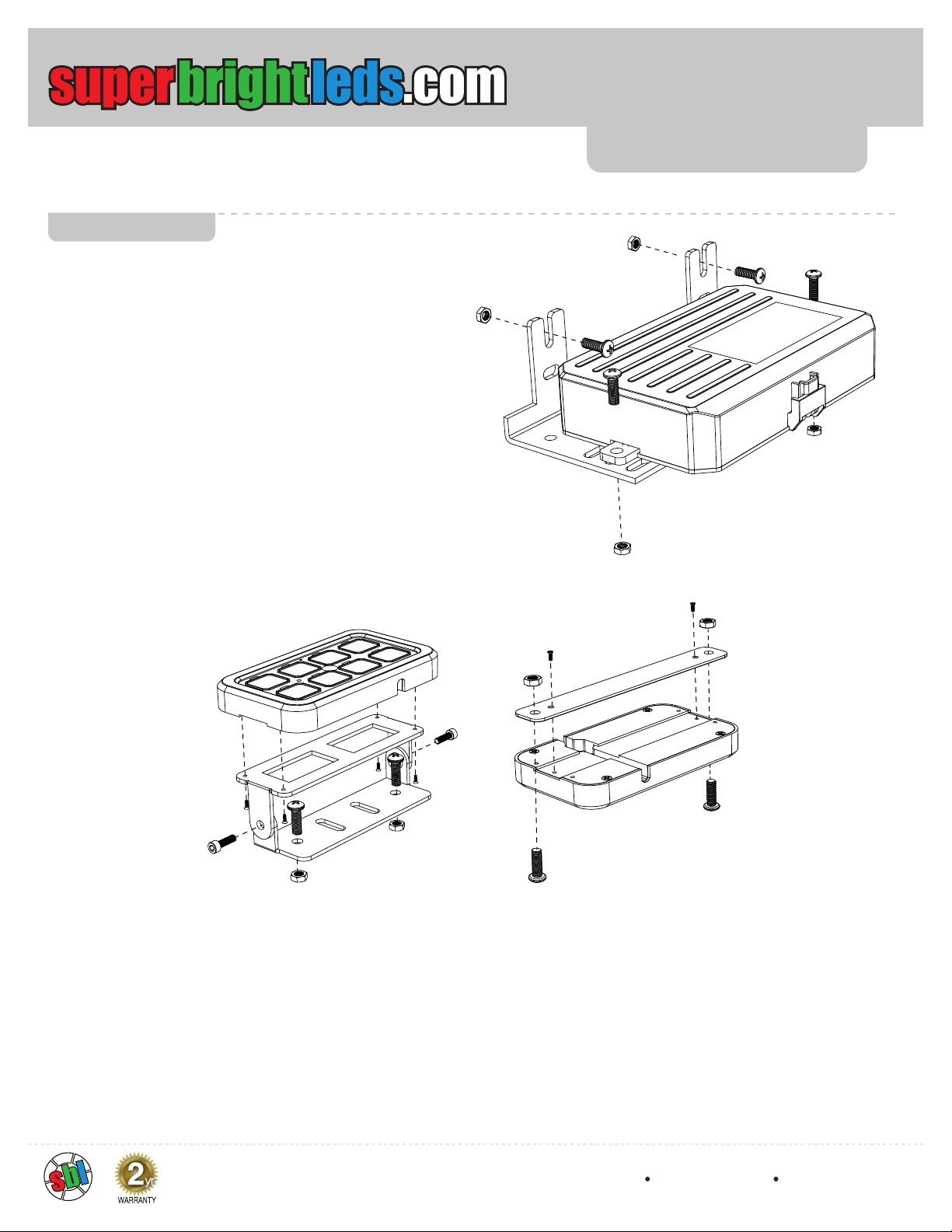

Installation

1. Disconnect vehicle battery.

2. Mount fuse/switch box to mounting bracket and mount assembly.

Note: Make sure to allow space for wiring and removal of box

cover when installing.

3. Mount circuit breaker near battery.

4. With battery disconnected, connect fuse/switch box to ground

and to circuit breaker, then connect circuit breaker to battery.

5. Connect the red power on / illumination wire to switched

(ignition on) battery power.

6. The white wire from the power on / illumination harness can

be hooked to an external momentary switch or to the positive

terminal on one of the switches on the switch panel that is set

to the momentary setting.

Note: Using switch 8 or the switch following all other connected

lights and accessories.

7. Attach either xed surface mount bracket or adjustable bracket

to switch panel and mount the panel.

8. Connect panel to wiring harness from fuse/switch box.

9. Connect lights and other accessories, starting with the highest

power rated on switch 1, then moving down the line with the

lowest power rated last.

10. Apply decals to buttons as desired.

11. Reconnect battery.
