Superbrightleds WP Series Manuale utente

LED Wall Pack

Important: Read all instructions prior to installation.

User Manual

Part Number:

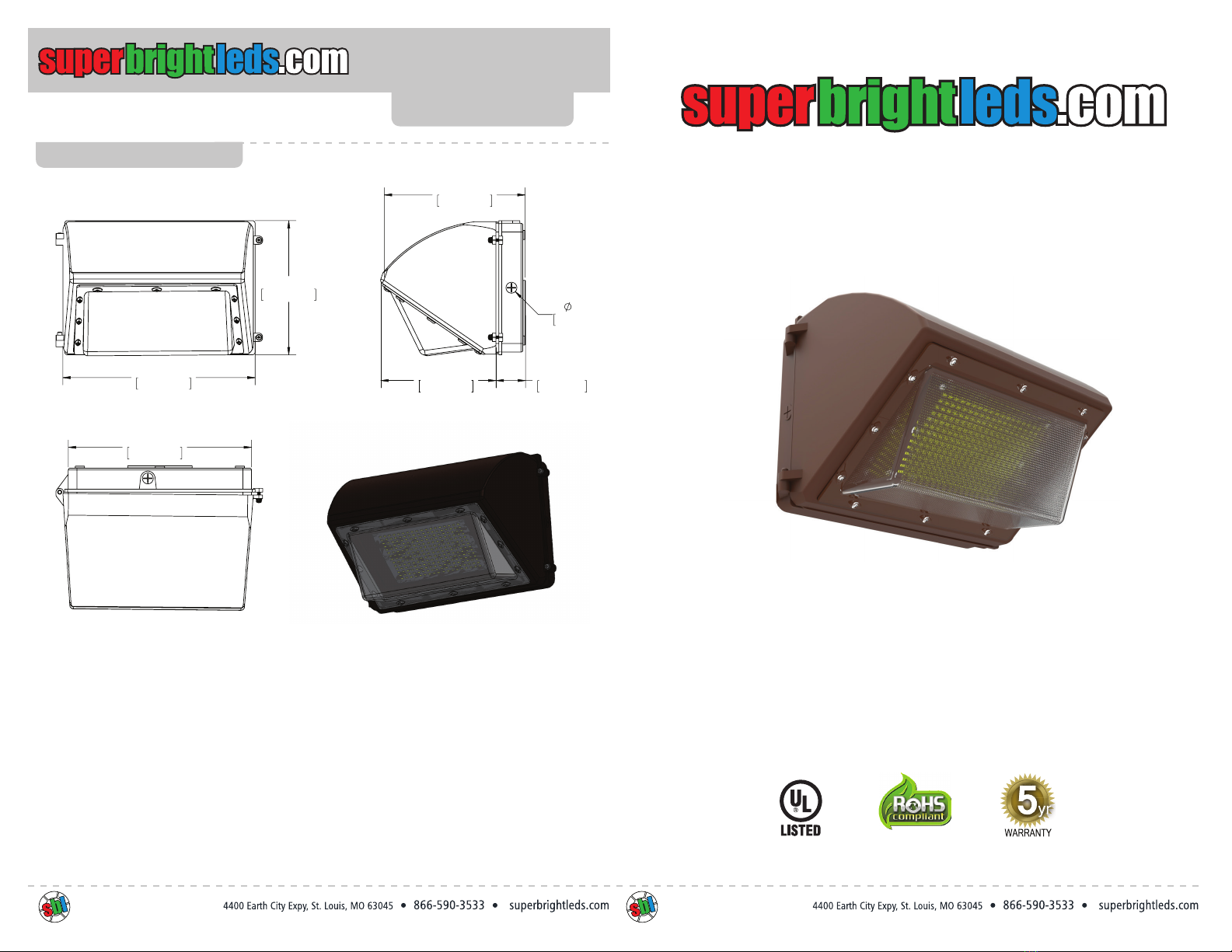

Dimensional Drawings

Rev Date: V1 03/02/2018Rev Date: V1 03/02/2018

LED Wall Pack

User Manual

Part Number:

5yr

WP Series

13.25in

336.52mm

9.25in

234.95mm

9.71in

246.58mm

.75in

19.05mm

2.03in

51.45mm

7.93in

201.51mm

12.63in

320.68mm

.75" THREADED CONDUIT ON TOP AND SIDES, AND BACK

User Manual

Part Number:

User Manual

Part Number:

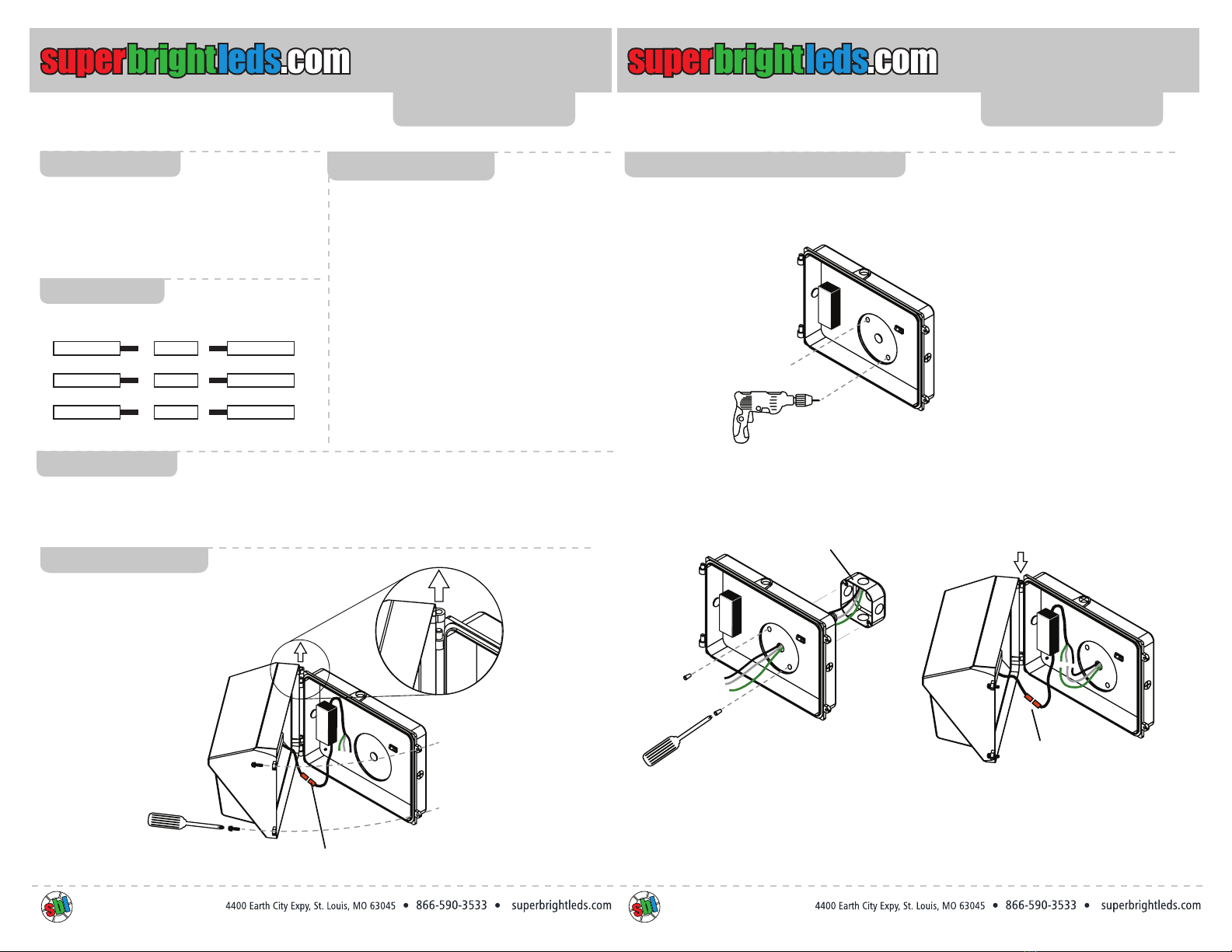

Opening Fixture

Installation I: Mounting to J-box

LED Wall Pack LED Wall Pack

Important: Read all instructions prior to installation. Important: Read all instructions prior to installation.

Included Parts

Wire Diagram

Warnings

1 - LED Wall Pack Fixture

1 - Foam Mounting Gasket

THIS FIXTURE MUST BE WIRED IN ACCORDANCE WITH THE NATIONAL ELECTRIC CODE

AND APPLICATION LOCAL CODES OR ORDINANCES. ALL WORK SHOULD BE PERFORMED

BY A QUALIFIED ELECTRICIAN.

Rev Date: V1 03/02/2018Rev Date: V1 03/02/2018

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Green

WP Series

• This product should be installed by a fully

certied electrician in accordance with local

building and electrical codes.

• Due to risk of electric shock, ensure that the

main power source and circuit breakers are

switched o󰀨 before performing any installation

or wiring procedures.

• Failure to properly support the xture during

installation may cause damage or injury, for

which the manufacturer is not responsible.

Ensure the light bracket is securely mounted

and will support the weight of the xture.

Safety Notes

WP Series

Quick connect

Terminal

Slide front cover down

on hinges

Drill bit

1/8” bit size

uick connect

Terminal

Quick connect

Terminal Conduit

J-box

Mount to J-box

Quick connect

Terminal

Slide front cover down

on hinges

Drill bit

1/8” bit size

uick connect

Terminal

Quick connect

Terminal Conduit

J-box

Mount to J-box

Quick connect

Terminal

Slide front cover down

on hinges

Drill bit

1/8” bit size

uick connect

Terminal

Quick connect

Terminal Conduit

J-box

Mount to J-box

Quick connect

Terminal

Slide front cover down

on hinges

Drill bit

1/8” bit size

uick connect

Terminal

Quick connect

Terminal Conduit

J-box

Mount to J-box
