Supermicro SSE-G48-TG4 Manuale utente

Release: 1.0a 1 / 24

Supermicro Switch Web GUI Quick Configuration Guide

Switch Web GUI Quick

Configuration

Guide for

SSE-G48-TG4

SSE-G24-TG4

SSE-X24S

SBM-GEM-X2C

SBM-GEM-X2C+

SBM-GEM-X3S+

SBM-XEM-X10SM

Release: 1.0a 2 / 24

Supermicro Switch Web GUI Quick Configuration Guide

Release: 1.0a 3 / 24

Supermicro Switch Web GUI Quick Configuration Guide

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility

for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this

manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please

see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and

without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only

under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR

CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING,

REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California,

USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total

liability for all claims will not exceed the price paid for the hardware product.

Manual Revision 1.0a

Release Date: June 28, 2012

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

Printed in the United States of America

Release: 1.0a 4 / 24

Supermicro Switch Web GUI Quick Configuration Guide

Contents

1 Introduction................................................................................................................. 5

2 Basic Configurations................................................................................................... 6

2.1 Login Page .......................................................................................................... 6

2.2 Home page.......................................................................................................... 6

2.2.1 Page Top Links........................................................................................... 7

2.2.2 Page Top LED Display............................................................................... 8

2.2.3 Left Side Tree ............................................................................................. 8

2.2.4 Middle Configuration Link Table............................................................... 9

2.3 Management IP Address..................................................................................... 9

2.3.1 Changing the Management IP Address & Gateway ................................. 10

2.4 User Accounts................................................................................................... 11

2.5 Interface MTU and Jumbo Frames................................................................... 12

2.6 Interface Description......................................................................................... 13

2.7 Stacking............................................................................................................. 13

2.8 Tracking Uplink Failure.................................................................................... 15

2.9 Saving Configurations ...................................................................................... 16

2.10 Upgrading Firmware......................................................................................... 17

2.11 Resetting to Factory Defaults............................................................................ 18

3 VLAN Configurations .............................................................................................. 20

4 Link Aggregation...................................................................................................... 22

4.1 Enabling LA Status........................................................................................... 22

4.2 Creating a Port Channel.................................................................................... 23

4.3 Associating a Port Channel with Ports.............................................................. 23

4.4 Configuring Port Channel Parameters.............................................................. 24

Release: 1.0a 5 / 24

Supermicro Switch Web GUI Quick Configuration Guide

1 Introduction

This document is designed to provide Supermicro switch users with the information required to

configure the basic functionalities on the switch through its Web graphical user interface (GUI).

Supermicro Switch products can be configured through Web browsers like Internet Explorer or

Mozilla Firefox. To manage a switch through a web browser, type in the management IP address

in the web browser address bar. This will allow you to start accessing the switch. For example, if

the management IP address of the switch is 192.168.100.102, the switch can be accessed

through the Web browser by typing http://192.168.100.102 in the address bar of the web

browser.

Note:

Most of the contents of this manual apply to these six switch products:

SSE-G48-TG4

SSE-G24-TG4

SSE-X24S

SBM-GEM-X2C

SBM-GEM-X2C+

SBM-GEM-X3S+

SBM-XEM-X10SM

In a few sections the contents differ for these products. In those specific places, the applicable

product is clearly identified. So if any particular product is not mentioned, you can assume that

the contents are valid for all six switch products.

Release: 1.0a 6 / 24

Supermicro Switch Web GUI Quick Configuration Guide

2 Basic Configurations

2.1 Login Page

When you type the switch IP address into the browser, the following Login page appears.

Fig 1: Login page

Enter the User Name and Password and click on the Login button. This User Name and

Password are both used for accessing the switch through the web for switch configuration. The

user name and password entered are validated by the switch. The default user name is ADMIN

and the default password is ADMIN.

2.2 Home page

The Home page is displayed upon successful validation of the user name and password. This

page presents links to configurations of all the features of the switch. It has the following main

components.

Page Top Links

Page Top LED Display

Left Side Tree

Release: 1.0a 7 / 24

Supermicro Switch Web GUI Quick Configuration Guide

Middle Configuration Links Table

Except for the Page Top LED Display section, the Home page is same for all the switch products

SSE-G48-TG4, SSE-G24-TG4, SSE-X24S, SBM-GEM-X2C, SBM-GEM-X2C+, SBM-GEM-X3S+

and SBM-XEM-X10SM.

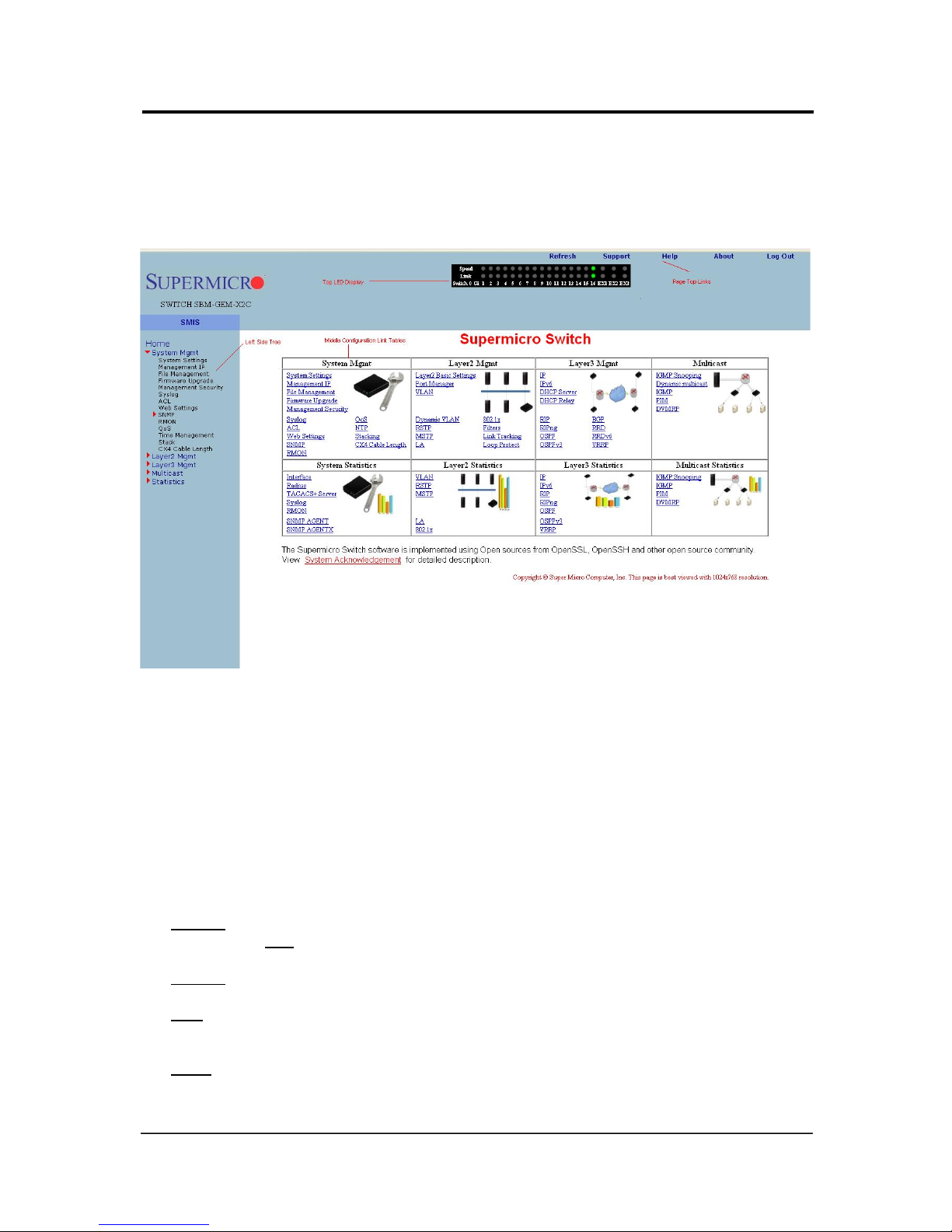

Fig 2: Home Page

2.2.1 Page Top Links

This section provides the following links:

Refresh

Support

Help

About

Logout

The Refresh link refreshes the contents of the page. Unlike the browser provided refresh button,

this link refreshes only the contents of the section in the middle of the page which has active data.

The Support link provides a link to the customer support group at Supermicro.

The Help link provides context specific help text. This link opens a new help text page relevant to

the configuration page currently being displayed.

The About link provides information about the switch itself and the firmware versions supported.

Release: 1.0a 8 / 24

Supermicro Switch Web GUI Quick Configuration Guide

The Logout link provides a means of signing out of the management web application. It returns to

the login screen requesting a user name and password for login.

2.2.2 Page Top LED Display

This part of the screen displays the port status of the switch. It displays Speed and Link status for

every port. Since the number of ports is different between each of the switches, this displays a

different number of ports for each type of switch.

For SSE-G48-TG4, it displays 48 Gigabit Ethernet ports and four 10-Gigabit Extreme Ethernet

ports.

For SSE-G24-TG4, it displays 24 Gigabit Ethernet ports and four 10-Gb Extreme Ethernet ports.

For SSE-X24S, it displays 24 10-Gb Extreme Ethernet ports.

For SBM-GEM-X2C, it displays 16 Gigabit Ethernet ports and three 10-Gb Extreme Ethernet

ports.

For SBM-GEM-X2C+, it displays 22 Gigabit Ethernet ports and three 10-Gb Extreme Ethernet

ports.

For SBM-GEM-X3S+, it displays 24 Gigabit Ethernet ports and three 10-Gb Extreme Ethernet

ports.

For SBM-XEM-X10SM, it displays 24 10-Gb Extreme Ethernet ports and one Gigabit Ethernet

port.

Note:

Ex ports configured as stacking ports will not be displayed in this LED display. The link status of

stacking ports is displayed on the stacking pages.

In stacking, a switch identifier will be displayed on top of this LED display. You can select the

stack member switch of interest in order to view the LED display for that corresponding switch.

2.2.3 Left Side Tree

The Left Side Tree display on the left side of the page provides quick access to configuration

pages. This tree is organized based on the features supported in the switch. The main features

are categorized as follows:

System Management – System based configurations

Layer 2 Management – Layer 2 Protocols including VLAN, RSTP, MSTP …

Layer 3 Management – Layer 3 Protocols including – IP, RIP, OSPF ….

Release: 1.0a 9 / 24

Supermicro Switch Web GUI Quick Configuration Guide

Multicast Management – Multicast Protocols including IGMP, PIM …

Statistics – Statistics and Counters for all the features.

This tree is displayed on the left panel on all configuration pages. This allows you to choose any

configuration page directly without requiring a return to the home page.

2.2.4 Middle Configuration Link Table

This section of the page displays a table of links to all major configurations. This table provides

links similar to those of the Left Side Tree. The configuration links are categorized based on

features of switch.

2.3 Management IP Address

Note: The default management IP address for all Supermicro switch products is:

192.168.100.102.

Switch Management IP Interface

SSE-G24-TG4

SSE-G48-TG4

The management IP address is configured for VLAN 1. All front

1-Gb ports and back 10Gb ports are configured as untagged

member ports of VLAN 1 by default.

You can connect to any of the front panel 1Gb ports or back

panel 10-Gb ports to manage the switch using the management

IP address.

SSE-X24S The management IP address is configured for a 1Gb

management Ethernet port. You can connect to this

management IP address through the 1-Gb Ethernet port.

If you prefer to manage through the 10-Gb ports, then you can

assign the desired management IP address to VLAN 1.

Alternatively, you can create any layer 3 VLAN to manage the

switch through its 10-Gb ports.

SBM-GEM-X2C

SBM-GEM-X2C+

SBM-GEM-X3S+

SBM-XEM-X10SM

Blade switches can be managed with the default IP address

through the CMM Ethernet connection. The internal

management Ethernet ports of the blade switches are

connected with the CMM Ethernet ports internally.

If you prefer to manage through the front panel Ethernet ports,

then you can assign the desired management IP address to

VLAN 1.

Alternatively, you can create any layer 3 VLAN and manage the

switch through its front Ethernet ports.

Release: 1.0a 10 / 24

Supermicro Switch Web GUI Quick Configuration Guide

2.3.1Changing the Management IP Address & Gateway

The management IP address and default gateway can be configured in the System Mgmt



Management IP page.

Fig 3: Management IP Page

IP Address Mode – For a static IP addresses use the Manual mode. To get an IP address

through DHCP, use the Dynamic mode.

IP Address – Use this setting to configure the IP address for static manual mode.

Subnet Mask – Use this setting to configure the subnet mask for the static manual mode.

Default Mgmt Gateway – The default gateway can be configured only for the SBM-GEM-

X2C, SBM-GEM-X2C+, SBM-GEM-X3S+, SBM-XEM-X10SM and SSE-X24S switches.

Note:

For the blade switches SBM-GEM-X2C, SBM-GEM-X2C+, SBM-GEM-X3S+ and SBM-XEM-

X10SM the management IP address and default gateway can also be configured from the CMM

management interface.

The management IP address and gateway of the switch are saved automatically into switch

NVRAM. Hence it is not required to save configuration in order to save the management IP and

gateway address.

Altri manuali per SSE-G48-TG4

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Supermicro Interruttore

Supermicro

Supermicro L2 Manuale utente

Supermicro

Supermicro SSH-C48Q Manuale utente

Supermicro

Supermicro SSE-X3348S Manuale utente

Supermicro

Supermicro SSE-G24-TG4 Manuale utente

Supermicro

Supermicro SSE-T7132 Series Manuale utente

Supermicro

Supermicro SSE-G48-TG4 Manuale utente

Supermicro

Supermicro L2 Manuale utente

Supermicro

Supermicro SSE-F3548S Manuale utente

Supermicro

Supermicro L2 Manuale utente

Supermicro

Supermicro SBM-25G-100 Manuale utente

Supermicro

Supermicro SuperBlade MBM-XEM-002 Manuale utente

Supermicro

Supermicro SSE-G24-TG4 Manuale utente

Supermicro

Supermicro L2 Manuale utente

Supermicro

Supermicro SSE-F3548SR Manuale utente

Supermicro

Supermicro SSH-C48Q Manuale utente

Supermicro

Supermicro SSE-G24-TG4 Manuale utente

Supermicro

Supermicro SuperBlade SBM-GEM-X2C+ Manuale utente

Supermicro

Supermicro SSE-G24-TG4 Manuale utente

Supermicro

Supermicro L2 Manuale utente

Supermicro

Supermicro SSE-X3348T Manuale utente

Supermicro

Supermicro SSE-G2252 Manuale utente

Supermicro

Supermicro Intelligent Switch Manuale utente

Supermicro

Supermicro L2 Manuale utente

Supermicro

Supermicro SSE-G24-TG4 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
