Supero SC812 Series Manuale utente
Rev. 1.0
®
SUPER
The SC812/SC812L Chassis Series
InstallationGuide
SC812/SC812L Chassis User's Guide
1-2
Table of Contents
Chapter I: Introduction ...............................................................1-3
A. Front Panel Connectors............................................................................ 1-3
B. Front Panel LED Indicators ....................................................................... 1-3
C. Front Panel LED Descriptions .................................................................. 1-3
D. Back Panel Connectors............................................................................. 1-4
E. An Important Note to the User................................................................. 1-4
Chapter 2: Installation Procedures...........................................2-1
Section 1: Installing components into the Chassis.................... 2-1
A. Removing the Top Cover from the SC812/SC812L Chassis .............. 2-1
B-1. Removing and Installing the Disk Drive............................................... 2-2
B-2. Removing and Installing the Hard Drive Disks................................... 2-3
C-1. Rail Installation ....................................................................................... 2-4
C-2. Installing Chassis Rails......................................................................... 2-5
D-1. Rack Installation for the Traditional 1U Design ................................. 2-7
D-2. Rack Installation for the Open-Rack Design...................................... 2-9
Section 2: SCSI (Super) GEM Driver Installation Instructions for the
Windows OS...................................................................................... 2-12
User's Guide Revision: Revision 1.0
Release Date: July 28, 2006
1-3
Chapter 1: Introduction
A.FrontPanelConnectors
1
2
3
4
5
6
7
8
1. Front Panel LED Indicators (See Section B Below.)
2. CD-ROM
3. Floppy
4. HDDTray
5. HDDTray
6. HDDTray
7. RJ45 (COM) Port
8. USB 2.0 Ports (x2)
B.FrontPanelLEDIndicators
1
2
3
4
5
6
7
8
1. Power Button
2. NMI
3. Reset Button
4. PWRLED
5. HDDLED
6./7. LANLEDs
8. Overheat LED
Chapter 1: Introduction
LED Button Color Condition Description
Green On System OnPower
Off System Off
Amber Blink HDD ActivityHDD
Off No Activity
Green On Linked
Blink LAN Activity
LAN1 & LAN2
Off Disconnected
Red On System OverheatOverheat
Off System Normal
C.FrontPanelLEDDescriptions
SC812/SC812L Chassis User's Guide
1-4

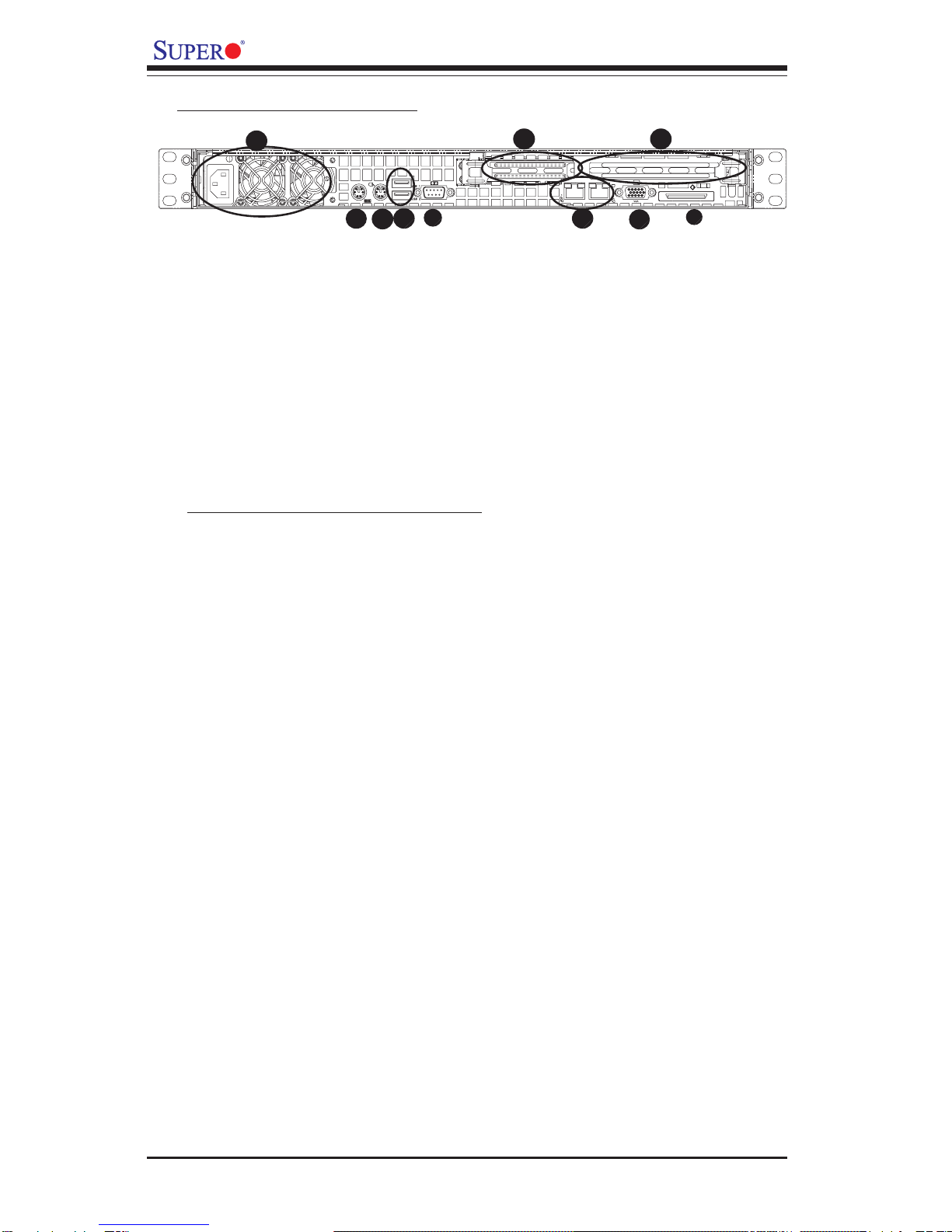

D. Back Panel Connectors
E. An Important Note to the User
All images and layouts shown in this manual were based upon the latest
chassis Revision available at the time of publishing of this manual. The
chassis you’ve received may or may not look exactly the same as the
graphics shown in this manual.
1
2
3
4
5
6
7
8
9
10
1. Expansion Slot
2. Expansion Slot
3. Power Module
4. Keyboard
5. Mouse
6. USB 2.0 Connectors (x2)
7. COMPort
8. LAN Ports (x2)
9. VGA Connector
10. SCSI External Port
2-1
Chapter 2: Installation Procedures
Section 1: Removing and Installing the components
Before installing any components, replacing chassis fans or accessing the
motherboard, you will need to remove the top cover, the front bezel, the fans
and the air shrouds from the chassis first.
A. Removing the top cover from the chassis
Procedures
1. Press the release tabs to release the top cover from its locking posi-
tion.
2. Slide the top cover out from the chassis as shown below:
3. You can now lift the side cover up and off the chassis.
1. Press the release but-
tons
Chapter 2: Installation Procedures
2. Slide the top cover out
from the chassis
SC812/SC812L Chassis User's Guide
2-2
B-1. Removing/Installing the Disk Drive
(*Note: For the SC812S-420/400/400C models.)
Procedures:
1. Press the release tab on the right side of the disk drive to release the
disk drive handle.
2. Pull the disk drive handle outwards and remove it from the chassis.
2a. Pull the handle
outwards.
(*Note: Reverse the steps listed above to install the disk drive
into the chassis.)
1. Press the release tab to
release the drive handle.
2b. Remove the
disk drive.
2-3
Chapter 2: Installation Procedures

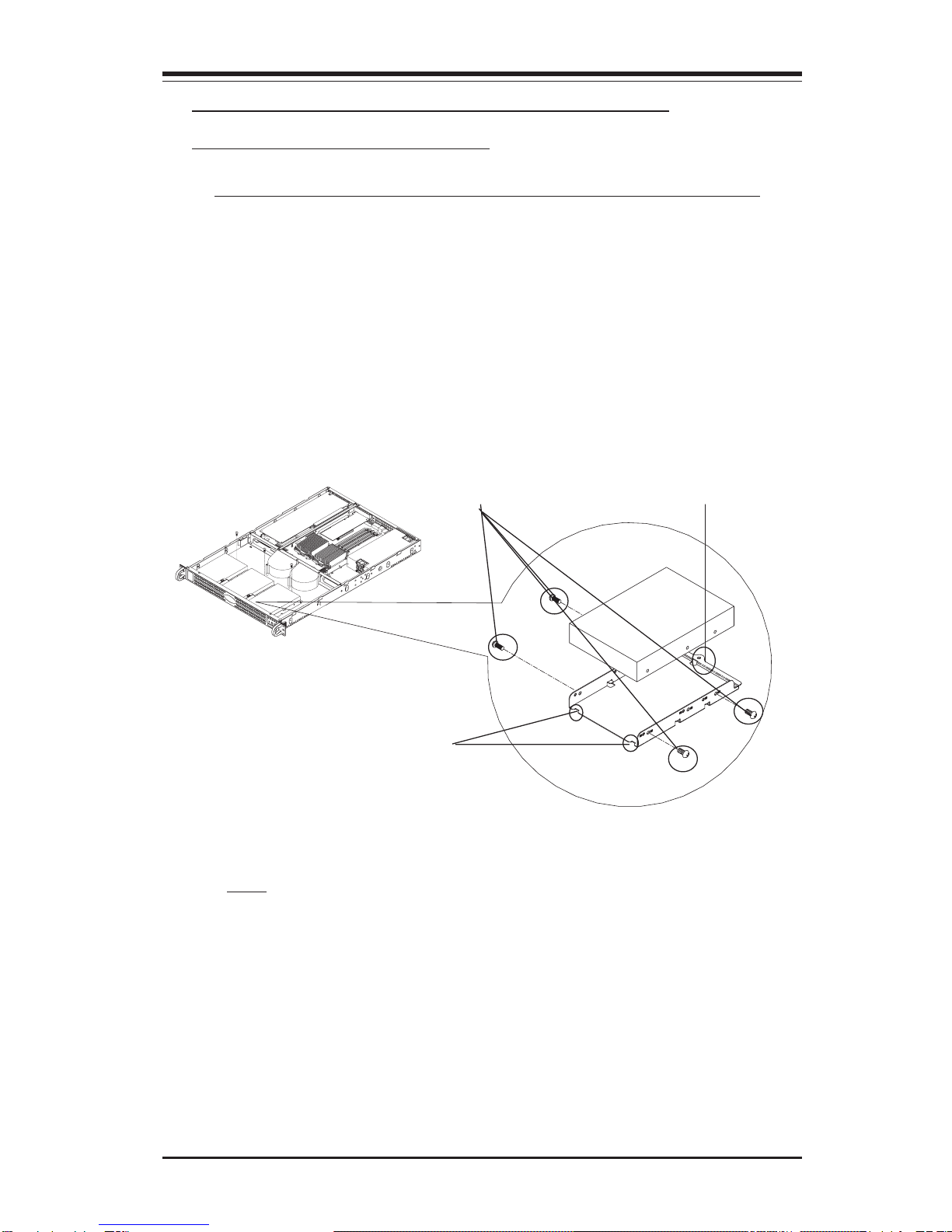

B-2. Removing/Installing the Hard Drive Disks
(*Note: For the SC812L Chassis.)
B-2 Procedures (Removing the HDD Drive from the SC812L):
1. Remove the screw as shown below to detach the HDD drive tray from
the chassis.
2. Push the HDD drive tray backwards until the drive tray is released
from the two fastening tabs located in front of the chassis.
3. Once the HDD drive tray is detached from the chassis, remove the two
screws on each side of the drive tray to separate the HDD from the drive
tray as shown below.
1. Remove the screw.
2. Push the drive tray back-
wards to release it from the
chassis.
3. Remove the screws
to loosen the HDD from
the drive tray.
(*Note: Reverse the steps listed above to install the HDD into the
chassis.)
SC812/SC812L Chassis User's Guide
2-4
You should receive two sets of rail assemblies. Each set of the rail
assembly includes the following:
1.An inner fixed chassis rail (A) that is attached to the chassis.
2. An outer fixed rack rail (B) which is affixed to the rack.
3. A sliding rail guide (C) that is sandwiched between the chassis rail
and the rack rail. The sliding guide should remain attached to the outer
fixed rack rail (B). However, the inner chassis rail(A) and the outer rack
rail (B) must be detached from each other to install.
C-1. Rail Installation
2-5
Chapter 2: Installation Procedures
Press the Locking Tab
C-2. Installing Chassis Rails (-Inner Rails)
Please make sure that the chassis covers and chassis rails are installed on
the chassis before you install the chassis into the rack.
Procedures to Install Chassis Rails
2. Press the locking tab to release the inner rail from its locking position and
pull out the inner rail from the rail assembly. (*The inner rails are to be
attached to the chassis and the outer rails are to be installed in the rack.)
Outer rail (to be installed in the
rack)
Pull out the Inner
rail (to be
attached on the
chassis)
1. Included in the shipping package are a pair of rail assemblies. In each
rail assembly, locate the inner rail and the outer rail.
Before installing the Chassis rails:
1. Enclose the chassis with chassis covers.
2. Unplug the AC power cord(s).
3. Remove all external devices and connectors.
To avoid personal injury and property damage, please carefully
follow all the safety steps listed below:
SC812/SC812L Chassis User's Guide
2-6
G
3. Locate the five holes on each side of the chassis and locate the five
corresponding holes on each of the inner rail.
4. Attach an inner rail to each side of the chassis and secure the inner
rail to the chassis by inserting five Type G screws through the holes on
the chassis and the inner rail. (Refer to Page 2-1 for the Type G screw.)
5. Repeat the above steps to install other rail on the chassis.
G
