Supero SC813 Series Manuale utente

Rev. 1.0b

SUPER

The SC813/SC813M Chassis Series

InstallationGuide

SC813/813M Chassis User's Guide

1-2

Table of Contents

Chapter I: Introduction ...............................................................1-3

A. Packing Lists............................................................................................... 1-3

B. Front Panel LED Indicators ....................................................................... 1-4

C. SC813/SC813M Chassis Specifications ................................................. 1-5

D. SC813/SC813MPower Supply Specifications........................................ 1-6

Chapter 2: Installation Procedures...........................................2-1

Section 1: Installing components into the SC813 Chassis....... 2-1

A. Removing the top Cover of the SC813 Chassis .................................. 2-1

B. Accessing the SCA Drive Tray to Install a Hard Drive....................... 2-2

C. Rail Installation........................................................................................... 2-3

D. Installing the Slide Assemblies into the Rack ....................................... 2-4

E. Installing the Chassis into the Rack........................................................ 2-5

Section 2: Appendix A: SCSI (Super) GEM Driver Installation

Instructions for Windows OS............................................................ 2-6

1-3

Chapter 1: Introduction

Chapter 1- Introduction

A. Packing Lists

A-1 The SC813 chassis

The SC813 chassis contains the following:

One (1) Slim CD ROM Drive [CDM-TEAC-24(B)]

Four (4) SCA 1" drive trays [CSE-PT39-(B)]

One (1) Slim 3.5" floppy drive [FPD-TEAC-S(B)]

Two (2) 100mm Blowers [FAN-0059]

One (1) Cold-swappable 500W power supply [PWS-0048]

One (1) Power supply backplane [CSE-PT813-PD520 for the SC813T/S-500

Series]

One (1) Power supply backplane [CSE-PT813-PD524 for the SC813T/S-500C

Series]

One (1) 4-port SATA backplane [CSE-SATA-813 (*for 813T)]

One (1) 4-port SCSI backplane [CSE-SCA-813S (*for 813S)]

The accessory box contains the following:

One set of motherboard screws

One set of drive screws

One set of HDD (hard disk drive) screws

One (1) AC power cord

Rail Packaging includes:

One pair of rear inner slides to be installed on the chassis

One pair of outer slides to be installed in the rack

Two pairs of short brackets to be used on the front side of the outer slides

(Note: One pair of short brackets include screw threads, and the other pair

do not. Use the only pair that will fit into your rack.)

One pair of long brackets to be used on the rear side of the outer slides

Optional Kits include:

The SC813 Series:

RiserCards[CSE-RRIU-X]

Low Profile Riser Cards [CSE-RRIU-XLP]

Front Bezel [CSE-PTFB-813(B)]

The SC813C Series:

Riser Cards (64-Bit) [CSE-RRIU-X]

Riser Cards(32-Bit) [CSE-RR32]

Front Bezel [CSE-PTFB-813(B)]

SC813/813M Chassis User's Guide

1-4

A-2 The SC813M chassis:

The SC813M chassis contains the following:

Four (4) SCA 1" drive trays [CSE-PT39(B)]

One (1) 350W Power Supply [PWS-042-24] (for the 350W Series)

One (1) 300 W Power Supply [PWS-0054] (for the 300W Series)

One (1) 420 W Power Supply [PWS-0053] (for the 420W Series)

Three (3) 40mm Fans [FAN-0061] (in the 300W & 350W Series)

Four (4) 40mm Fans [FAN-0061] (in the 420W & 500W Series)

One (1) 4-port SATA backplane [CSE-SATA-813] (*for the 813MT Series)]

One (1) 4-port SCSI backplane [CSESCA-813S] (*for the 813MS Series)]

The accessory box contains the following:

One set of motherboard screws

One set of drive screws

One set of HDD (hard disk drive) screws

One (1) AC power cord

(SC813/SC813M Front Panel)

LAN2

LAN1 PWR On

Reset SW

PWR SW

B.FrontPanelLEDIndicators

One pair of outer slides to be installed in the rack

Two pairs of short brackets to be used on the front side of the outer slides

(Note: One pair of short brackets include screw threads, and the other pair

do not. Use the only pair that will fit into your rack.)

One pair of long brackets to be used on the rear side of the outer slides

HDD

Rail Packaging includes:

One pair of rear inner slides to be installed on the chassis

Optional Kits include:

The SC813M Series:

Riser Cards(64-Bit) [CSE-RRIU-X] or Riser Cards(32-Bit) [CSE-RR32-1U]

Front Bezel [CSE-PTFB-813(B)]

1-5

Chapter 1: Introduction

C. Specifications of the SC813/SC813M Chassis

C-1. Specifications of the SC813 Chassis

C-2. Specifications of the SC813M Chassis

Model SC813S-500/500C SC813T-500/500C

Form Factor 1U Rackmount 1U Rackmount

CPU Support Dual Xeon Processors Dual Xeon Processors

Max.

Motherboard Size

ATX 12” x 13” ATX 12” x 13”

Expansion Slots 2/1 2/1

SCA or HD Bays Four 1”hot-swap Ultra

320/160 SCSI drive bays

(SAF-TE Compliant)

Four 1”hot-swap SATA bays

Front Side USB

Port &COM port

Optional Optional

Floppy/CD-ROM Yes/Yes Yes/Yes

Power Supply 500W cold-swap PS 500W cold-swap PS

Cooling System Two 100mm blower fans Two 100mm blower fans

Dimension

(W x H x D)

17.2” x 1.7” x 25.6”

(437mm x 43mm x 650 mm)

17.2” x 1.7” x 25.6”

(437mm x. 43mm x 650mm)

Weight 35 lb.

(15.9 kg)

35 lb.

(15.9 kg)

Optional Kits Riser Cards, Front Bezel Riser Cards, Front Bezel

Model SC813MS-350C SC813MT-350C

Form Factor 1U Rackmount 1U Rackmount

CPU Support Dual Xeon Processors Dual Xeon Processors

Max.

Motherboard Size

ATX 12” x 10” ATX 12” x 10”

Expansion Slots 1 1

SCA or HD Bays Four 1”hot-swap Ultra 320/160

SCSI drive bays (SAF-TE

Compliant)

Four 1”hot-swap SATA bays

Front Side USB

Port & COM port

Yes Yes

Floppy/CD-ROM No/No No/No

Power Supply 420W/350W/300W PS 420W/350W/300W PS

Cooling System Three (3) 40mm blower fans Three (3) 40mm blower fans

Dimension

(W x H x D)

17.2” x 1.7” x 19.9”

(437mm x 43mm x 505.5 mm)

17.2” x 1.7” x 19.9”

(437mm x 43mm x 505.5 mm)

Weight 30 lb.

(13.6 kg)

30 lb.

(13.6 kg)

Optional Kits Riser Card, Front Bezel Riser Card, Front Bezel

SC813/813M Chassis User's Guide

1-6

D. Power Supply Specifications of the SC813/SC813M Chassis

D-1. Power Supply Specifications of the SC813 Chassis

D-2. Power Supply Specifications of the SC813M Chassis

Power Supply Spec SC813

Mfr. Model # SP502-IS

Mfr. Part # PWS-048

Rated AC Input Voltage 100-240V AC

Rated Input Frequency 50-60 Hz

Rated Input Current 10A (115V)

5A (230V)

Rated Output Power 500W

Maximum rated BTU 2750 BTUs/Hr

Nominal Output Vlotage

+3.3V 20A

+5 20A

+12 36A

-5 N/A

-12 1A

+5Vsb 2A

Serial # 300W Series 350W Series 420W Series

Mfr. Model # SP302-IS FSP350-60IU SP423-IS

Mfr. Part # PWS-0054 PWS-042-24 PWS-0053

Rated AC Input Voltage 100-240V AC 100-240V AC 100-240V AC

Rated Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz

Rated Input Current 6A (115V)

3A (230V)

Rated Output Power 300W 350W 420W

Maximum rated BTU 1841 BTUs/Hr

Nominal Output Vlotage

+3.3V 15A 20A 18A

+5V 15A 25A 18A

+12V

15A 20A 15A

+12V

15A N/A 15A

+12V

N/A N/A 18A

+12V

total

20A 20A 32A

-5V N/A 0.3A N/A

-12V 1A 0.8A 1A

+5Vsb 2A 2A 2A

2-1

Chapter 2: Installation Procedures

A. Removing the top cover from the chassis

Before installing any components, replacing chassis fans or accessing the

motherboard, you will first need to remove the top cove from the chassis.

Procedures

1. Press the release tabs to release the top cover from its locking posi-

tion.

2. Slide the top cover out from the chassis as shown below:

3. You can now lift the side cover up and off the chassis.

Press the release buttons

Chapter 2: Installation Procedures

Section 1: Installing Components into the SC813

Chassis

Slide the top cover out

from the chassis

SC813 Chassis User's Guide

2-2

B. Accessing the SCA Drive Tray and Installing a Hard

Drive

To install the SCA drive into the chassis, you need to first remove the SCA

drive tray from the chassis so that the SCA drive can be installed in.

Procedures

1. Press the release tab to release the SCA drive tray from its locking

position.

2. Pull the SCA drive tray out from the chassis as shown below:

Pull out the SCA drive

tray from the chassis

Press the

release Tab

3. Remove the two screws that attach to the both sides of the dummy tray,

and take out the dummy tray as shown below:

Remove the

screws

Take out the dummy tray

4. Slide a hard drive disk (HDD) into the SCA drive tray, and secure the

HDD to the tray with three screws on each side of the tray as shown

below:

Secure the HDD with 3

screws on each side

of the tray

Slide HDD into the tray

5. Once the HDD is securely placed into the SCA tray, you can install the

SCA drive tray back to the chassis.

2-3

Chapter 2: Installation Procedures

C. Rail Installation

C-1 Installing Inner Slides

Procedures

1. Locate the right inner slide, (-the slide that will be used on the right side

of chassis when facing the front panel of the chassis).

2. Align the four(4) square holes on the right inner slide against the hooks

on the right side of the chassis as show below on the left.

3. Securely attach the slide to the chassis with two M4 flat head screws

and repeat the steps 1-3 to install the left inner slide to the left side of the

chassis.

Rail Packaging includes:

*One pair of inner slides to be installed on the chassis,

*One pair of outer slides to be installed in the rack,

*Two pairs of short brackets to be used on the front side of the outer slides

(Note: One pair of short brackets include screw threads, and the other pair

do not. Use the only pair that will fit into your rack.),

*One pair of long brackets to be used on the rear side of the outer slides

Four(4) hooks on the right

side of the chassis

Four 4 square holes on

the right inner slide

C-2 Installing Outer Slides

1. Measure the distance from the front rail of the rack to the rear rail of the

rack.

2. Attach a short bracket to the rear side of the right outer slide, and a long

bracket to the front side of the right outer slide as shown above on the

right.

3. Adjust the short and long brackets to the proper distance so that the

chassis can snugly fit into the rack.

4. Secure the slides to the cabinet with screws. Repeat steps 1-4 for the

left outer slide.

Slide the long bracket into

the short bracket

Adjust the distance

between the brackets

two M4 screws

SC813 Chassis User's Guide

2-4

1. After you have installed the short and long brackets to the outer slides,

you are ready to install the whole slide assemblies (-outer slides with short

and long brackets attached) to the rack. (See the previous page.)

2. Use M5 screws and washers to secure the slide assemblies into the

rack as shown below:

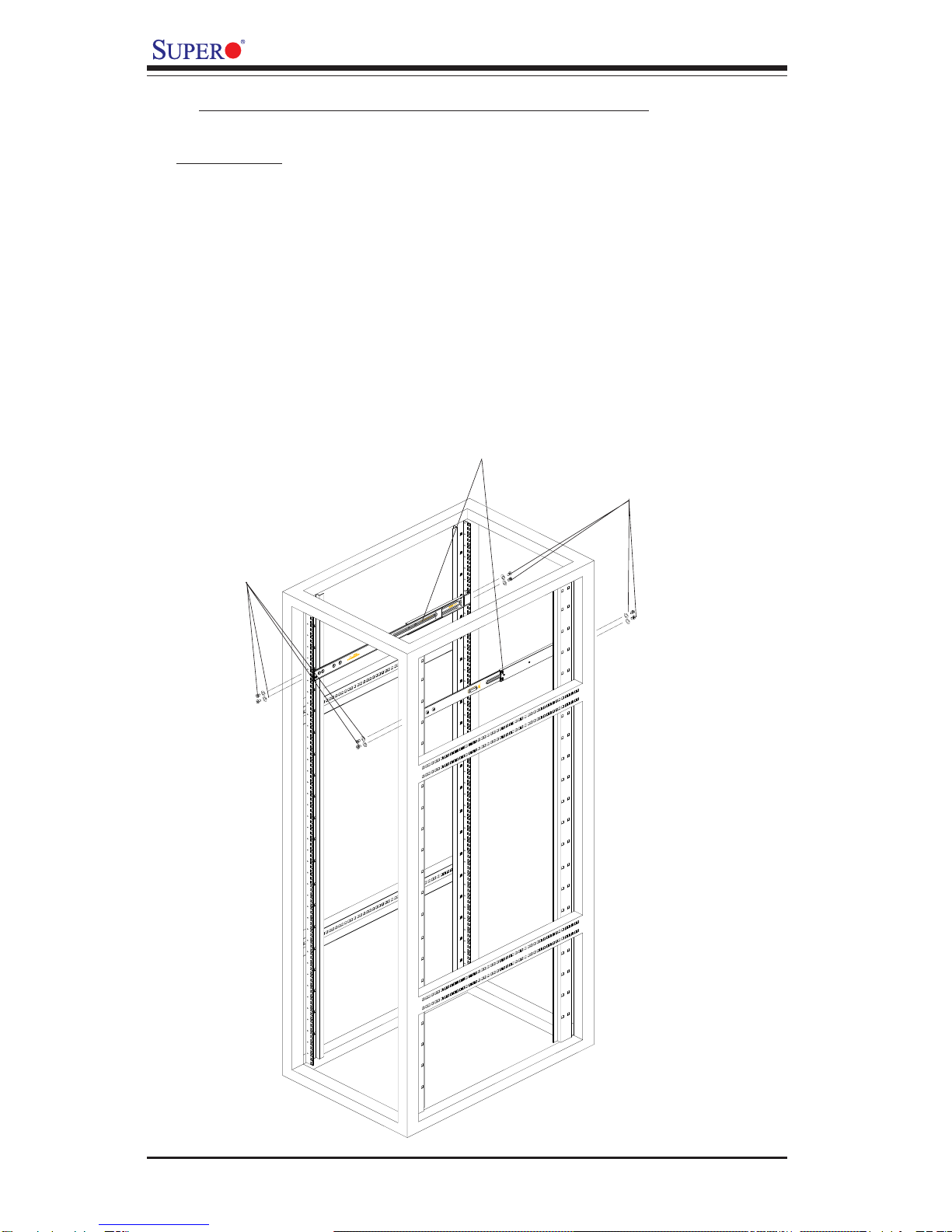

C-3 Installing the Slide Assemblies to the Rack

Procedures

Slide assemblies (-outer slides with

Secure the Slide

assemblies to the

rack with screws

and washers

M5 screws & washers

long & short brackets attached)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Supero Telaio

Supero

Supero SC836TQ-R800V Manuale utente

Supero

Supero Supero SC512 Series Manuale utente

Supero

Supero SC748S-R1000B Manuale utente

Supero

Supero SC502 Series Manuale utente

Supero

Supero SC847BE1C series Manuale utente

Supero

Supero SC742 Manuale utente

Supero

Supero SC510 Series Manuale utente

Supero

Supero SC512F-280 Manuale utente

Supero

Supero SC113 Series Manuale utente

Supero

Supero SC812 Series Manuale utente

Supero

Supero SC848 Series Manuale utente

Supero

Supero SC101i Manuale utente

Supero

Supero Supero SC733 Series Manuale utente

Supero

Supero SC742i Manuale utente

Supero

Supero CSE-101 Manuale utente

Supero

Supero SC847J SAS2 Series Manuale utente

Supero

Supero SC836A-R1200B SC836E1-R800BSC836E1-R800V Manuale utente

Supero

Supero SC747TQ-R1400B Manuale utente

Supero

Supero SC847A-R1400LPB Manuale utente

Supero

Supero SC523L-410B Manuale utente

Supero

Supero SC847J Series Manuale utente

Supero

Supero Supero SC512 Series Manuale utente

Supero

Supero SC835TQ Manuale utente

Supero

Supero SC113TQ-R700CB Manuale utente

Manuali Telaio popolari di altre marche

Advantech

Advantech IPC-623 Series Manuale utente

IMC Networks

IMC Networks iMcV/18 Manuale utente

Chenbro

Chenbro RB13804N4WFT Manuale utente

Lenovo

Lenovo ThinkSystem SR665 V3 Manuale utente

Wuntronic

Wuntronic PCI4DRQ Manuale utente

EtherWAN

EtherWAN EMC400 Manuale utente

Overland Storage

Overland Storage SnapSAN S1000 Guida

Philips

Philips LC4.1E A Manuale utente

Supermicro

Supermicro SCF418 Series Manuale utente

Chenbro

Chenbro RM437 Series Manuale utente

Pickering

Pickering 40-914 Manuale utente

HP A7503-S Istruzioni per il montaggio

Supermicro

Supermicro SC823MTQ-R700LPB Manuale utente

SilverStone

SilverStone RMS08 Series Manuale utente

NI cRIO-FRC II Manuale utente

Pickering

Pickering 65-200 Manuale utente

Allied Telesis

Allied Telesis AT-MMCR18 Manuale utente

Hisense

Hisense MSD6586 Manuale utente
