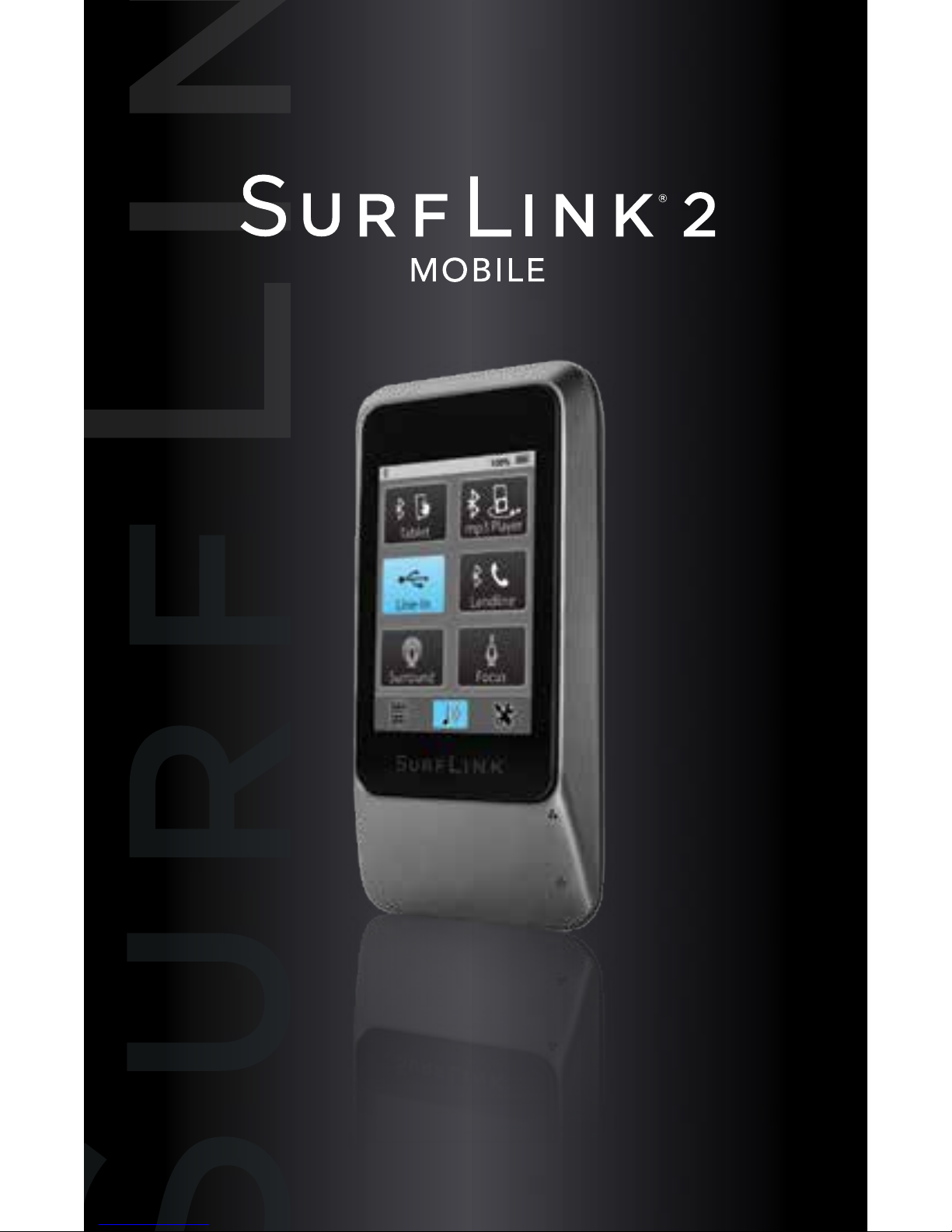

SurfLunk Mobile 2 Manuale utente

OPERATIONS MANUAL

Table of Contents

Introduction 5

Basic Use 6

Getting Started 11

Power Button 11

Touch Screen Display 11

Volume Up Button 13

Volume Down Button 13

Micro-USB Jack 13

Built-In Microphones 15

Performance Overview 15

Operation 16

Adjusting Settings in your Hearing Devices 16

Streaming Cell Phone Calls 18

Call Waiting 22

Streaming Audio 23

Streaming Bluetooth Landline Phone Calls 26

Tools 30

Bluetooth Features 30

Manage Paired Bluetooth Devices 34

Brightness 37

Syncing Hearing Devices 37

Choose Features for SurfLink Mobile 41

Remote Layout 44

Language 46

Settings Lock 47

Display Options 48

Phone Options 49

General Options 50

Additional Information 53

Accessories 53

Bluetooth Overview 56

Required Information 57

FCC Information 59

Introduction

SurfLink Mobile is designed to interface with your

wireless hearing devices in multiple ways:

• As a cell phone streaming device

• As an audio streaming device from:

– Bluetooth devices

– Line-in input via the micro-USB jack

– Built-in omni (“Surround”) and directional

(“Focus”) microphones

• As a remote control to make hearing device

setting adjustments

Streaming – Audio or sound transmitted wirelessly

from SurfLink Mobile to your hearing devices.

Basic Use

1. Power Button

• Long press and hold (5 seconds) powers on or

powers off SurfLink Mobile

• Short press and release wakes or hides display

while SurfLink Mobile powered on

2. Touch Screen Display – Press and release on touch

screen buttons to make selection

3. Volume Up Button – Press and release to increase

sound levels

4. Volume Down Button – Press and release to

decrease sound levels

5. Micro-USB Jack

• Recharging via Battery-Charging cable

• Streaming audio from the Line-In cable

6. Built-In Microphones – For use in streaming audio

as an assistive listening device

Basic Use

To Sync your Hearing Devices with SurfLink Mobile:

1. See page 37 for more details

To Pair a Bluetooth device (including cell phones)

with SurfLink Mobile:

1. See page 30 for more details

To Operate Remote Control:

1. Select lower left icon to navigate to

Remote screen

2. See page 16 for more details

Phone Call Screen

Remote Screen

100%

Mute

SurfLink Mic

Just Talk

Swap Call

100%

HomeMute

Memory

Left

Both

Right

Disconnect

Phone Call Waiting Screen

100%

Just Talk

Mute

End Call

Swap Call

SurfLink Mic

Incoming Call

Connect

5557635432

Handset Incoming Call

If only SurfLink Mic is available

100%

Disconnect

SurfLink Mic

Mute

If both Just Talk and

SurfLink Mic are available

100%

Disconnect

Just Talk

Mute

SurfLink Mic

100%

Disconnect

Mute

Just Talk

SurfLink Mic

100%

Mute

SurfLink Mic

Disconnect

Mute highlighted,

SurfLink Mic greyed out

Mute highlighted,

Just Talk and SurfLink Mic greyed out

100%

Disconnect

Just Talk

Mute

SurfLink Mic

Handset Remote Screen

100%

HomeMute

Memory

Left

Both

Right

Favorite

Handset Call Screens

SurfLink Mic

Just Talk

SurfLink Mic

Just Talk

Connect

Disconnect

Swap Call

SurfLink Mic

100%

Ear Selection

Left / Both / Right

Memory – cycle

through available

memories

Mute / Unmute

Favorite

(varies by

hearing device) –

• Start/stop SurfLink

Media audio

streaming

• iQ Boost

• Jump to

Memory 4

• Multiﬂex Tinnitus

On/Off

• Not active

Home – reset hearing

devices to Memory 1

at power on volume

level

Basic Use

To Stream Audio:

1. Select lower middle icon to navigate to

Streaming screen

2. Only available audio inputs are displayed

3. Select desired Audio source button to highlight

and start streaming. Select highlighted button to

stop streaming.

4. Adjust streaming sound level via volume up/

down buttons on side of SurfLink Mobile

5. See page 23 for more details

Directional Mic. Graphic

No Stream Active: no button pressed. Volume Graphic

100%

mp3 Player

Focus

Surround

Line-In

Cell Phone

Tablet

Landline

mp3 Player

Computer

Television

Stereo

Other

Streaming Screen

Line-In

Surround

Focus

Tablet

Landline

Stream Active: at most, one button can be pressed.

100%

mp3 Player

Line-In

Surround Focus

Tablet

Landline

Point SurfLink Mobile

toward sound source

No hearing devices are

synced at this time

100%

mp3 Player

Line-In

Surround

Focus

Tablet

Landline

To Answer Incoming Phone Calls:

1. When incoming call is received by cell phone

connected to SurfLink Mobile, the incoming call

screen will appear

2. Accept call by selecting the Answer button

3. Decline call by selecting Do Not Answer button

4. See page 18 for more details

Basic Use

Incoming Call

5557635432

Unknown Caller

Answer

Incoming Call Remote Tab

If only SurfLink Mic is available

100%

End Call

SurfLink Mic

Mute

Phone Call Screens

If both Just Talk and

SurfLink Mic are available

100%

End Call

Just Talk

Mute

SurfLink Mic

100%

End Call

Mute

Just Talk

SurfLink Mic

100%

Memory

Home

Mute

Disconnect

Incoming Call Waiting

Incoming Call

Caller Name

XXXXXXXXXX

Do Not Answer

Hold Call

+ Answer

End Call

+ Answer

Incoming Call Waiting

Incoming Call

Caller Name

XXXXXXXXXX

Do Not Answer

Hold Call

+ Answer

End Call

+ Answer

Incoming Call

5557635432

100%

Mute

SurfLink Mic

End Call

Mute highlighted,

SurfLink Mic greyed out

Mute highlighted,

Just Talk and SurfLink Mic greyed out

100%

End Call

Just Talk

Mute

SurfLink Mic

Connect

Mute

SurfLink Mic

100%

To Make Outgoing Phone Calls:

1. Dial call on your connected cell phone

2. Once call is dialed, Phone screen appears on

SurfLink Mobile

3. See page 19 for more details

During Active Phone Calls

1. See page 19 for more details

Remote icon –

adjust hearing

devices during call

Incoming Call

5557635432

Unknown Caller

Answer

Incoming Call Remote Tab

If only SurfLink Mic is available

100%

End Call

SurfLink Mic

Mute

Phone Call Screens

If both Just Talk and

SurfLink Mic are available

100%

End Call

Just Talk

Mute

SurfLink Mic

100%

End Call

Mute

Just Talk

SurfLink Mic

100%

Memory

Home

Mute

Disconnect

Incoming Call Waiting

Incoming Call

Caller Name

XXXXXXXXXX

Do Not Answer

Hold Call

+ Answer

End Call

+ Answer

Incoming Call Waiting

Incoming Call

Caller Name

XXXXXXXXXX

Do Not Answer

Hold Call

+ Answer

End Call

+ Answer

Incoming Call

5557635432

100%

Mute

SurfLink Mic

End Call

Mute highlighted,

SurfLink Mic greyed out

Mute highlighted,

Just Talk and SurfLink Mic greyed out

100%

End Call

Just Talk

Mute

SurfLink Mic

Connect

Mute

SurfLink Mic

100%

JustTalk –

use hearing device

microphones as voice

pickup option

SurfLink Mic – use

built-in microphones

on SurfLink Mobile as

voice pickup option

Mute – when

highlighted, caller

cannot hear your voice

End Call – terminates

phone call
