SVAT 2.4 GHz Wireless B/W Security System Manuale utente

Contents

What You Get ............................................................................................................................................... 1

Product Layout ............................................................................................................................................ 2

Setting Up .................................................................................................................................................... 6

Setting Up-Camera ..................................................................................................................................... 7

Setting Up-Monitor .................................................................................................................................... 9

Setting Up-Other Application ..................................................................................................................11

Orienting Units for Optimal Performance ..............................................................................................12

Auto-Sequence Function for Multiple Location Monitoring ...............................................................13

Troubleshooting .........................................................................................................................................15

Care and Maintenance ..............................................................................................................................16

Specifications ..............................................................................................................................................17

FCC Statement ..........................................................................................................................................18

Declaration of Conformity .......................................................................................................................18

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

What You Get

One Camera

One Monitor

Two Power Adapters

One Quick Installation Guide

This User's Manual

Note: The AC adapters CANNOT be interchanged. Use only the adapter labeled OUTPUT: 9V DC

with the camera. Use only the adapter labeled OUTPUT: 13.5V DC with the monitor

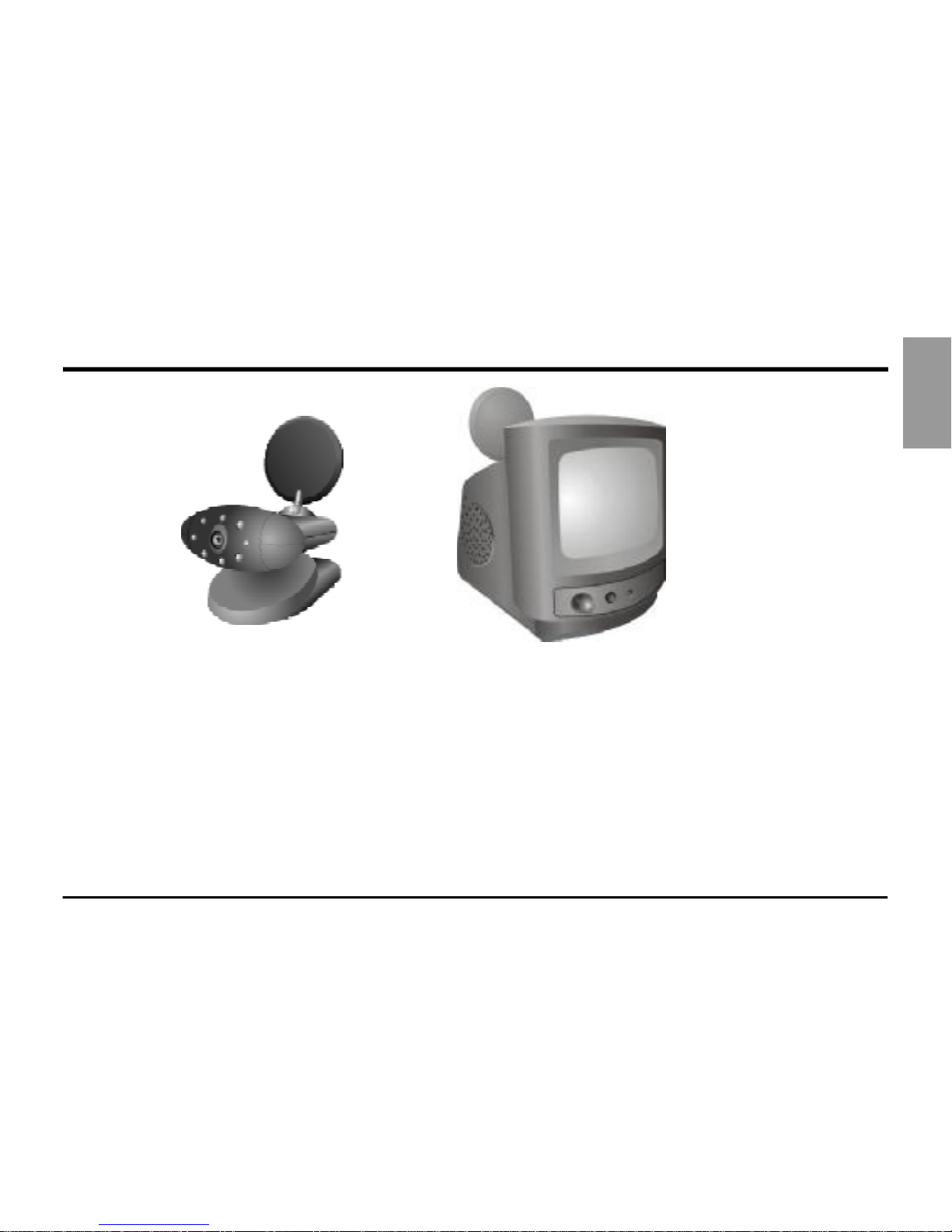

Receiver

English

Camera Monitor

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

Product Layout

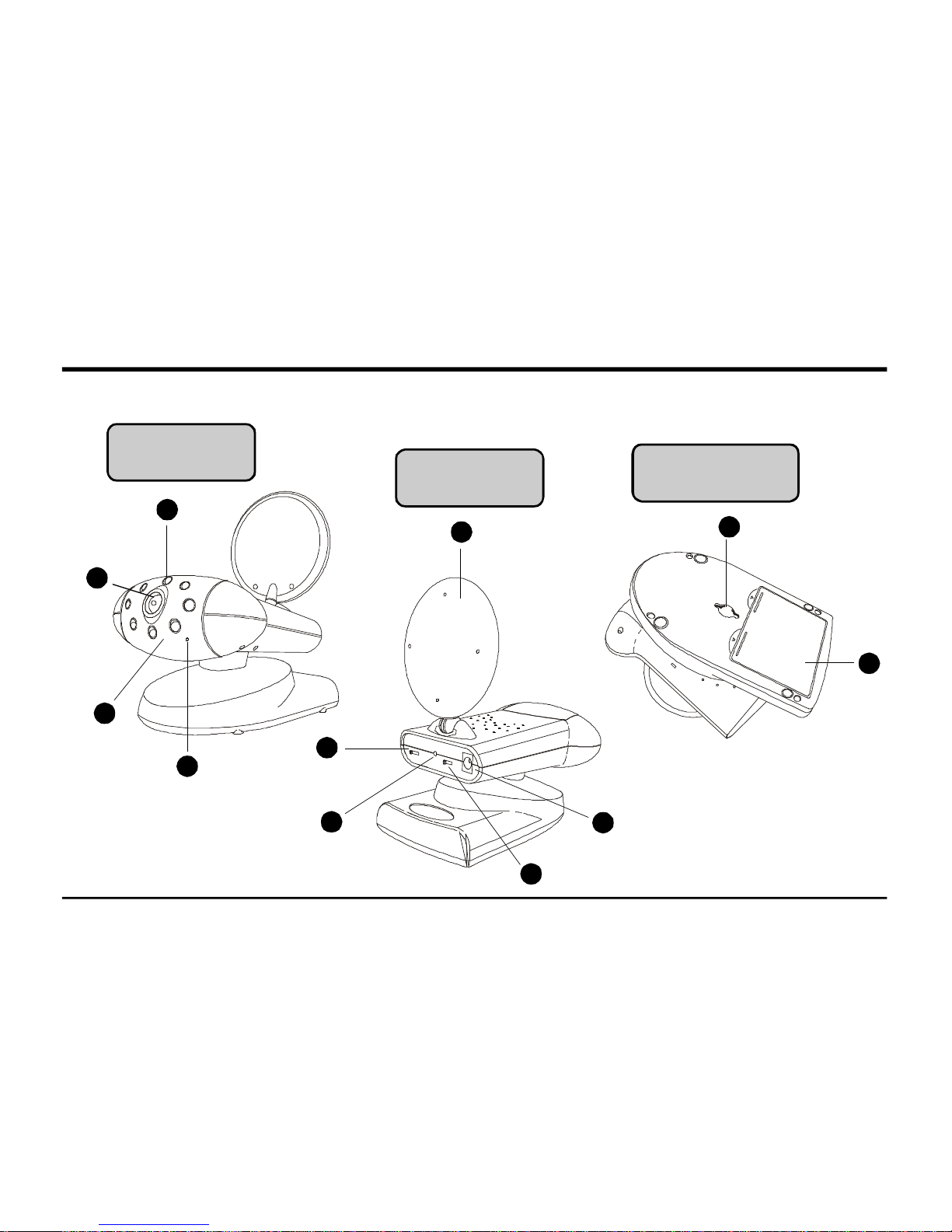

Front View of

Camera Rear View of

Camera

Bottom View of

Camera

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

Product Layout

Infrared LEDs

Eight LEDs to provide infrared light for night vision.

Lens

Focuses image automatically without any adjustment.

Lens Body

Rotates up to 180 degrees.

Microphone

2.4 GHz Audio/Video Antenna (Front )

Transmits audio/video signals. Caution: Antenna does not rotate freely through 360 degrees. (See "Orienting

Units for Optimal Performance", on page 12

Channel Selection Switch

Select the channel by sliding the slide switch to the channel number you want.

Must select the same channel on both the camera and monitor.

Power Indicator LED

OFF/ON/NIGHT

POWER ON/POWER OFF and NIGHT VISION ON switch.

9V Power Adapter Plug

Mounting Hole

Battery Compartment

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

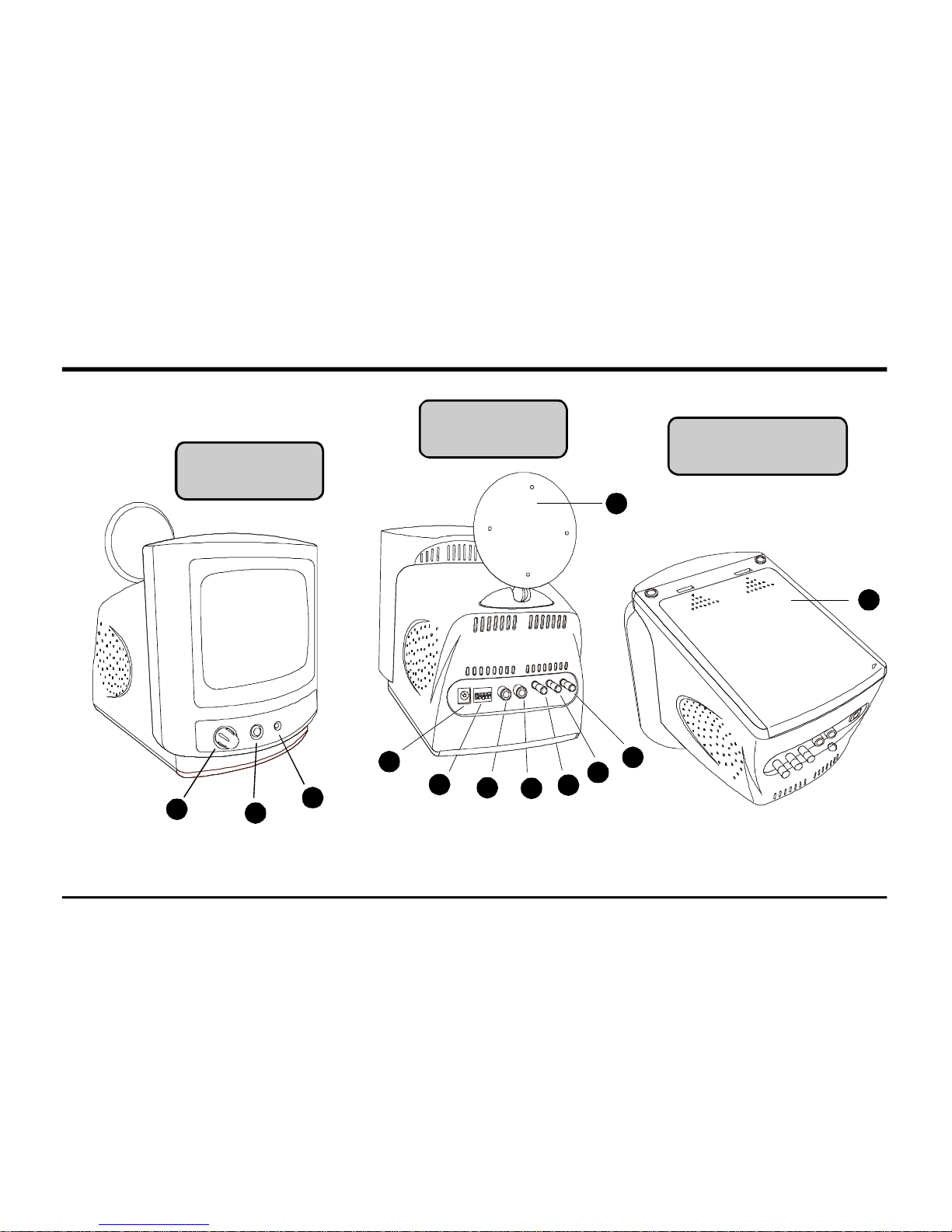

Front View of

Monitor

Rear View of

Monitor Bottom View of

Monitor

56789

410

Product Layout

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

Product Layout

Volume/Power Control

Screen ON/OFF

Screen can be turned off for audio monitoring only.

Power Indicator LED

13.5V Power Adapter Plug

Channel Selection Dipswitches

Select the channel by setting the channel dipswitch to the ON position. The number 5

dipswitch sets the timer for the auto-sequence function (see "Auto-Sequence Function for

Multiple Location Monitoring", on page 13 ).

Must select the same channel both on monitor and receiver.

Audio Output Jack (White)

Video Output Jack (Yellow)

V-HOLD

BRIGHTNESS

CONTRAST

2.4 GHz Audio/Video Antenna (Front )

Receives Audio/Video signals.

Caution: Antenna does not rotate freely through 360 degrees. (See "Orienting Units for Optimal Performance",

on page 12)

Battery Compartment

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

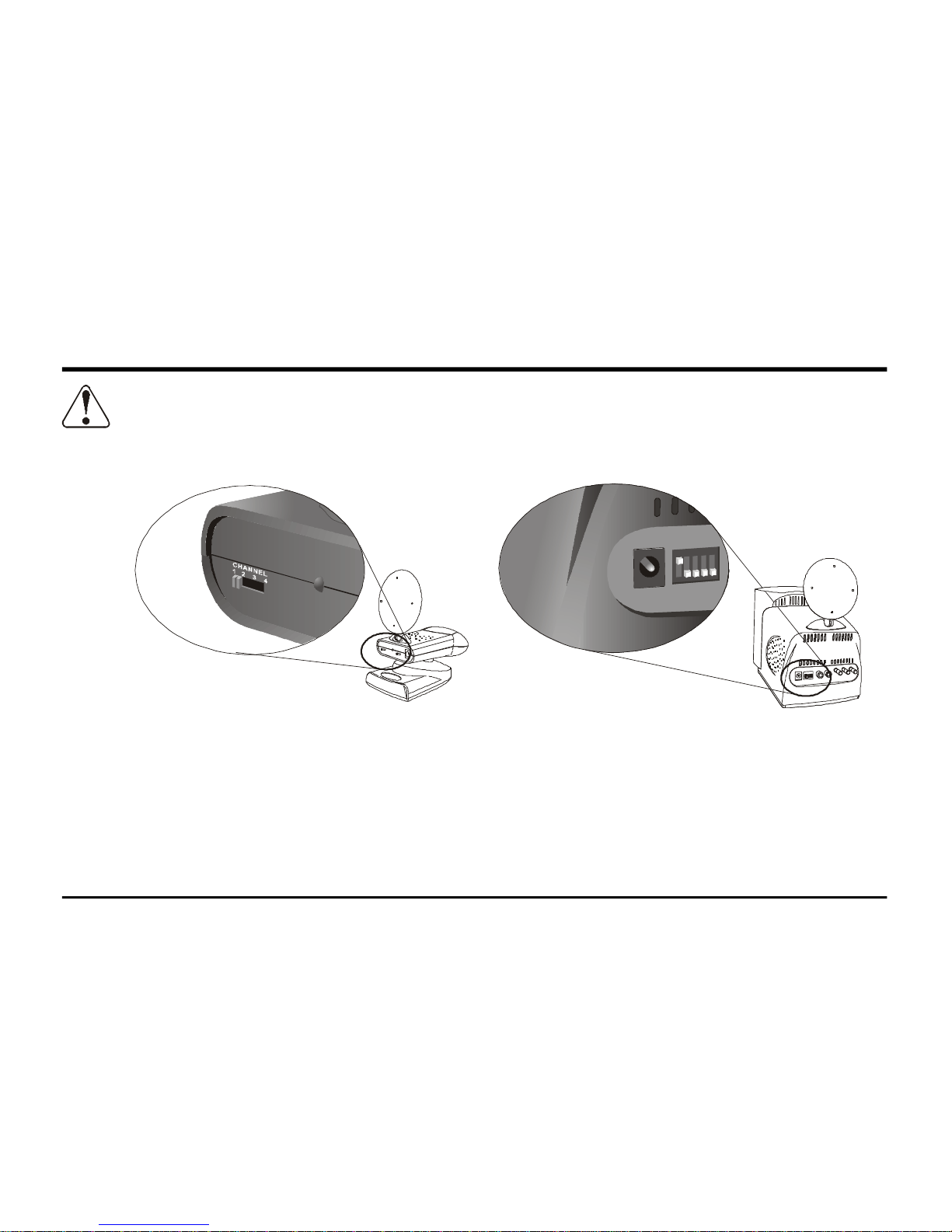

Setting Up

Before you make the connection:

Always make sure the unit ON/OFF switch is in the OFF position.

Set the channel switches on the back of the camera and monitor to the same channel.

If you wish to wall mount the camera, it is recommended that the receiver reception be

tested before fixing in place. Have one person hold the camera against the wall in the

selected mounting area while another checks reception on the monitor. If interference or

other problems are present, refer to the Troubleshooting section on page 15 of this manual.

You may need to select a different location in the room for mounting the camera.

Camera Monitor

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

Setting Up-Camera

Power Supply

1The camera uses either batteries (AA-size) or household AC current.

To Load Batteries

Open the battery compartment cover.

Slide the POWER Switch to the ON position. The LED on the back of the camera should

light.

Never mix old batteries with new ones.

Remove batteries from the camera if you do not plan to use it for a period of time.

Using AC Power

Plug one end of the provided power adapter into a wall outlet and the other end into the rear

of the camera. Note: Use the adapter labeled OUTPUT: 9V DC.

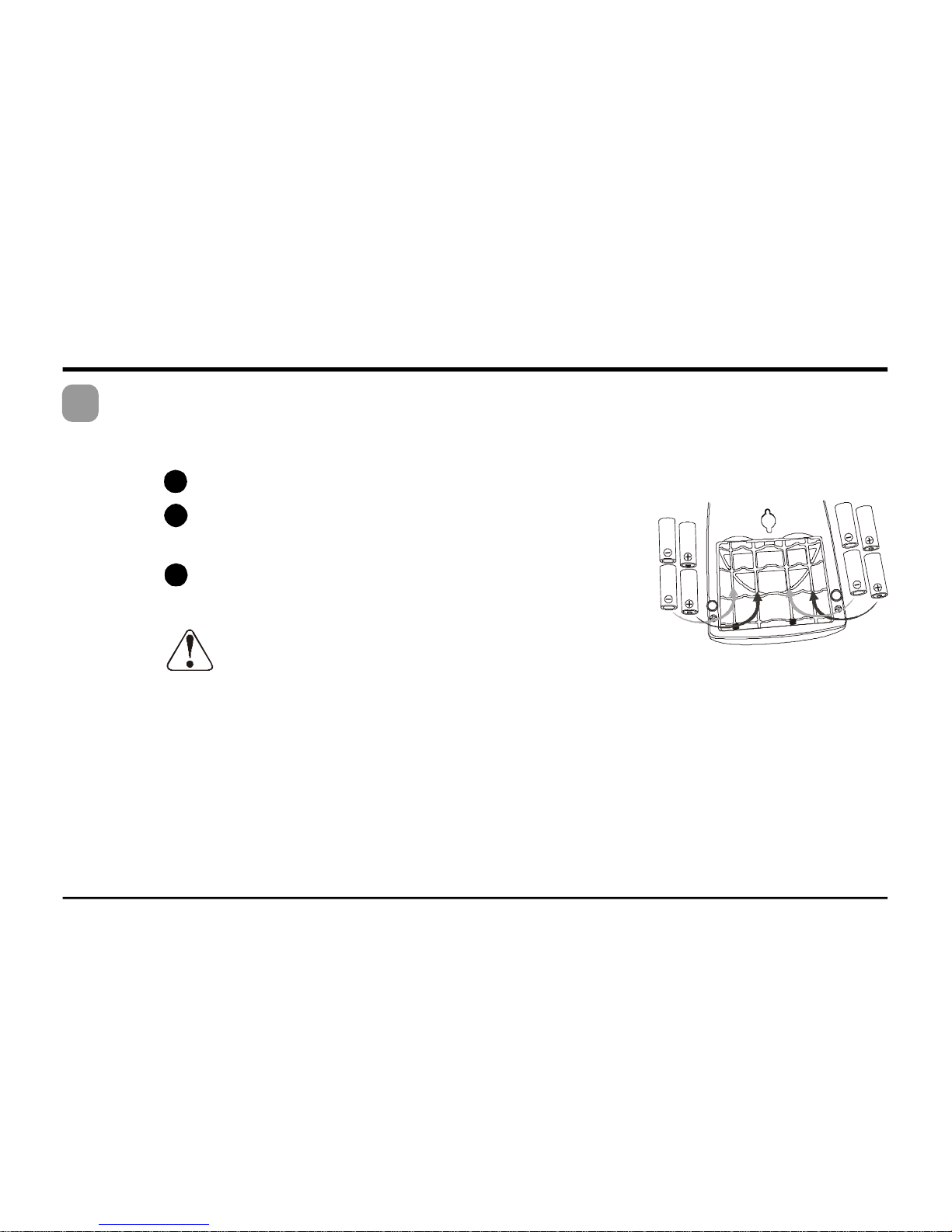

Insert batteries so their plus (+) and minus (-) ends are

facing as shown in the illustration.

Close the battery compartment cover. Make sure the

battery compartment cover is locked securely.

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com

Setting Up-Camera

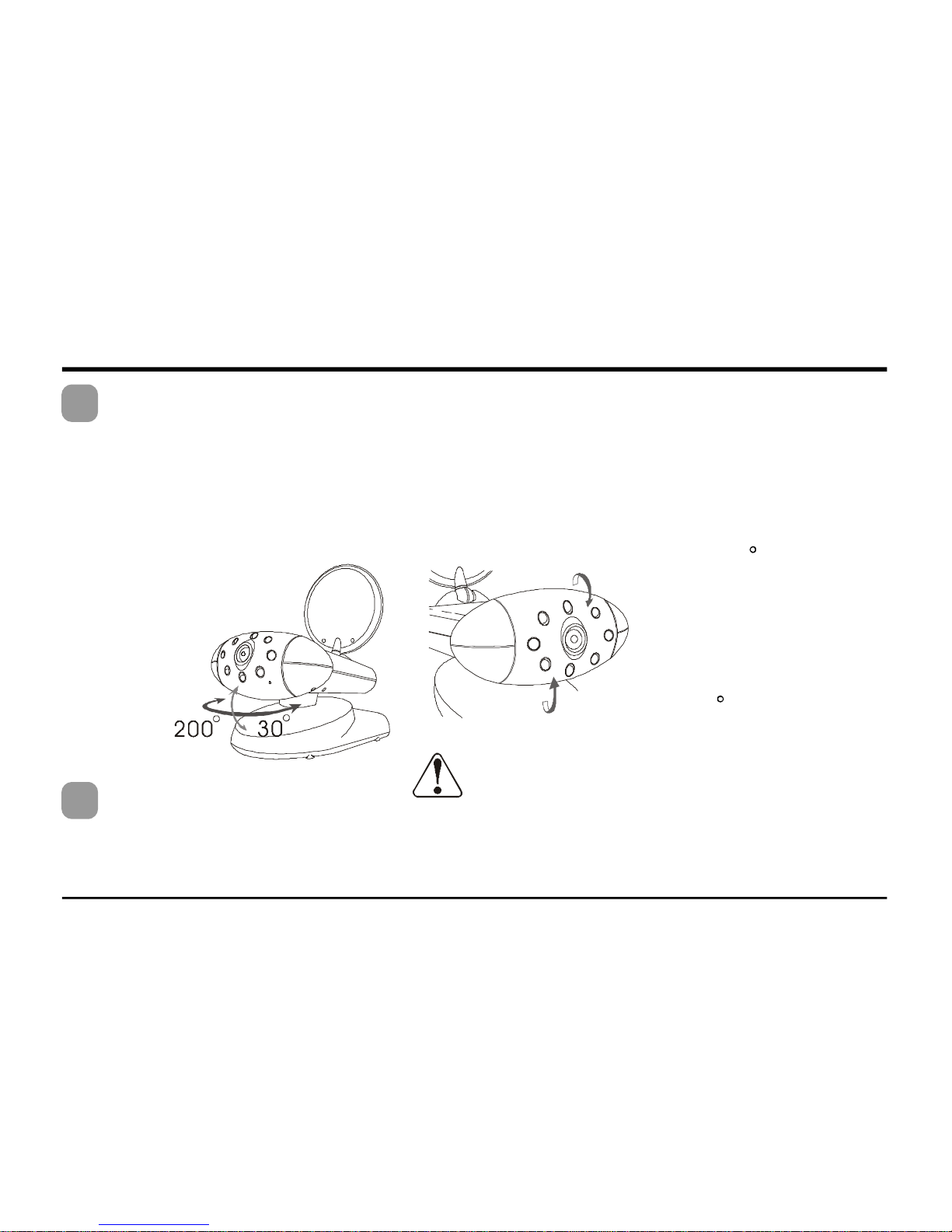

2Changing the Lens Orientation

Place the camera in a convenient location, point the lens towards the observation area and adjust

the angle by rotating the lens body. The camera's auto focus feature automatically focuses the

image.

The camera's head rotates horizontally up to 200 degrees and vertically up to 30 degrees. The

lens is built into a lens body that is designed to rotate vertically up to 180 degrees, allowing the

camera to cover the widest angles.

3Fine Tuning

Adjust the antenna so that the front (curved side) faces the room where the monitor is to be set

up. See "Orienting Units for Optimal Performance", on page 12.

Do not apply excessive force when rotating.

Doing so can cause serious damage to the camera.

Rotates up to 90

towards the back

Rotates up to 90

towards the front

PDFcreated with FinePrint pdfFactory trialversion www.pdffactory.com
