SVAT CVQ1000 Manuale utente

User's Manual

WIRED COLOR CAMERA WITH QUAD

PROCESSOR & REMOTE CONTROL

PLEASE READ CAREFULLY AND SAVE

This manual contains important information about this product's operation. If you

are installing this product for use by others you must leave this manual -or a

copy-with the end user.

Model No. CVQ1000

Important!

Please read this booklet carefully before installing or using these units.

WARNING-These units should ONLY be opened by an authorized technician if

service is required.

Safety Precautions

For correct and safe operation of this system, it is essential that installers,

end-users and service technicians should follow all safety procedures outlined in

this manual. Specific Warning and Caution statements (and/or symbols) are

marked on the units where needed.

Warning and Caution Statements

"WARNING" indicates a situation where failure to follow proper procedures can

cause personal injury. "CAUTION" indicates a situation where failure to follow

proper procedures can cause damage to the equipment.

1. 4 Channel Switcher Box x 1 set

2. Remote Control x 1 pc

3. Color Camera With Mounting bracket x 4 pcs

4. 60ft Cable x4pcs

5. Video Cable x 1 pc

6. 12V DC Adaptor for the Switcher x 1 pc

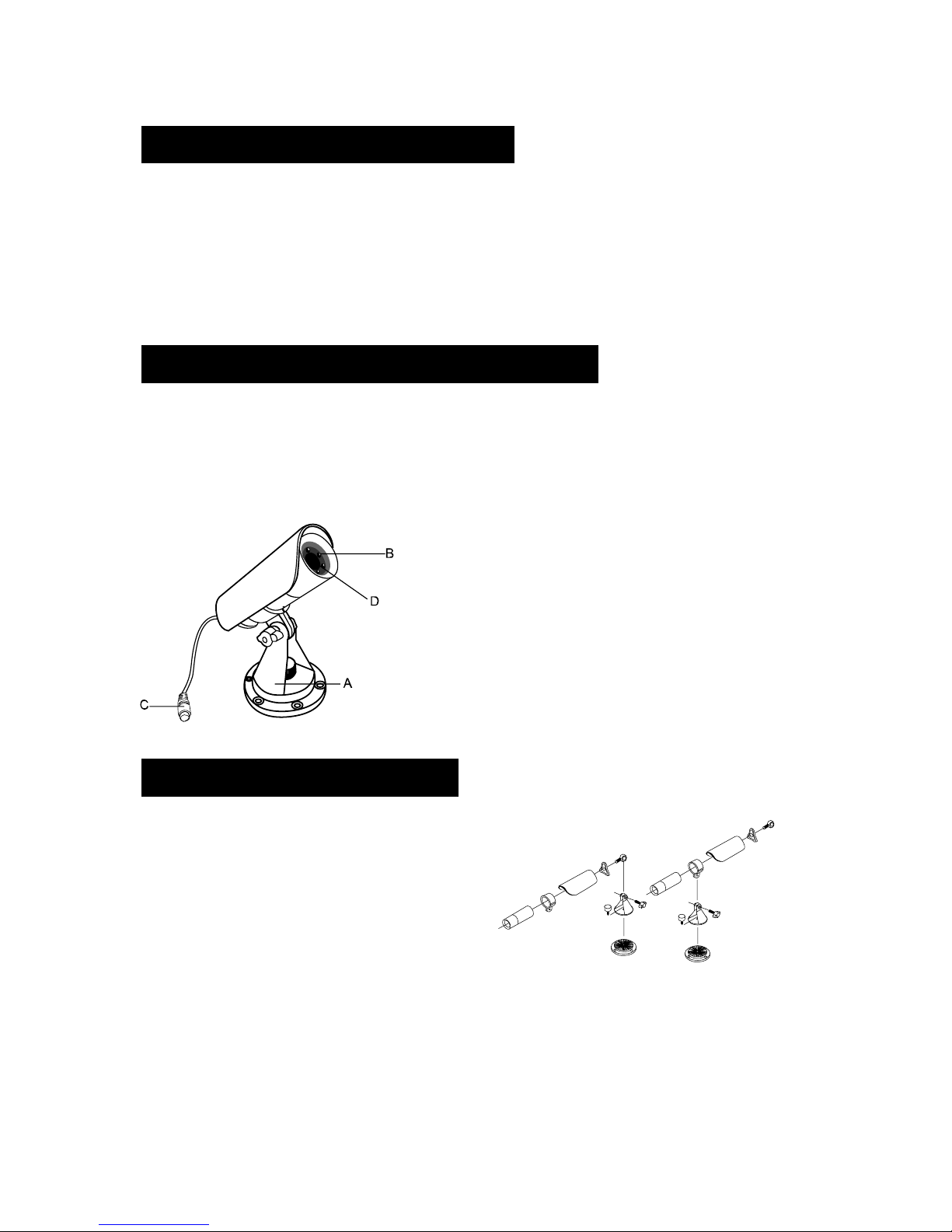

Parts of the Camera

A. Mounting bracket

B. IR LED

C. Camera Din Connector

D. Camera Lens

A. Camera Installation

1. Install or mount the camera at the desired

location. Do not place camera in a location

subject to direct sunlight or bright light.

2. The coaxial cable supplied has one end

with a DIN connector (Male) and the

opposite end with a DIN connector (Female).

Slowly insert the DIN plug into the back of

the camera being careful to align the DIN

plug correctly.

3. The camera body could be adjusted up and down by

loosening screw A and tightening up at desired angle B.

4. The camera body could be rotated

around the mounting bracket D. by adjusting screw C for any direction (360 degree).

Parts Included with This System

Parts of the System

Installation and Adjustment

B. SWITCHER Installation

1. Connect the adaptor to the adaptor jack [DC IN] and plug it to a wall outlet.

2. Connect the DIN plug to the output jack, connect the other end to your TV or monitor.

3. Connect the DIN jack to the camera DIN plug.

4. After connecting all the cameras; apply DC12V power supply to system, the power

indication LED will light up and indicate camera number on channel display LED.

A. Connects up to 4 Video Camera

Adjustable Brightness, Contrast, Saturation, Hue and Sharpness

B. High Resolution

860X525 60Hz for NTSC

860X625 50Hz for PAL

C. Various Display Modes

QUAD Mode

Full Screen Mode

PIP Screen Mode

System Features

1 PIP Screen Mode

2 PIP Screen Mode

Auto Sequence Mode

D. High Performance Freeze Function

Flicker Free Image Captured

E. High Performance Zoom Function

Selectable Zoom Area

F. Various Overlay Information

Camera Title

Real Time and Date

Alarm/Loss/Motion Message

G. Provide Various Event Input

Video Loss Detection

Motion Detection

60 Event Report

Built-in Buzzer

H. Power Jack Connection

DC 12V/1A, 2.1mm Jack, Center is positive.

Front panel.

1. Power Led.

2. Zoom Led.

3. Freeze / Auto scan Led.

4. Ok / Enter button.

5. Freeze / Auto scan button.

6. Infrared ray receiver.

7. Camera 1 button.

8. Camera 2 button.

9. Camera 3 button.

10. Camera 4 button.

11. Quad / Menu / ESC

12. Output jack to monitor or TV Video input

13. - 16. Camera connector

17. Adapter jack

Description Of Control

When each button is pressed, the corresponding LED above the button will be ON.

1. Press button FREEZE / AUTO for 3 second to get the sequential displays of channel 1,

channel 2, channel 3, channel 4, and Quad respectively and proceed in cycle. Or press the

button less than 1 second to freeze the picture on the display, press again to unfreeze.

2. Press MENU button for 3 second to enter SETUP MENU. This button can also be used as

EXIT.

3. Press button (C1) to get full screen display for Channel 1. This button can also be used

to move the cursor up/left while setting the menu.

4. Press button (C2) to get full screen display for Channel 2. This button can also be used

to move the cursor down/right while setting the menu.

5. Press button (C3) to get full screen display for Channel 3. This button can also be used

to increase the setup value or move the cursor left while setting the menu.

6. Press button (C4) to get full screen display for Channel 4. This button can also be used

to decrease the setup value or move cursor in right direction while setting the menu.

1. Menu

2. Freeze

3. Zoom

4. Auto

5. Quad. mode

6. PIP 2

7. PIP 1

8. Separate Camera

9. Camera1

10. Camera 2

11. Camera 3

12. Camera 4

13. Enter

14. Move up

15. Move left

16. Move down

17. Move right

Functions of Control Buttons

Remote Control

1. MENU button:

Please see menu setup section.

2. FREEZE button:

Press any channel to get full screen display, and then press FREEZE to freeze the picture.

Press FREEZE again to unfreeze.

3. ZOOM button:

Press ZOOM button to achieve zoom in display.

Press buttons to choose zoom area.

Press Zoom button again to achieve zoom in display.

Press buttons to get full area display or press ZOOM to re-choose zoom area

4. AUTO button:

Press AUTO to get the sequential displays of channel 1, channel 2, channel 3, channel 4,

and Quad respectively and proceed in cycle. Make sure that each channel is in a state of

ON while setting auto sequence in the menu.

5. QUAD. button:

Press QUAD button while in full screen mode display to display pictures in quad.

6/7. PIP button:

Press PIP button to get PIP (picture in picture display). Channel 1 is the default for Full

screen, and Channel 2 is the default for Sub-screen.

8. Separate cameras button:

Press to view 2 cameras at same time

9. Camera 1 button:

Press to view full screen of camera 1

10. Camera 2 button:

Press to view full screen of camera 2

11. Camera 3 button:

Press to view full screen of camera 3

12. Camera 4 button:

Press to view full screen of camera 4

Press MENU to setup the menu at any mode.

1. How to set the menu:

yPress MENU to enter main menu.

yPress buttons to move the highlight

section and choose the desired section. Press OK

to enter the desired section. To exit, press MENU

button again.

Remote Control Functions:

Menu Setup

A. System setup:

yDate / Time: Press to move the cursor to the

desired section wish to adjust. Press to

adjust the section.

ySystem Format: Choose PAL / NTSC

yKey lock: To enable / disable button on the system box.

yFactory reset: To reset to factory default setting.

yTo exit, press MENU button again.

B. Display setup:

yDisplay on screen: To display title / date / time on the

screen by check the box beside. To disable by

un-checking the box.

yScreen position: To adjust camera viewing area by

adjusting X (horizontal) and Y (vertical). Border color:

To change the color or camera's border.

To exit, press MENU button again.

C. Auto sequence:

yTo enable or disable auto sequence function.

Each channel can be set to ON or OFF

respectively. And the switching time can be

set from 1sec to 99sec..

yTo exit, press MENU button again.

D. Camera setup:

yCamera 1: Press to switch desired

camera.

yTitle: Press to move the cursor,

and press to adjust character.

yPress to adjust Brightness, Contrast,

Saturation, Hue and Sharpness.

yTo exit, press MENU button again.

E. Motion setup:

yCamera 1: Choose desired camera.

yDetection Time: To enable / disable detection

of the cameras.

yMasking area: To disable some area you wish

not to detect.

yTo exit, press MENU button again.

F. Event setup & Event report:

yLoss: If any camera loss its signal, the report will

go to Event report.

yMotion: Any motion detected in front of camera,

the report will go to Event report.

yBuzzer hold time: To enable or disable buzzer

function and can be set from OFF to 99 sec..

yReport hold time: To enable or disable the report

function and can be set from OFF to 99 sec.

y6 pages of "EVENT REPORT" are available in

this system.

yReport can be deleted by choosing "YES" on

LIST CLEAR section.

yTo exit, press MENU button again.

yPress any button except "OK" on the switch

box to clear the alarm noise.

yAlarm / Alarm Polarity: To enable the Power-On

alarm, all 4 alarm checks should be ticked

together with Alarm Polarity to be set "High".

Camera Remote Control/Switcher

Frequency N/A 310/434 MHz (switcher)

Channel Scan Period N/A 1-99sec (adjustable)

IR LED 11 N/A

Video Format NTSC/PAL NTSC/PAL

H Resolution 330 TV Lines N/A

Operation Temp -10~50oC N/A

Power Consumption 0.22W 100mA

Power Supply From Switcher DC 12V /1A Adapter

Video Input N/A DIN x 4

Video Output 1 Vp-p/75 ohm DIN x 1

Size (mm) 105x55x86 mm 218x202x44 mm

Accessories 60ft Cable for camera DC 12V DC/1A Adapter

Camera Module

Lens 6.0mm/ F2.0 Fixed Focus

Image Sensor 1/3'' CMOS

Pixel 860x525 60Hz (NTSC), 860x625 50Hz (PAL)

Resolution 330 TV Lines

Illumination < 0 LUX w/ F2.0 Fixed Focus (30 feet)

E Shutter Speed 1/60 to 1/15,000 second

S/N Ratio >48db

Product Specification
