SVAT CLEARV U6 Manuale utente

CLEARVU6 QUICK START GUIDE

STEP 1: Camera Installation

For more information on your SVAT product please visit: www.svat.com

1. Screw the mounting bracket into the camera’s

mounting hole, turning it clockwise.

2. Mount the camera in the desired location no

more than 60 feet from the TV/Monitor/VCR

DVR unless you have purchased additional

wiring. You may wall mount or desk mount

these cameras.

3. Adjust cameras to the desired viewing

angles.

4. Plug the 4 PIN DIN female connection

on the camera into the 4 PIN DIN male

connection on the 60ft video/power wire.

5. Match the two arrows on top of both

connecting cables.

6. Plug the camera’s power supply into the

power jack located on the 60ft video/power

wire.

7. Plug the camera’s power adapter into an AC

outlet.

Follow these instructions for the installation

of each camera. The 60ft video/power wire

has two connections: one for video out, and

one for power.

NOTE: The CV67 does not support audio.

CLEARVU6 QUICK START GUIDE

STEP 2: Monitor Installation

For more information on your SVAT product please visit: www.svat.com

9. Plug the “3.5mm to RCA (female) wire”

into the AV1/IN port on the monitor.

10.Plug the camera’s RCA output plug into the

video input (yellow) end of the “3.5mm to

RCA male wire.”

11.Repeat steps 1 and 2 for connecting a

second camera to the AV2/IN port on the

monitor.

NOTE: Please review the manuals

for the included camera and monitor

which can be found in their respective

packages.

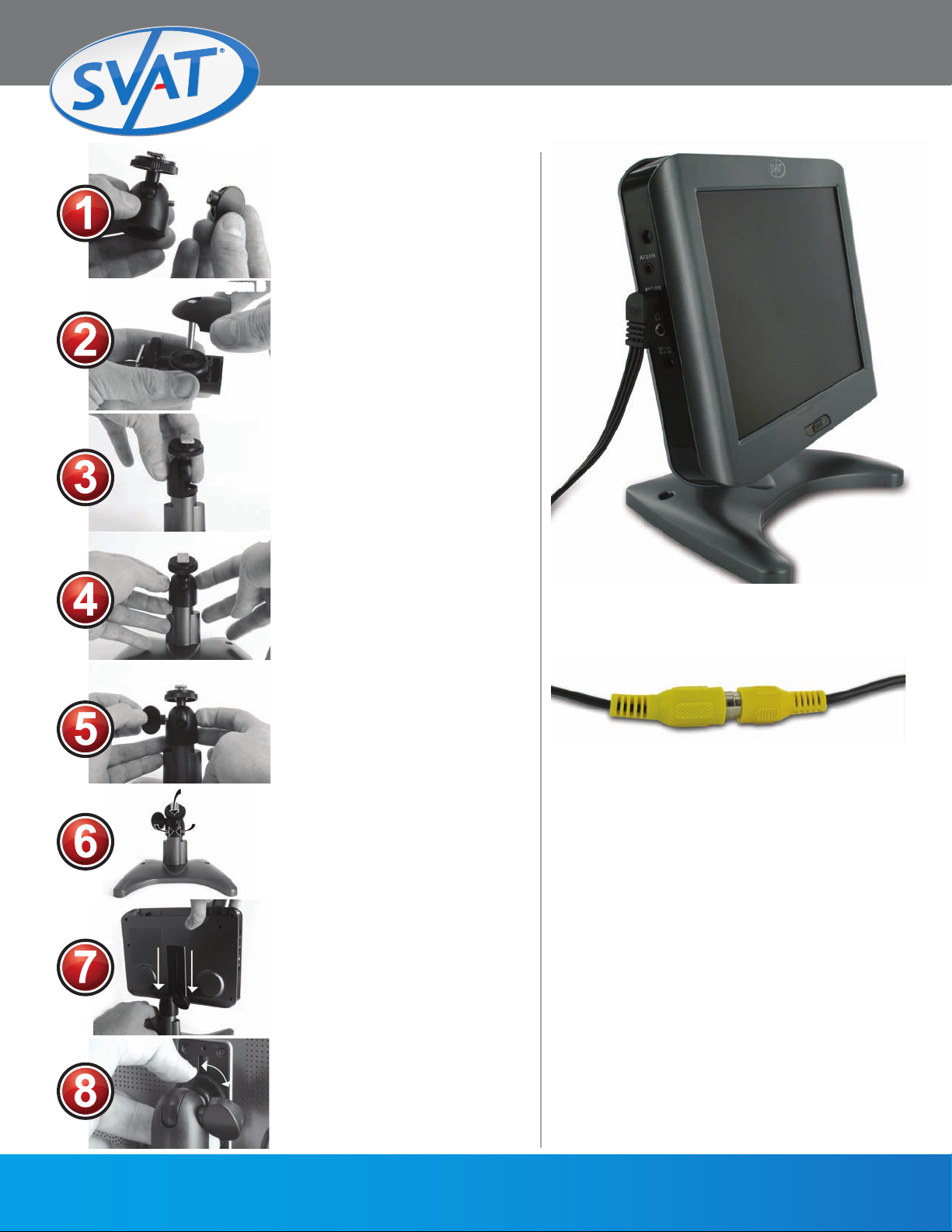

1. Hold the adjustment head as

shown in Diagram A. Remove

the wingnut (part 1) by turning

it counter-clockwise. Make

sure you hold the adjustment

head tightly while moving the

wingnut.

2. Holding the adjustment head

on its side as shown in Diagram

B, lift part 2 (including the

screw)

3. Holding parts 3 and 4 securely

as shown in Diagram C, connect

part 3 and 4 to the top of the

mount stand.

4. While continuing to hold parts

3 and 4 securely, insert part 2

(including screw) into parts 3

and 4 as shown in Diagram D.

5. While holding the adjustment

head as shown, thread the

wingnut onto the screw by

turning the wingnut clockwise.

6. If you need to adjust the

mounting plate or adjustment

head, loosen the wingnut

slightly, adjust, and retighten.

7. If necessary, loosen the

mounting plate knob by it

turning counter-clockwise.

Slide the mounting plate into

the monitor’s mounting rail as

shown.

8. Secure the mounting plate

to the monitor by turning

the mounting plate knob

clockwise.

Diagram A

Diagram B

Diagram C

Diagram D
