Swann DVR4-1300 Guida rapida
www.swannsecurity.comSwann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: tech@swannsecurity.com
.com

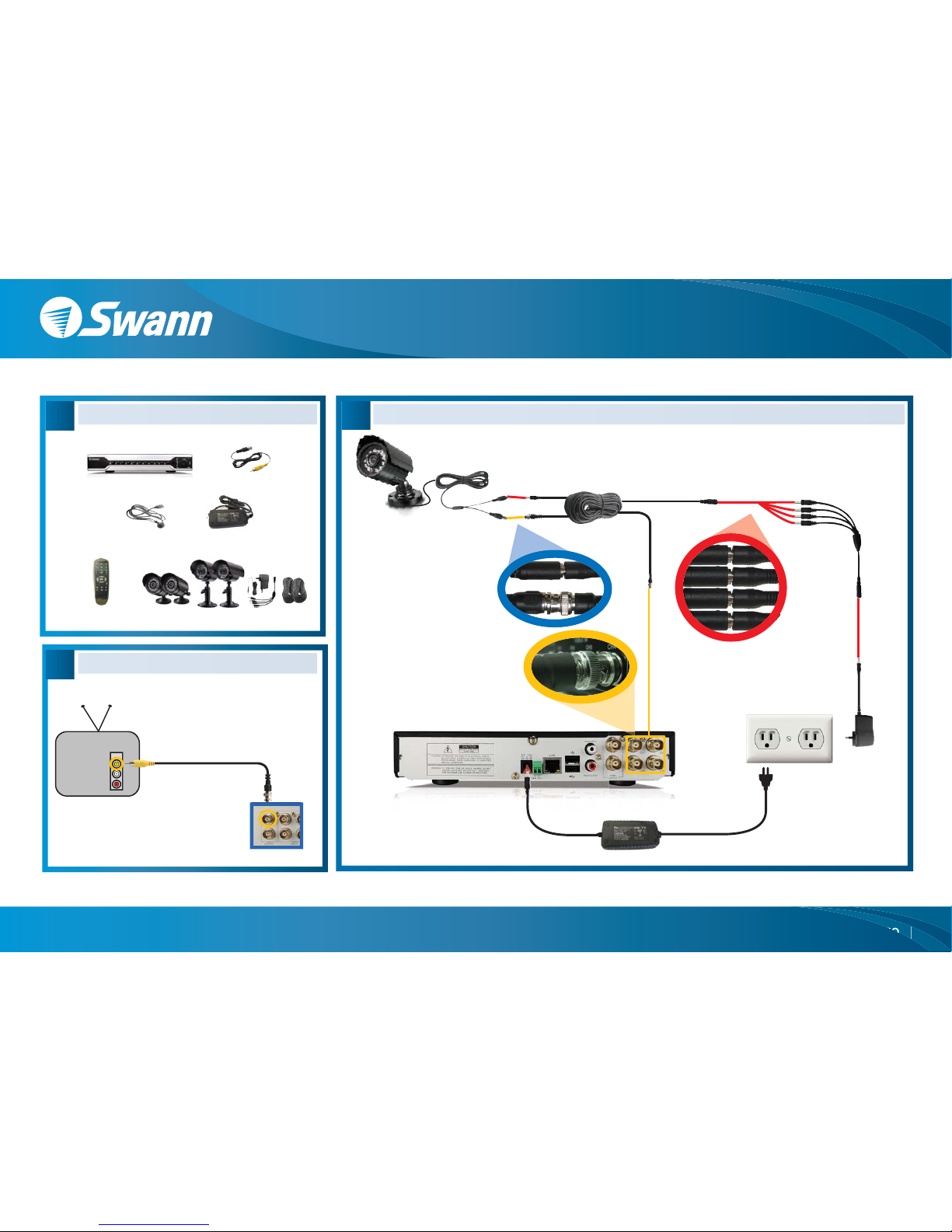

Easy Setup Guide DVR4-1300
Connecting the DVR to TV
C
Back of DVR
Back of TV
INPUT
Connect the RCA end of the
RCA to BNC cable to the
back of the TV INPUT
socket
1
Connect the BNC plug end
of the cable to the top
VIDEO INPUT socket on
the back of the DVR
2
Tune your TV to the
correct INPUT - this is
sometimes labelled A/V,
input, source, L1, L2, etc.
- consult TV manual for details
3
A
BNC to RCA Cable
Power Adapter
Cable
Remote
Control
DVR Power
Adapter
DVR4-1300 Unit
Easy Set Up Components
Cameras and Accessories Optional
BCamera Connections
Cameras Optional
1Connect the DC power sockets on the extension
cables to the power splitter’s DC plugs.
3
Connect the power
splitter’s DC socket
to the DC plug on
the power supply.
4
Plug in the DVR and
camera power adapter to
power outlets.
5
Connect the other end of the BNC
plug of the extension cable to the
camera connections on the back of
the DVR.
2
Connect the camera cable’s BNC
socket & DC socket to the BNC
plug & DC plug on the extension cable.
E41300H181110E
DVR4-1
300
U
n
it
